Description

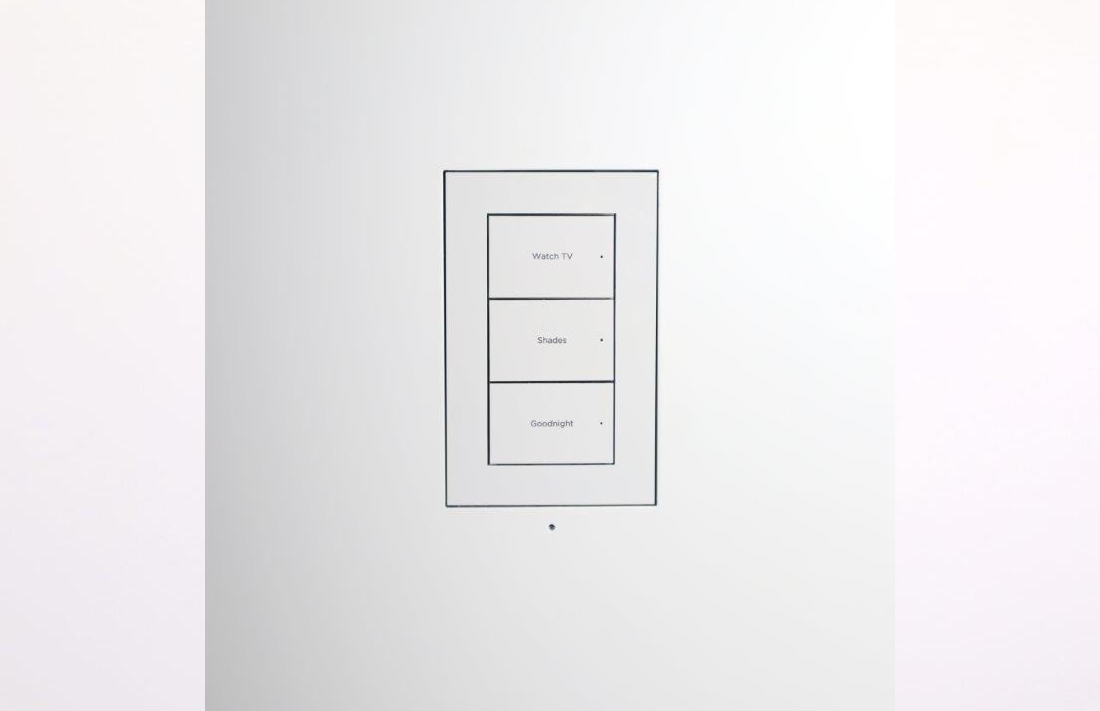

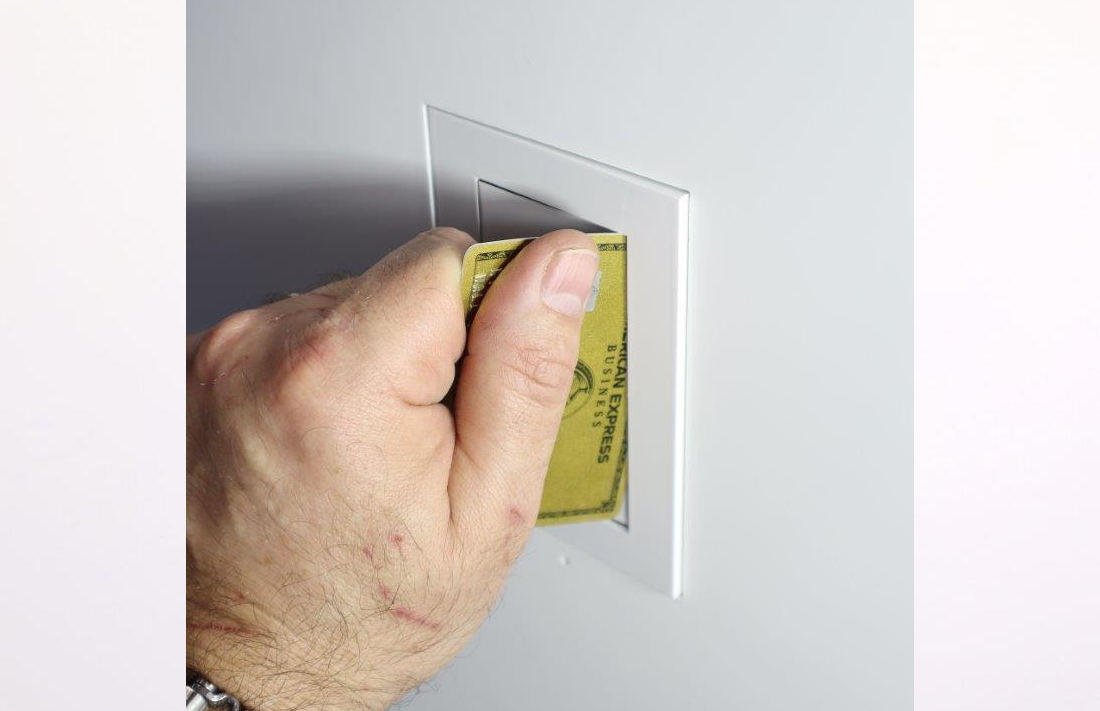

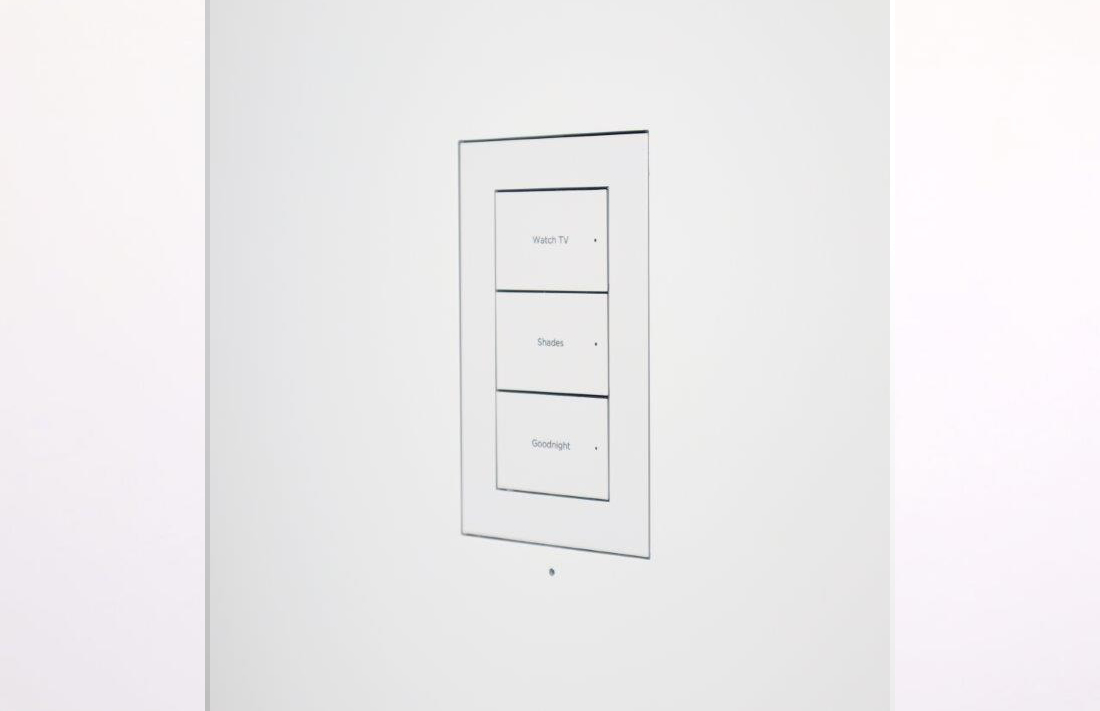

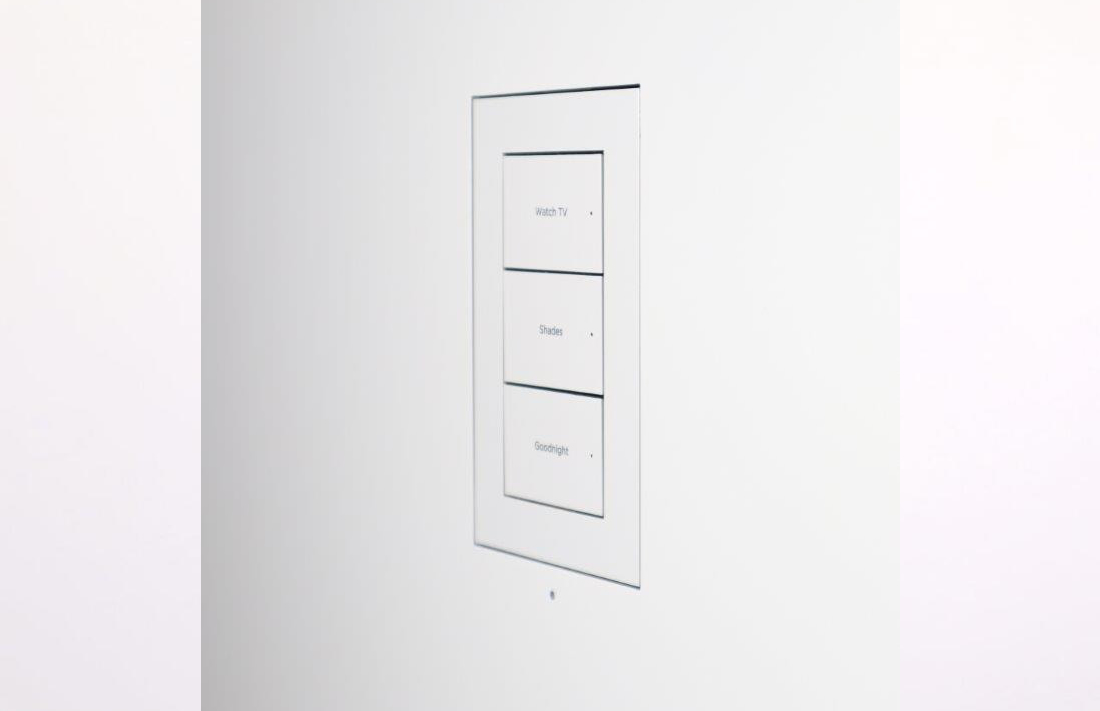

The in-wall flush mount adapter provides a clean, low-profile installation solution for Control4 LUX 1-gang faceplates and C4-L-XX devices. It is designed to hold the LUX 1-gang device firmly while allowing easy insertion and removal. This adapter integrates into the wall plane to deliver a near invisible finish that aligns with standard drywall systems.
Key features include a depth calibration mechanism, paintable surface, and a flush mounting profile that minimizes protrusion. The adapter is paintable to match wall color and texture and is supplied unpainted to be finished after installation. The depth calibration function allows installers to set exact alignment for varied wall thicknesses and finishes.
Technical details include compact external dimensions and a low weight for simplified handling. The adapter requires no power source and is constructed from moisture resistant MDF compliant with TSCA Title VI. This construction provides a stable substrate for finishing and long-term durability in interior wall applications.
Compatibility is focused on the C4 LUX 1-gang faceplate and C4-L-XX devices; the adapter accepts these devices for a secure fit. For concrete or block wall installations a separate concrete adapter P/N 10-01-380 is specified and installation instructions are provided by Wall-Smart. Installers should refer to the published Wall-Smart installation instructions prior to fit-out to confirm placement and mounting steps.
Typical applications include residential automation nodes, lighting control panels, and AV control surfaces where a flush aesthetic is required. The adapter is well suited to new construction and retrofit scenarios where a paint-matched finish is desired. It provides a professional result in living rooms, conference rooms, hotel rooms, and other finished interiors.
Installation follows standard drywall construction practices and is intended for 1/2″ drywall thickness unless using the concrete adapter option. The adapter is supplied unpainted so finishing occurs after installation as part of the wall surface. Overall, the unit simplifies integration of C4 LUX 1-gang devices while maintaining a refined finished appearance and reliable mechanical support.
