Description

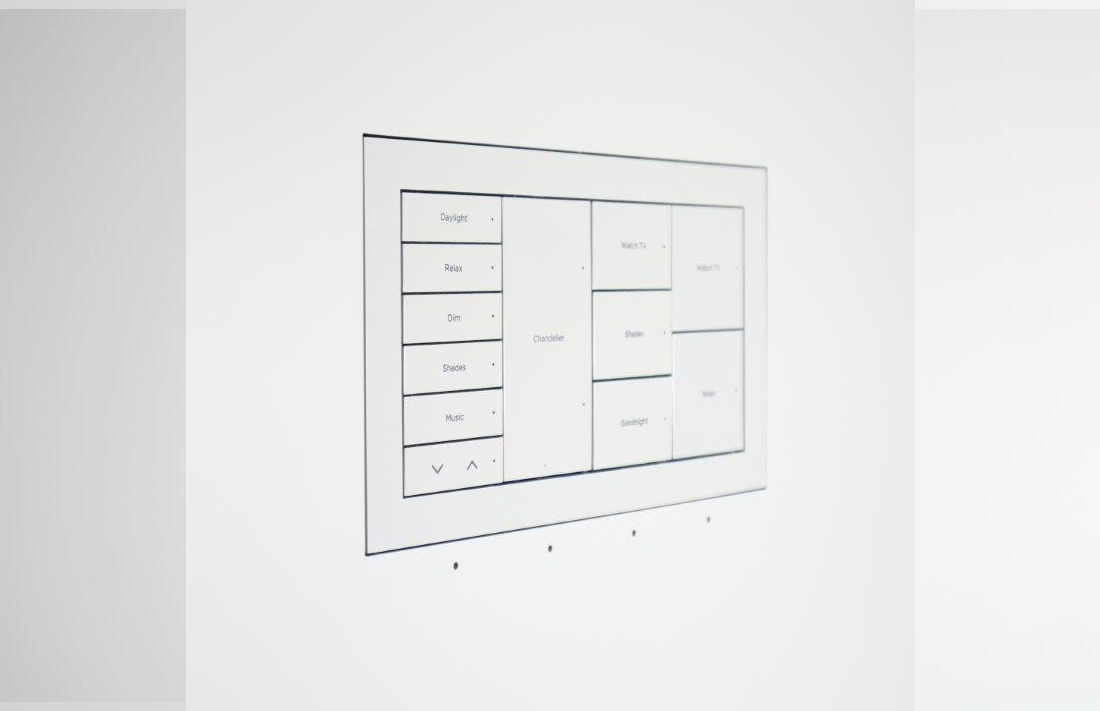

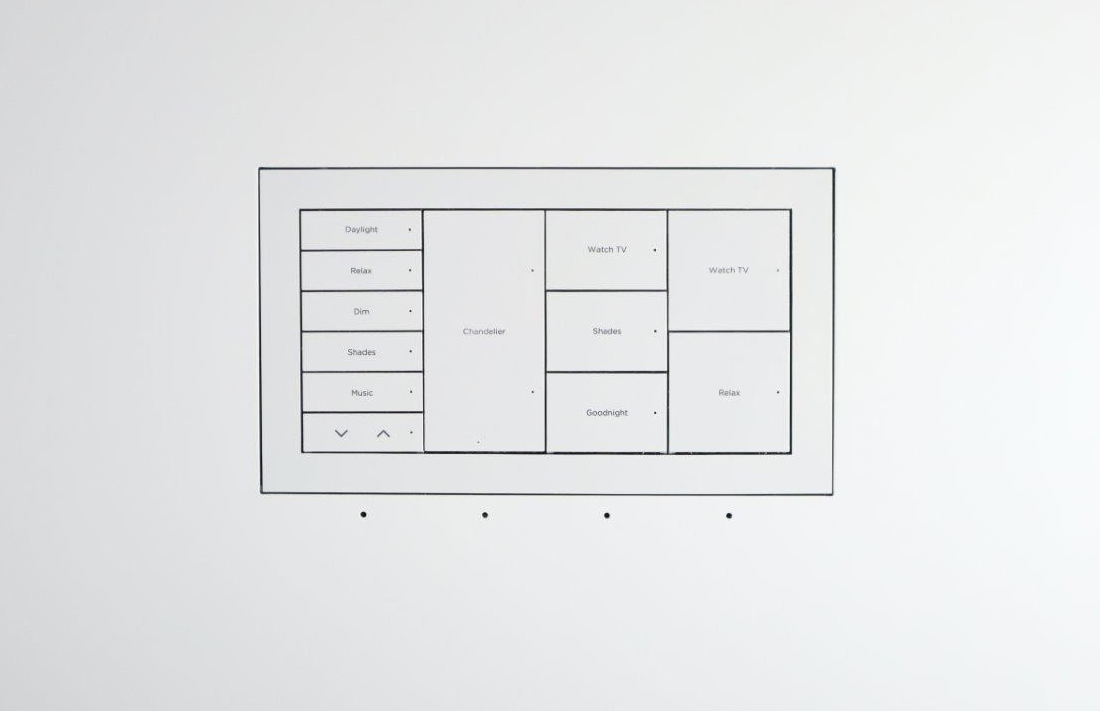

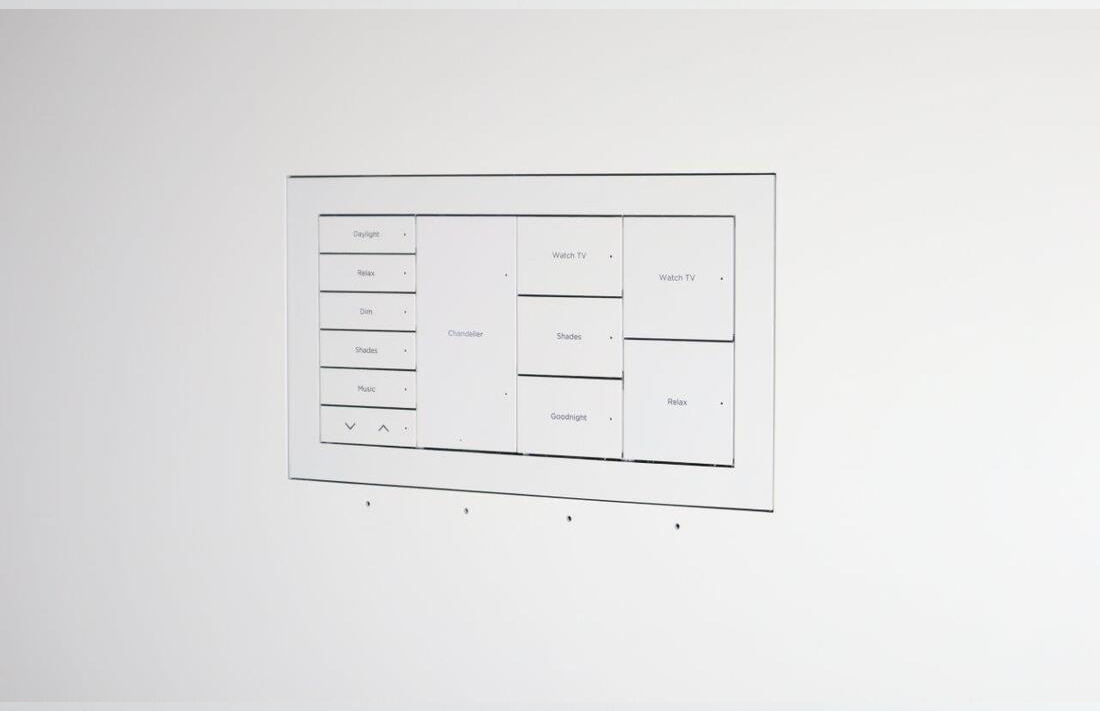

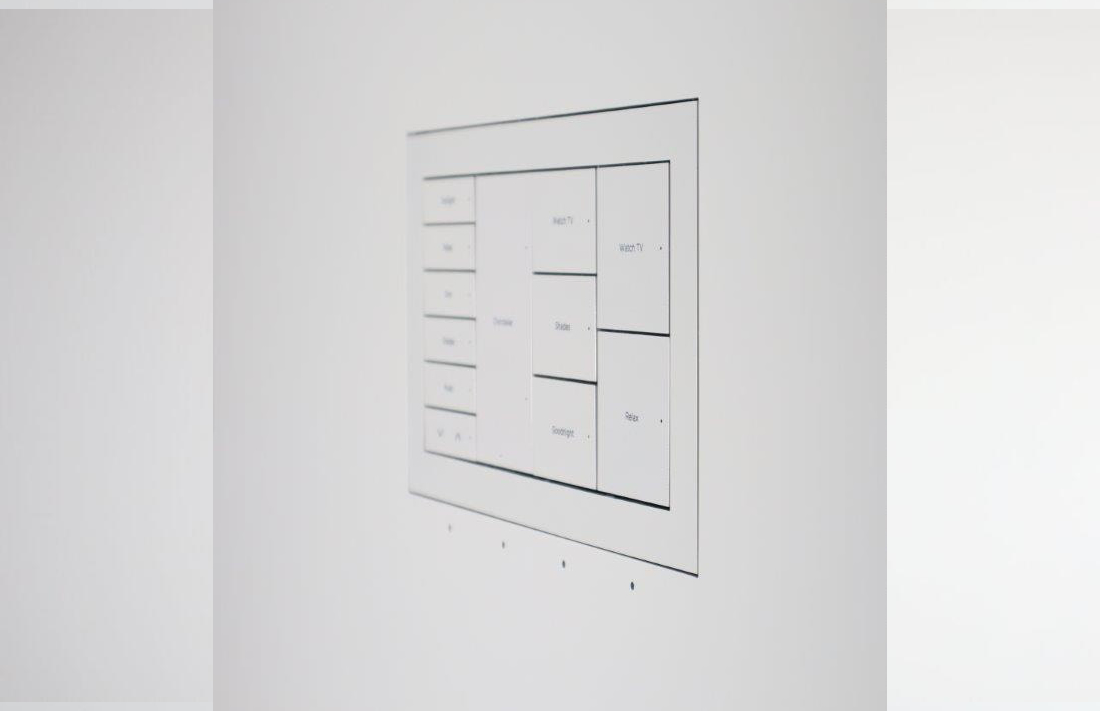

The in-wall flush mount adapter is designed to house C4 LUX 4-gang faceplates and C4-L-XX devices in a clean, recessed installation – it provides a flush finish that integrates with standard drywall. This adapter secures compatible modules while preserving user access for operation and service. It is supplied unpainted so it can be finished to match the surrounding wall surface.
Key features include a paintable moisture-resistant MDF construction, a depth calibration mechanism to set flush alignment, and a design that enables easy insertion and removal of compatible faceplates and devices. The adapter is intended for in-wall, flush installations and maintains a low profile once installed. The surface can be painted or textured as part of normal wall finishing.
Technical specification highlights include a width of 306.88mm, height of 203.2mm and depth of 44mm, with a nominal weight of 0.5 kg. The adapter requires no power and is a passive mounting accessory. Material selection is moisture-resistant MDF compliant with TSCA Title VI to meet indoor finish and regulatory expectations.

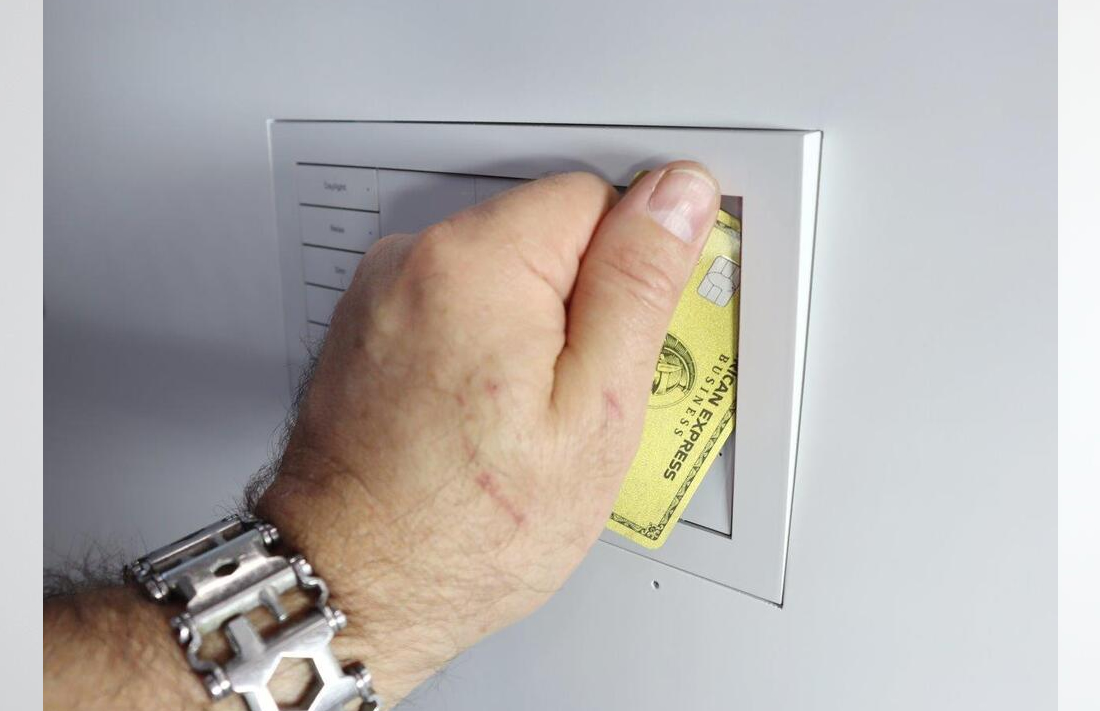

Compatibility is focused on C4 LUX 4-gang faceplates and C4-L-XX devices – the adapter accepts those modules and provides secure mounting while allowing tool-free device removal when needed. The unit is designed to install into 1/2″ drywall common in residential and commercial interiors. It is not a device controller or power source; it is a mechanical mounting solution only.
Typical applications include residential AV installations where equipment is recessed for aesthetics, hospitality environments that require concealed AV modules, and commercial meeting spaces that need a durable flush wall finish. The adapter supports installations where paint-matched walls and tight fitting faceplates are required. It is intended for use where a neat, factory-like recessed appearance is desired.
Installation follows standard drywall construction practices and includes a depth calibration mechanism to ensure faceplates sit flush with the finished surface. The adapter is supplied unpainted and should be finished after installation as part of the wall surface. Refer to the referenced installation instruction number for detailed mounting steps and site preparation guidance.
