Description

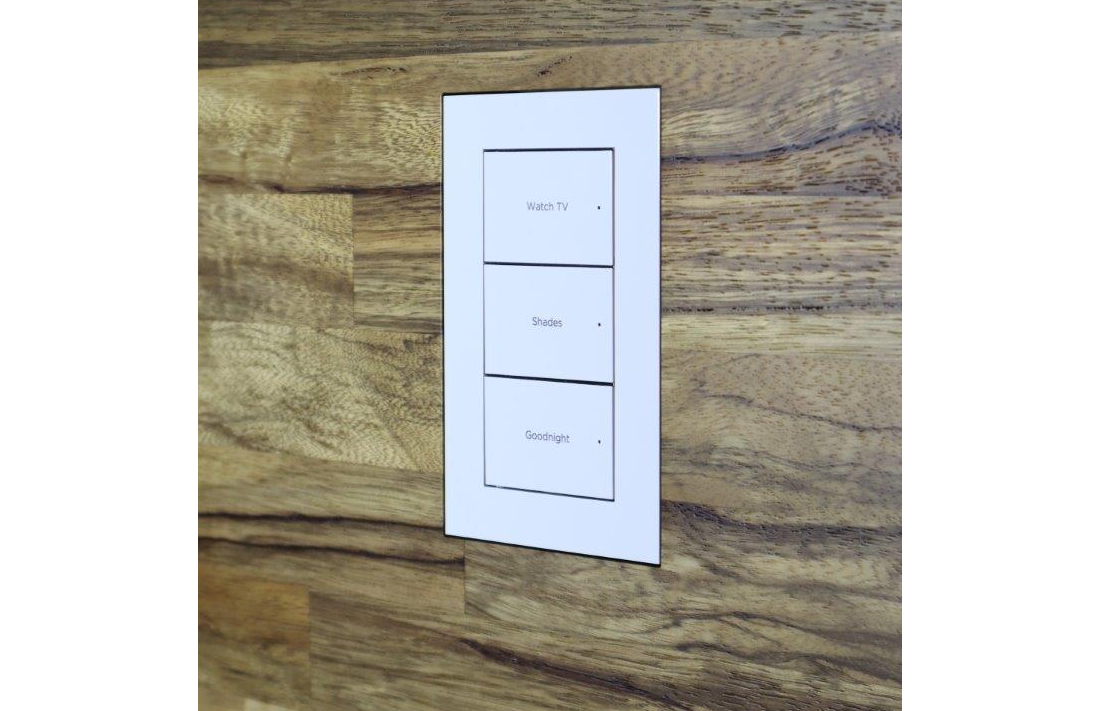

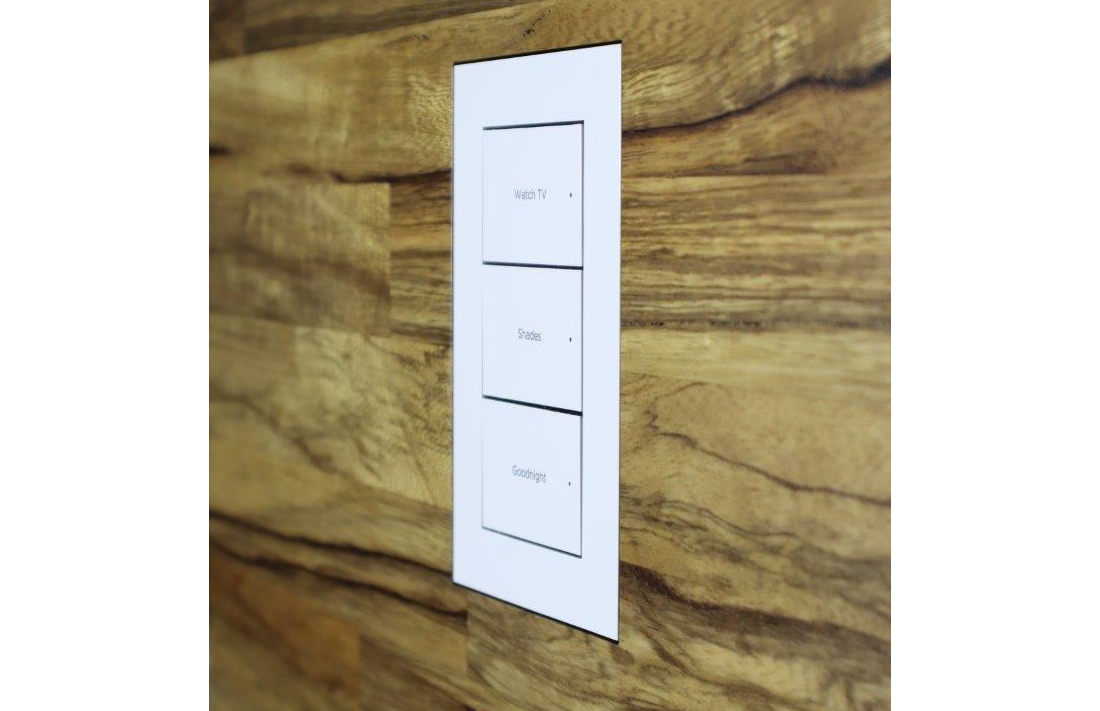

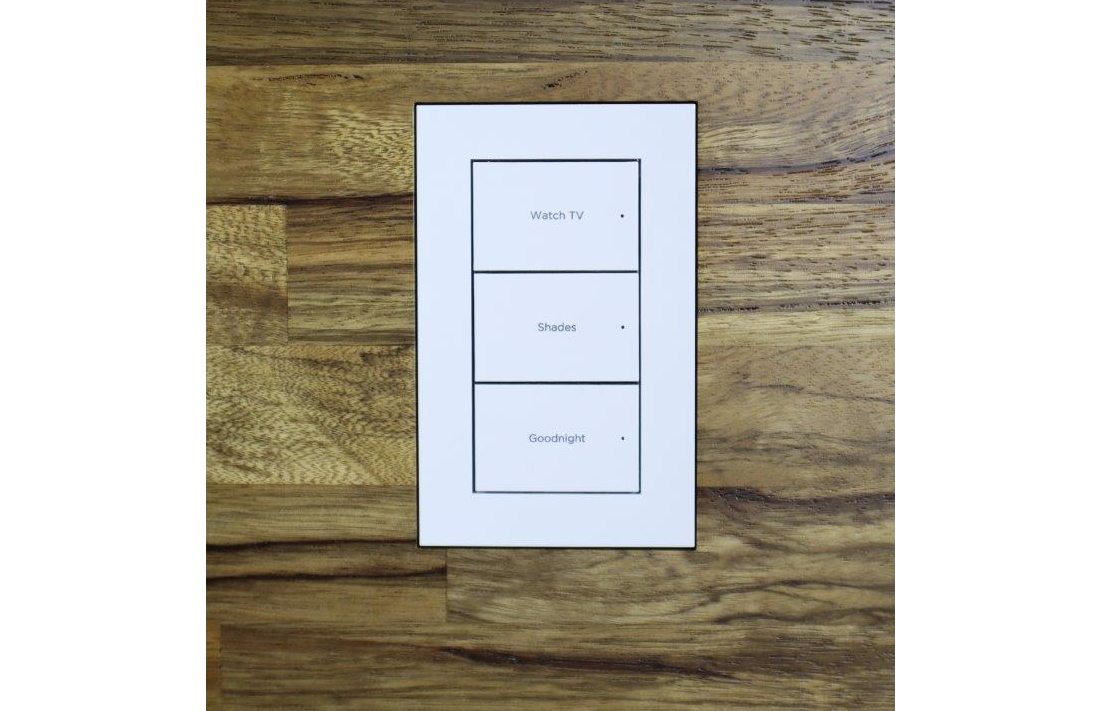

The WS SB adapter provides a solid-surface flush-mount solution for C4 LUX 1-GANG faceplates and C4-L-XX devices. It is engineered to mount the faceplate and device securely while maintaining a clean flush appearance on solid board walls. The adapter is designed for installers who require a precise, field-adjustable depth for solid surface installations.

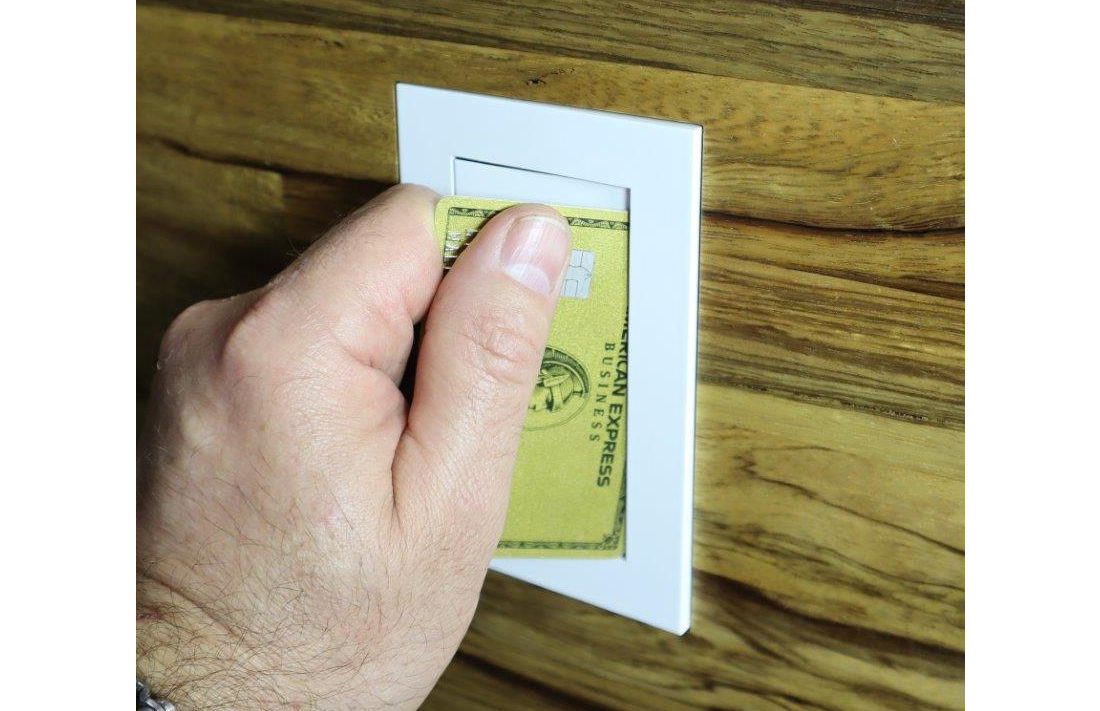

Key features include a depth calibration mechanism and an included spacer to accommodate a wide range of solid surface thicknesses. The wall mount can be installed in any orientation and allows easy insertion and removal of the C4 LUX 1-GANG faceplate and device. The design keeps the faceplate operation unobstructed and simplifies service access.
Technical details include support for solid surface board thicknesses from 4.73 mm [0.19 in] up to 33.66 mm [1.33 in]. The adapter dimensions are 109.5 mm width by 155 mm height by 43.6 mm depth. This is a manual adapter and requires no power supply; it weighs approximately 0.45 kg [0.99 lbs] and is constructed from moisture resistant MDF compliant with TSCA Title VI.
Connectivity and compatibility are straightforward: the adapter is intended for use with C4 LUX 1-GANG faceplates and C4-L-XX devices. There are no electrical or data connections integrated into the adapter itself. The physical interface is a form-fit mount that aligns the manufacturer-specified faceplate and device while preserving access to the device ports and controls.
Typical applications include residential and commercial installations where a flush solid-surface finish is required. Use cases include in-wall control panels, integrated lighting or automation interfaces, and AV control device mounting where a continuous surface is desired. The adapter is suitable for new construction and retrofit projects that require precise depth control and easy device servicing.
Installation is installer-friendly and designed to simplify on-site depth calibration and trimming. The unit mounts with standard screws and includes a spacer for incremental depth adjustment, allowing accurate alignment to the finished surface. Build quality emphasizes stable mounting and moisture resistance for reliable long-term performance in solid surface installations.
