Description

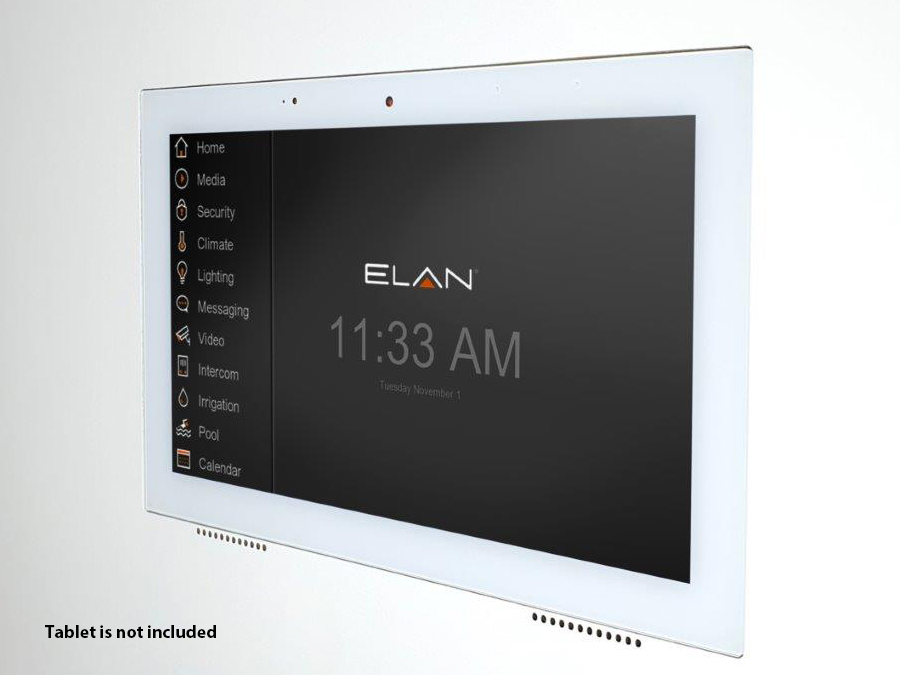

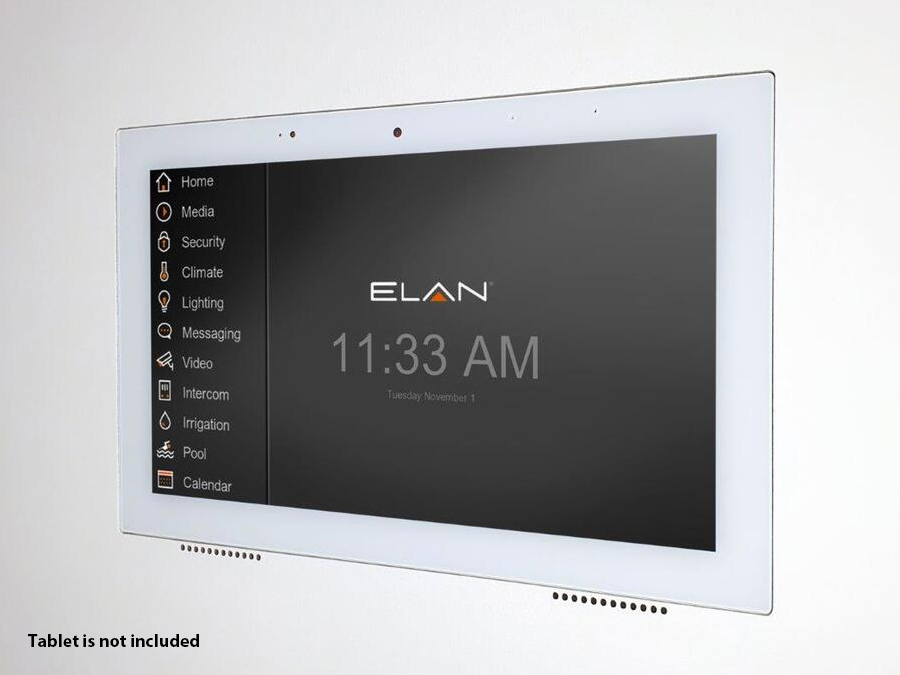

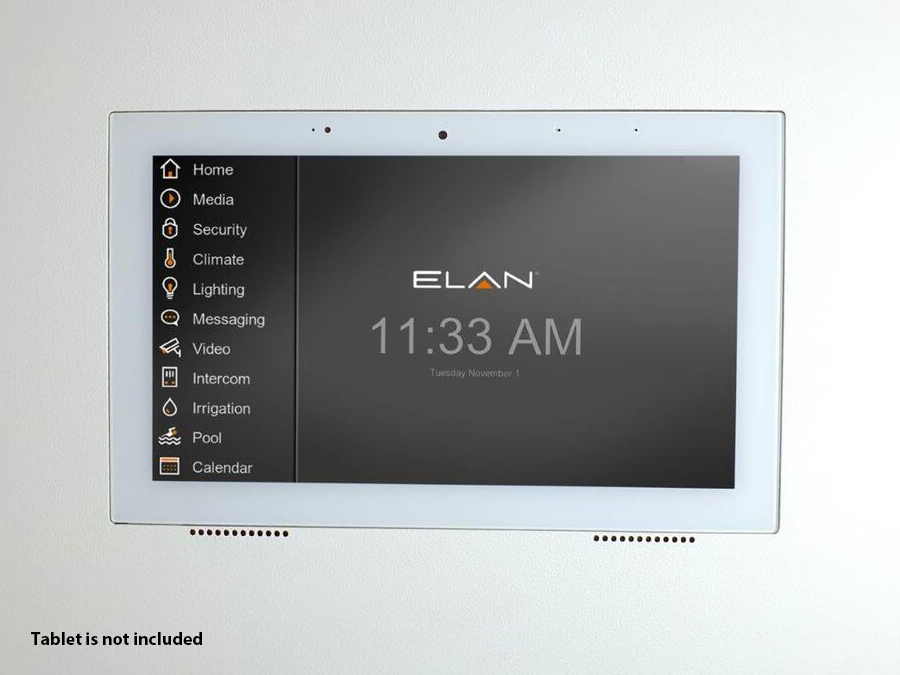

The Wall-Smart New Construction adapter is an in-wall flush mounting solution designed to accept an EL-ITP-12 touch panel. This adapter secures the panel flush to the finished wall surface while maintaining service access. It is supplied unpainted so it can be finished to match the wall texture and color.

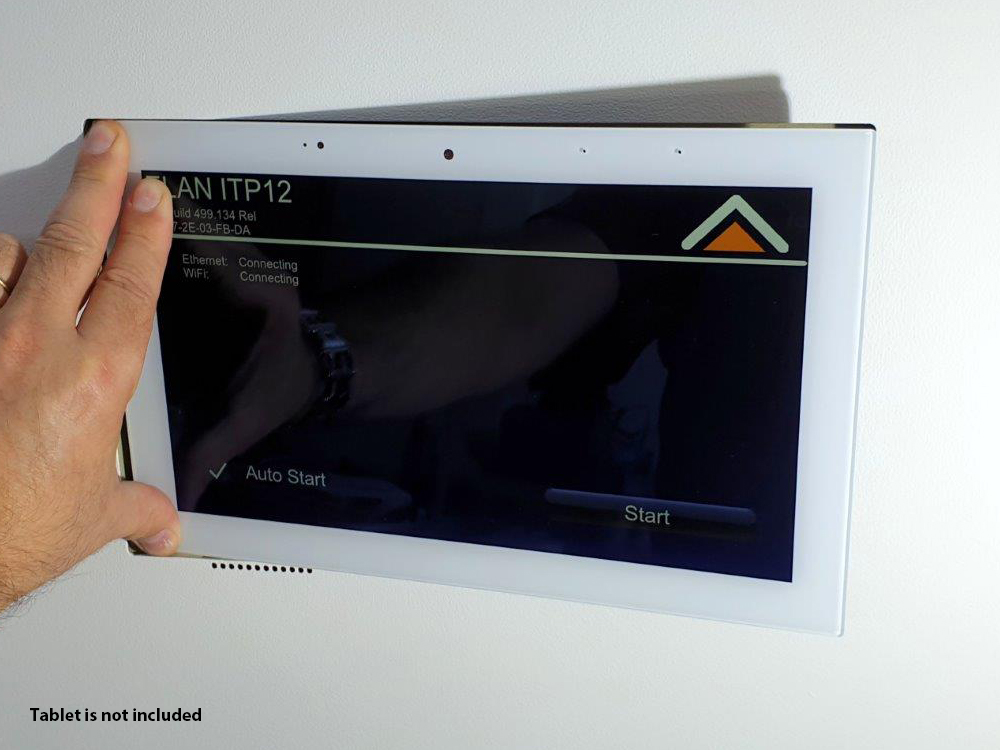

Key features include a flush-mounted profile, paintable finish, and a depth calibration mechanism that ensures accurate alignment of the touch panel face. The adapter enables simple insertion and removal of the touch panel using a manual push release combined with magnetic detach. The design accommodates common drywall construction workflows.
Technical details include precise cutout dimensions and a moisture resistant MDF construction compliant with TSCA Title VI. The adapter has no electrical components or power requirements and weighs approximately 2.1 lbs. Dimensions are provided in millimeters and inches so integrators can verify fit during rough-in framing.
Compatibility is focused on the EL-ITP-12-WH/BK touch panel family and the adapter accepts that specific panel profile. For installations in concrete or block walls an optional WS CONCRETE BOX 369X255 P/N 100-1-502 is available. For thicker drywall applications a 1/8 in shim pack P/N 10-01-067 can be used to adapt the module to 5/8 in drywall.
Typical use cases include residential and commercial new construction builds where a flush, finished appearance is required for a wall-mounted touch controller. The adapter is appropriate for lighting control, security keypads, AV touch panels, and automation touch points that require a clean wall-integrated look. It supports standard construction schedules and drywall trades.
Installation follows standard drywall rough-in procedures and is intended for 1/2 in drywall. The adapter includes a depth calibration mechanism to fine tune panel alignment after drywall and paint are applied. Installers should refer to Wall-Smart installation instruction 10-04-00101-INS prior to rough-in.
In summary the Wall-Smart new construction adapter delivers a serviceable, paintable flush mount solution for EL-ITP-12 touch panels – combining field-adjustable depth calibration with a finished appearance that integrates into modern walls. The manual, non-powered adapter simplifies serviceability and aesthetic integration for builders and AV integrators.
