Description

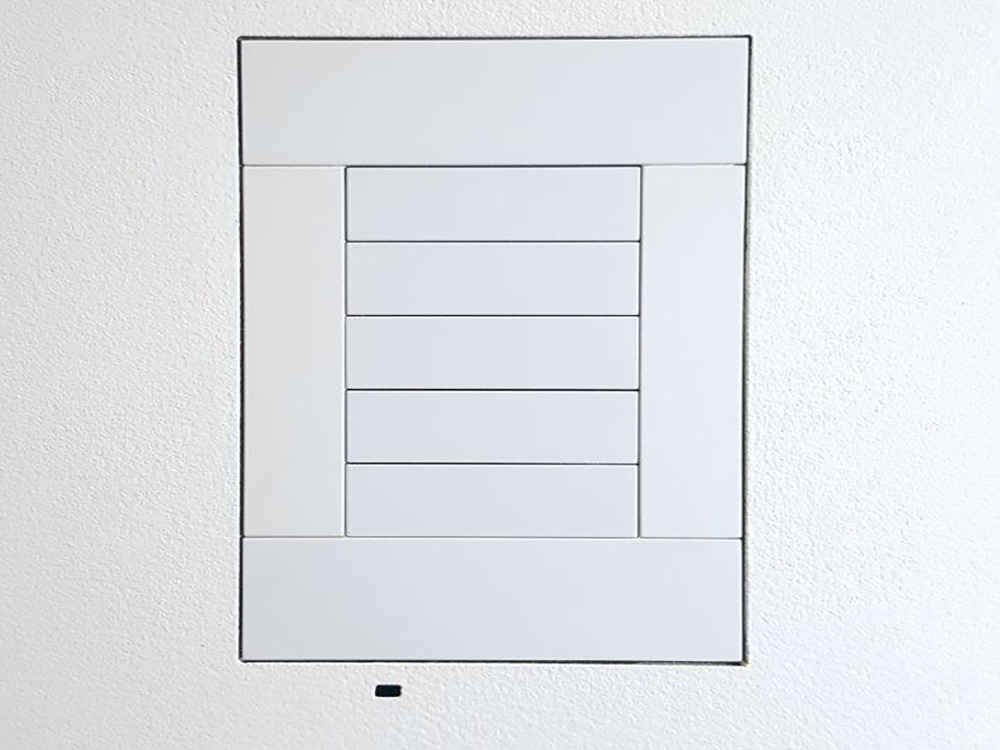

The WS NC FOR CRESTRON HZ-FP-G1 is an in-wall new construction adapter designed to hold a low-voltage Horizon device and a compatible faceplate flush with the finished wall. It secures the faceplate and device for reliable installation and provides a paintable surface to match wall finish. The adapter is supplied unpainted and intended to be finished as part of the wall.
Key features include a depth calibration mechanism that allows precise alignment with wall surfaces and a flush-mounted result for a clean aesthetic. The adapter is paintable to accept color and texture matching the surrounding wall. It is designed specifically for 1/2 in drywall installations and includes guidance for shimming to other drywall thicknesses.
Technical specifications are compact and installation oriented. The adapter measures 160mm x 200mm x 44.0mm and weighs 0.5 Kg 1.1 lbs. There is no power requirement for the adapter because it is a passive mounting accessory, and it is compatible with the Crestron HZ-FP-G1 faceplate and Horizon low-voltage devices.

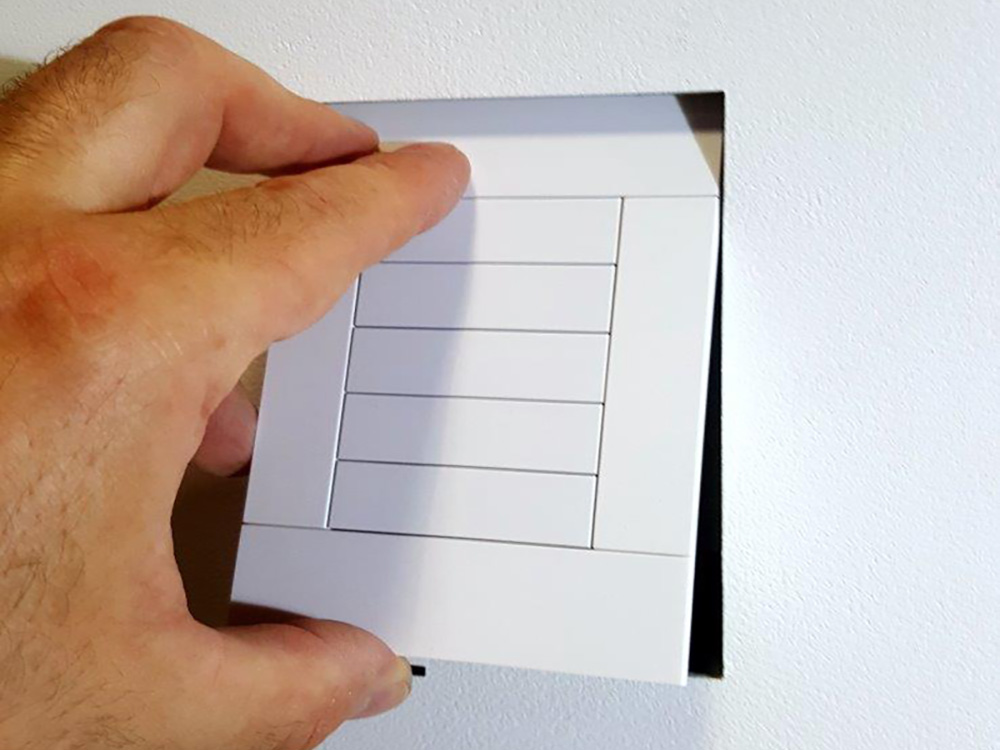

Connectivity and compatibility focus on physical integration rather than electrical interfaces. The adapter accepts low-voltage Horizon devices behind a Crestron HZ-FP-G1 faceplate and provides secure mounting points for insertion and removal. For concrete or block wall installations there is a compatible concrete box option P/N 10-01-181 sold separately.
Recommended use cases include new construction wall framing where a flush in-wall appearance is required, retrofit drywall projects where precise depth calibration is needed, and AV installations requiring consistent device alignment with the finished surface. The adapter supports professional AV installations in residential and commercial environments where Crestron Horizon low-voltage faceplates are used.
Installation follows standard drywall construction practices and Wall-Smart installation instructions 10-04-00101-INS. The adapter is supplied unpainted and intended to be painted as part of the wall finish after installation. The build quality is focused on stable mounting and repeatable alignment for AV integrators and installers.
