Description

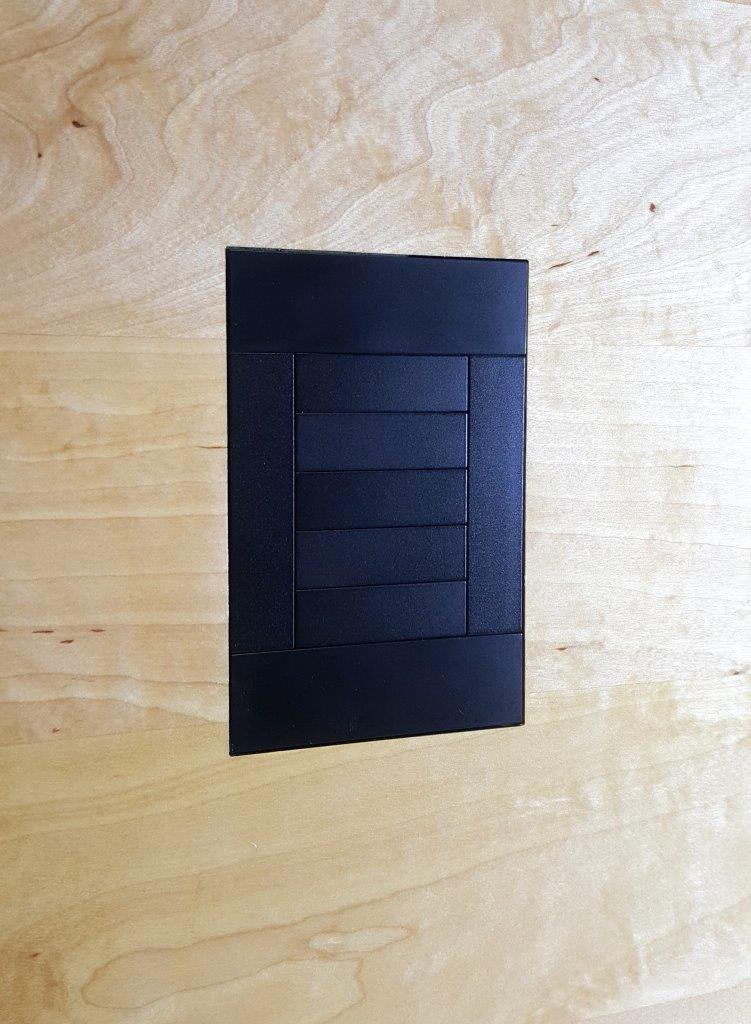

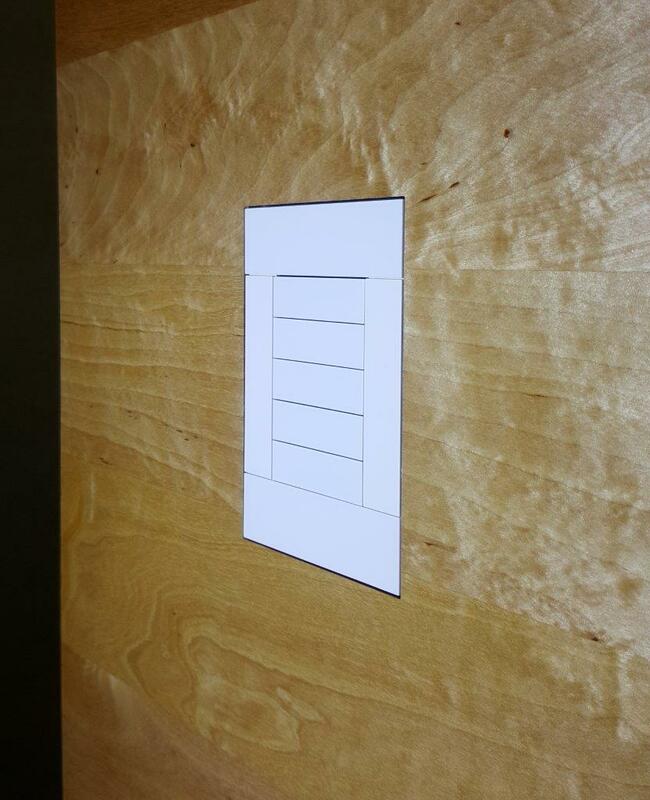

This solid surface mount provides a flush installation solution for line voltage Horizon devices. It is engineered to integrate seamlessly into solid surface boards while maintaining a low-profile appearance. The mount is intended for professional AV installations where a neat aesthetic and secure mounting are required.
The mount features a depth-adjustable installation adapter that accommodates panel thicknesses from 9 to 37 mm. It is designed to accept the compatible faceplate and line voltage Horizon device, ensuring correct alignment and secure retention. The adapter allows installers to fine-tune fitment to the board thickness during installation.
Key technical details include external dimensions of 109.9 mm by 152.1 mm by 41.2 mm and imperial equivalents of 4.32 inches by 5.99 inches by 1.62 inches. The product requires no external power supply and uses a manual adapter mechanism. Materials and construction are optimized for flush mounting into solid surface materials.
Connectivity is device dependent and the mount itself does not provide electrical connections or power conditioning. It is specifically compatible with the indicated faceplate and line voltage Horizon device family. Installers should verify device fit and service clearances prior to final installation.
Typical applications include AV control panels, integrated room control installations, and built-in wall or furniture-mounted Horizon device installations. The low-profile finish maintains the appearance of the solid surface while providing access to the installed device. It is suitable for commercial and residential AV projects requiring embedded line voltage Horizon devices.
Installation is straightforward for trained technicians and includes a depth adjustment mechanism to accommodate board thickness variation. The mount is built for repeatable, secure installations and long-term stability. The design helps preserve the integrity of the solid surface finish while supporting safe mounting of line voltage devices.
