Description

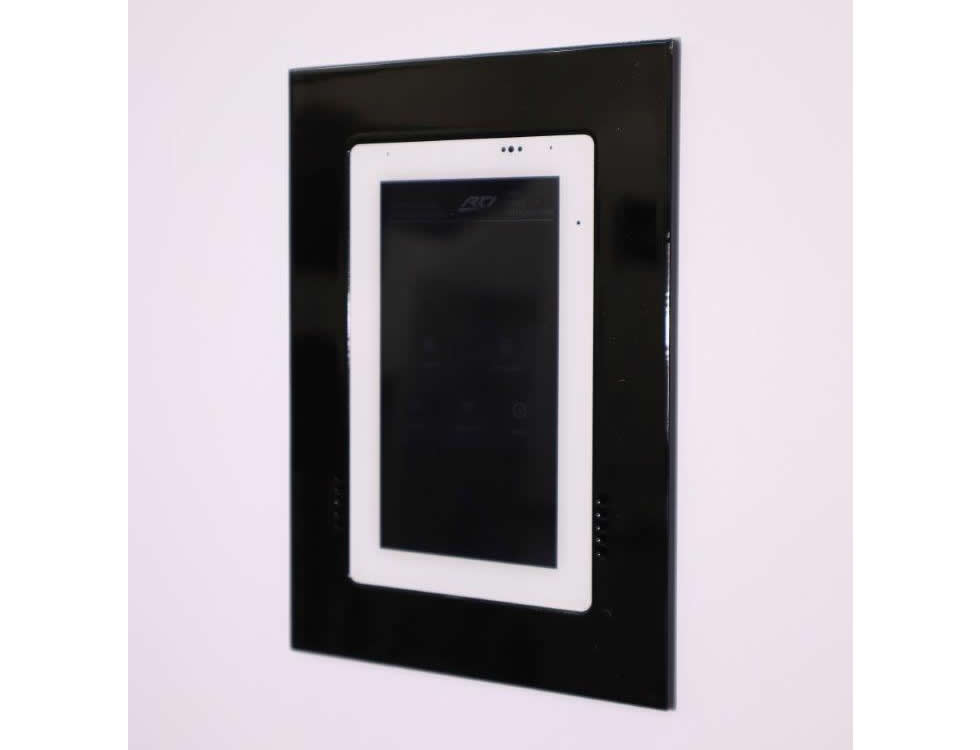

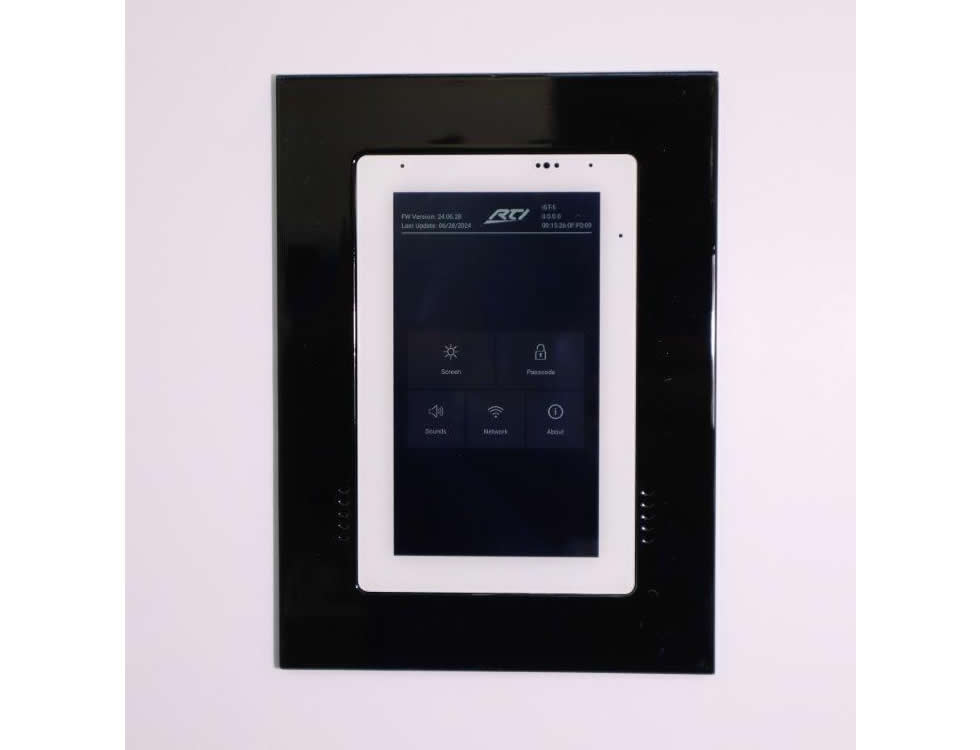

The WS Retrofit for RTI IST-5 is a nearly flush in-wall adapter designed to mount RTI IST-5 5 inch touch panels securely while preserving a low-profile appearance. It provides a 4mm on-wall bezel thickness to keep the panel visually nearly flush with the wall. This adapter supports retrofit installations where a clean and discreet finish is required.

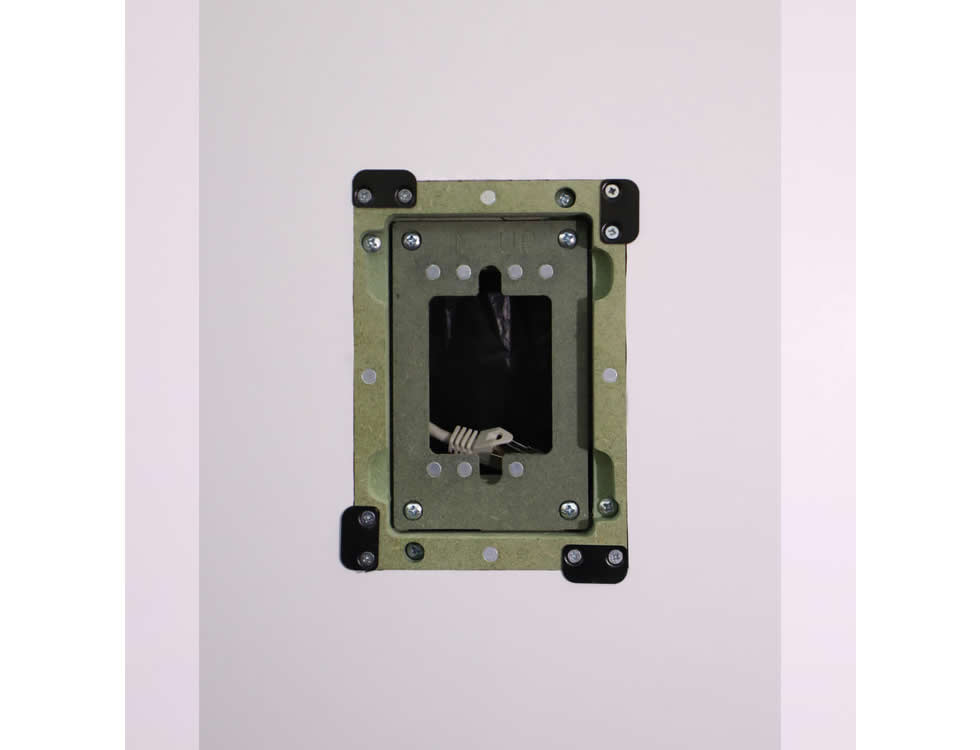

Key features include an adjustable wall mount with depth calibration screws and a configurable board thickness range that accommodates common wallboard depths. The bezel is available painted black, painted white, or supplied unpainted to match the decor. The kit includes the wall adapter, bezel, M3x12 flat screws, M3 nuts, and the touch panel adapter to simplify installation.
Technical specifications cover physical dimensions of 132.6mm by 181mm by 48mm and a compact weight of 0.6kg. Board thickness support is 10mm up to 21mm and includes guidance for boards up to 32mm by reinstalling cam latches upside down. The adapter is constructed from moisture resistant MDF and meets TSCA Title VI requirements for formaldehyde emissions.

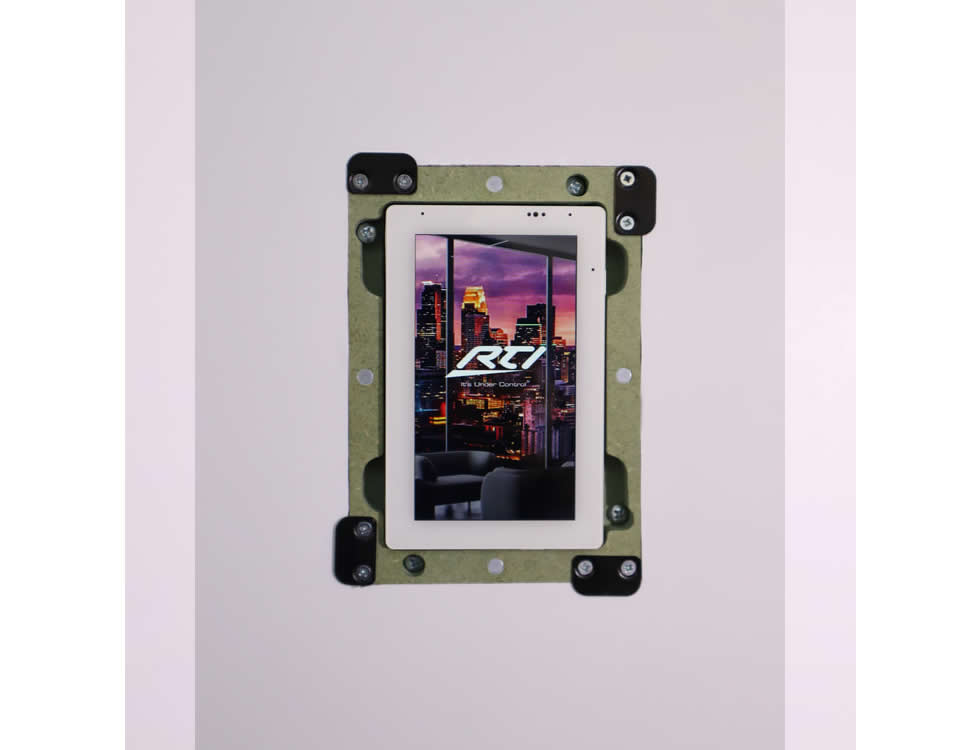

Connectivity and compatibility are focused on the RTI IST-5 5 inch BL and WH touch panels, noting that the RTI panel itself is not included. The wall mount contains depth calibration screws to fine tune panel alignment and retention. The bezel finish options provide installers flexibility to match wall colors or paint the bezel on site.
Typical use cases include retrofit projects where existing wall openings must be reused, residential control panels that demand a low-profile finish, and commercial AV installations seeking consistent aesthetics across multiple touch points. The product supports straightforward replacement or upgrade of older panels without major wall rework. The nearly flush profile reduces visual impact while maintaining full panel functionality.
Installation is designed for ease of use on standard wallboards with accessible screw locations and clear instructions for cam latch orientation when accommodating thicker boards. The MDF construction provides stable mounting and paintable surfaces where required. Overall the retrofit adapter offers a practical balance of fit, finish, and installer-friendly features for RTI IST-5 panel installations.
