Description

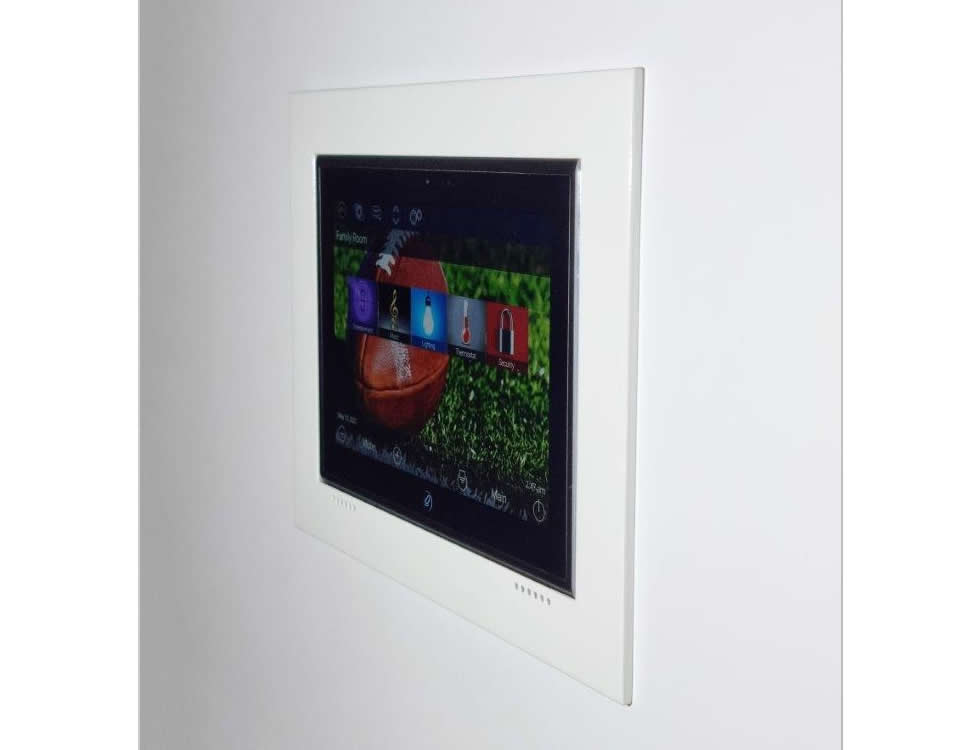

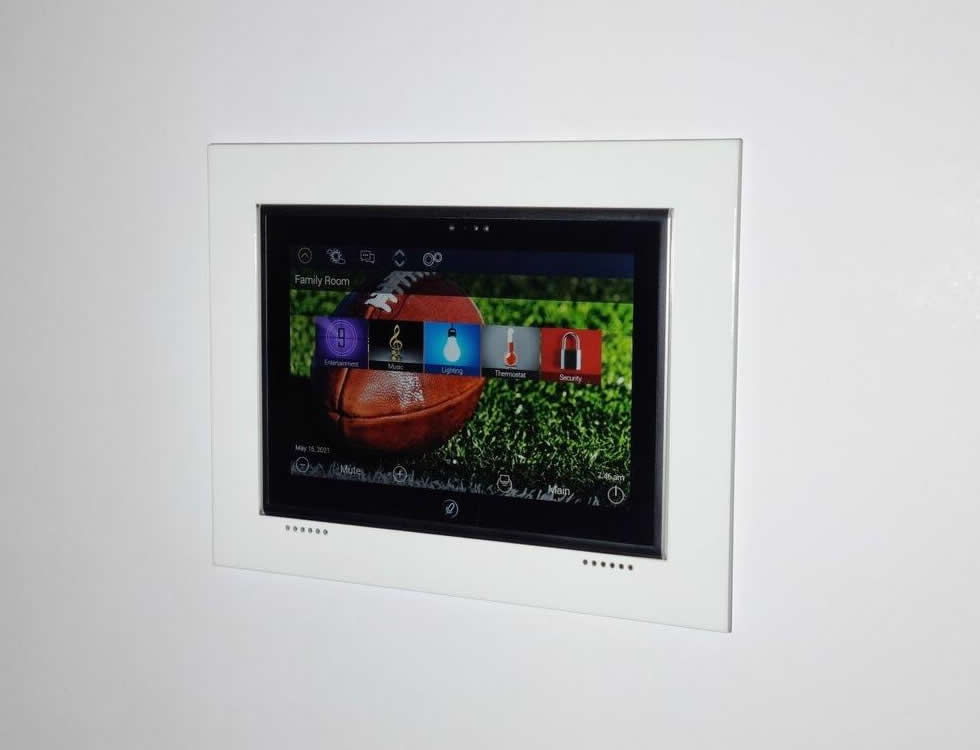

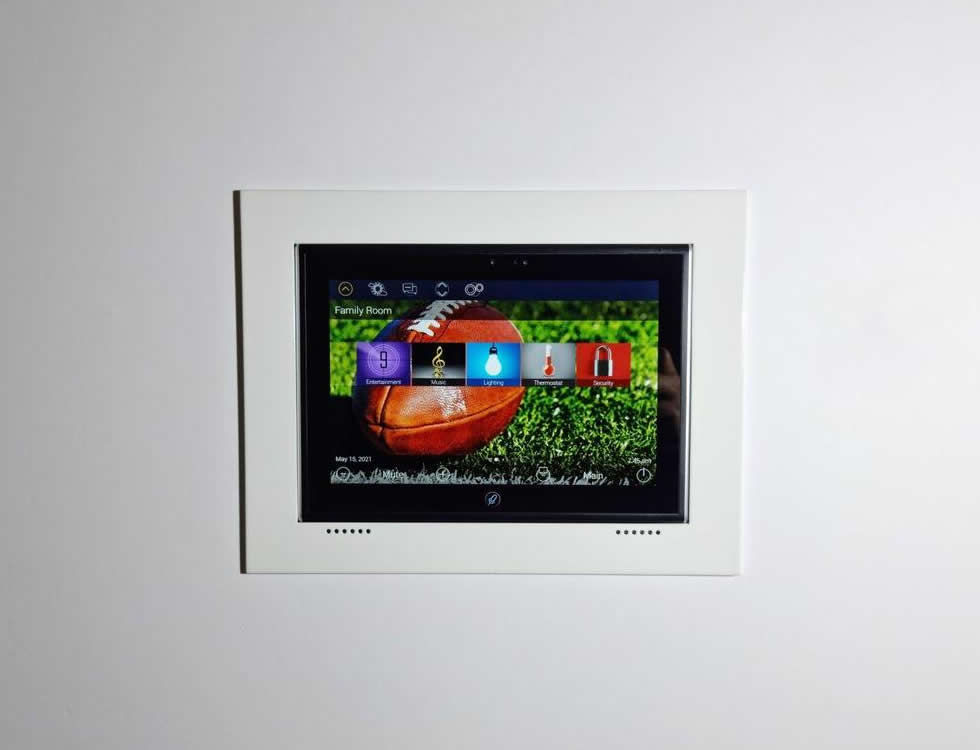

The Wall-Smart retrofit adapter is a near-flush in-wall mounting solution designed to accept a URC TKP-8600 touch screen. It secures the display while keeping the front bezel minimal to maintain a low-profile appearance. The adapter is supplied painted white and is intended for retrofit wall installations.
Key design features include a 4mm on-wall bezel thickness that keeps the screen nearly flush with the wall and a magnetic bezel attachment for rapid bezel removal. The adapter accommodates board thicknesses from 10mm to 22mm which provides installation flexibility in common wall constructions. The bezel is available painted white, painted black, or left unpainted to match project finishes.

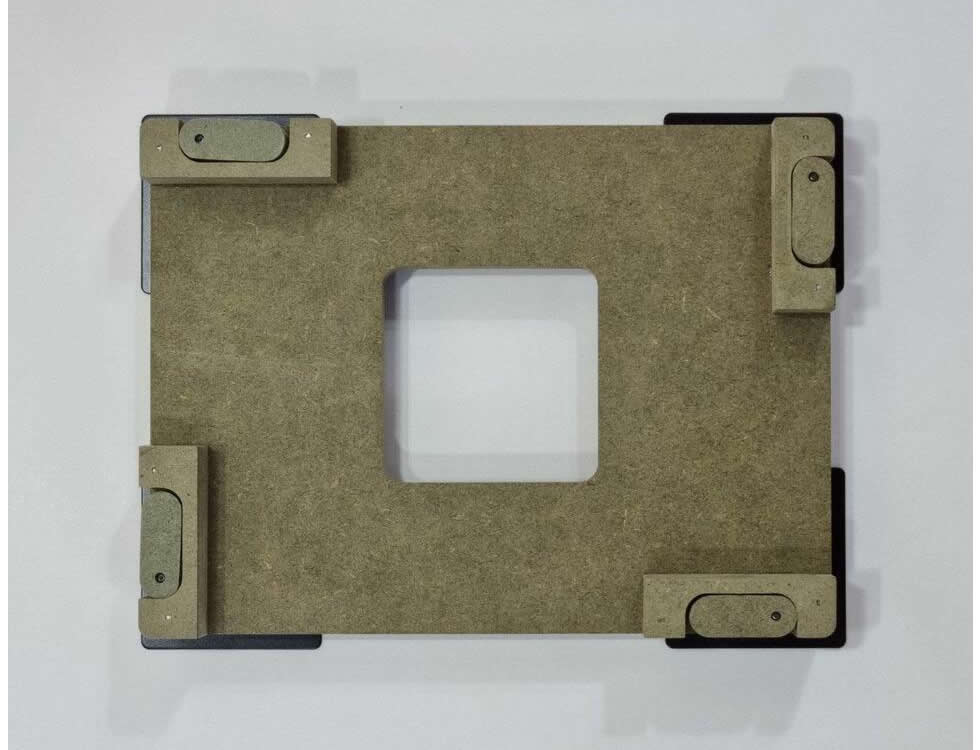

Technical attributes include moisture resistant MDF construction compliant with TSCA Title VI for stable long-term performance in interior environments. The unit dimensions are 261.7mm wide, 201.1mm high, and 48mm deep, providing a compact mounting footprint. Total weight is 0.6kg which eases handling during retrofit installation and service.

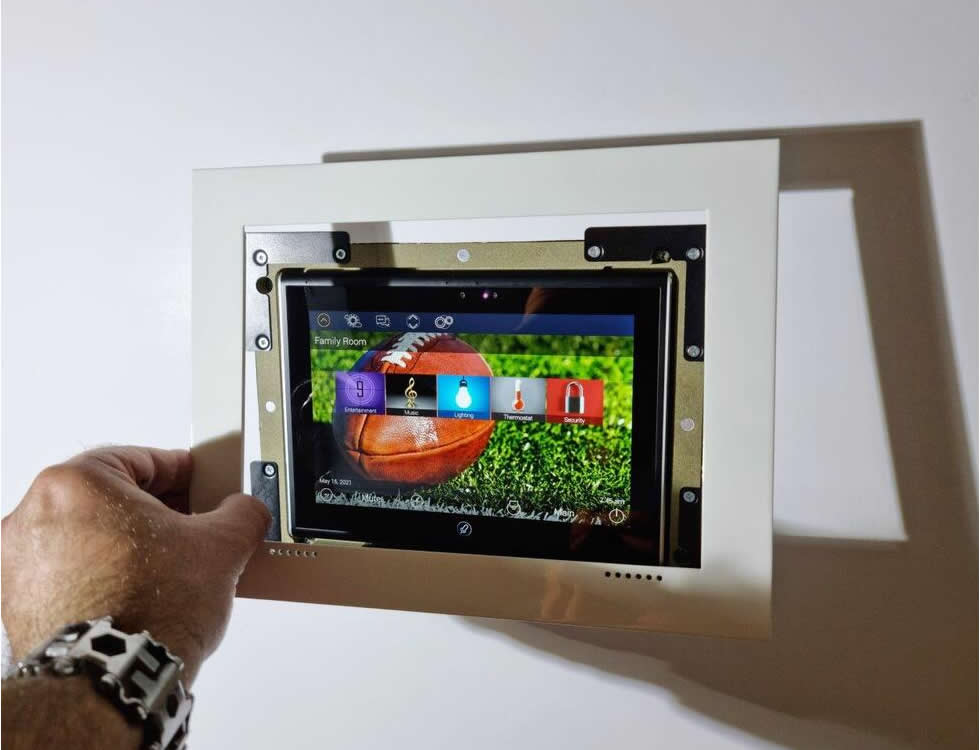

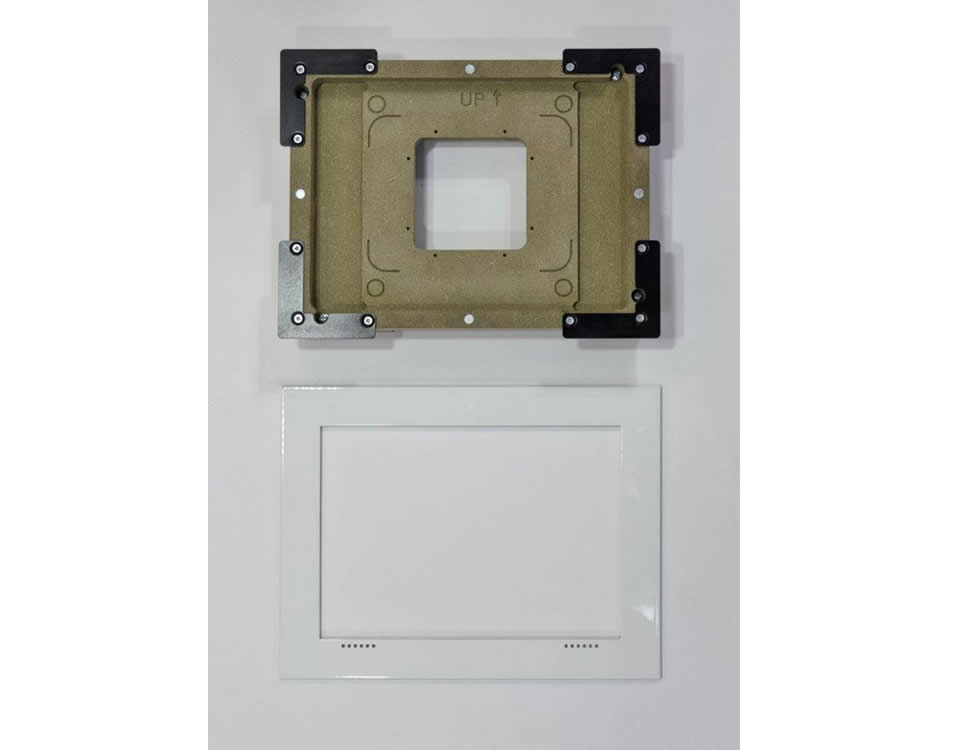

Compatibility is focused on the Universal Remote Control TKP-8600 touch screen and the adapter is sized and shaped to accept that panel without modification. The bezel attaches magnetically to the retrofit mount base to allow quick access for servicing or panel removal. No electronics are included with the adapter; it is a mechanical mounting accessory only.
Typical applications include residential and commercial retrofit installations where a nearly flush appearance is required and where existing wall thickness varies. Integrators will find the shallow 48mm depth useful for mounting over shallow back boxes or surface-mounted wiring. The magnetic bezel and standardized screw fasteners simplify field adjustments and rework during upgrades.
Installation is straightforward for technicians familiar with in-wall retrofit work – the adapter mounts to the prepared wall aperture and secures with supplied fasteners. The magnetic bezel simplifies alignment and finishing while the MDF construction accepts standard finishing techniques such as paint or veneer. The design reduces visible gap and improves final aesthetic compared with deeper on-wall housings.
Overall, the Wall-Smart retrofit adapter provides a compact, serviceable, and finish-friendly accessory for integrating TKP-8600 touch panels into retrofit wall environments. Its shallow bezel, magnetic attachment, and material specification support reliable long-term installations. The adapter is focused on delivering a low-profile appearance while enabling practical access for maintenance.
