Description

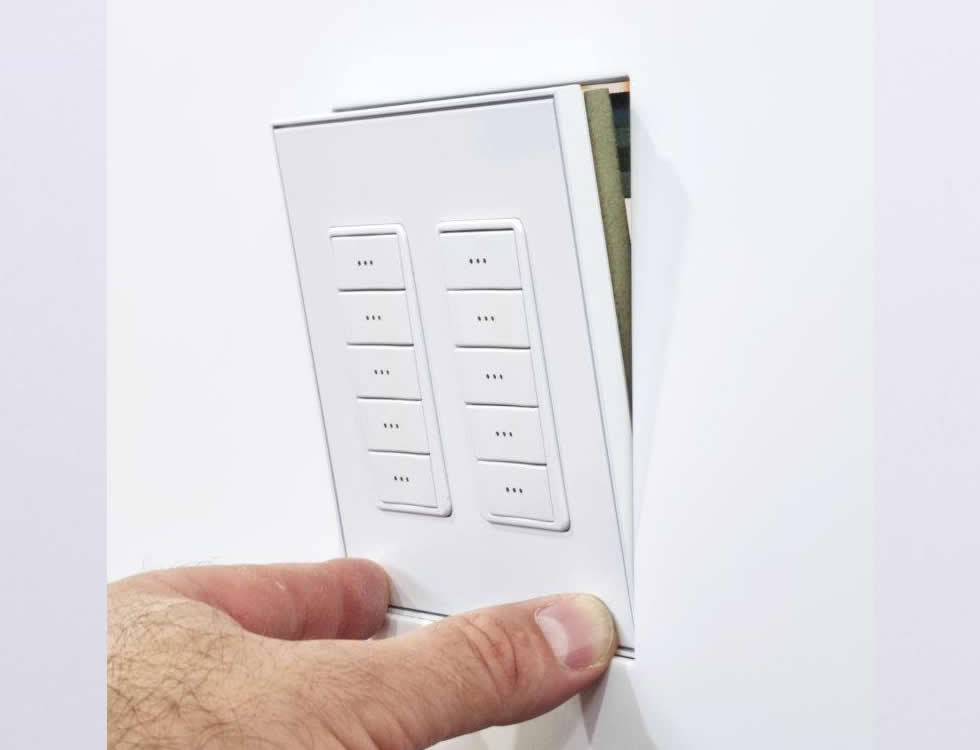

The WS NC adapter provides an in-wall flush mounting solution for Vantage EasyTouch 2G keypads. It secures the keypad firmly while allowing easy insertion and removal. This unit is supplied unpainted so it can be finished to match the surrounding wall surface.

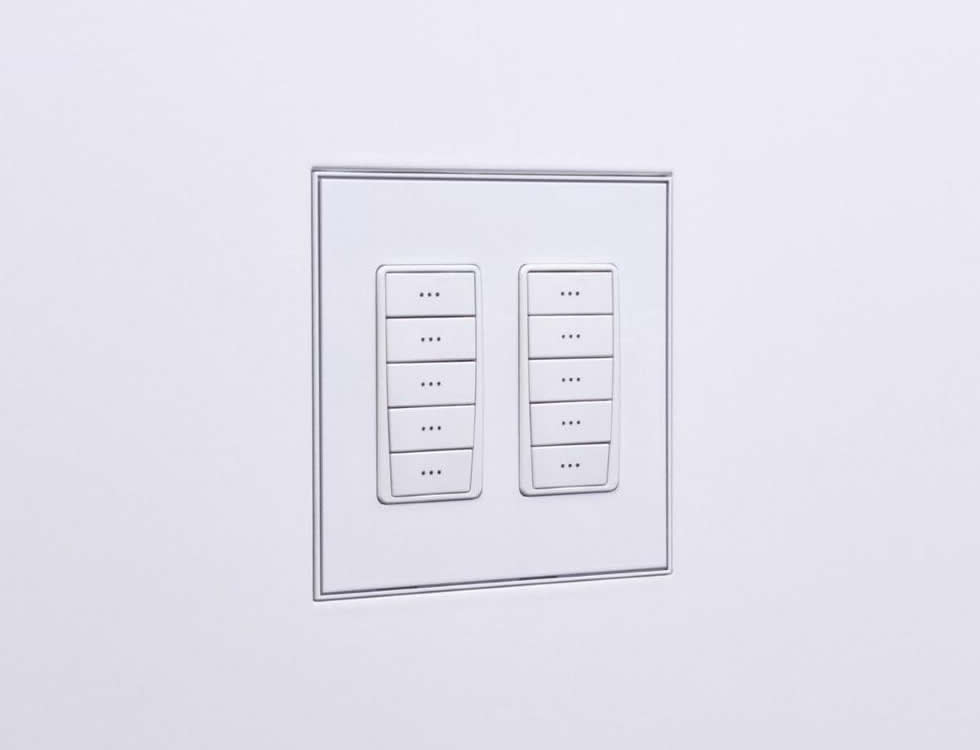

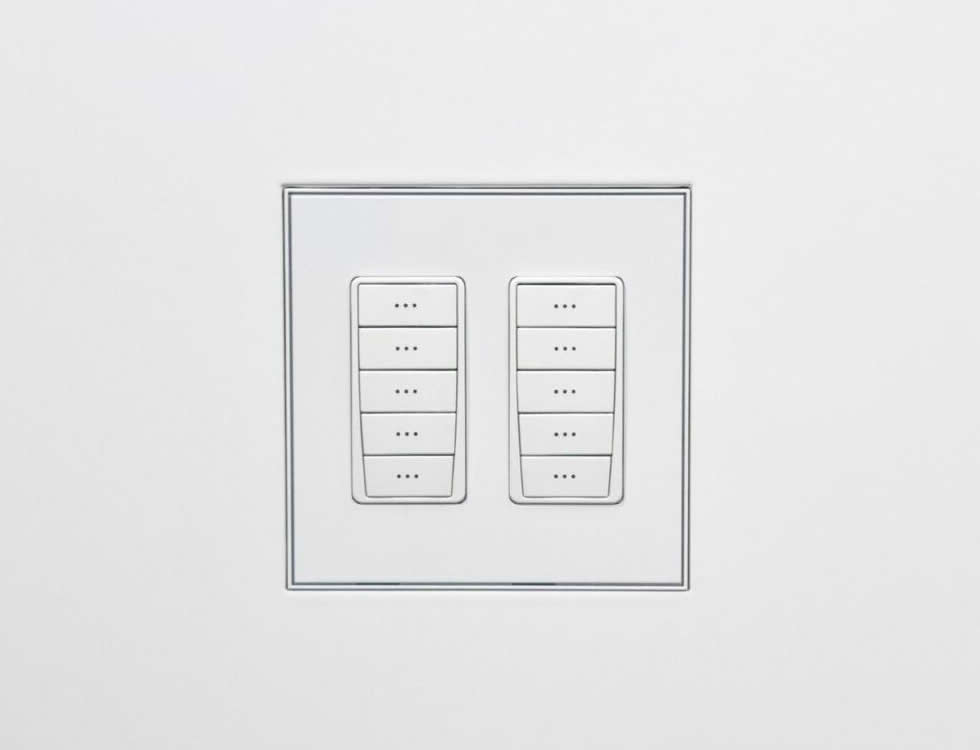

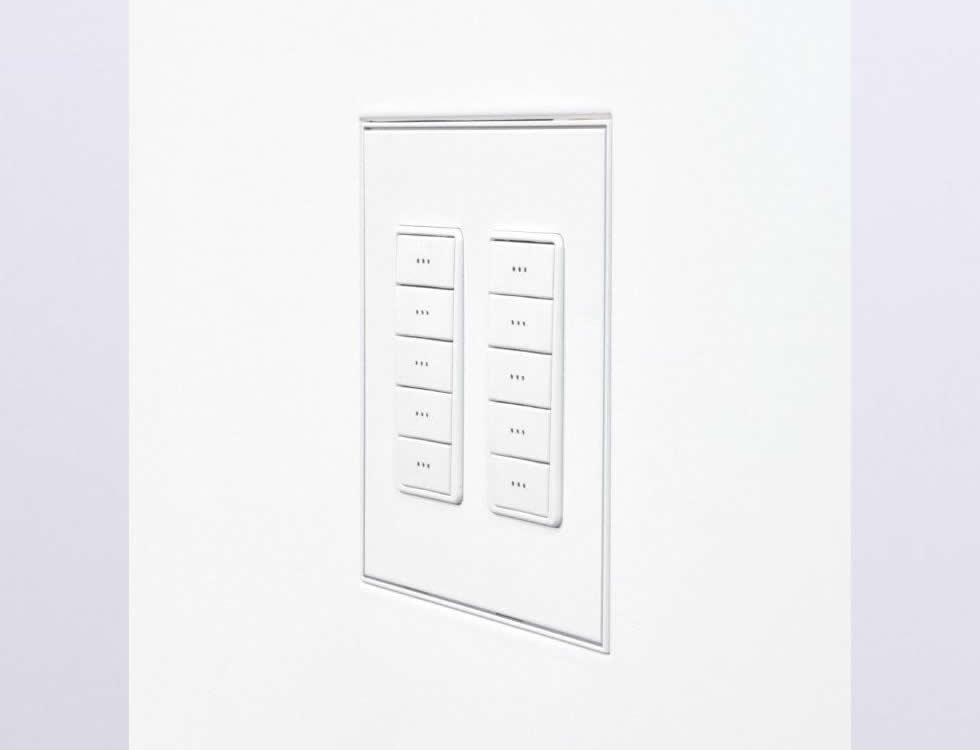

Key features include a flush profile that sits level with the wall surface, a paintable finish to match any color or texture, and a depth calibration mechanism to ensure correct keypad alignment. The adapter is built from moisture resistant MDF that meets TSCA Title VI requirements. It requires no power supply as it is a manual mechanical adapter.
Technical details include external dimensions of 184.2mm x 184.2mm x 44mm and a net weight of 0.54 kg (1.19 lbs). The material is moisture resistant MDF compliant with TSCA Title VI and the adapter is supplied unpainted ready for on-site finishing. There are no electrical components or power requirements in this adapter.
Connectivity and compatibility are mechanical in nature – the adapter is designed specifically to accept the Vantage EasyTouch 2G keypad (keypad not included). For installation in concrete or brick walls use the WS Concrete Box 186×186 P/N 100-1-918 (sold separately) following the manufacturer instruction 10-04-00103-INS. For standard installations the adapter is intended for 1/2″ drywall; a shim pack is required for thicker drywall.
Common use cases include residential and commercial control installations where a flush, paintable finish is required and a professional in-wall appearance is desired. It suits new construction and retrofit projects where keypad aesthetics are important. The adapter is ideal for AV racks and control rooms that require a clean, integrated in-wall keypad mounting solution.
Installation follows typical drywall construction procedures and includes a depth calibration mechanism for precise alignment – installers should review Wall-Smart installation instruction 10-04-00101-INS prior to mounting. The kit is straightforward to fit into a 1/2″ drywall opening and uses standard M3 hardware supplied in the kit. Overall build quality is focused on a secure mechanical mount and a finishable surface that becomes part of the finished wall.
