Description

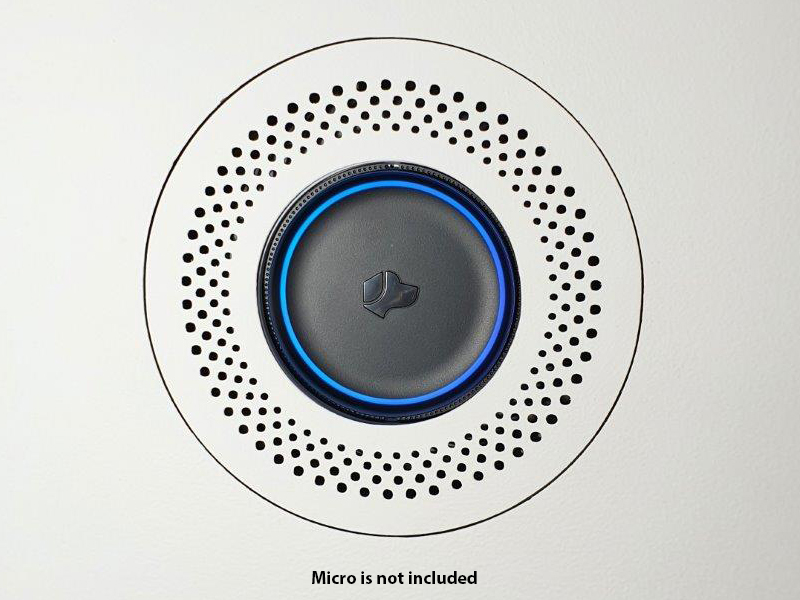

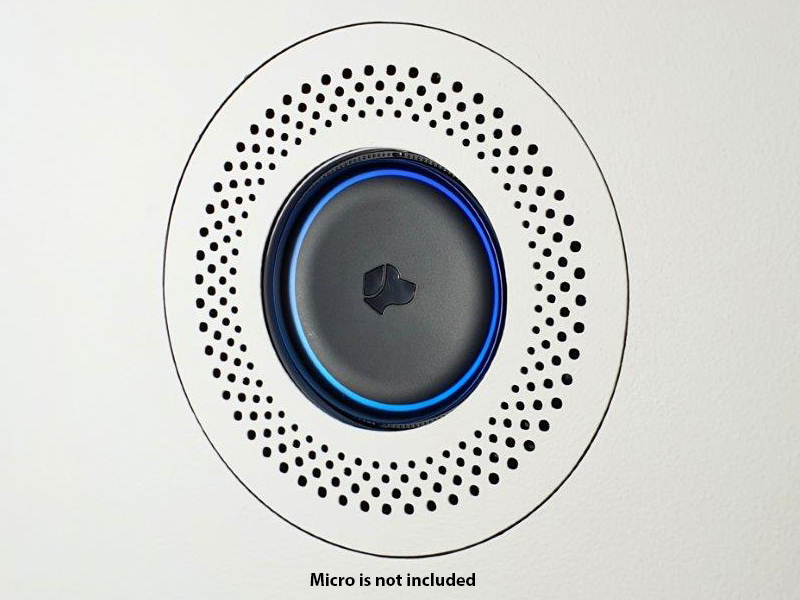

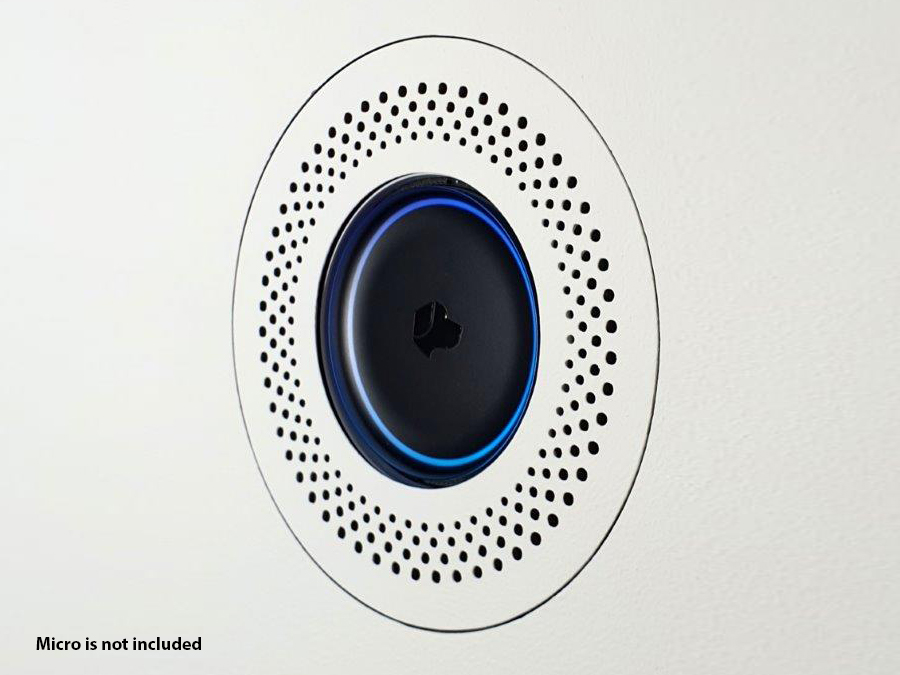

The WS NC FOR JOSH MICRO is an in-wall adapter designed to mount the Josh Micro device flush with the wall. This adapter provides a secure, low-profile installation point that integrates the device into standard drywall construction. The unit ships unpainted to be finished as part of the wall surface.

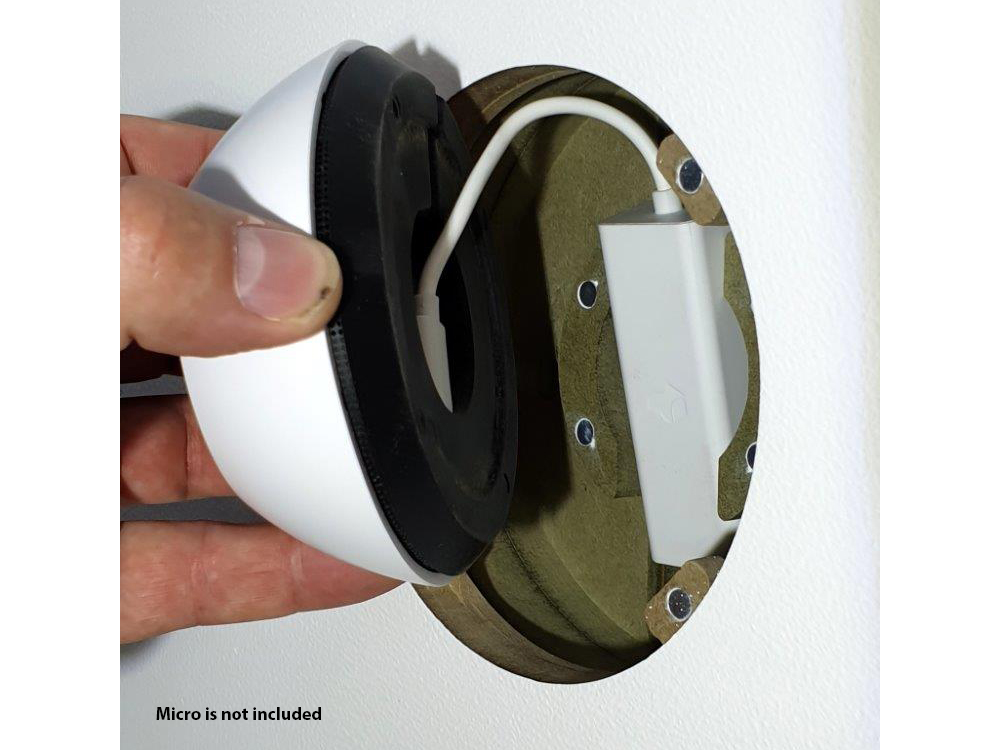

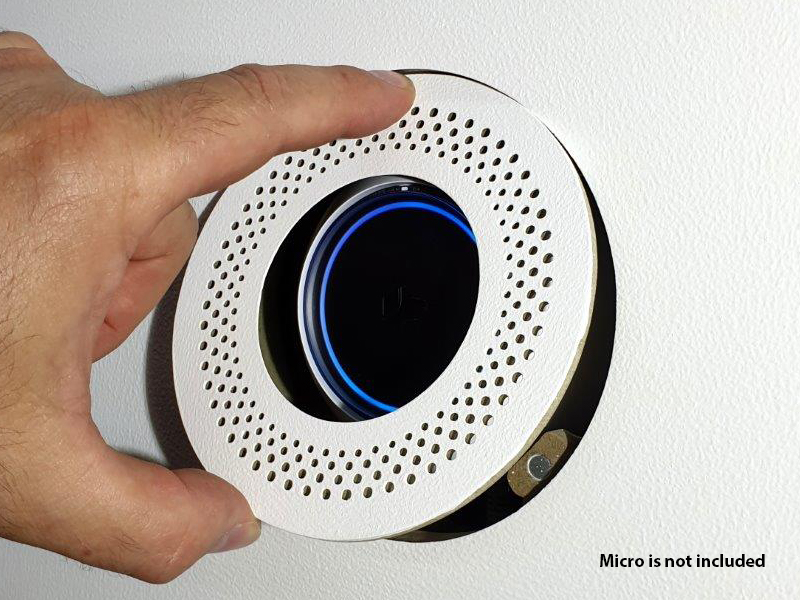

Key features include a paintable moisture-resistant MDF bezel and a removable plate design that allows easy insertion and removal of the Josh Micro. The adapter is supplied unpainted so it can be painted to match any wall color and texture. The kit includes the wall adapter and a bezel to complete a flush installation.
Technical specifications cover compact dimensions and low weight that simplify handling and installation. The adapter measures 190.5mm x 190.5mm x 71.8mm (7.5in x 7.5in x 2.83in) and weighs approximately 0.5Kg 1.1lbs. The construction uses moisture-resistant MDF for a paint-ready finish and durable in-wall mounting.
Connectivity is determined by the mounted Josh Micro device and the adapter does not provide power or signal connections. The adapter is designed specifically to accept the Josh Micro plate and bezel to maintain a flush look. The adapter supports installation in 1/2in drywall and can be shimmed for other thicknesses.
Typical applications include meeting rooms, classrooms, and corporate interiors where a flush, painted install is required. The adapter conceals device edges and delivers a clean aesthetic while allowing straightforward device access. It is suited to new construction or renovation projects that follow standard drywall procedures.
Installation is straightforward and follows standard drywall construction practices – refer to installation instruction 10-04-00101-INS before beginning. The adapter allows easy plate insertion and removal to support service or device swaps. For installations in 5/8in drywall use 1/8in shim pack P/N 10-01-067 sold separately.
