Description

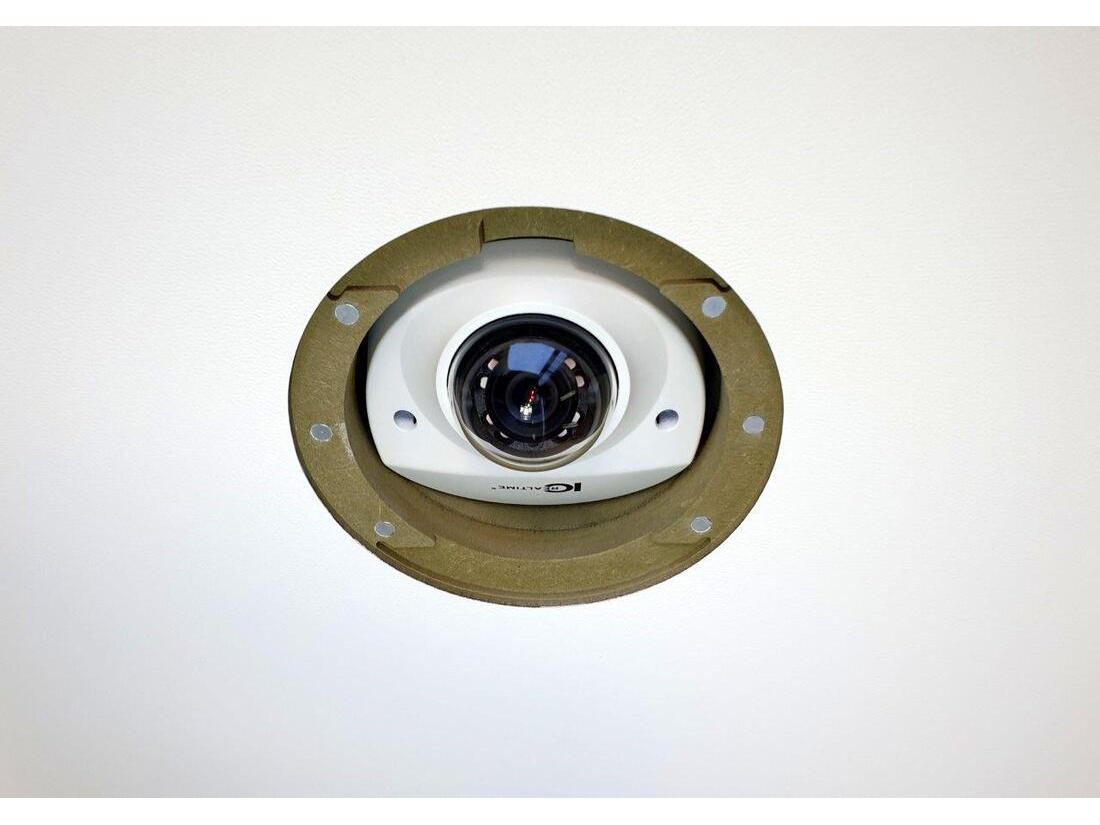

The WS NC FOR IC REALTIME IPMX-W40F-IRW3 is an in-wall and ceiling flush mount adapter designed to integrate a compact IP camera into finished surfaces. This adapter provides a secure mounting point while keeping the camera body recessed for a clean, low-profile appearance. It is suitable for installations where a seamless aesthetic and unobtrusive camera placement are required.
Key features include true flush mounting, a paintable faceplate, and tool-accessible removal for service or replacement. The adapter is supplied unpainted so it can be finished with the surrounding wall or ceiling paint and texture. Its design emphasizes retention and easy insertion/removal of the camera module while maintaining a stable mount.
Technical attributes include a moisture resistant MDF construction, compact physical dimensions of 215.9mm x 215.9mm x 64.3mm, and a unit weight of 0.65kg. No power supply or electronics are included – this is a passive mechanical adapter. The adapter accommodates standard camera installation tolerances while keeping the visible bezel minimal.
Compatibility is centered on the IC REALTIME IPMX-W40F-IRW3 camera model and similar form-factor devices that fit the flush opening. The adapter is designed to be installed into 1/2 in drywall and follows standard drywall construction practices. Detailed installation guidance is available from Wall-Smart reference documentation to ensure proper fit and finish.

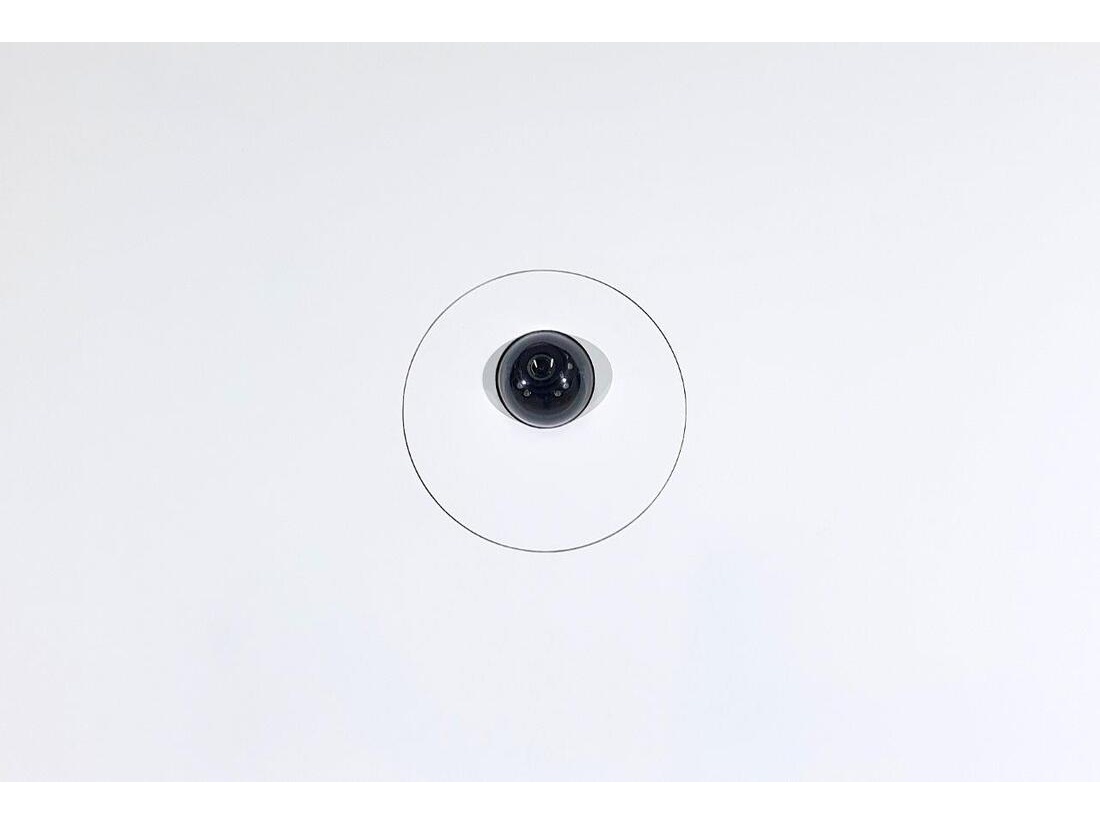

Typical use cases include retail, corporate, hospitality, and residential spaces where concealed or low-profile camera mounting is desired. The low visual impact makes it well suited for areas that require a finished, painted appearance while maintaining camera access. It also supports installations where the ceiling or wall surface will be textured or painted after mounting.

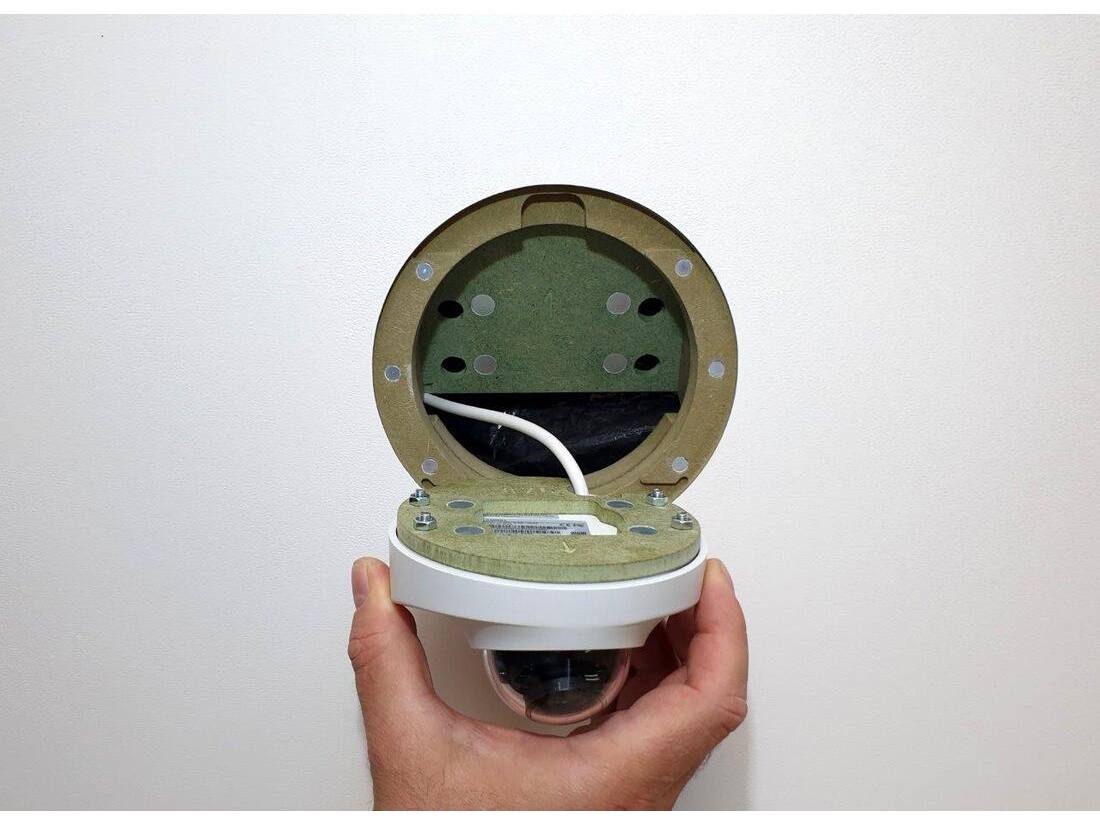

Installation is straightforward for technicians familiar with drywall work – the adapter installs into a 1/2 in drywall opening and is secured with supplied hardware. After installation the faceplate is painted as part of the wall or ceiling finish to match color and texture. The moisture resistant MDF construction provides reliable support in interior environments while allowing routine maintenance access to the camera module.
