Description

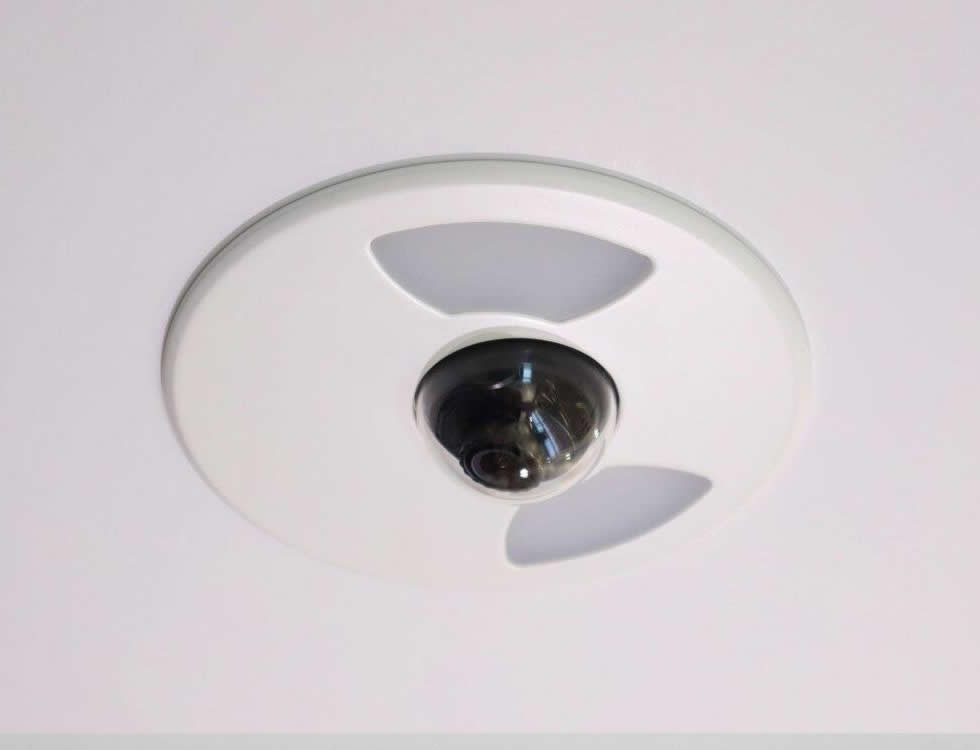

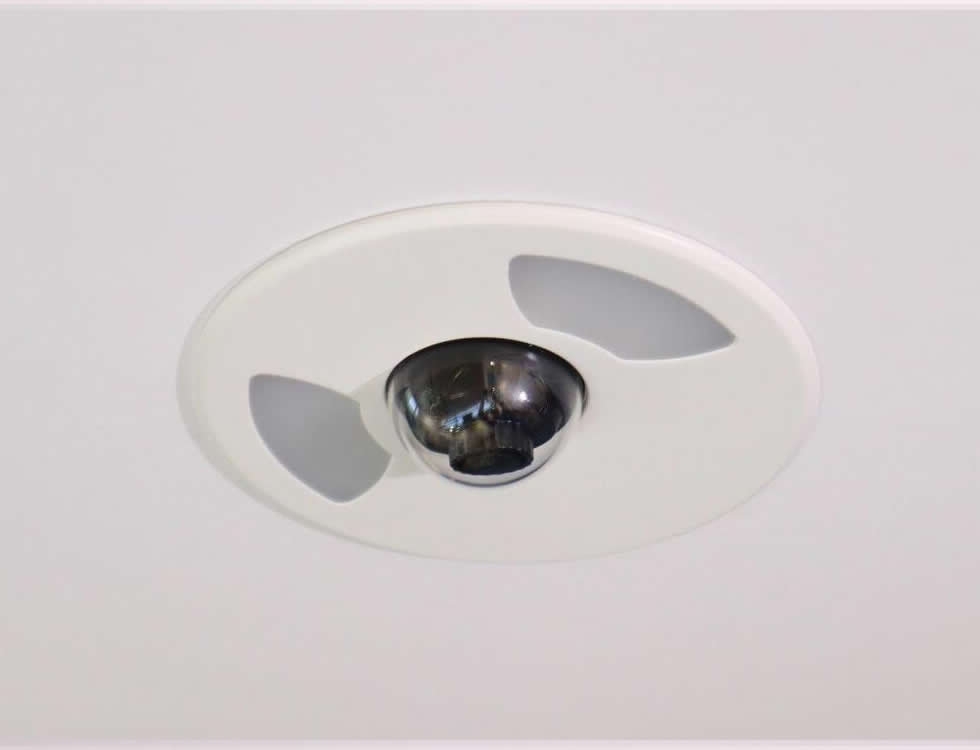

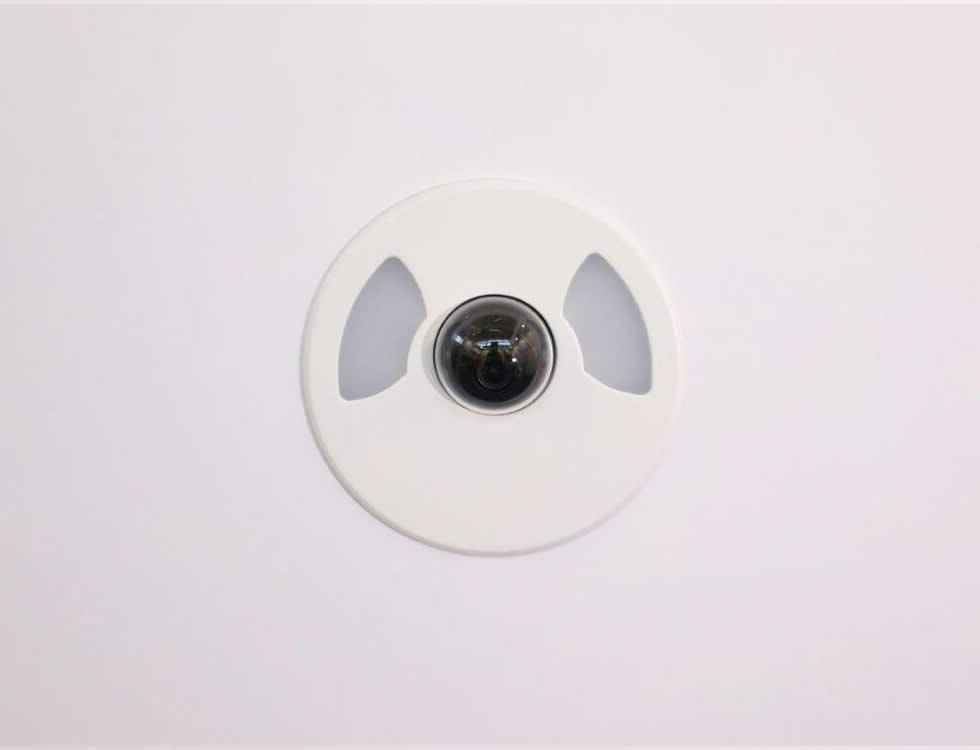

The Wall-Smart flush adapter provides a near-flush in-wall and in-ceiling retrofit mounting solution for the IC Realtime IPMX-W40F-IRW1 camera. It secures the camera body while maintaining a low-profile installation that blends with interior surfaces. The adapter is finished in white matte to match common ceiling and wall finishes.

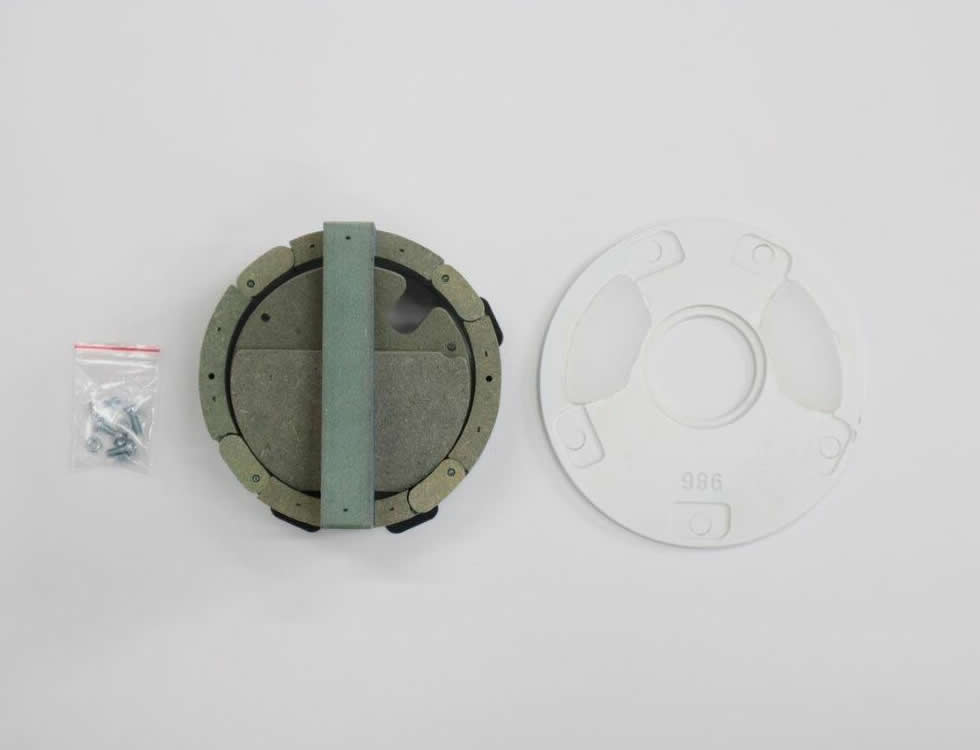

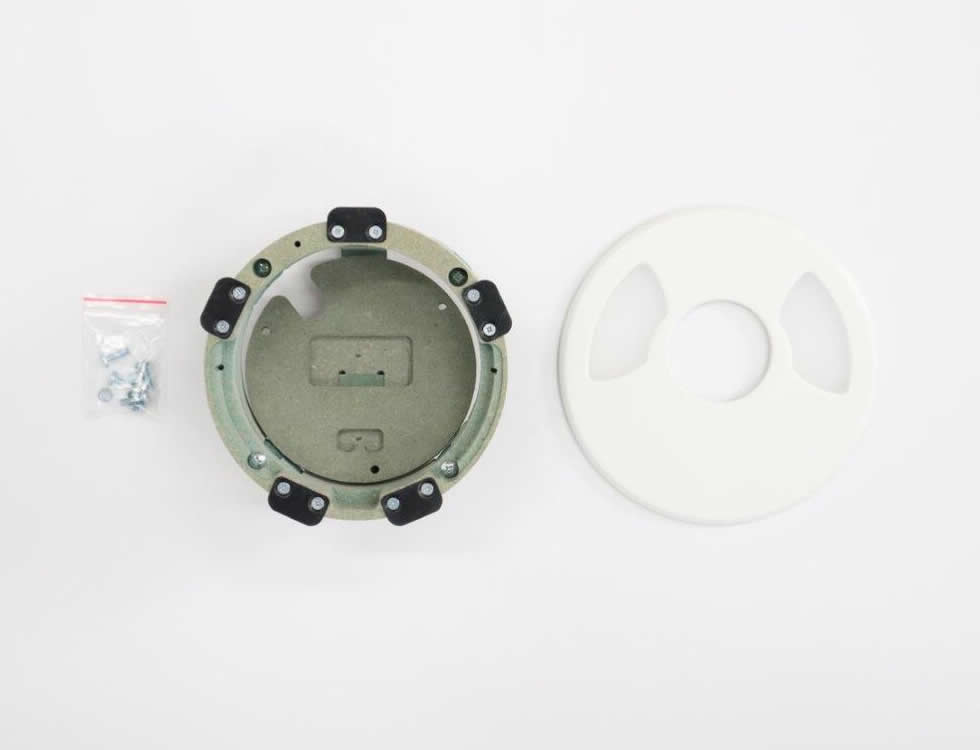

Key features include a magnetically attached bezel that snaps onto the retrofit wall mount base and a slim on-wall bezel thickness of 4mm 0.16in. The system allows easy insertion and removal of the camera for service or replacement without disturbing the surrounding finish. The bezel is supplied pre-painted in white matte for consistent aesthetics.
Technical specifications include a diameter of 153.5mm 6.04in and overall height of 77mm 3.03in. The adapter assembly weighs approximately 0.4Kg 0.88lbs and is manufactured from moisture resistant MDF compliant with TSCA Title VI. The design provides a firm mount and reliable mechanical support while minimizing visible profile.
Compatibility is specific to the IC Realtime IPMX-W40F-IRW1 camera and the adapter is engineered to accept that camera form factor precisely. The magnetic bezel interface ensures repeatable alignment and straightforward access to the camera lens and connectors. The adapter supports both wall and ceiling retrofit installations where a near-flush appearance is required.
Typical applications include fixed surveillance installations in offices, retail environments, educational facilities, and residential common areas where minimal visual impact is desired. The near-flush profile reduces tampering risk and improves aesthetics compared with surface-mounted housings. It is suited to projects that require concealed mounting while retaining service accessibility.

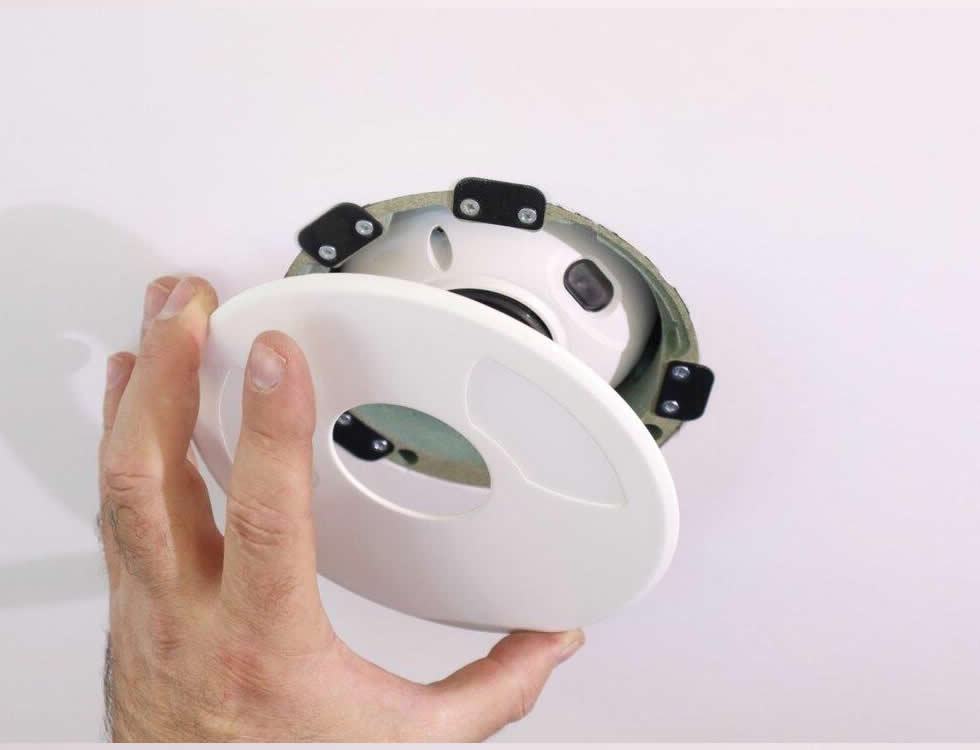

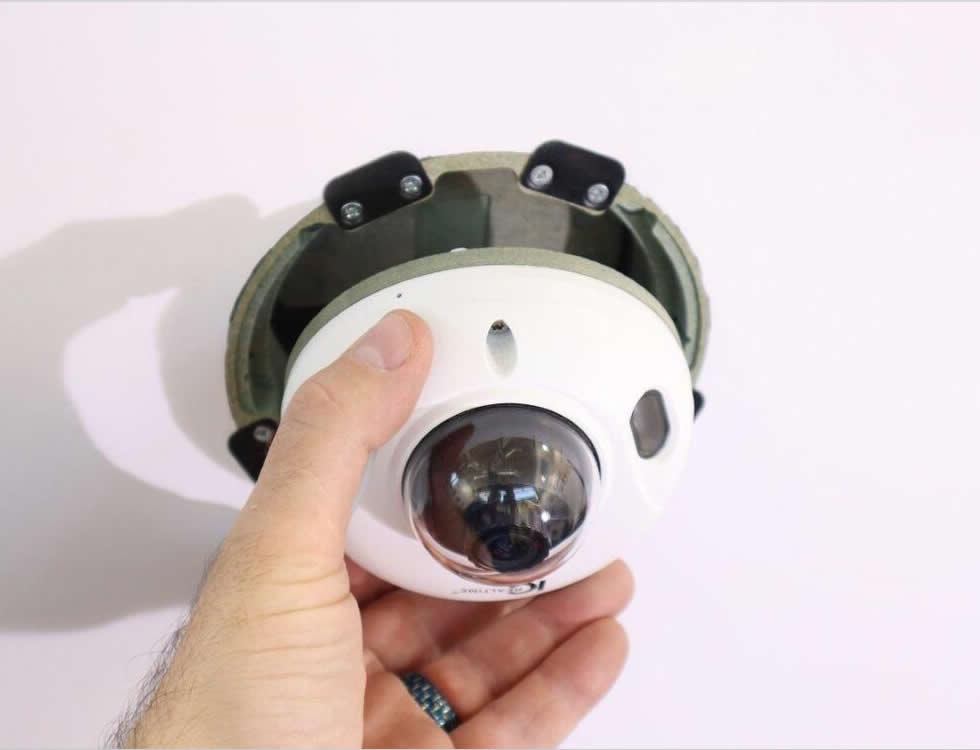

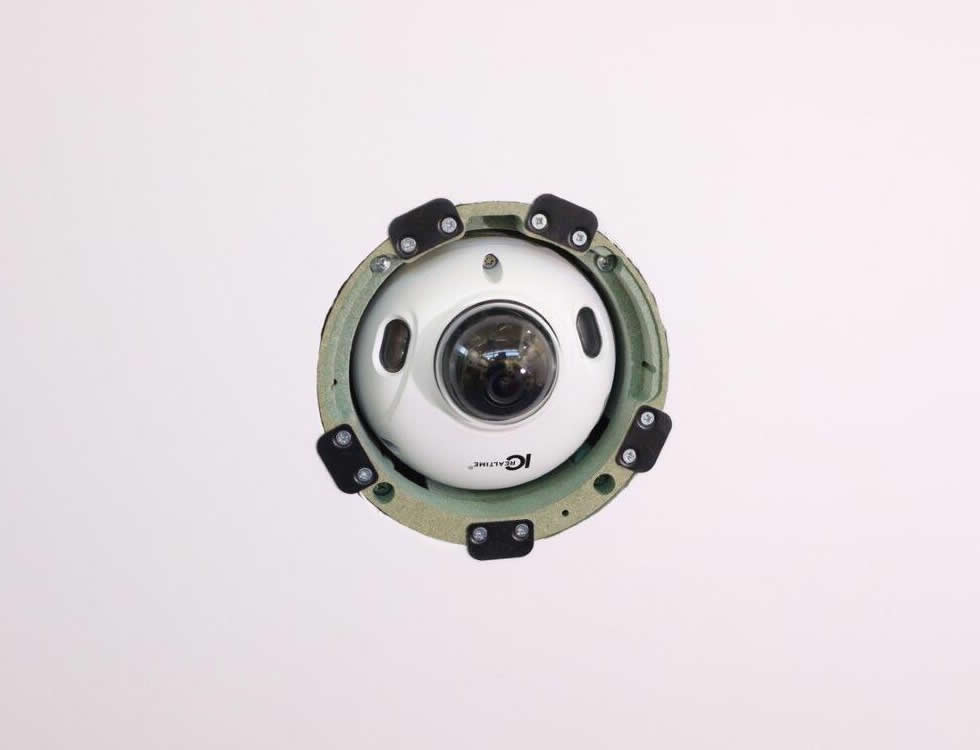

Installation is straightforward for trained AV or security technicians – the wall mount base secures to the retrofit cutout and the bezel aligns magnetically for quick attachment. The moisture resistant MDF construction and factory-painted finish provide durable performance in interior environments. The adapter delivers a balance of low profile appearance and practical serviceability for professional installations.
