Description

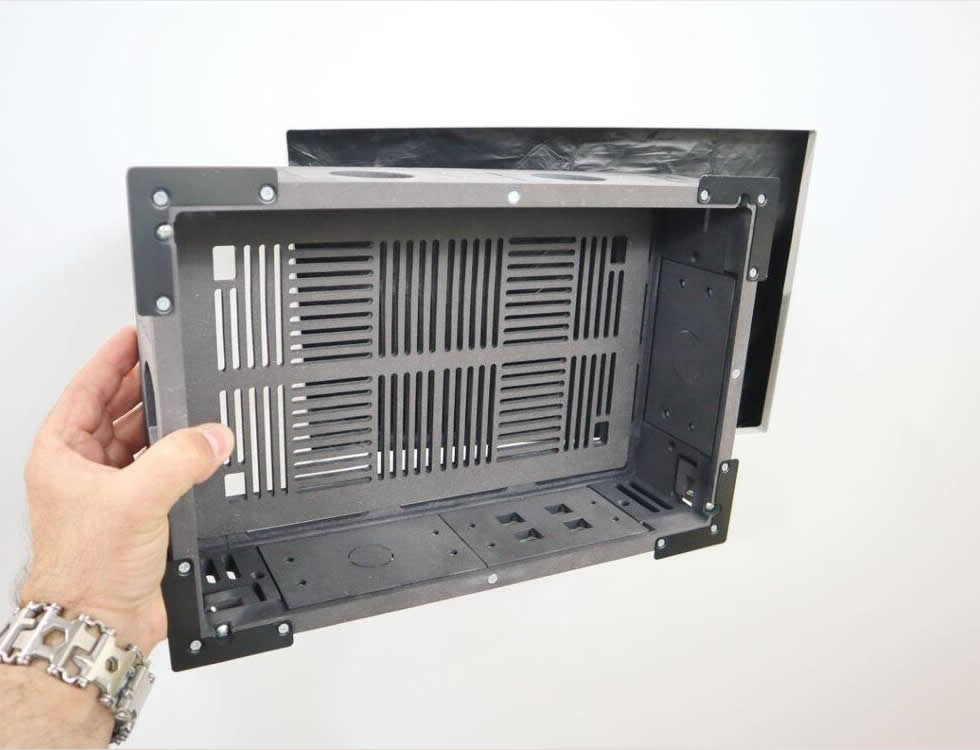

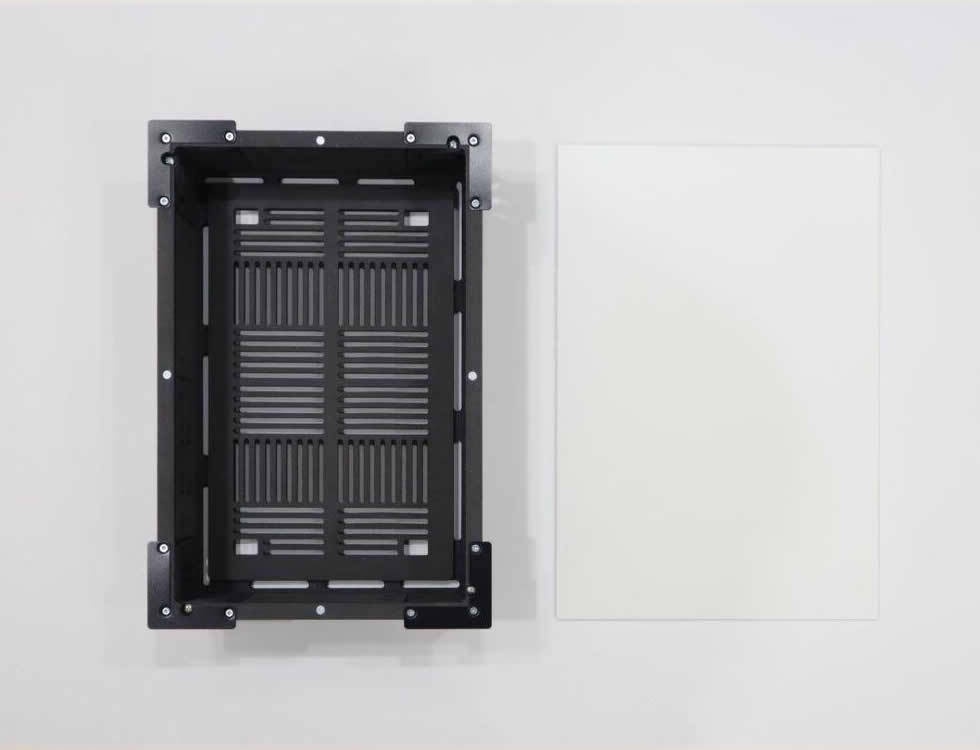

The Retrofit Uni-INwall M is an in-wall adapter designed to mount devices nearly flush to interior walls – it secures a device while allowing easy insertion and removal. The unit provides a low-profile external cover that sits 4mm from the finished wall surface. This product is aimed at AV integrators and installers who need a tidy flush appearance for shallow equipment.

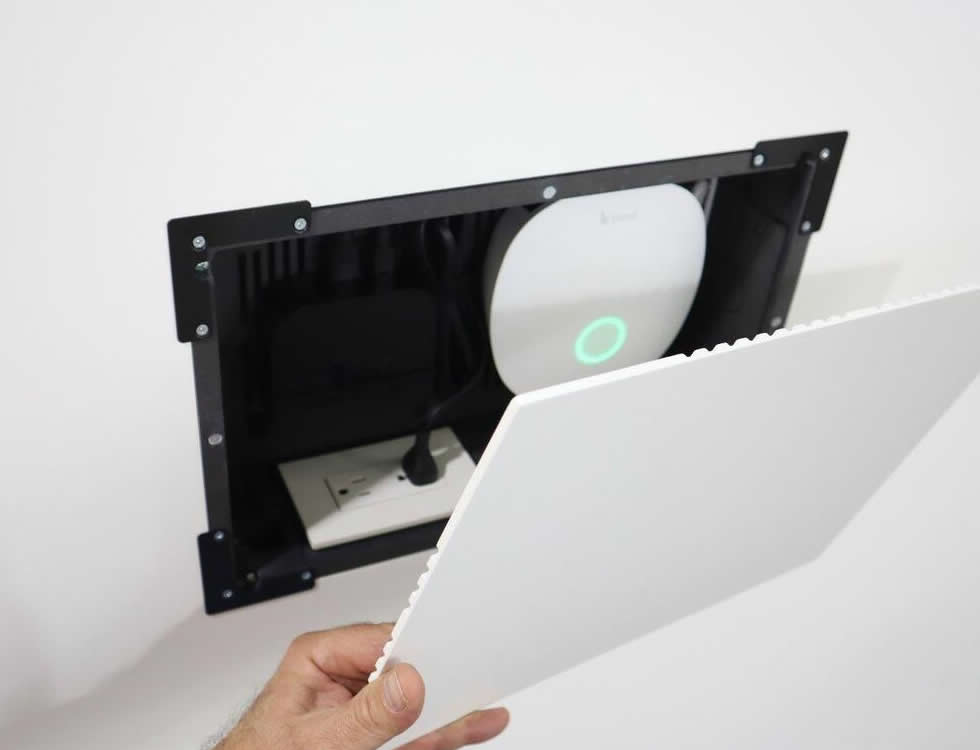

Key features include a magnetic cover that attaches to the retrofit base, hidden ventilation grilles integrated into the cover, and a painted white finish that blends with most interiors. The kit contains inner interchangeable side plates to accept keystone inserts and conduit knockouts. The adapter also supports standard switch boxes such as the Hubbell-Raco 420 or equivalent.
Technical details include support for devices up to 213x336x85mm and accommodation for board thicknesses from 10mm to 19mm. The outer cover is 4mm thick from the wall face to achieve the nearly flush look. The main assembly is constructed from moisture resistant MDF compliant with TSCA Title VI for indoor installations.

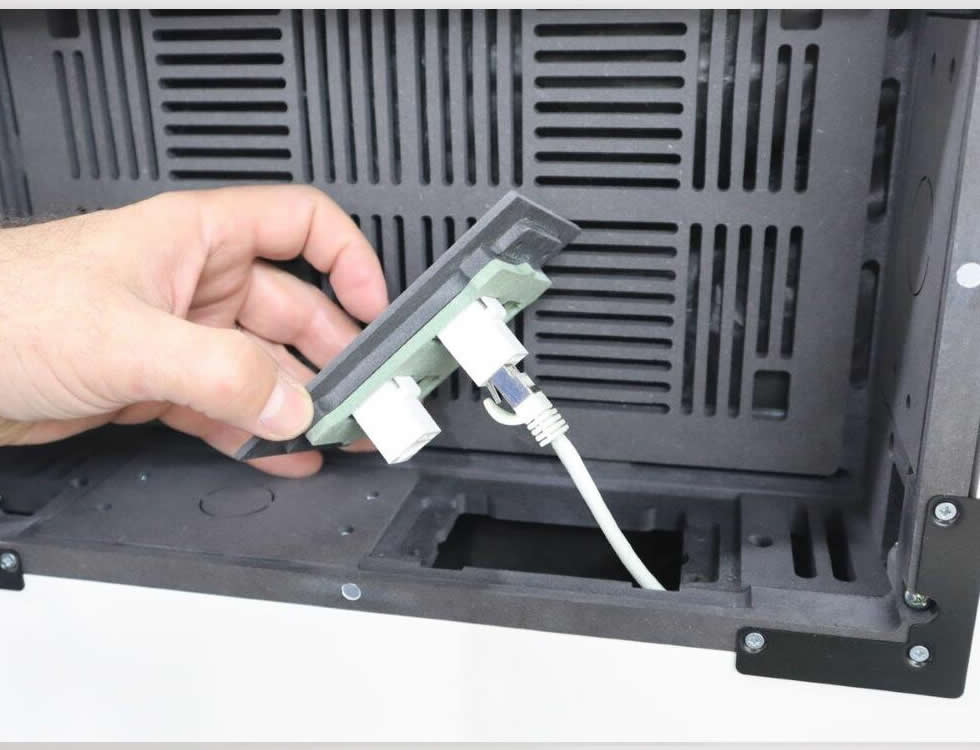

Connectivity and compatibility are managed via the supplied interchangeable inner plates that enable up to four keystone inserts and conduit connectors in 1/2″, 3/4″ and 1″ sizes. The adapter kit provides the mechanical interface between the device and the wall mount while allowing space for a Hubbell-Raco 420 switch box where required. The magnetic cover maintains quick access while concealing cabling and ventilation.

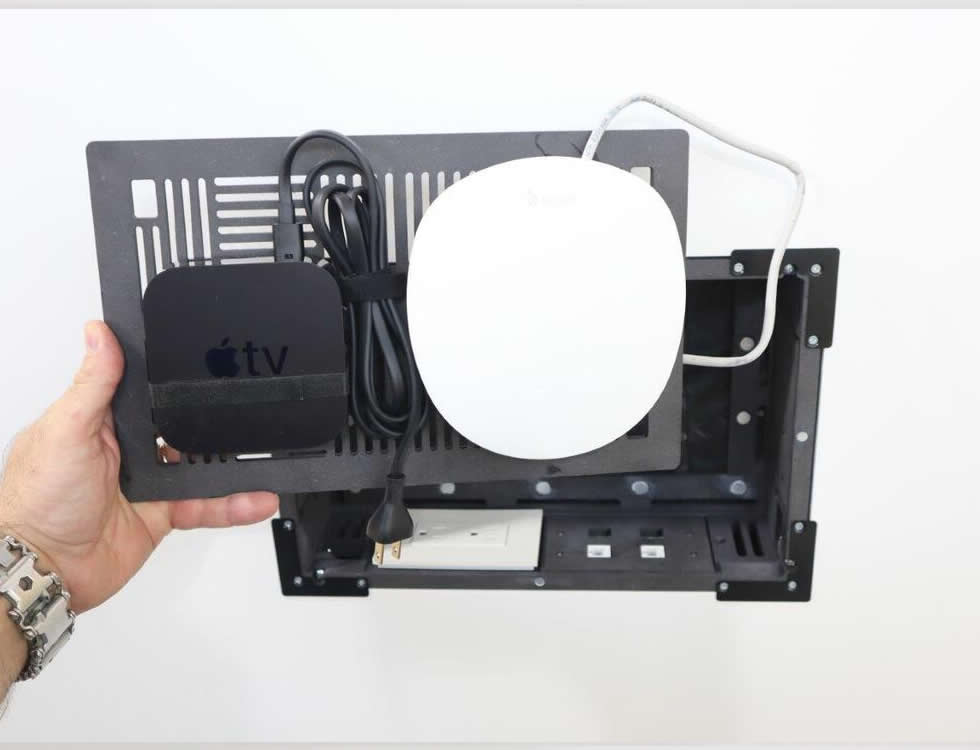

Typical use cases include wall-mounted control tablets, small media players, networked AV devices and shallow mounting of control panels in meeting rooms or digital signage installations. The product is suitable for integrators installing devices in both new construction and retrofit scenarios where a near-flush aesthetic is required. It is not a powered enclosure and does not include the mounted device.

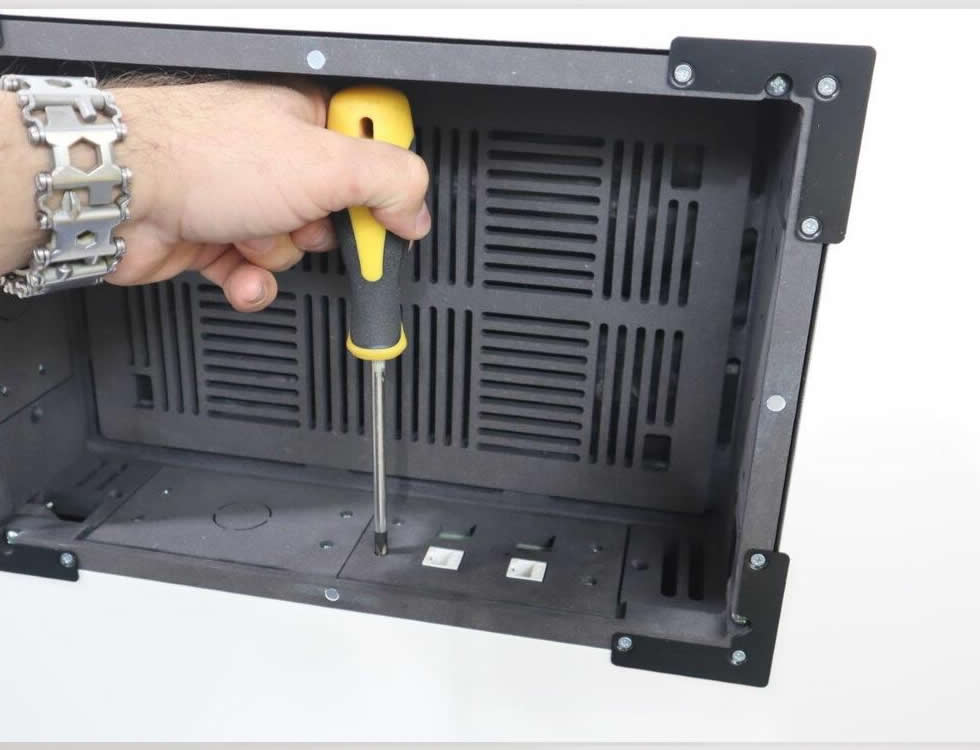

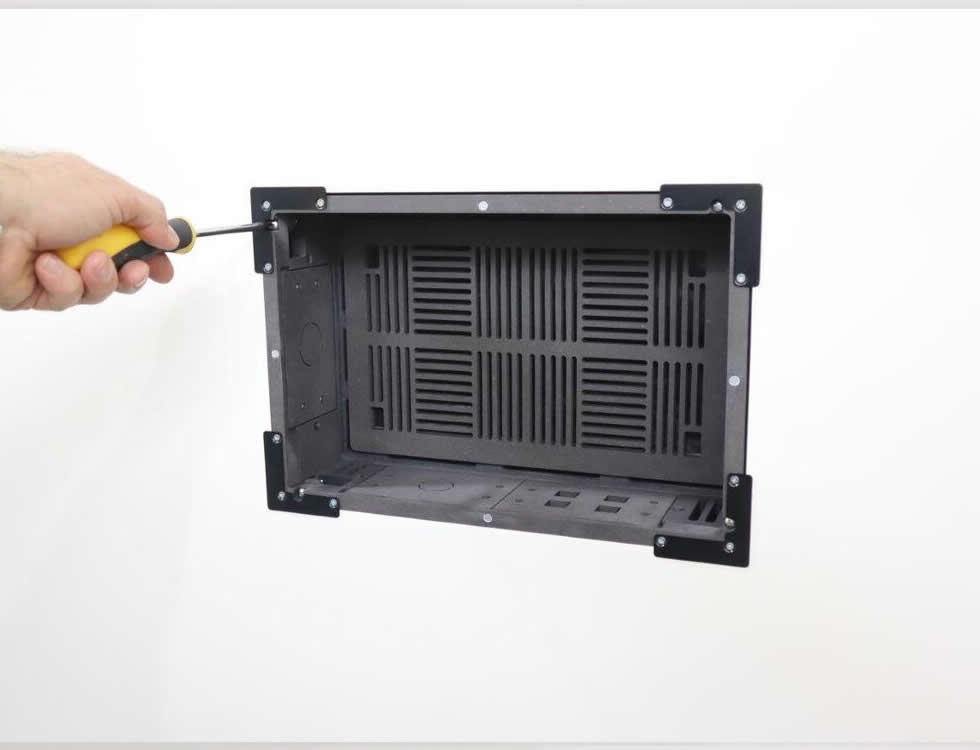

Installation is straightforward for experienced AV installers – the kit includes adapters, screws and interchangeable plates to match common conduit and keystone needs. The painted cover and integrated ventilation grilles reduce onsite finishing work while maintaining airflow. Overall the Retrofit Uni-INwall M provides a compact, serviceable in-wall mounting solution that improves appearance and access for mounted AV devices.
