Description

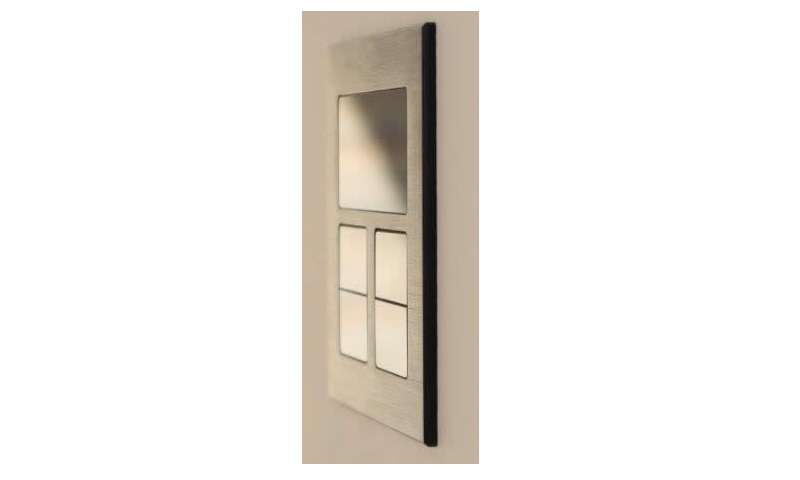

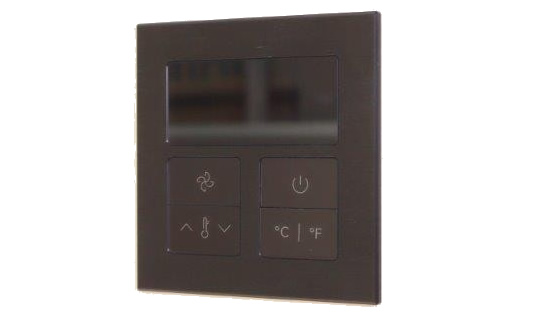

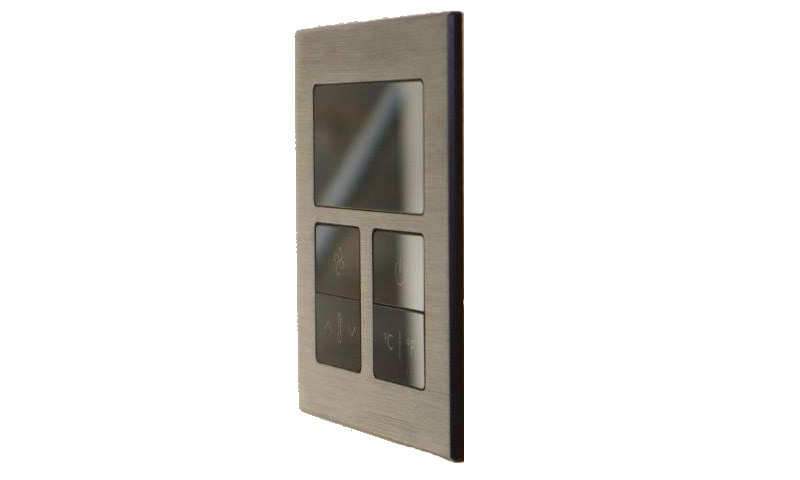

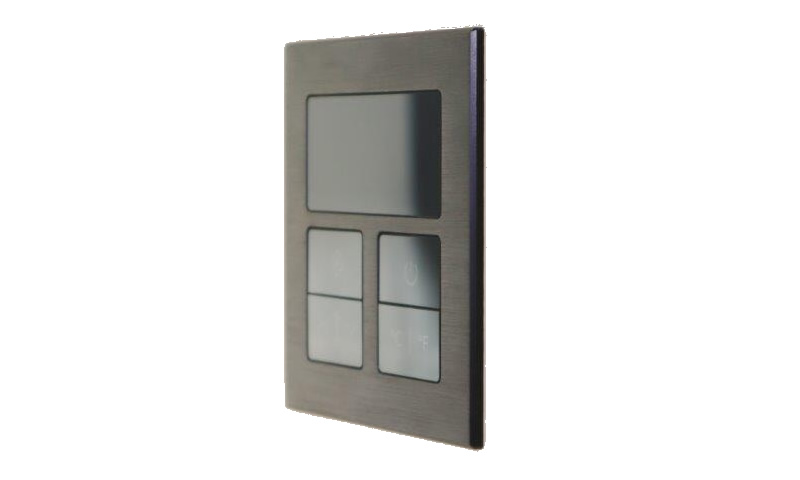

The Wall-Smart retrofit wall mount is a low-voltage module mounting solution designed to create a nearly flush installation profile – it provides a clean, low-profile appearance while securing control modules to the wall. This product is intended to integrate with single-module low-voltage keypads and interface modules. It reduces visible on-wall thickness to maintain a discreet installation aesthetic.
Key features include an on-wall thickness of approximately 3mm, an integrated depth calibration mechanism, and compatibility with typical single-module low-voltage keypads. The wall mount is designed to accommodate board thickness from 1/2in up to 1in and includes clearly defined cutout dimensions for reliable module alignment. The design focuses on accurate placement and minimal protrusion from the finished surface.
Technical specifications state the external dimensions as 121.8mm by 121.8mm with a depth of 41.8mm – expressed as 4.8in x 4.8in x 1.65in. The on-wall thickness is approximately 3mm (0.12in) to achieve the nearly flush profile. The mount supports standard low-voltage module mounting practices and preserves module accessibility for maintenance and module swaps.
Connectivity-wise the mount is a mechanical accessory and does not add electrical interfaces – it is compatible with low-voltage keypad modules that conform to single-module form factors. The product preserves existing connector access on installed modules and does not obstruct wiring or terminal access. Compatibility is focused on physical fit and mounting depth rather than electronic interface changes.
Typical use cases include retrofit installations where a modern, low-profile appearance is desired while retaining existing low-voltage control keypads. It is suitable for residential and commercial spaces where wall-mounted modules need a near-flush finish. Integrators can use the mount to update appearance without reworking in-wall back boxes.

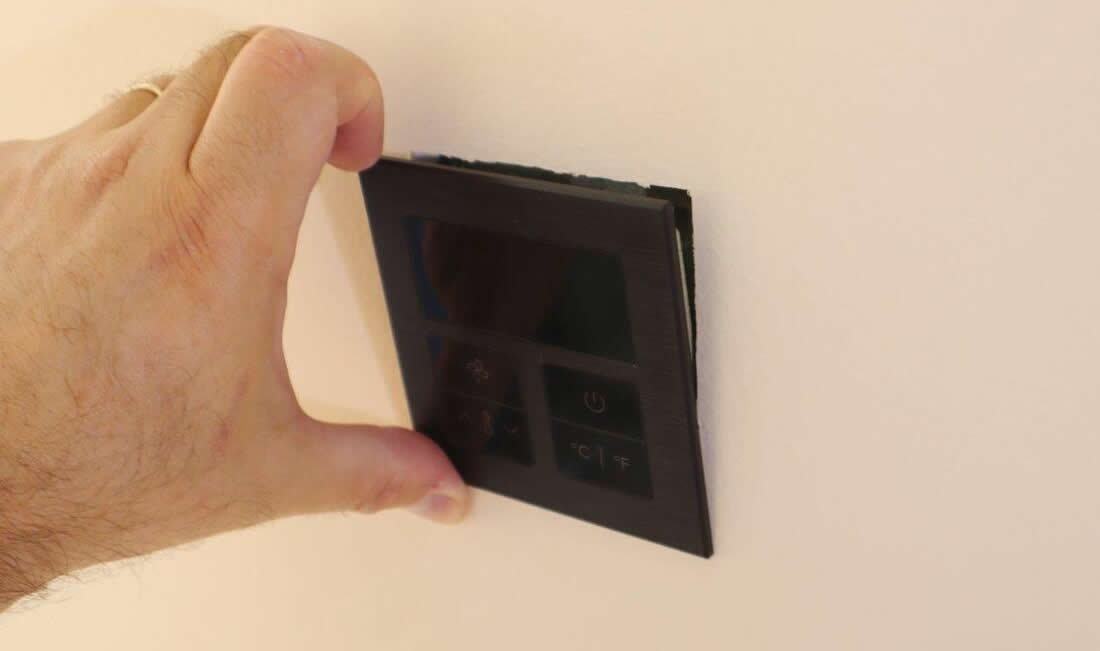

Installation is straightforward – the built-in depth calibration mechanism simplifies aligning module faceplates to the finished surface and accommodates board thickness variances between 1/2in and 1in. The mount is designed for repeatable placement and secure fastening to standard board materials. Overall build quality emphasizes accurate fit and consistent finish for professional installations.
