Description

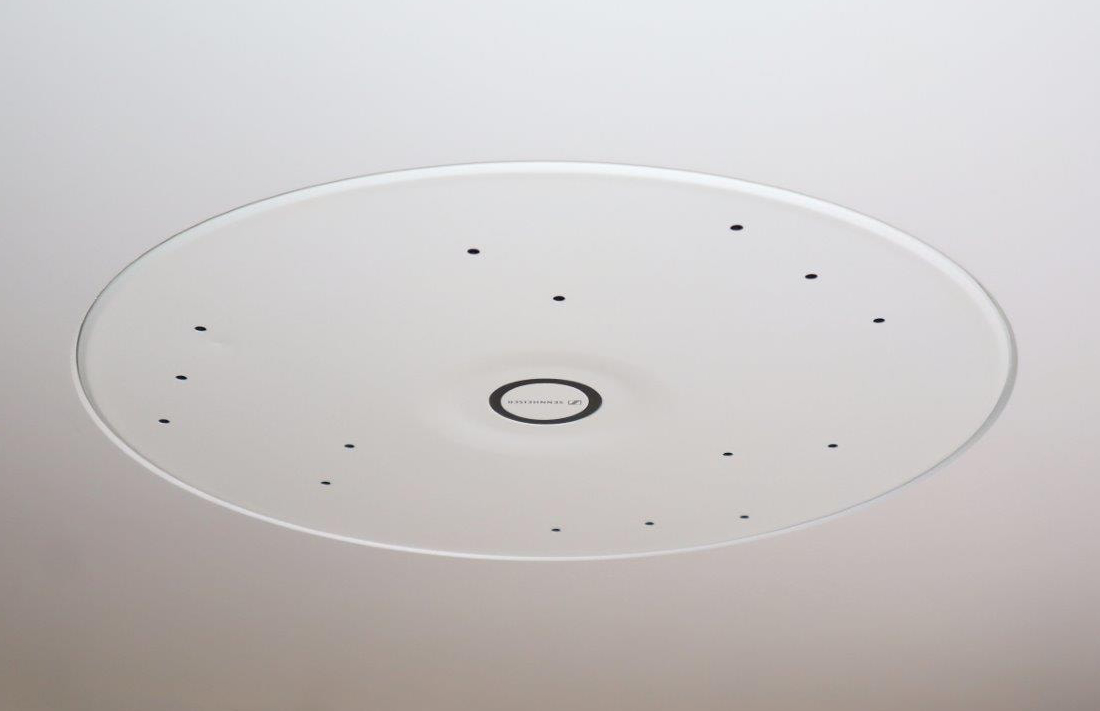

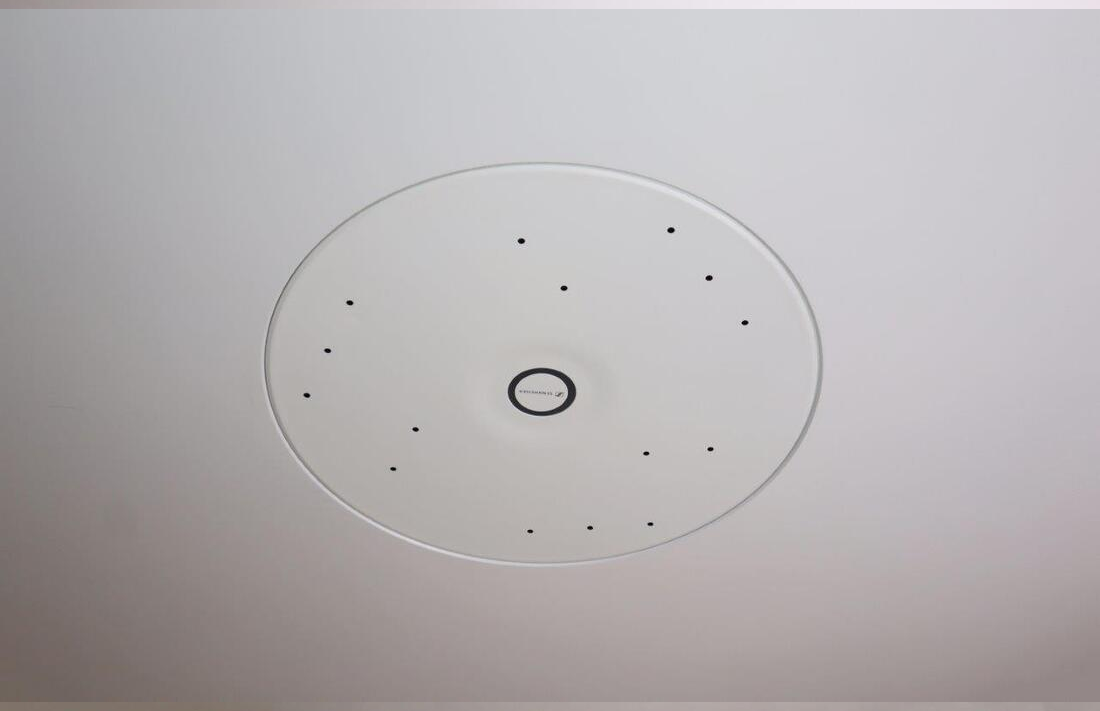

The Wall-Smart WS NC adapter provides a flush in-ceiling mounting solution for the TeamConnect Ceiling Mic M. It secures the microphone discreetly into 1/2in drywall while remaining paintable to match ceiling finish. The adapter is supplied unpainted to be finished after installation.
Key features include a flush profile that minimizes visual impact, a paintable moisture-resistant MDF face, and an insertion/removal design that speeds serviceability. The adapter allows the microphone to be installed and removed without altering surrounding ceiling finishes. It is purpose-built to hold the mic firmly in place while maintaining easy access for maintenance.
Technical details include a 500mm x 500mm footprint and a low-profile depth of 16.6mm. The adapter is a passive mechanical mount that requires no power or electronics. Total packaged weight is 1.4Kg which simplifies handling during installation and finishing.
Compatibility is focused on the TeamConnect Ceiling Mic M model. The adapter accepts the microphone module while keeping it flush to the ceiling plane. There are no electrical connections in the adapter – it is strictly a mechanical mounting accessory for the microphone hardware.
Typical applications include conference rooms, boardrooms, lecture halls, and other ceiling-mounted mic deployments where a low visual profile is desired. The paintable surface lets integrators match color and texture to existing ceilings for a concealed installation. The adapter is useful in new construction or retrofit scenarios using 1/2in drywall.

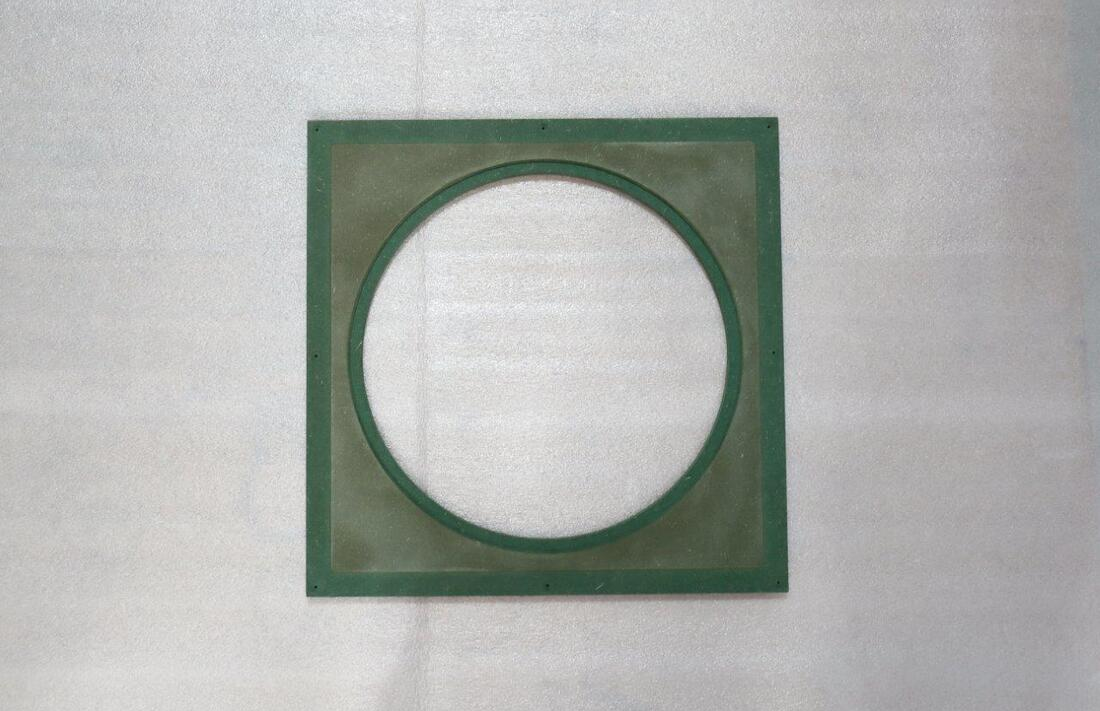

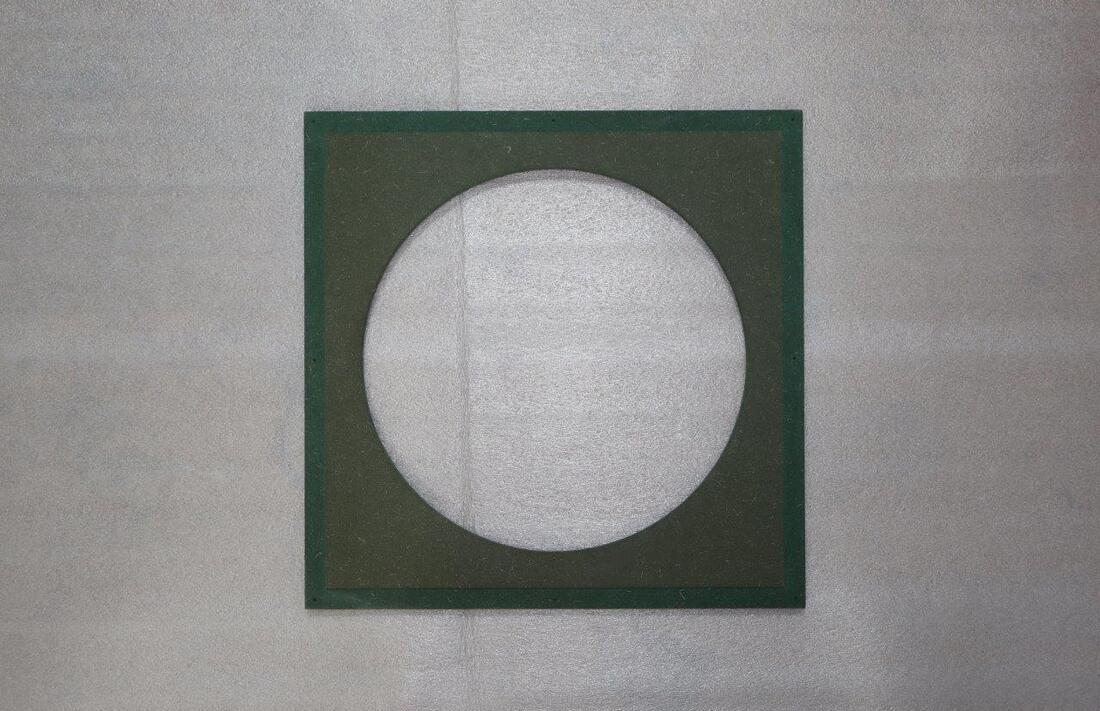

Installation follows standard drywall construction techniques and is designed for straightforward fitting in 1/2in drywall cavities. For 5/8in drywall there is an available shim pack P/N 10-01-067. The adapter ships ready to be painted and is manufactured from moisture-resistant MDF for durability in interior ceiling environments.
