Description

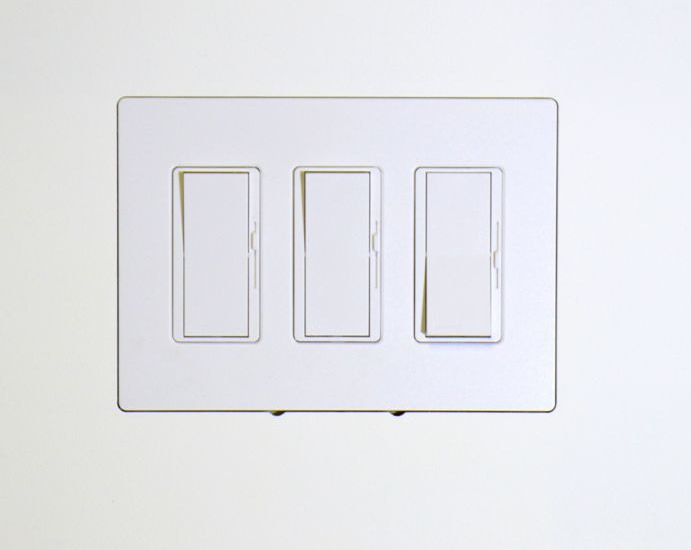

The 3-gang flush wall adapter provides a clean in-wall mounting solution for Designer style 3-gang faceplates and line-voltage Decora accessories. It is engineered to sit flush with finished drywall for a seamless appearance. The adapter is supplied unpainted to allow finishing as part of the wall.
Key features include an integrated depth calibration mechanism, paintable moisture-resistant construction, and easy insertion and removal of faceplates and accessories. The depth calibration lets installers set a precise flush position relative to the finished surface. The paintable surface accepts standard wall paint and texture for an invisible integration into the wall plane.
Technical construction uses moisture-resistant MDF to offer dimensional stability in typical interior installations. The adapter has overall dimensions of 236.8mm by 188mm by 38.6mm and weighs approximately 0.5 kg. No power supply is required because the adapter is a passive mechanical mounting accessory.
Connectivity is not applicable in the electrical sense – the adapter is a mounting interface designed to accept Designer style 3-gang faceplates and line-voltage Decora accessories. It is compatible with standard Decora accessories and requires a separate faceplate and electrical back box for finished installations. The product does not include faceplates, accessories, or back boxes.
Typical use cases include retrofit or new-construction installations where a flush, paintable finish is required for switches and outlets. It is suitable for residential, commercial, and hospitality projects where finished aesthetics are important. The adapter supports installer workflows that require repeatable flush alignment and straightforward faceplate access.
Installation follows common drywall construction practices and includes a depth calibration mechanism and installation spacers to secure accessories. The kit ships unpainted and is intended to be painted as part of the wall finish after installation. The MDF construction and included fasteners are sized for 5/8 in drywall installations and provide a reliable mechanical mounting solution.
