Description

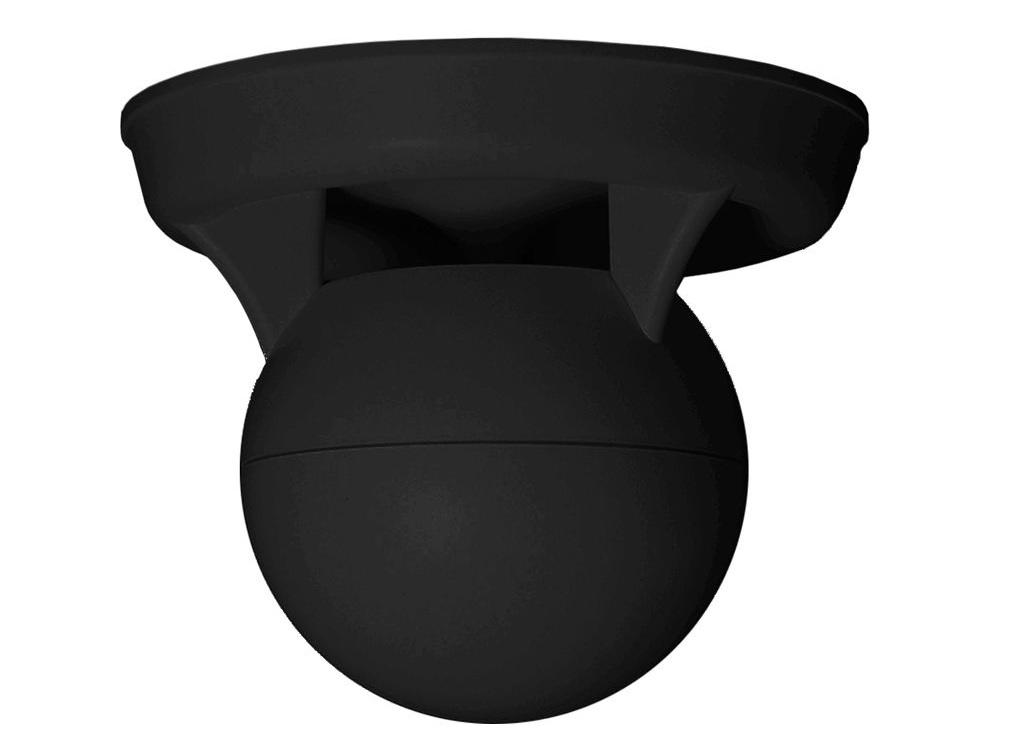

The SS-110 Page is a compact full-range paging speaker engineered to deliver clear, intelligible voice announcements in noisy environments. It uses a 6.5-in full-range driver and a hemispherical reflector to distribute sound broadly. The unit arrives fully assembled and ready for surface or suspended mounting.
Key features include an efficient neodymium-ferrite hybrid magnet system for high sensitivity and a hemisphere coverage pattern that improves off-axis intelligibility. The design emphasizes voice clarity over harsh horn-like projection – making announcements easier to understand. The enclosure is lightweight yet durable for indoor public-address applications.
Technical performance includes a nominal impedance of 4 ohms and sensitivity measured at 101 dB at 2.83 V/1 m in the critical midband. Frequency response is specified to -3 dB from 500 Hz to 5.5 kHz and -10 dB from 150 Hz to 11 kHz, supporting clear speech reproduction. Power handling is rated to 60 W RMS with 120 W peak capability and a maximum SPL of 116 dB at 1 m.
Connectivity is provided via hard-wire leads for straightforward integration into common paging and distributed audio systems. An optional 60 W transformer is listed as planned for applications requiring constant-voltage distribution. The enclosure finish is paintable white by default and custom colors are available to match interiors.
Typical applications include retail paging, industrial floor announcements, transit platforms, and educational facilities where high ambient noise exists. The hemisphere reflector and wide average coverage make it effective where speaker placement cannot be precisely aligned to listeners. It is suitable for systems that require OSHA-compliant intelligibility and audibility levels.
Installation is simple using the included mounting options and hanging kit – the speaker ships fully assembled to reduce onsite labor. The structural foam polystyrene enclosure with rustproof hardware offers a balance of low weight and corrosion resistance. Overall, the SS-110 Page provides a practical, easy-to-install solution for clear voice paging in challenging acoustic environments.
