Description

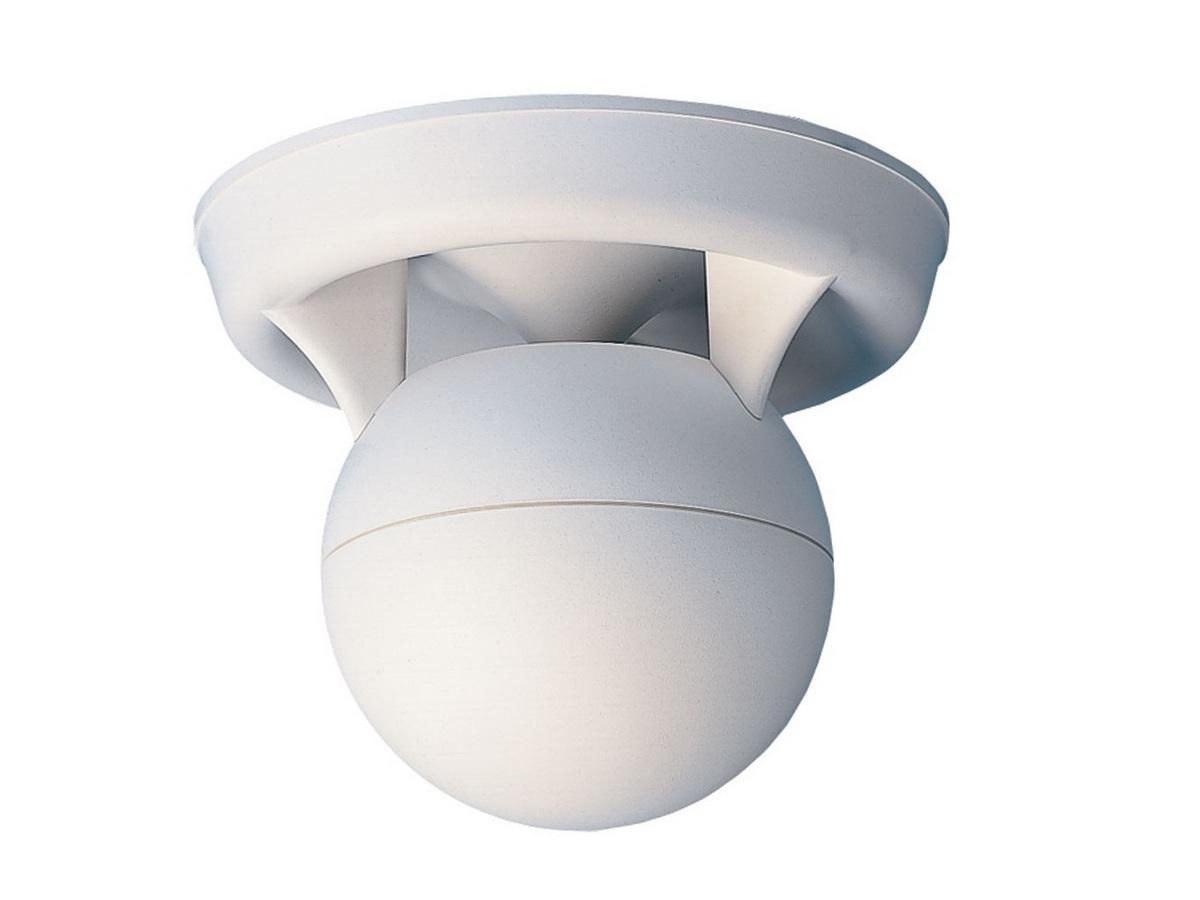

The Soundsphere Model 110 Page is a compact paging speaker engineered to deliver clear voice announcements in high ambient noise environments. The design uses a 6.5-in full-range driver and a hemispherical coverage pattern to maximize off-axis intelligibility. The unit ships fully assembled and ready to mount using either the included hanging kit or optional bracket.
Key features include a neodymium-ferrite hybrid magnet system for increased sensitivity and a hemispherical reflector that provides 180 degree coverage at lower frequencies. The speaker maintains speech clarity across its primary band and covers more area than many conventional paging horns. Color options include standard white paintable finish and available custom colors.
On-axis performance shows a frequency response of 500 Hz to 5.5 kHz (-3 dB) with extended response to 150 Hz-11 kHz at -10 dB. Sensitivity is rated at 101 dB measured from 300 Hz to 3 kHz and 98 dB at 1 W/1 m over the same band. Power handling is specified as 60 W RMS with a 120 W maximum continuous peak and a maximum SPL of 116 dB at 1 m.
Connectivity is by hard-wire leads for direct integration into distributed paging or background music systems. An optional 60 W transformer is planned for 70V/100V line applications where required for code compliance. The structural foam polystyrene enclosure and rustproof hardware help protect the transducer and mounting components in demanding installations.
The 110 Page fits applications that demand intelligible voice coverage such as manufacturing floors, transit facilities, retail concourses and large open-plan spaces. Its hemispherical coverage and high sensitivity reduce the number of loudspeakers required to achieve OSHA or local voice level requirements. The compact 10-inch sphere and 14-7/8-inch reflector make it visually discreet while covering wide areas.
Installation is simple – the product arrives ready to mount and is lightweight for easy rigging or bracket attachment. The treated pulp fiber woofer and 1-inch voice coil provide robust long-term performance and consistent voice reproduction. Overall, the Model 110 Page provides a cost-effective, intelligible paging solution where clear announcements are essential.
