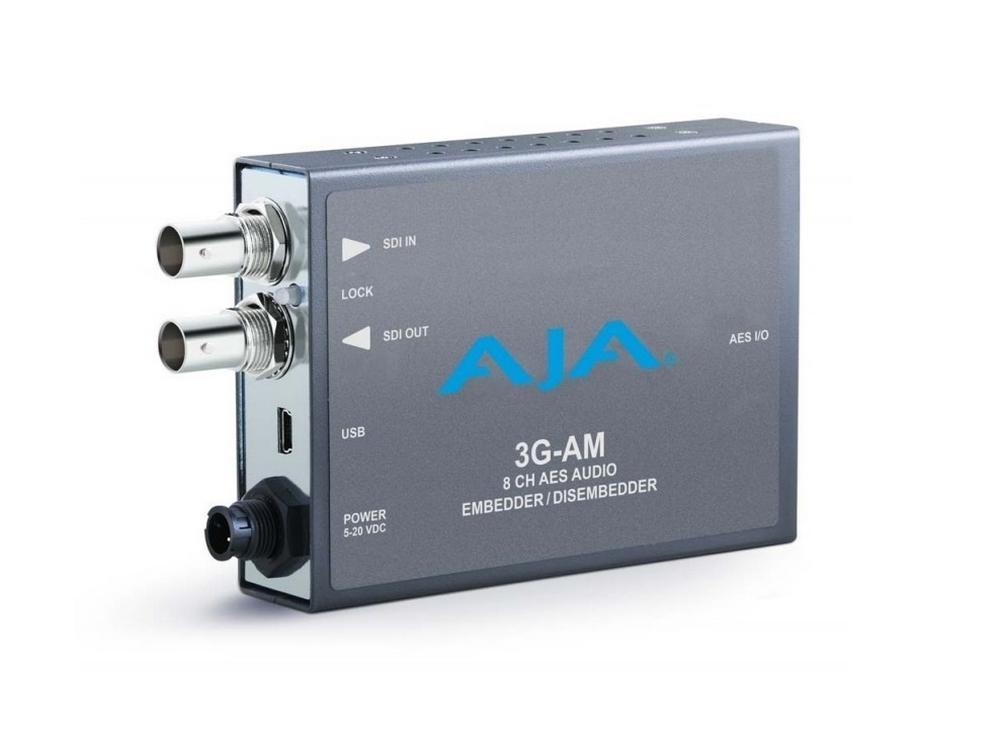

AJA 3G-AM-BNC 3G-SDI 8-Ch AES Embedder/Disembedder with BNC Cable

Video Input

SDI, 1x BNC

• HD SMPTE 292/296M
• SD SMPTE 259M
• 3G SMPTE 424/425M

Input Formats

1 x 3Gb SDI (level A or B)

• 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 2048x1080psf 23.98, 24, 25, 29.97, 30
• 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1920x1080psf 23.98, 24, 25, 29.97, 30
• 1920x1080i 25, 29.97, 30
• 1280x720p 50, 59.94, 60

1 x 1.5Gb SDI

• 2048x1080p 23.98, 24, 25, 29.97, 30
• 2048x1080psf 23.98, 24, 25, 29.97, 30
• 1920x1080p 23.98, 24, 25, 29.97, 30
• 1920x1080psf 23.98, 24, 25, 29.97, 30
• 1920x1080i 25, 29.97, 30
• 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1 x 270Mb SDI

• 525i
• 625i

Video Output

• SDI, 1x BNC

Output Formats

Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.

Video Latency

(time measured between video input and video output connector):

• SD (270 Mb) = 17.2 usec
• HD (1.5 Gb) = 6.3 usec
• 3G level A = 3.2 usec
• 3G level B = 6.1 usec

Audio Inputs and Outputs

• AES PCM Audio, 1 x 25 pin D female connector on converter, 8 channels in, 8 channels out, selectable in pairs.
• Breakout cable provided with 1 x 25 pin D male connector:
  • 4 x XLR female input breakout connectors (AES3 110 ohm)
  • 4 x XLR male output breakout connectors (AES3 110 ohm)

Audio Data Formats

• AES3-2003
• SMPTE 337M

Digital Audio Converters

• 24-bit

Embedded Audio

• SMPTE 272M (SD): 20-bit, 48KHz synchronous
• SMPTE 299M (3G/HD): 24-bit, 48KHz synchronous
• Incoming embedded audio can be passed, removed, or overridden.
• Up to 16 channels supported.

NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio.  Embed Path Audio Latency

(time measured between audio input and video output connector):

• 1500 usec (SRC ON)
• 400 usec (SRC OFF)

Disembed Path Audio Latency

(time measured between video input and audio output connector):

• 210 usec

User Controls

• External DIP switch
• USB port used with MiniConfig software application to configure device via PC/Mac

Power

• +5-20VDC, 5 watts. Power Supply Required (included with purchase)

Size

• 5.8" x 3.1" x 1" (147 x 79 x 25 mm)

Environment

• Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Operating Relative Humidity: 10-90% non-condensing
• Operating Altitude: <2,500 meters (<8,000 feet)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
