Description

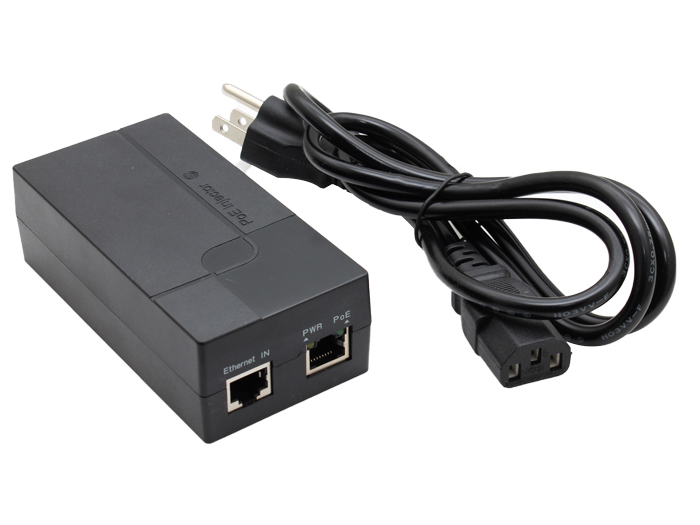

Download Manual The 511-POH-30W is a PoH compliant power inserter that can be used to power one end of an HDBaseT™ link. It passes the UTP signals across while at the same time injects 48v power for the PD (powered device). The supply complies with the IEEE 802.3af and will only apply power to the cable if a compliant device is connected.

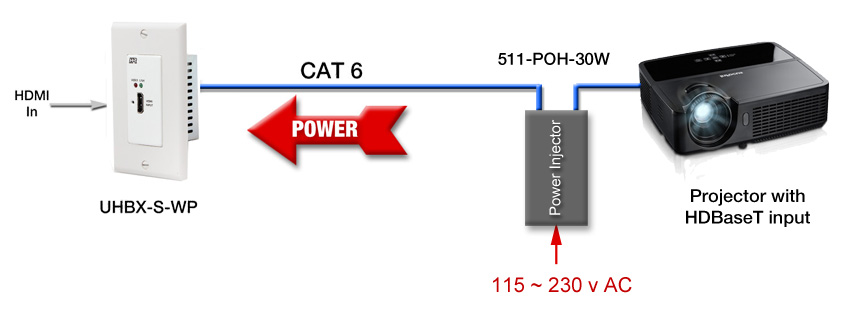

For example, you can use the power injector to power the UHBX-S-WP wall plate transmitter if the receiver does not supply power via the UTP cable. Some TV’s and projectors have direct HDBaseT™ inputs (receiver is built in to the display), but may not be able to send power to the wall plate. So, to connect the Wall-plate transmitter to the display, the 511-POH-30W inserter can be utilized.
The inserter has a universal AC input and can be connected to 100~230v AC. The package includes the following:
- Power supply module
- North American Power cord (customer must provide their own AC input cables when used with other standards)
Features
- Self-contained HDBaseT Power Injector
- 100-240VAC Universal Input
- Desktop Style
- IEEE802.3af Compliant
- Load Diagnostic LED
- Overload Shutdown and Short Circuit Protection
- Regulated Output With Low Ripple
- Complies with EMI/RFI Regulations
- CE Compliant, UL Listed
