Description

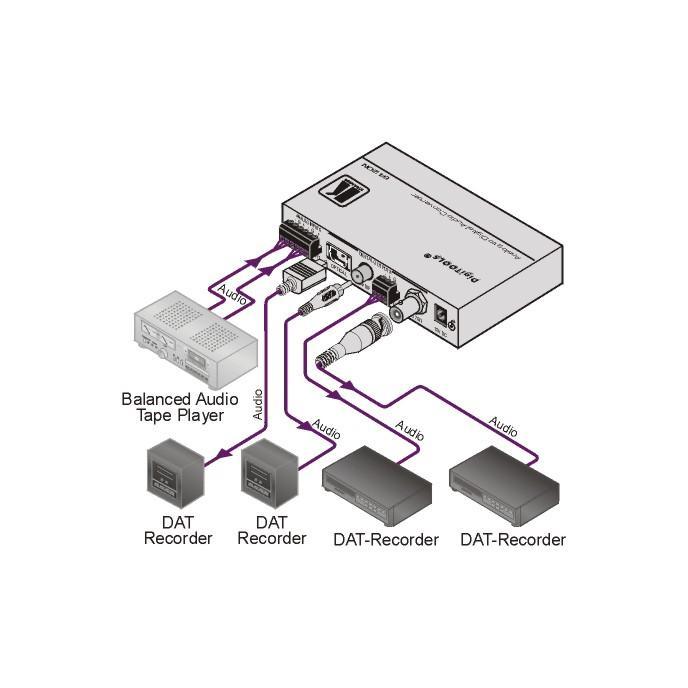

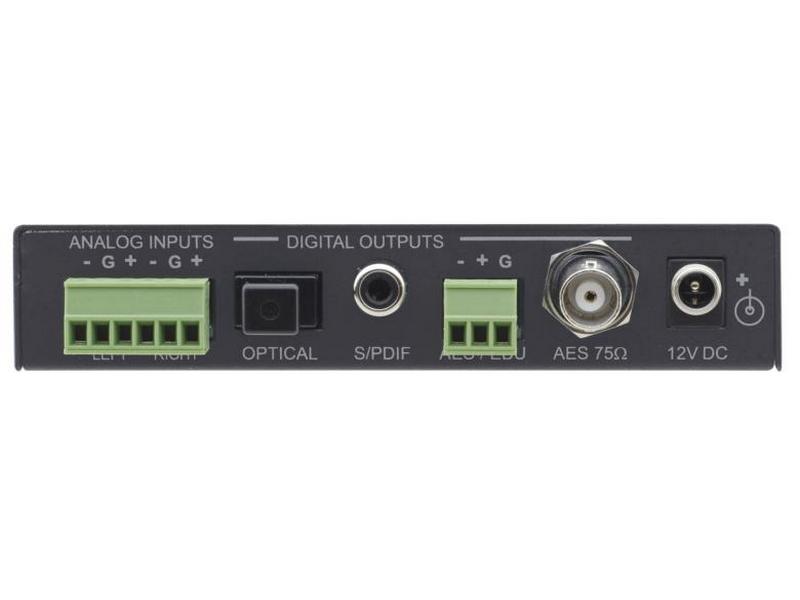

Download Manual The 6420N is a high-performance format converter for balanced audio signals. The unit converts two channels of balanced audio signals to AES/EBU, AES-3id, S/PDIF and TOSLINK® optical digital outputs simultaneously.
- Standards – AES/EBU, AES-3id, S/PDIF, TOSLINK® Optical.

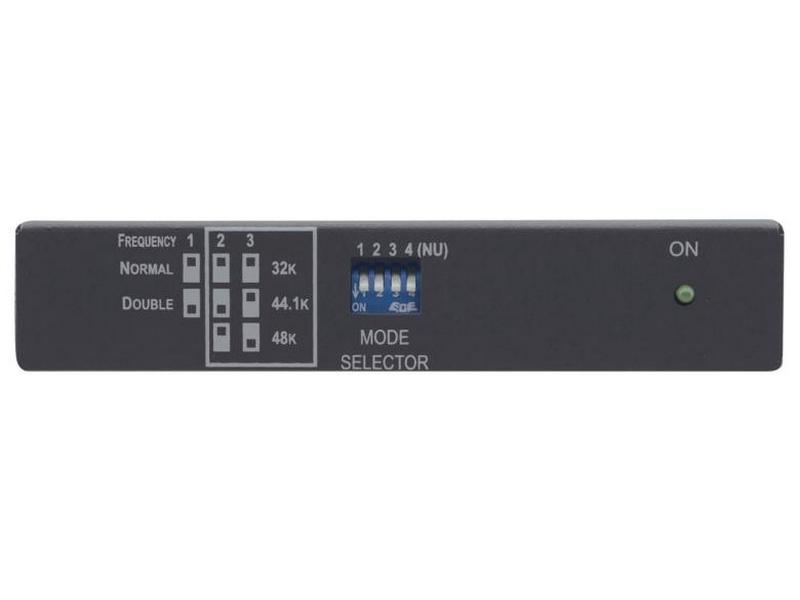

- Sampling – 32, 44.1, 48, & 96kHz (selectable).
- Professional or Consumer Bit Rate Selection.
- Left & Right Gain Conversion Control – 0dB, -12dB, -16dB, -20dB or -24dB.
- Compact DigiTOOLS® – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Rack Adapters: 19″ (1U): RK-3T
This product replaces the 6420
