Description

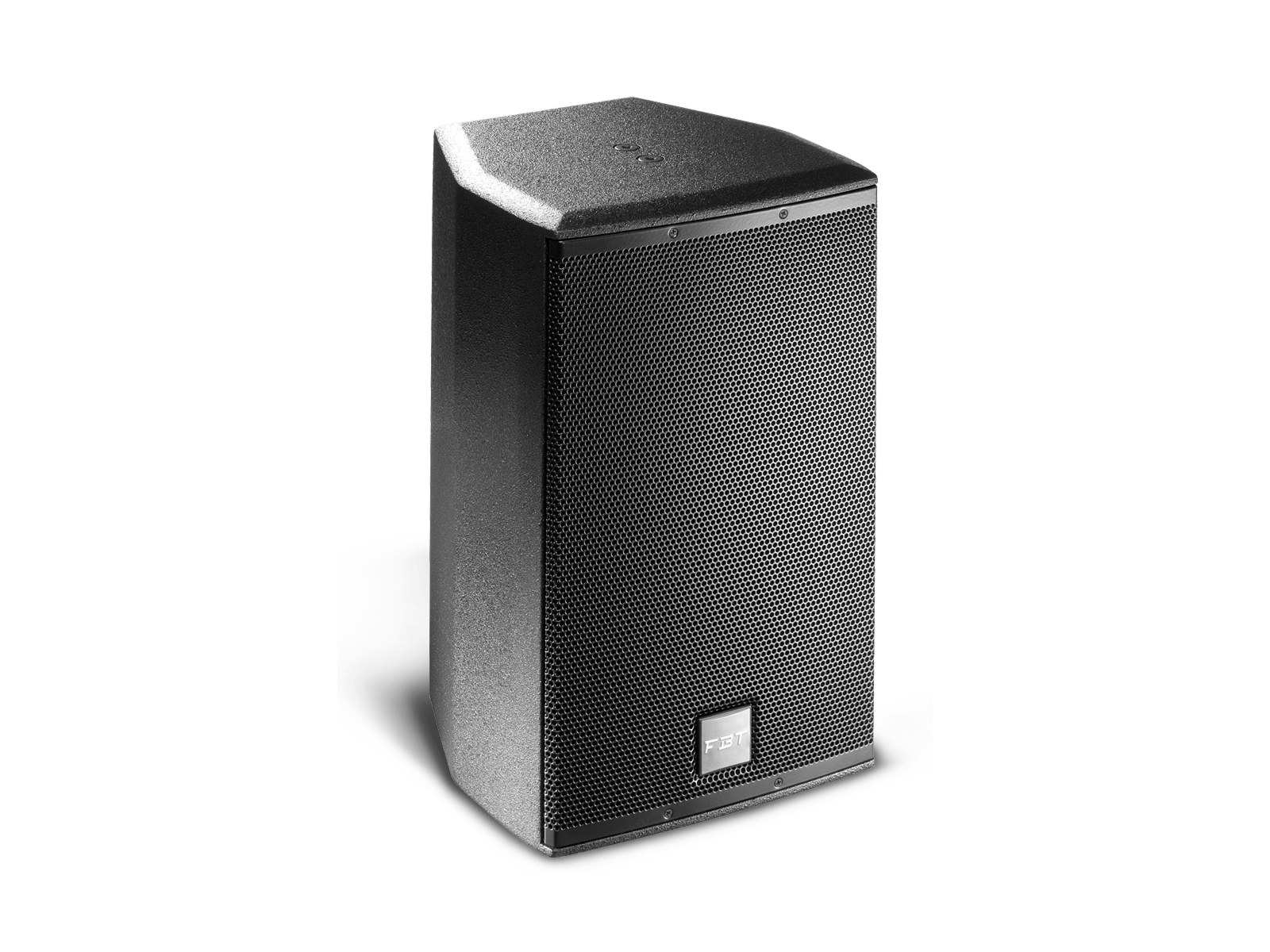

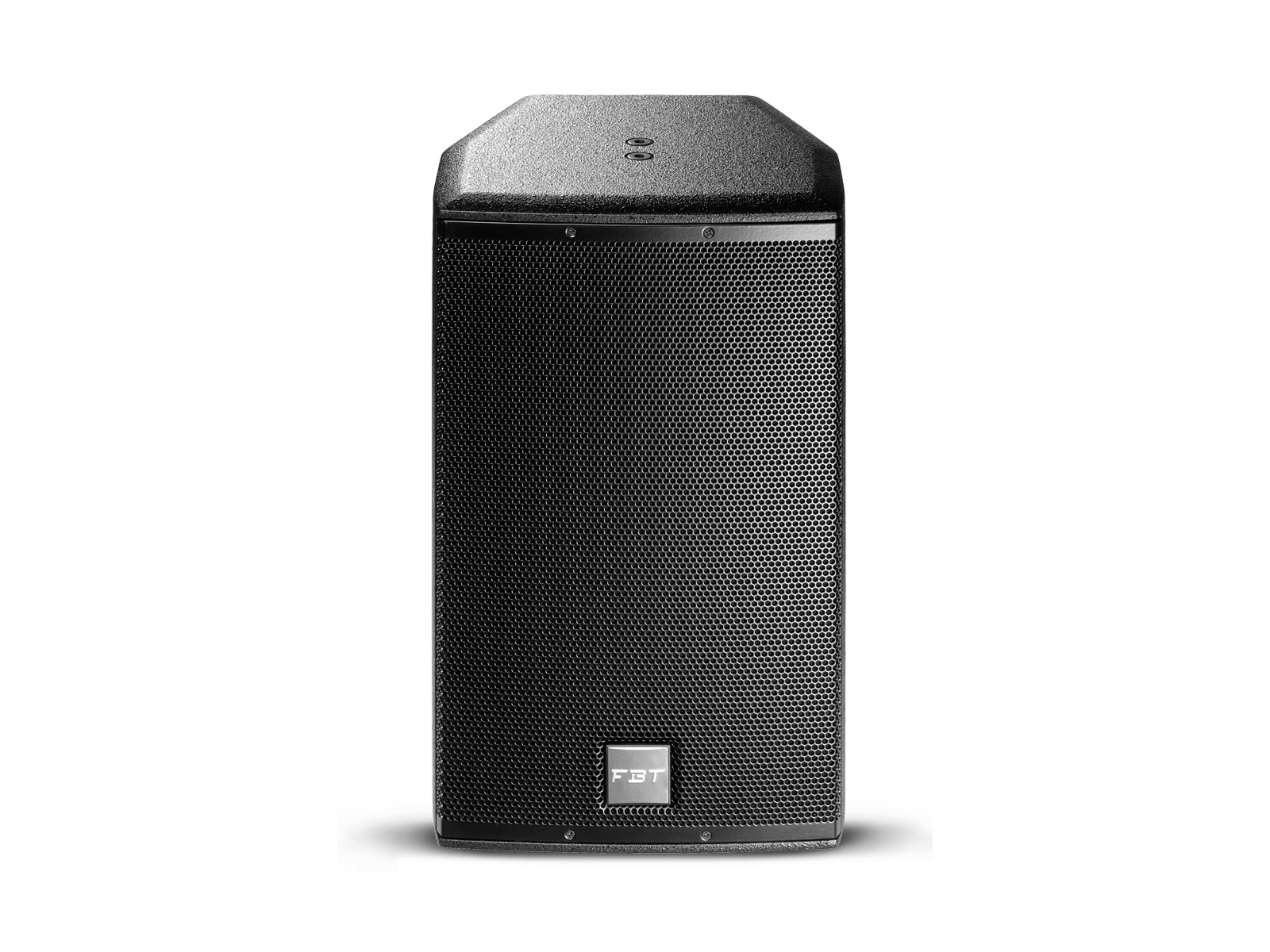

Download Manual ARCHON 108 is a two-way, full-range compact point-source loudspeaker housed in a carefully crafted birch plywood cabinet. Equipped with a 90° constant directivity horn, the ARCHON 108 features a custom-designed 8″ LF woofer and 1.5″ HF driver, both made in Italy, delivering sound pressure levels of up to 118/121 dB SPL within the listening area.
Frequency response ranges from 55Hz to 22kHz. An optional 100V line transformer rated at 100W is available. Recommended amplifier power is 350W RMS. Versatile suspension options are provided by 8 integrated M5 threaded rigging points, complemented by flexible mounting hardware and a wide selection of accessories for easy installation.
The wide hand made customizations offered made the ARCHON series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces.
The whole ARCHON series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.
Features
- Configuration: 2 way
- Low Frequency Woofer: 1 x 8” – 1.5” VC
- High Frequency Driver: 1 x 1.5” – 1.5” VC
- Recommended Amplifier: 350W RMS
- Transformer (optional): 100V – 100W
- Maximum SPL: 121dB
- Material: Baltic birch plywood
