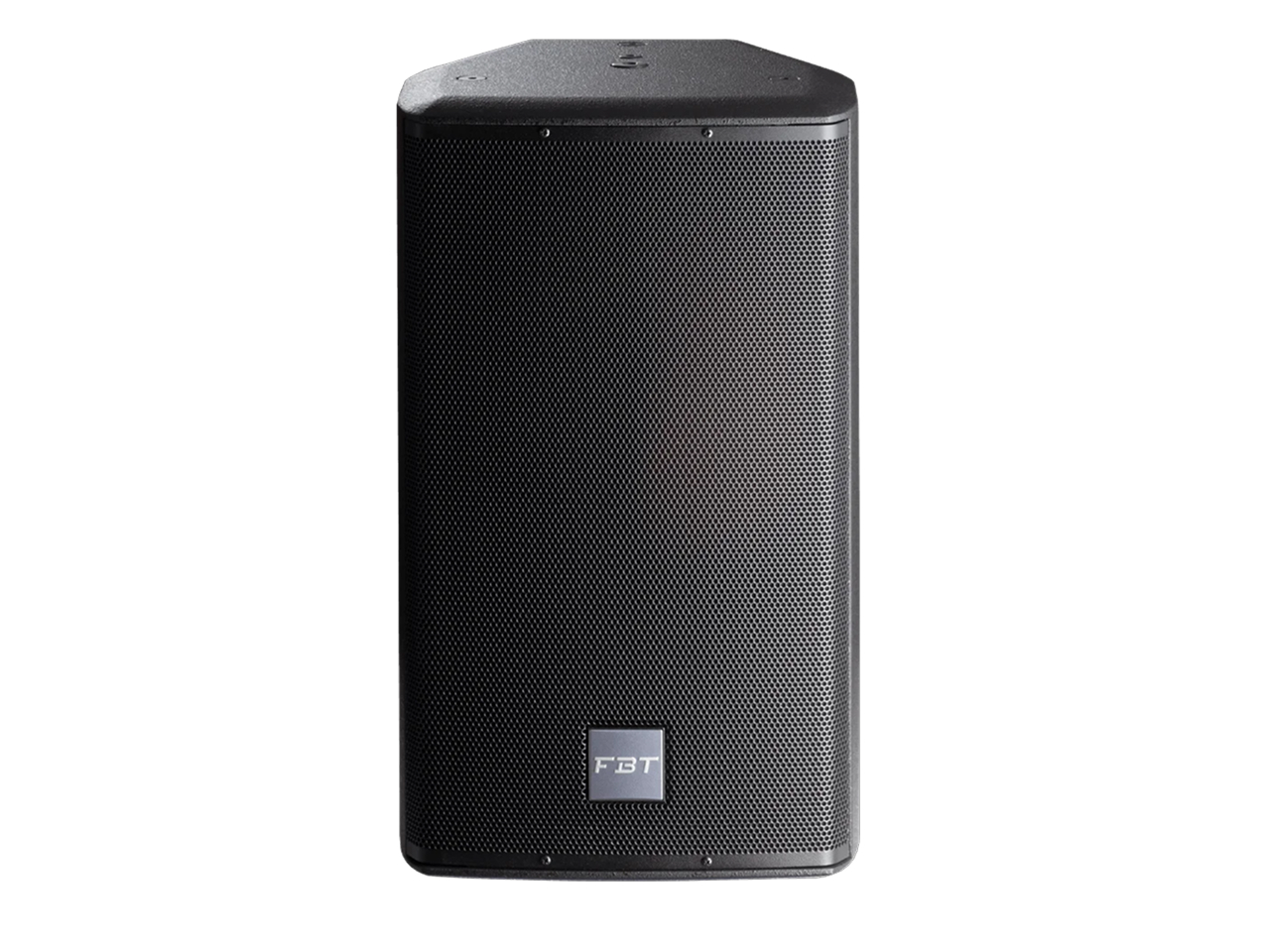

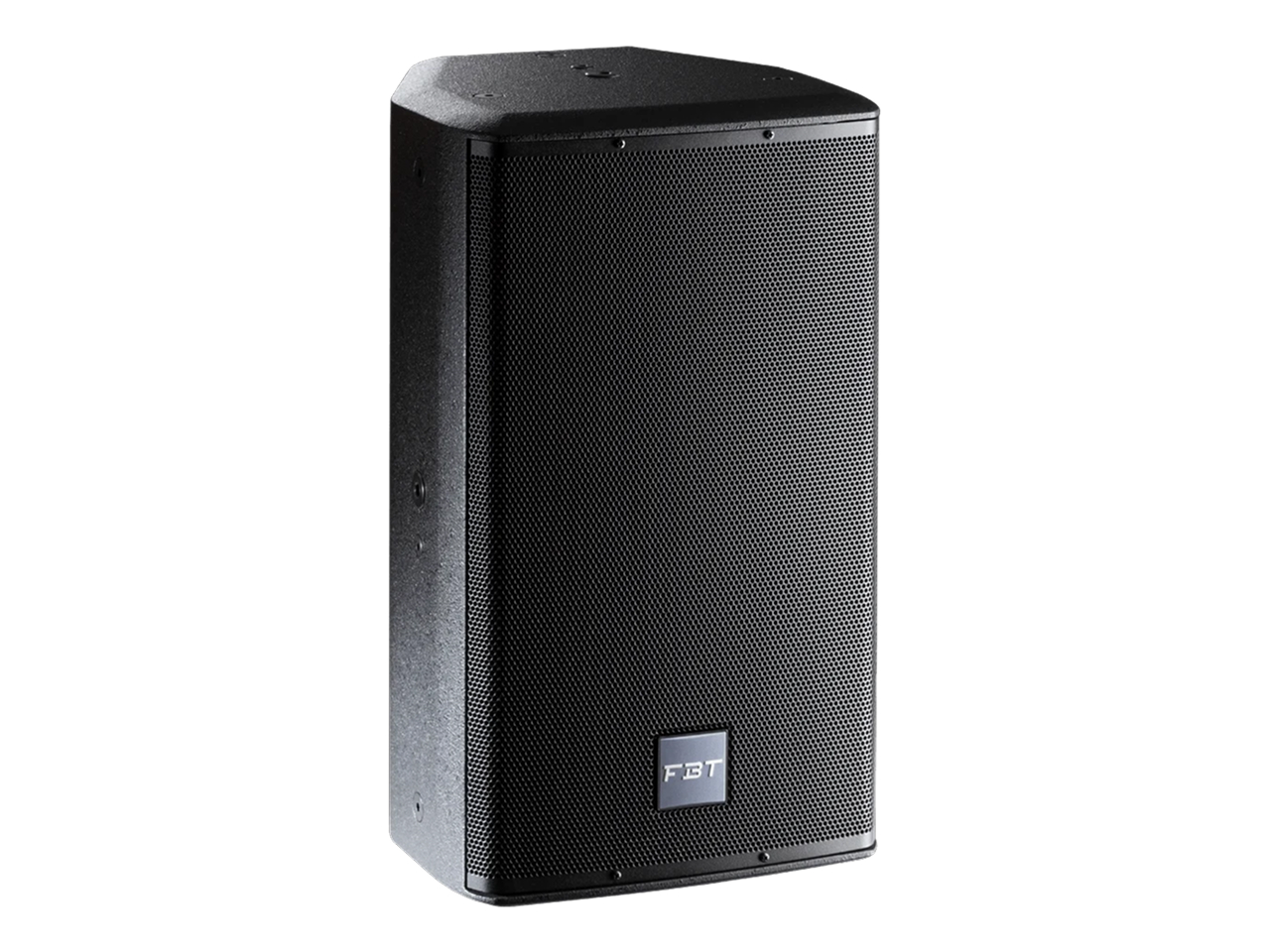

Download Manual ARCHON 110 is a full range/bi-amp 2 ways point source with a crafted birch plywood cabinet. This loudspeaker features rotatable horns for optimal horizontal or vertical dispersion, providing 80° H x 50° V coverage. Equipped with custom-designed high-excursion B&C 10″ LF woofers and 1″ HF compression drivers, it delivers up to 125/129 dB SPL within the listening area.
Frequency response ranges from 60Hz to 18kHz. An optional 100V line transformer (200W) is also available. Recommended amplifier power: 700W RMS. Multiple threaded rigging points ensure versatile suspension possibilities, complemented by flexible mounting hardware and a wide selection of accessories for effortless installation.
The wide hand made customizations offered made the ARCHON series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces.
The whole ARCHON series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.
Features
- Configuration: 2 way
- Low Frequency Woofer: 1 x 10” – 2.5” VC
- High Frequency Driver: 1 x 1” – 1.7” VC
- Recommended Amplifier: 700W RMS
- Transformer (optional): 100V – 200W
- Maximum SPL: 129dB
- Material: Baltic birch plywood
