Description

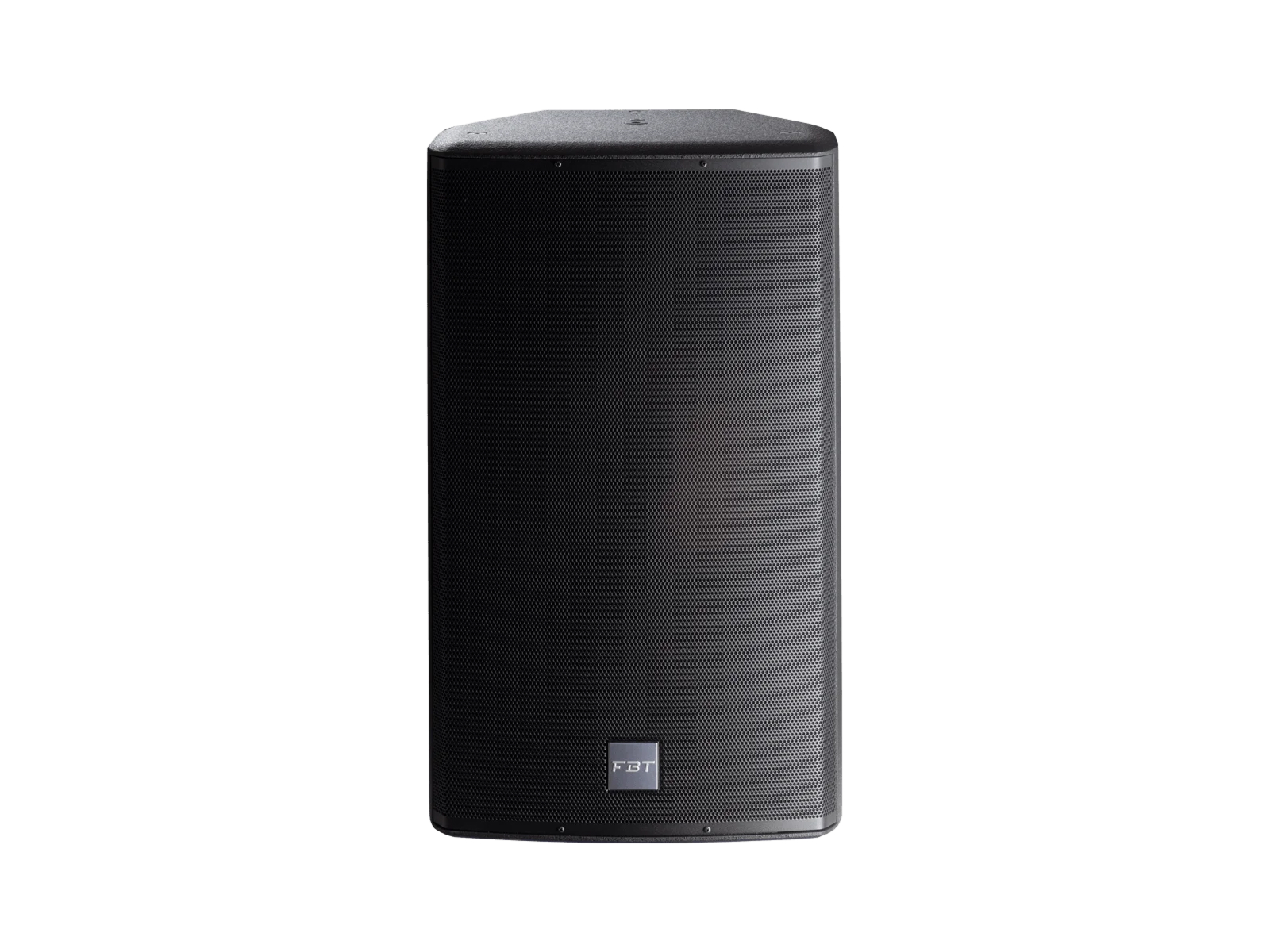

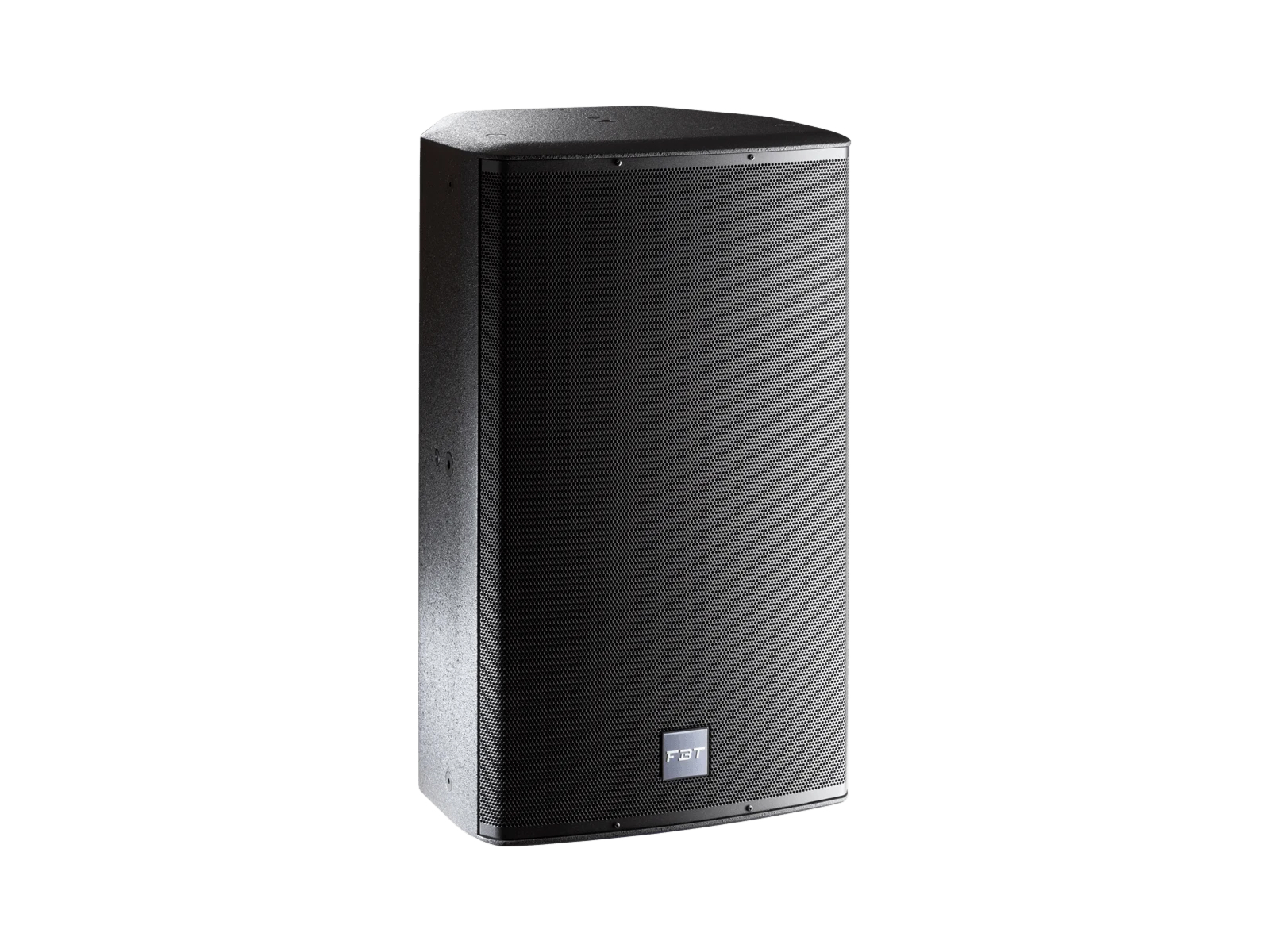

Download Manual ARCHON 115 is a full range/bi-amp 2 ways point source with a crafted birch plywood cabinet.Equipped with custom-designed, high-excursion B&C 15″ LF woofers and 2″ HF compression drivers, it delivers sound pressure levels up to 130/134 dB SPL within the listening area. Featuring rotatable horns for optimal horizontal or vertical sound dispersion, this loudspeaker provides a coverage angle of 60° H x 40° V.
Frequency response ranges from 48Hz to 18kHz. An optional 100V line transformer (300W) is available. Recommended amplifier power: 1000W RMS. Comprehensive suspension options include multiple integrated M10 threaded rigging points, complemented by flexible mounting hardware and an extensive selection of accessories for easy installation. A rear pocket handle is provided for convenient lifting and positioning of the cabinet.
The wide hand made customizations offered made the ARCHON series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces.
The whole ARCHON series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.
Features
- Configuration: 2 way
- Low Frequency Woofer: 1 x 15” – 3” VC
- High Frequency Driver: 1 x 2” – 2.5” VC
- Recommended Amplifier: 1000W RMS
- Transformer (optional): 100V – 300W
- Maximum SPL: 134dB
- Material: Baltic birch plywood
