Description
Download Manual Atlona SDI to PC/HD Scaler with Audio

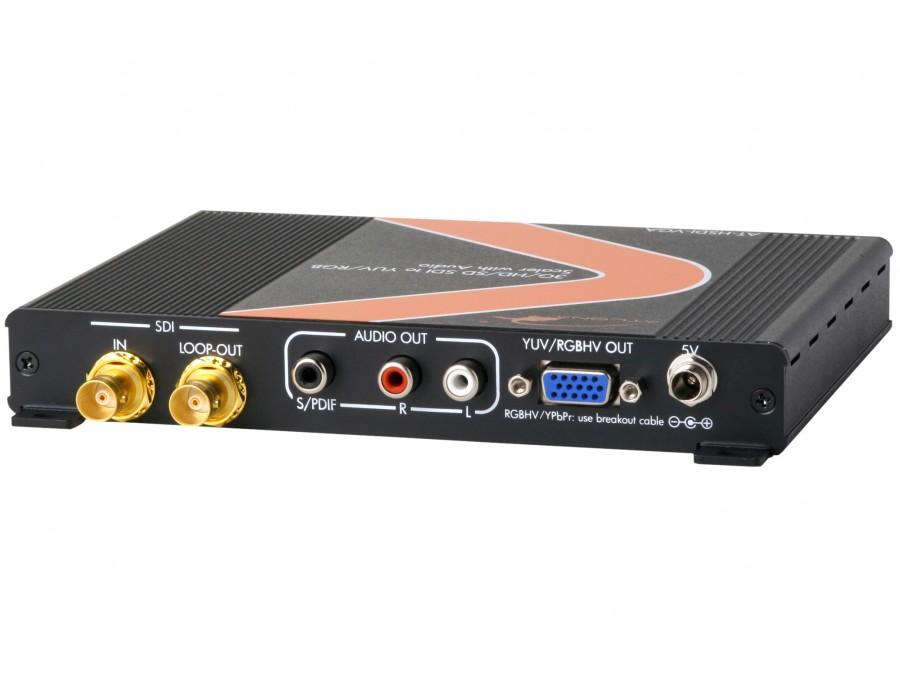

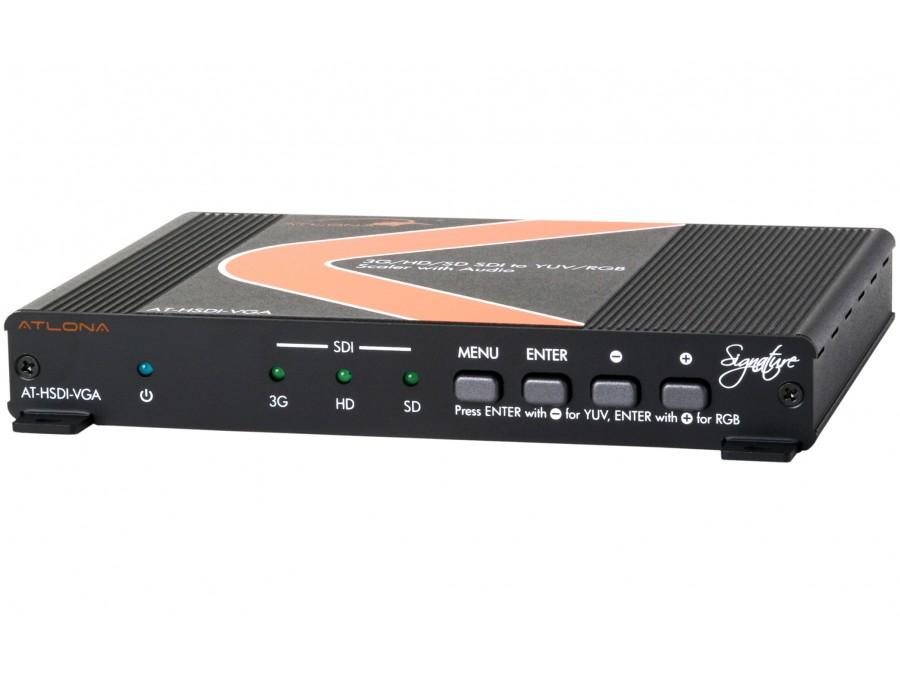

The Atlona SDI to PC/HD Scaler w/Audio takes SD, HD, and 3G SDI signals and adapts them to component or VGA video formats with resolutions up to 1080p or 1920×1200. The AT-HSDI-VGA also has re-clocking technology which allows you to extend your SDI signals up to 1000ft (300M).
Resolutions up to 1080p or 1920×1200
- With built in scaling the AT-HSDI-VGA allows any SDI signal to display at resolutions up to 1080p on component or 1920×1200 on VGA.
Re-clocking Technology
- Equalized ports extend SDI signals up to 1000ft (300M) with no signal degradation. 3G extends up to 330ft (100M), HD up to 660ft (200M), and SD all the way up to 1000ft (300M).
Dual Displays

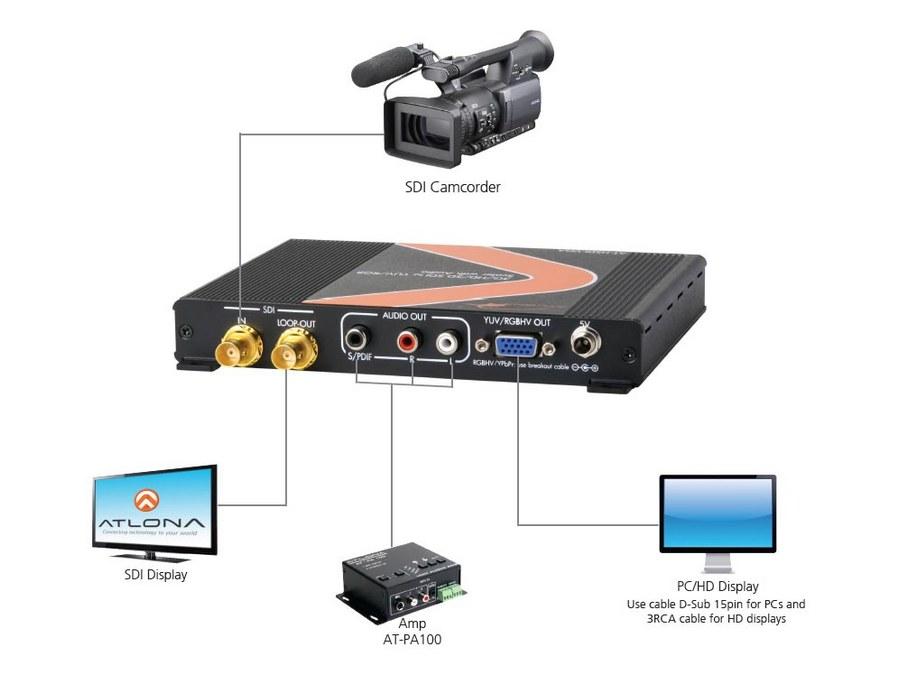

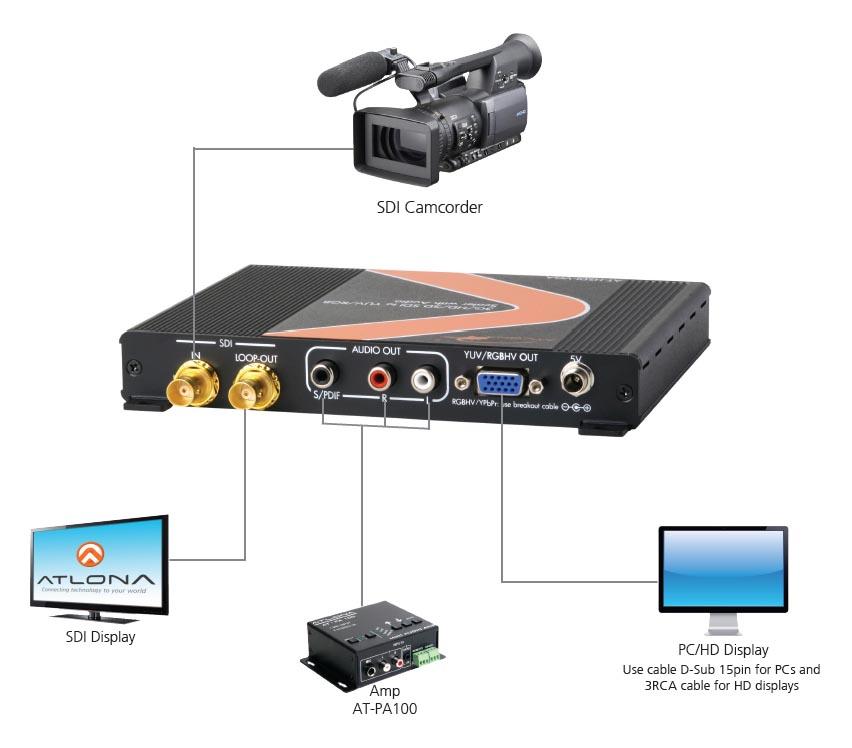

- Simultaneously run an SDI display and a component or VGA display with a built in loop out port for SDI signals. Great for side by side comparisons.
Optional Audio
- Built in audio de-embedding allows digital or analog audio to be passed through to an amp for a full audio visual experience.
