Description

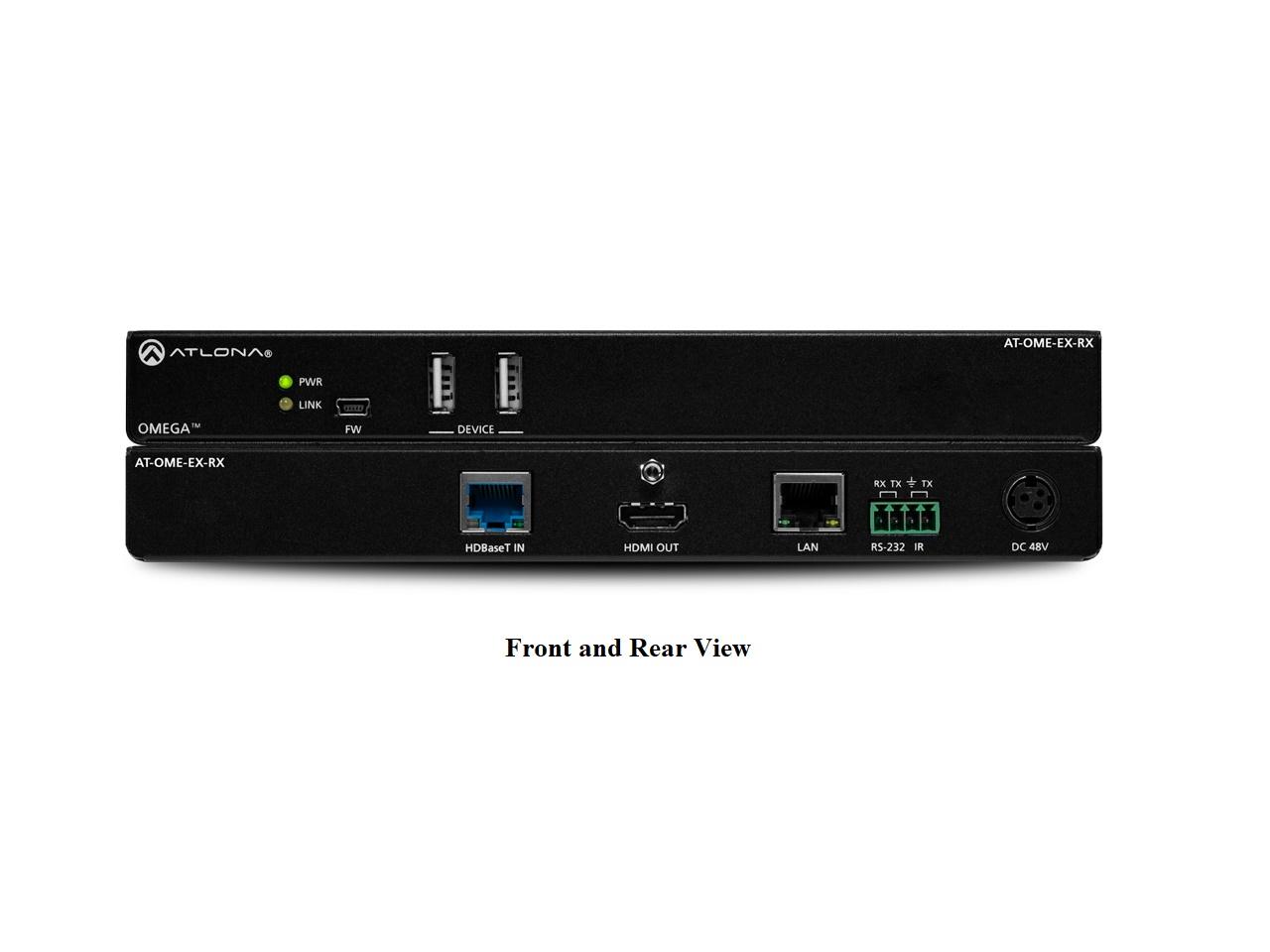

Download Manual The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With a matching HDBaseT transmitter, the integrated USB extension is ideal for software video conferencing and the use of touch or interactive displays. The OME-EX-RX includes two USB interfaces for devices such as a camera or display. This receiver is ideal for use with Omega Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EXKIT which includes the OME-EX-TX and OME-EX-RX.*
Applications
- Complete system integration: The OME-EX-RX and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
- Video conferencing and interactive displays: The OME-EX-RX and a compatible Omega Series transmitter or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones. They can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location.
Features:
HDBaseT receiver for HDMI, Ethernet, power, control, and USB up to 330 feet (100 meters)
- Receives HDMI up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable.
- Uses easy-to-integrate category cable for low-cost, reliable system installation.
USB 2.0 hub and extension over HDBaseT
- Two USB type-A ports for peripheral devices such as a camera or display.
- Provides an ideal USB integration solution for software video conferencing and other applications.
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4.
- Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players.
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection.
- Allows protected content stream to pass between authenticated devices.
Local or remote PoE (Power over Ethernet) powering
- Supplies industry standard IEEE 802.3af PoE over HDBaseT to an OME-EX-TX or other Omega Series transmitter.
- Also can be remotely powered by an Omega Series switching with an HDBaseT output.
Low-profile, 1 inch (25 millimeter) high quarter rack-width enclosure
- Easy installation into racks and confined spaces.
- Keeps devices out-of-sight when placed in public spaces.
Award-winning 10 year limited product warranty
- Ensures long-term product reliability and performance in residential and commercial systems.
- Specify, purchase, and install with confidence.
