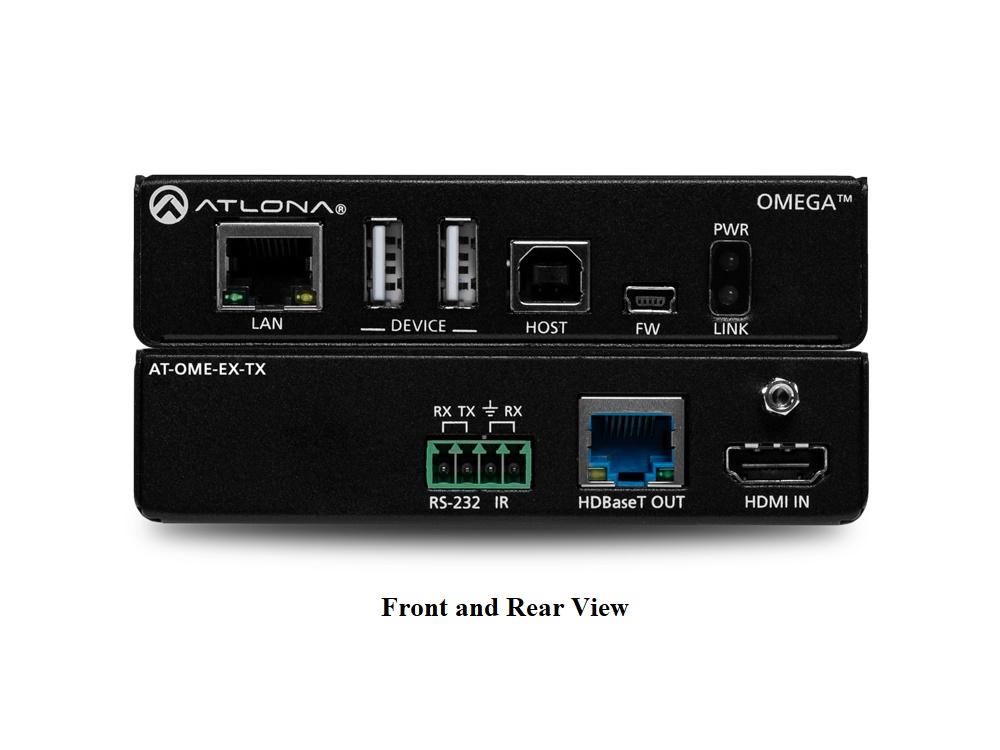

Download Manual The Atlona AT-OME-EX-TX is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX is HDCP 2.2 compliant and transmits IR, RS-232, and IP control signals.With a matching HDBaseT receiver, the integrated USB extension is ideal for software video conferencing and the use of touch or interactive displays. The OME-EX-TX includes a USB host for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.*
Applications
- Complete system integration: The OME-EX-TX and OME-SR21 together provide a compact, yet comprehensive and cost- effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
- Larger system applications: This transmitter is ideal for extending AV connectivity from a central equipment rack to a meeting table or lectern, where presenters can easily access the system.
- Video conferencing: The OME-EX-TX and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.
Features:
HDBaseT transmitter for HDMI, Ethernet, power, control, and USB up to 330 feet (100 meters)
- Transmits HDMI up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable.
- Uses easy-to-integrate category cable for low-cost, reliable system installation.
USB 2.0 hub and extension over HDBaseT
- USB type-B interface for connection to a host PC, plus two USB type-A ports for peripheral devices such as a microphone or speakerphone.
- Provides an ideal USB integration solution for software video conferencing and other applications.
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4.
- Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players.
HDCP 2.2 compliant
- Adheres to latest specification for High- bandwidth Digital Content Protection.
- Allows protected content stream to pass between authenticated devices.
Transmitter powered by receiver via PoE (Power over Ethernet)
- Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT.
- Allows convenient transmitter installation at a table or other remote location,without the need for local AC power.
Low-profile, 1 inch (25 millimeter) high quarter rack-width enclosure
- Easy installation into racks and confined spaces.
- Keeps devices out-of-sight when placed in public spaces.
Award-winning 10 year limited product warranty
- Ensures long-term product reliability and performance in residential and commercial systems.
- Specify, purchase, and install with confidence.
