Description

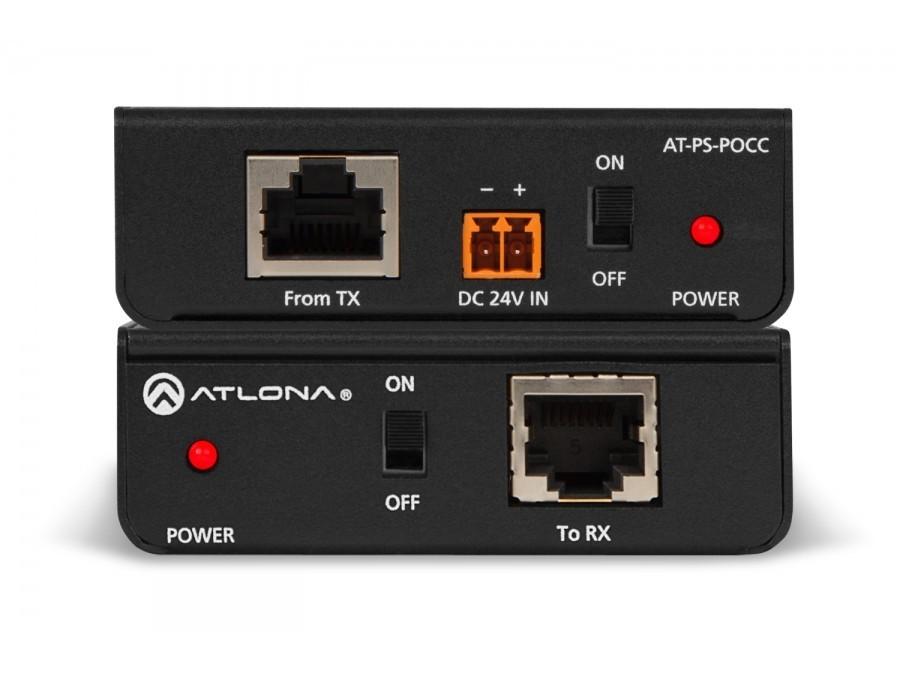

Download Manual The Atlona Mid-Span Power Supply enables non-PoCc products to work with other HDBaseT products that require PoCc. Connect the AT-PS-POCC between two Atlona products and ensure they all receive the power they need
Power one or both
Send power to the transmitter, the receiver, or both at once with the AT-PS-PoCc
Additional features
- Supports distances up to 328 feet (100 m)
- Supports resolutions up to 4Kx2K or 1920×1200
- Power switches to enable and disable PoCc for easy power routing
- Captive screw power for a secure and reliable connection
- Passes any audio format
- Full 3D pass through
- HDCP compliant
Provides power to these PoCc compliant products:
- Receivers
-
- AT-HDRX – Atlona HDBaseT Receiver over a Single Category Cable
- AT-HDRX-IR – Atlona HDBaseT Receiver over a Single Category Cable w/IR
- AT-HDRX-RSNET – Atlona HDBaseT RX Box for HDMI w/Ethernet, RS-232, and IR
- AT-PRO3HDREC – Atlona HDMI Extender over a Single Category Cable
- AT-DVIRX-RSNET – Atlona HDBaseT RX DVI Box w/Ethernet, RS-232, and IR
- AT-HDRX-ROADNET – Atlona HDBaseT RX HDMI Rental/Staging Box w/etherCON, Ethernet, RS-232, and IR
- AT-HDWP – Atlona HDBaseT RX HDMI 2-Gang US Decora Wall Plate
- AT-HDWP-IR – Atlona HDBaseT RX HDMI 2-Gang US Decora Wall Plate w/IR
- AT-HDWP-RSNET – Atlona HDBaseT RX for HDMI 2-Gang US Decora Wall Plate w/ Ethernet, RS-232, and IR
- Transmitters
-
- AT-HDTX-WP – Atlona HDMI to HDBaseT Transmitter Wall Plate
- AT-HDVS-TX – Atlona Dual HDMI and VGA/Audio to HDBaseT switcher
- AT-HDVS-TX-WP – Atlona HDMI + VGA/Audio HDBaseT Extender Wall Plate w/Display Control (US + UK
