Description
Download Manual The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power from the source. The receiver works with compatible source devices to provide bidirectional extension of both 12 volt IR and RS-232 commands. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management.
Features
4K/UHD capability
- Compatible with Ultra High Definition sources and displays
- Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Content Protection
- Allows protected content stream to pass between devices
Remote-powered receiver
- Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
- Saves time and integration costs
Bidirectional extension of both RS-232 and IR control commands
- Control signals travel over HDBaseT link for maximum control system flexibility
- Eliminates multiple cable runs between source, control system, and display
Long distance HDMI extension
- Receives HDMI signals up to 230 ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
Flexible Bidirectional IR control capabilities
- IR Input designed to work with 12V IR receivers for source control
- Saves control systems costs
Rear panel I/O connectors
- Placement of ports on rear panel simplifies wire management
- Saves installation time and eliminates clutter
Multi-channel audio compliant
- Supports PCM, LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, and DTS-HD Master Audio
- Allows any multi-channel audio stream to be used within a professional audio system
Field updatable firmware
- Front panel USB port provides an easy means for kit upgrades
- Ensures long term system return on investment

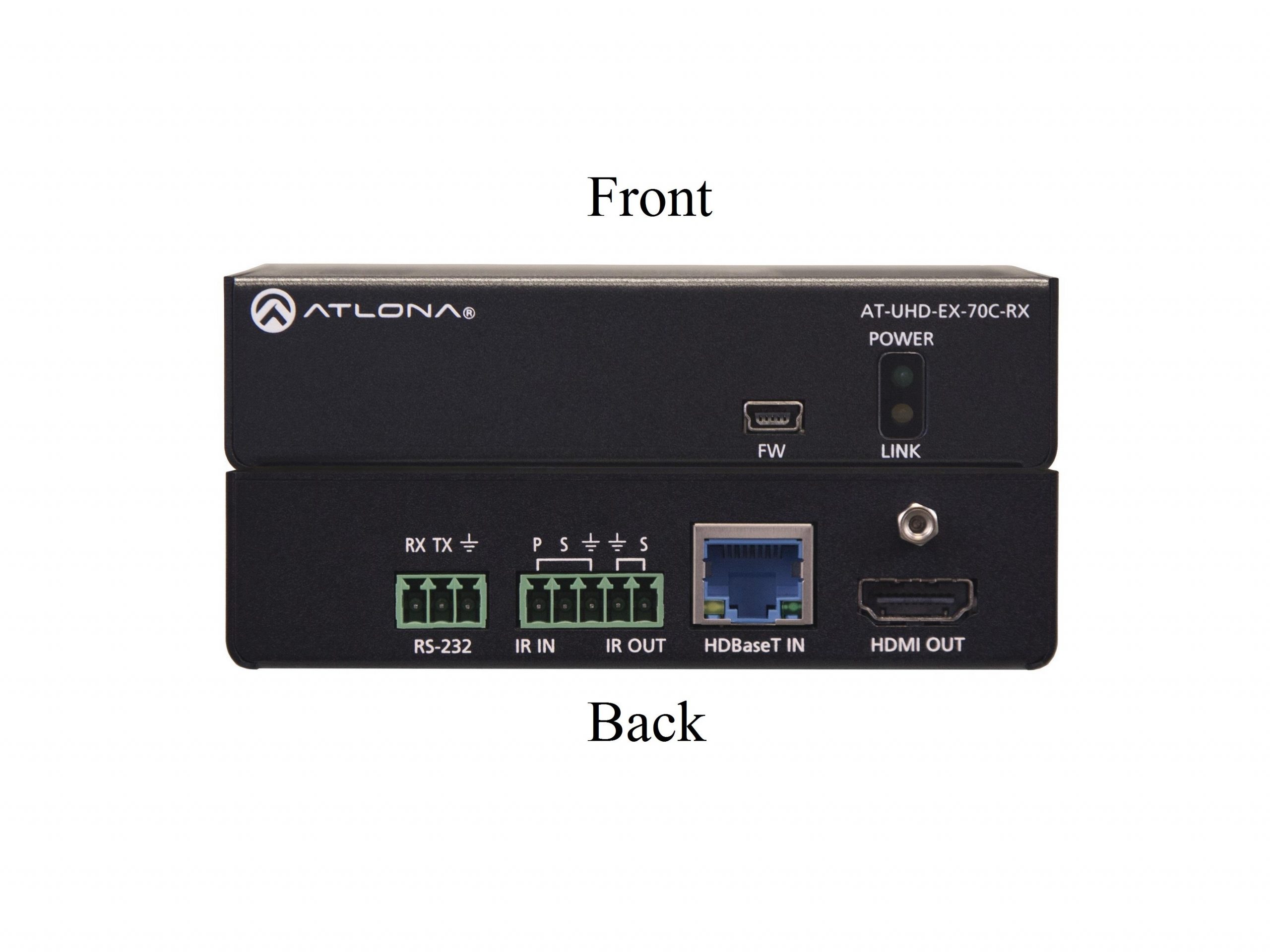

Front panel Power and Link status LEDs
- LED indicators provide power and HDBaseT link status information
- Provides easy setup and troubleshooting
Low-profile, 1 inch (2.5 cm) high quarter rack-width enclosure
- Easy installation into confined spaces behind displays and above projectors
- Keeps devices out-of-sight when placed in public spaces

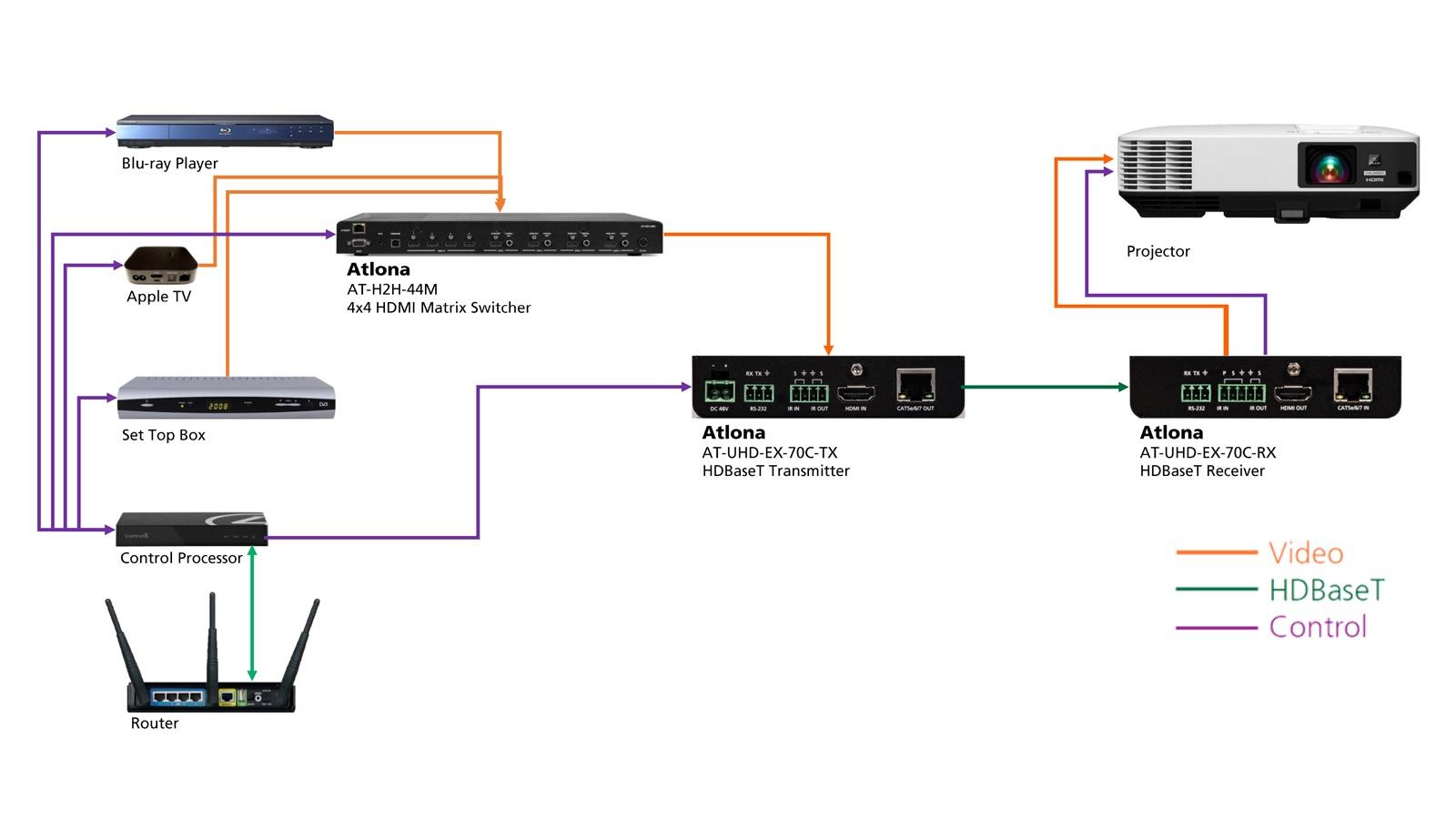

The AT-UHD-EX-70C-RX is designed to be used with Atlona products with built-in HDBaseT transmission such as the AT-UHD-CLSO-601, UHD-PRO3 matrix switcher series, and the AT-UHD-SW-52ED switcher. It uniquely designed to take advantage of these products’ built in HDBaseT transmission of AV, remote power, and control signals.
This receiver is used in commercial and residential applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by the Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through RS-232 commands
