Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

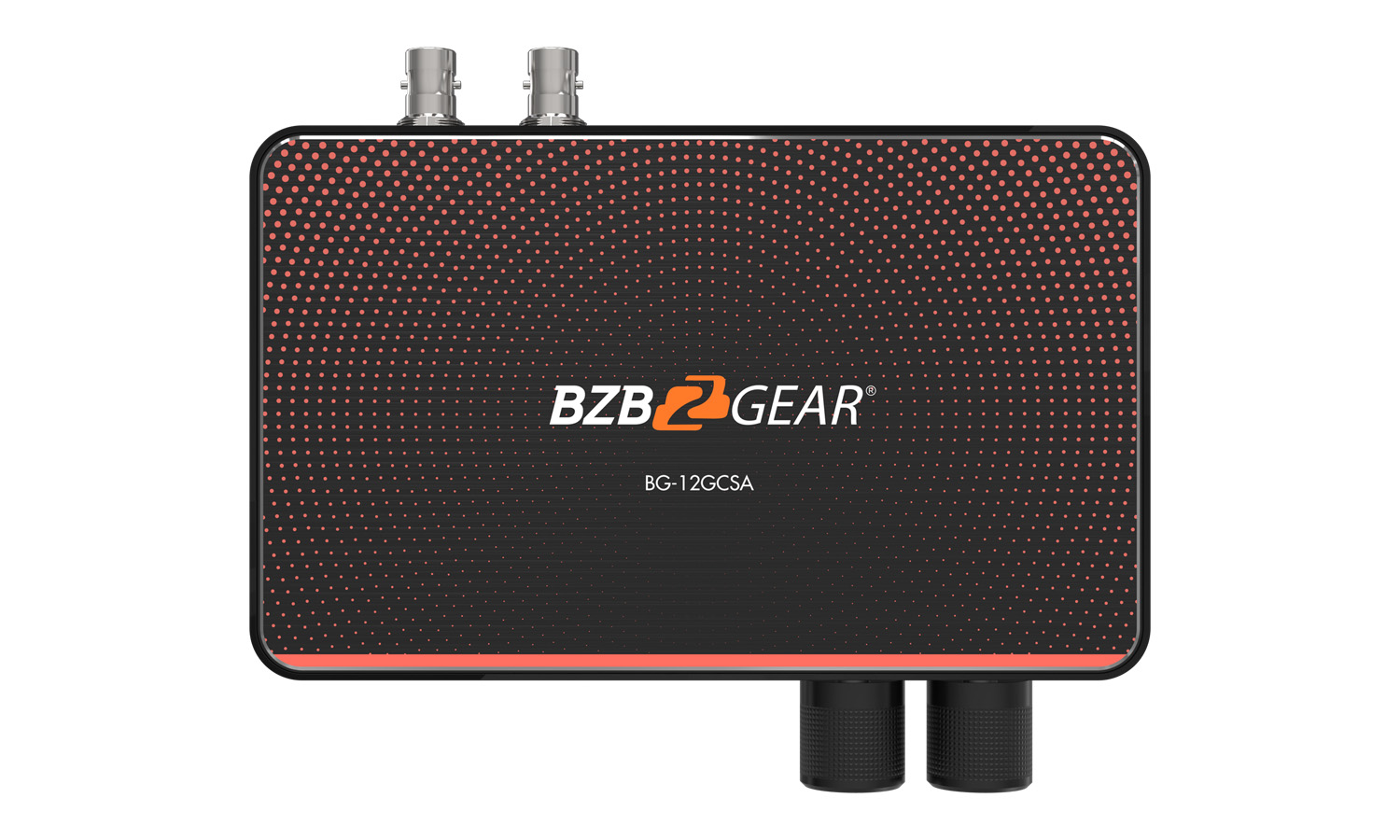

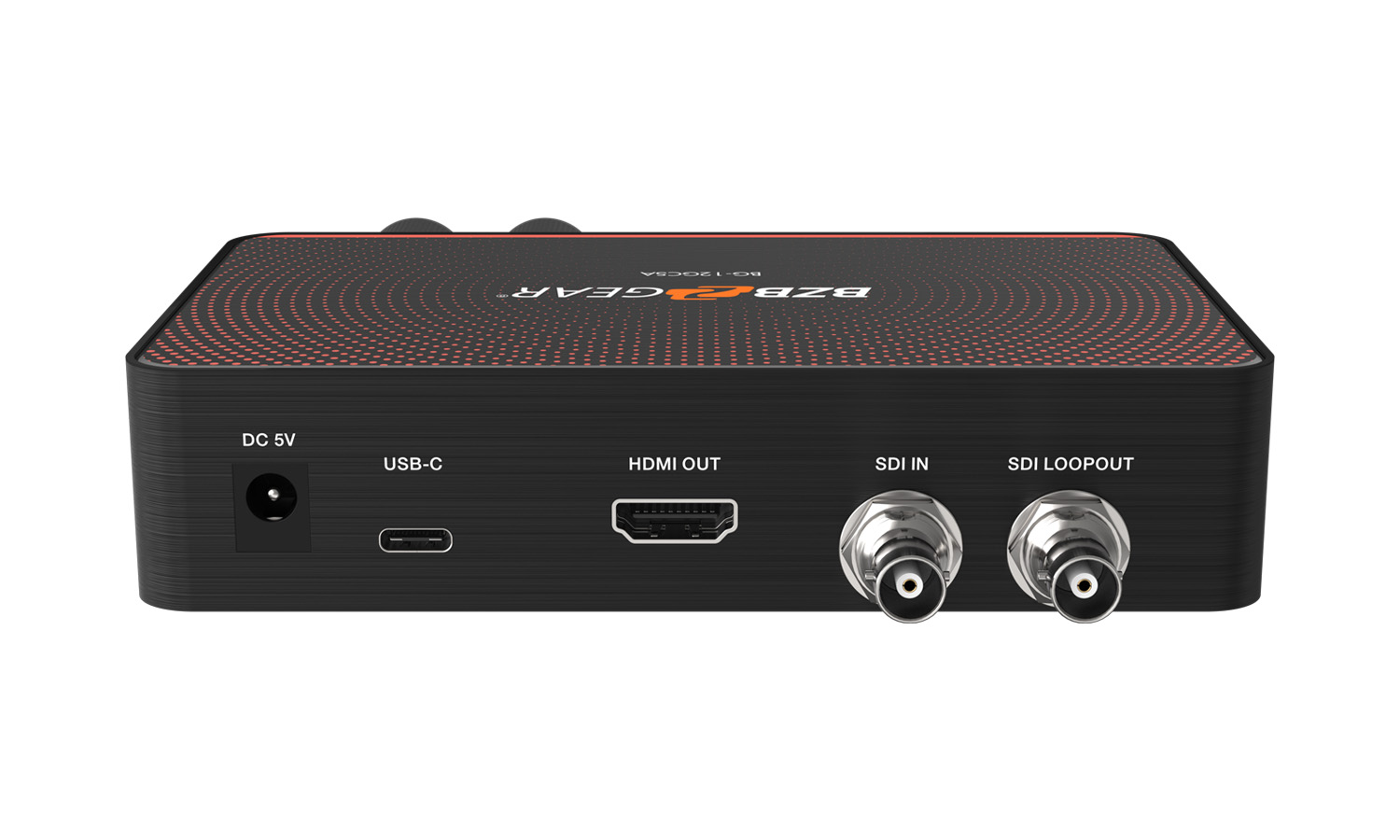

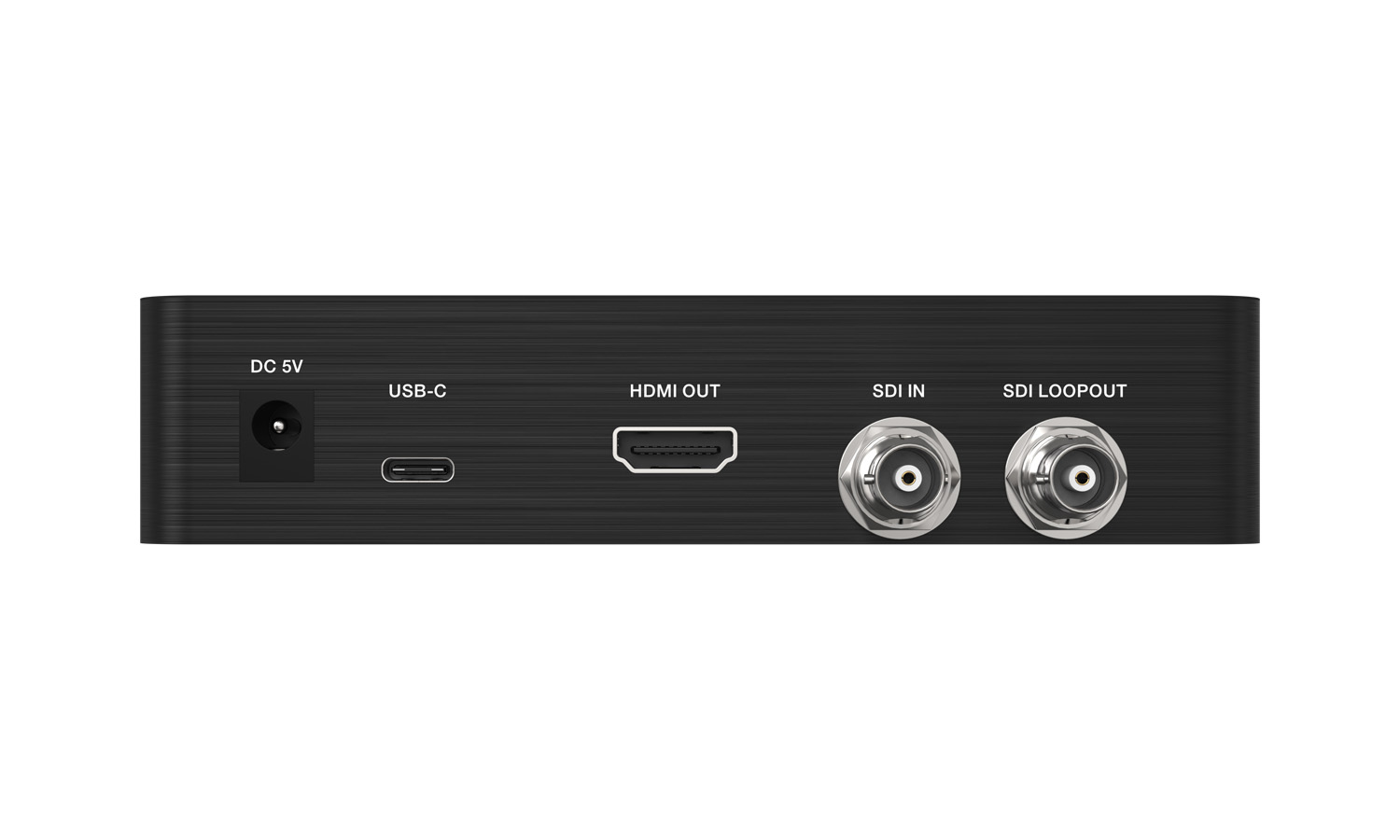

The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.

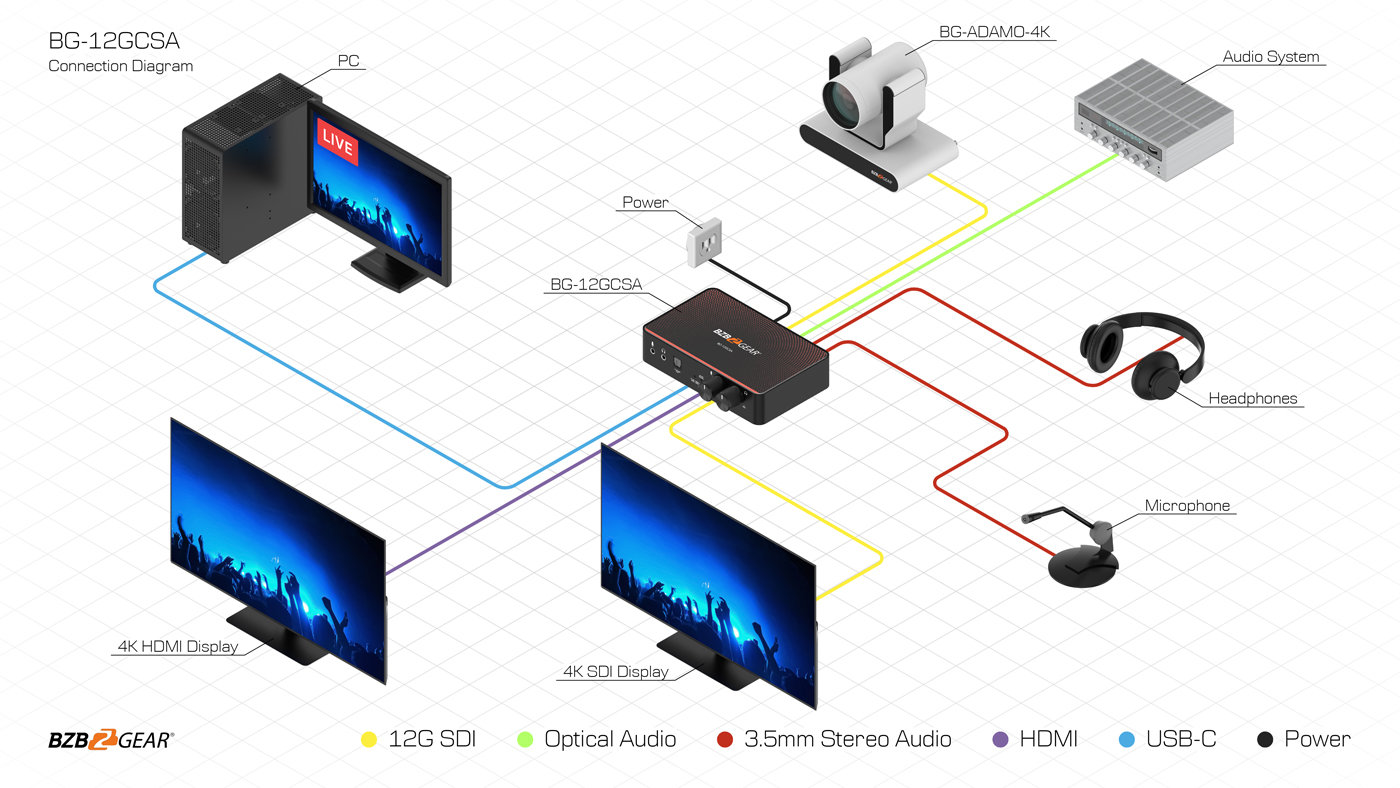

Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.
Features:

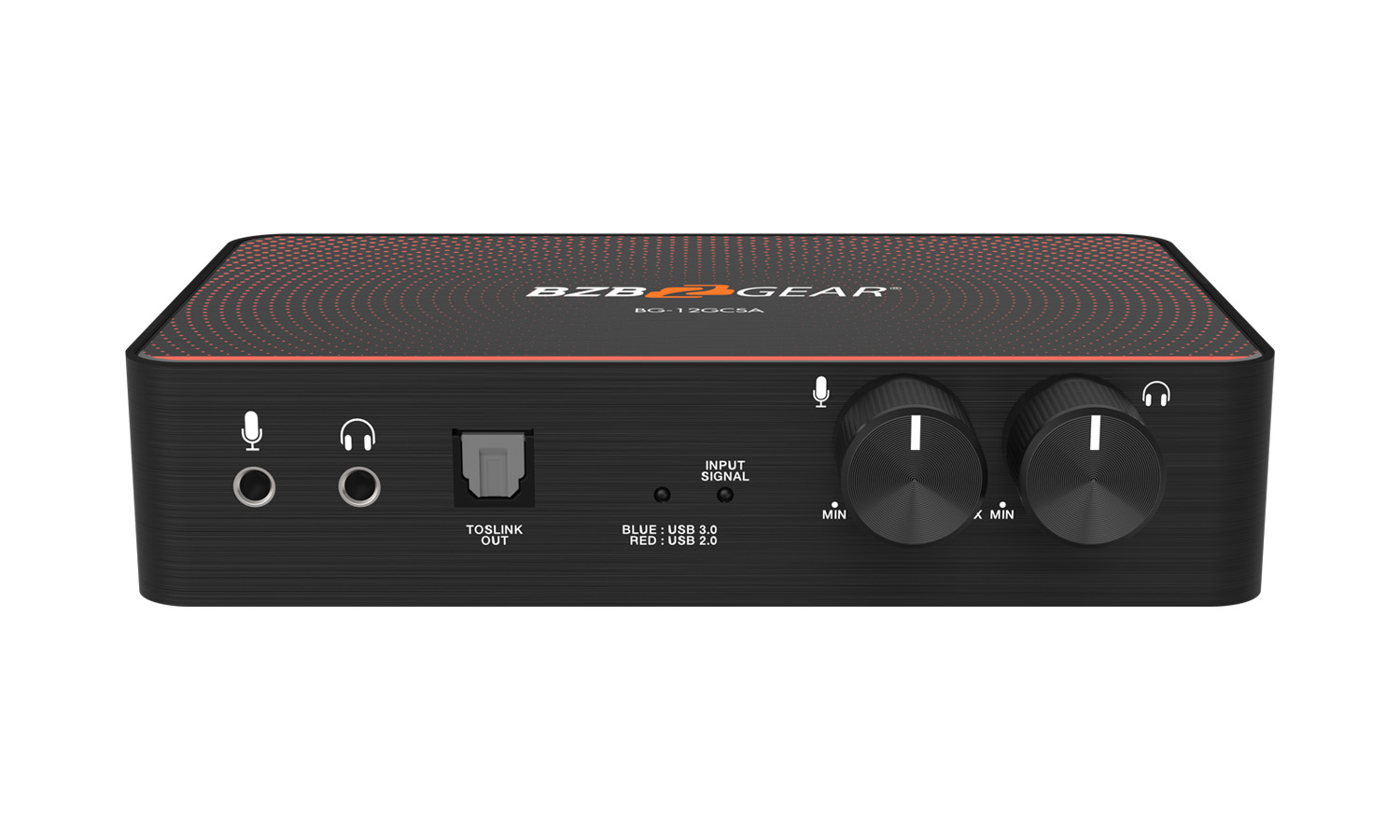

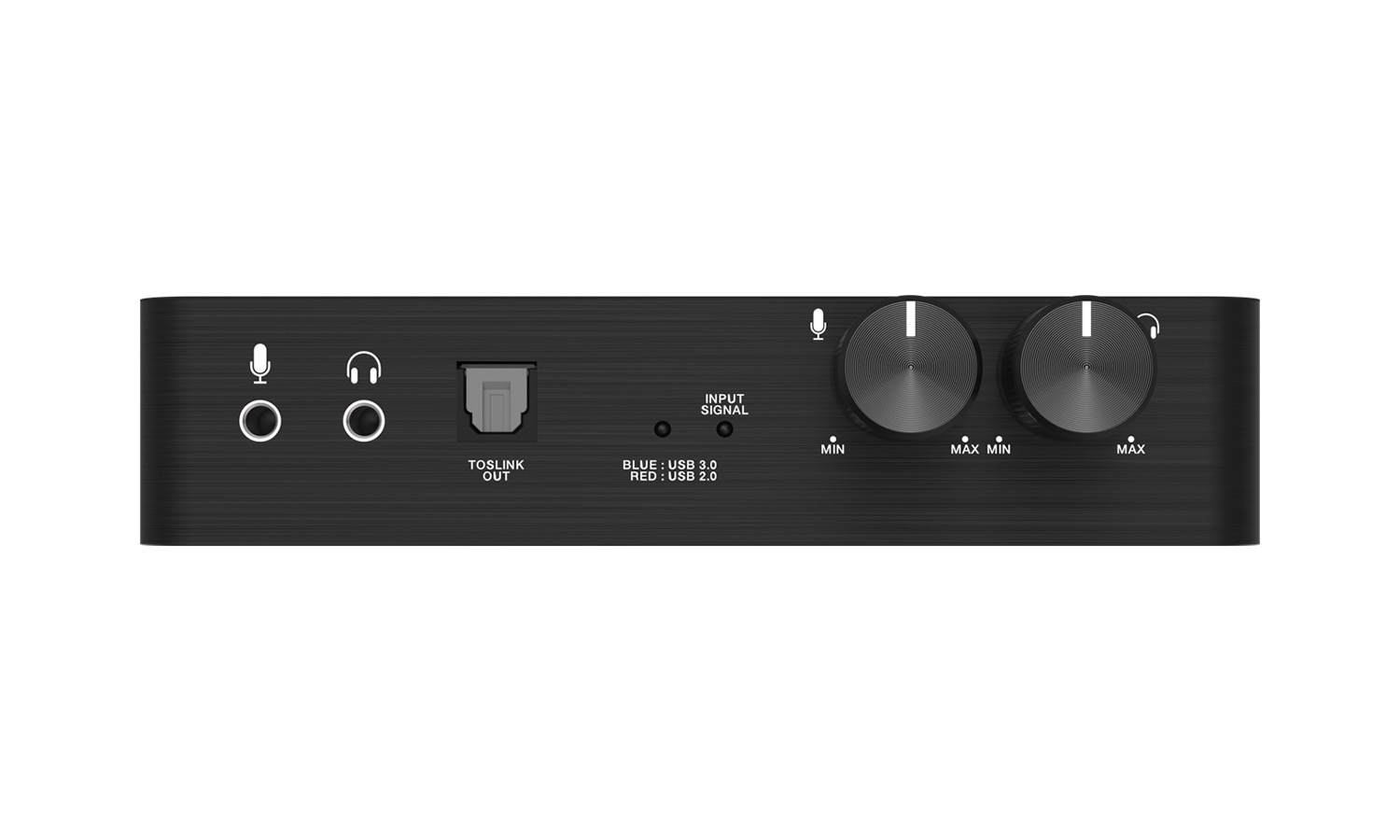

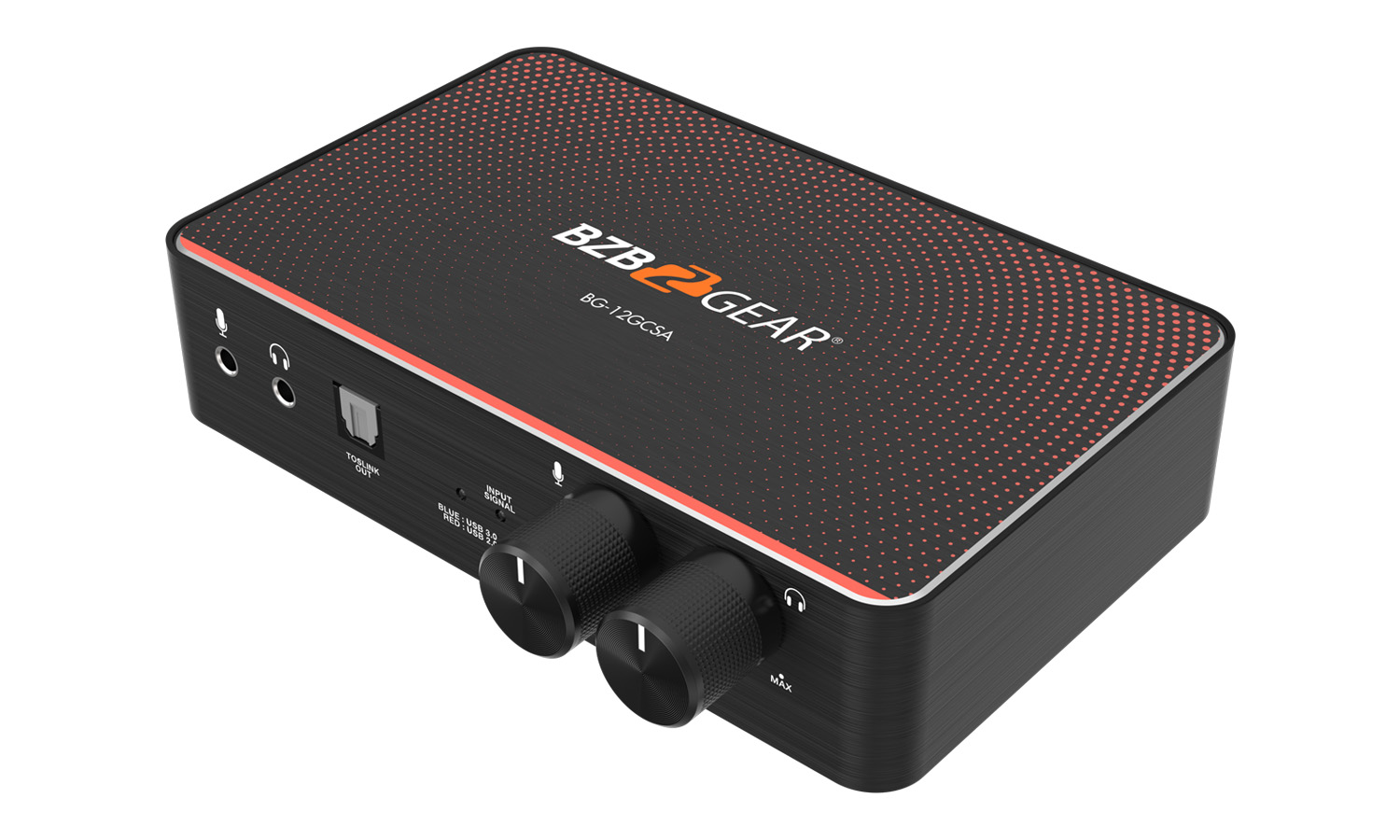

- Volume control – Use the volume control knobs to adjust the MIC/Headphone volume
- Plug and Play – Auto-detection of video format
- Software Compatibility – Compatible with most 3rd party software such as OBS Studio and AMCap
- Mic-in-mix – Allows the microphone’s audio input to be combined or mixed with the audio that is being transmitted through the SDI connection
- Low Latency – 3~4ms at 1080P
- Auto-Detection – Auto 12G/6G/3G/HD-SDI detection
- SDI video and audio streams over USB 3.1 Type-C Gen 1
- UVC1.0/1.1/1.5
- Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)
- HDMI up to 4K2K@60
- SDI input & loopout resolutions: 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60,1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60, 4K2K@23.98, 4K2K@24, 4K2K@25, 4K2K@29.97, 4K2K@30, 4K2K@50, 4K2K@59.94, 4K2K@60
- Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
- Deinterlacer & scaler (upscale to 1080p@120Hz)
- SDI audio extraction
- Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
- USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)
- USB-C reversible
