Description
Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

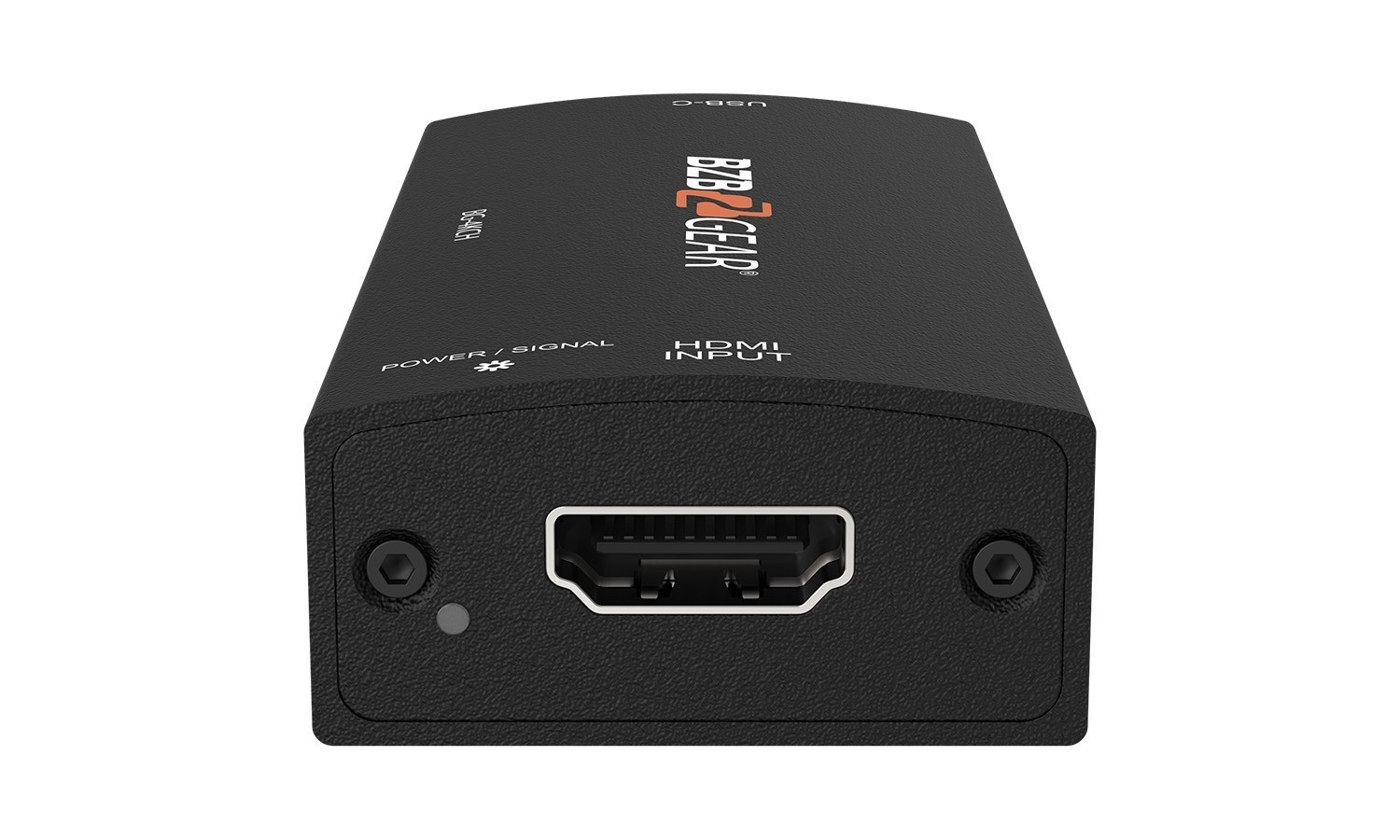

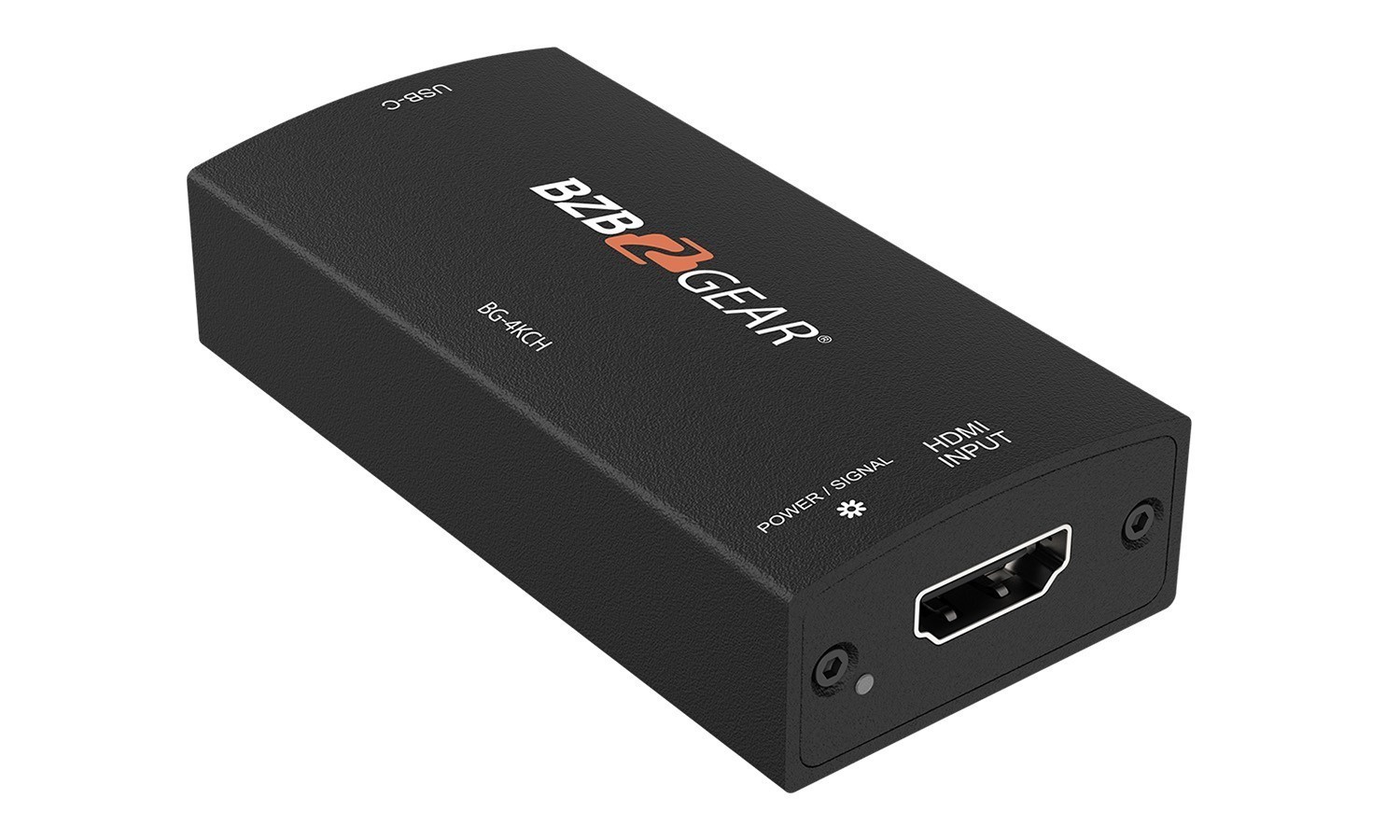

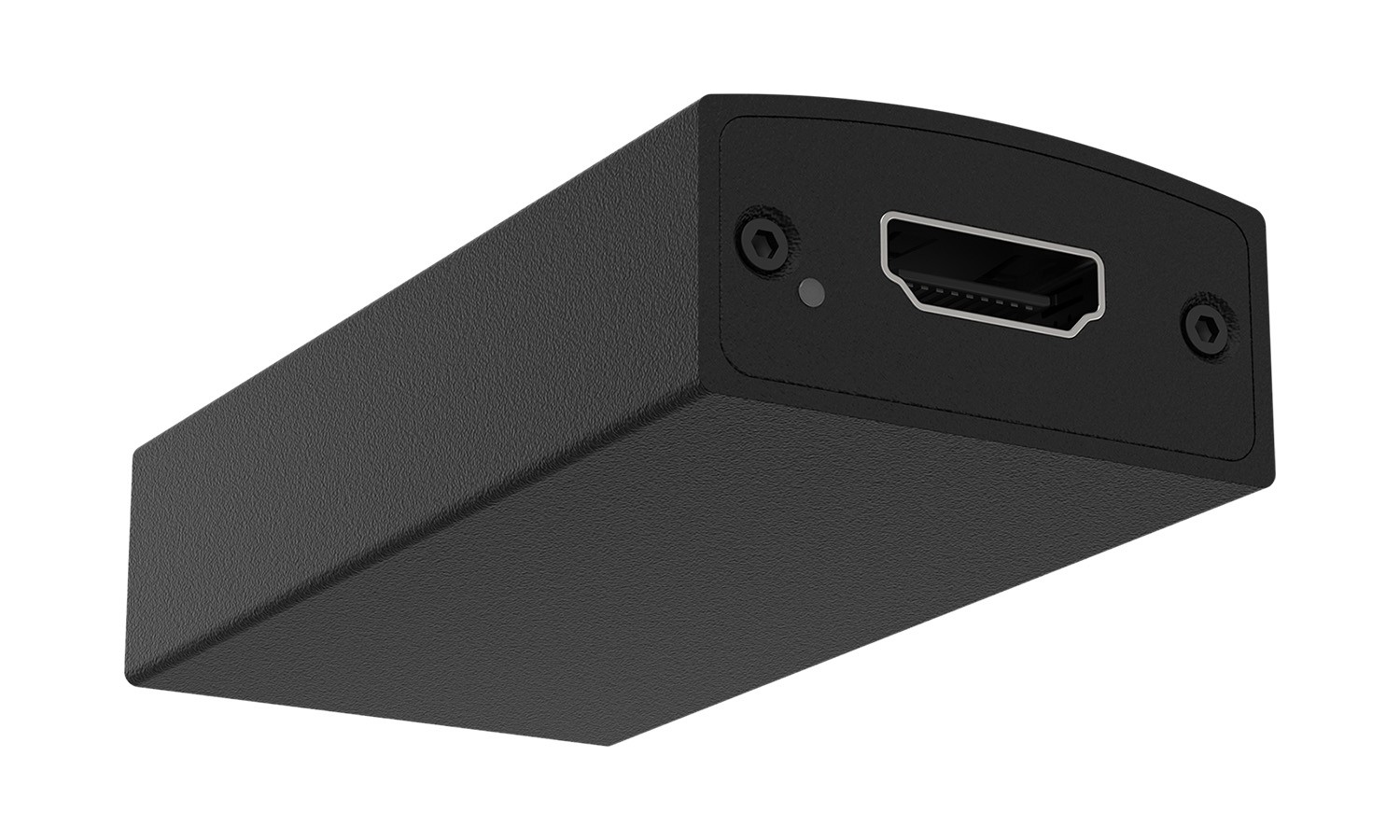

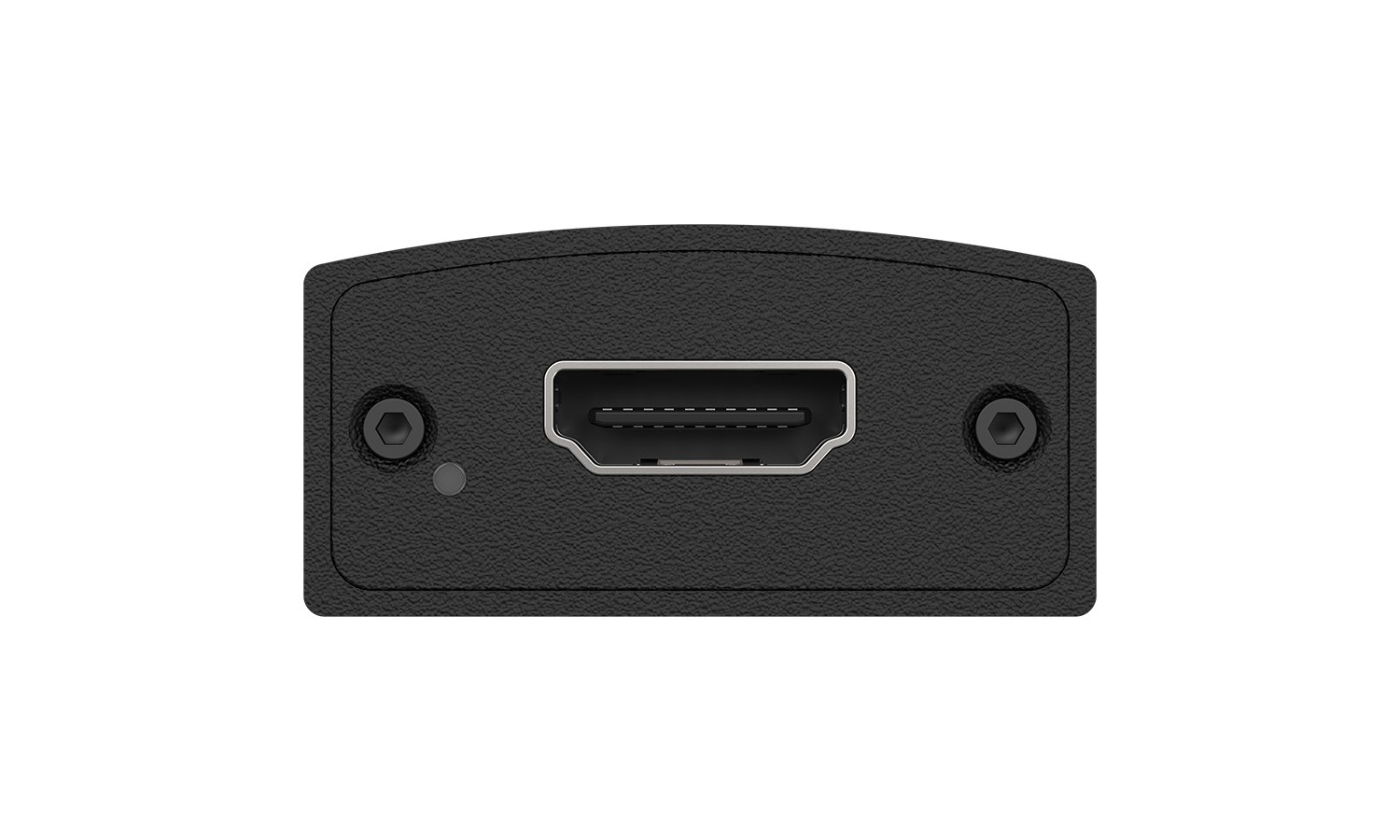

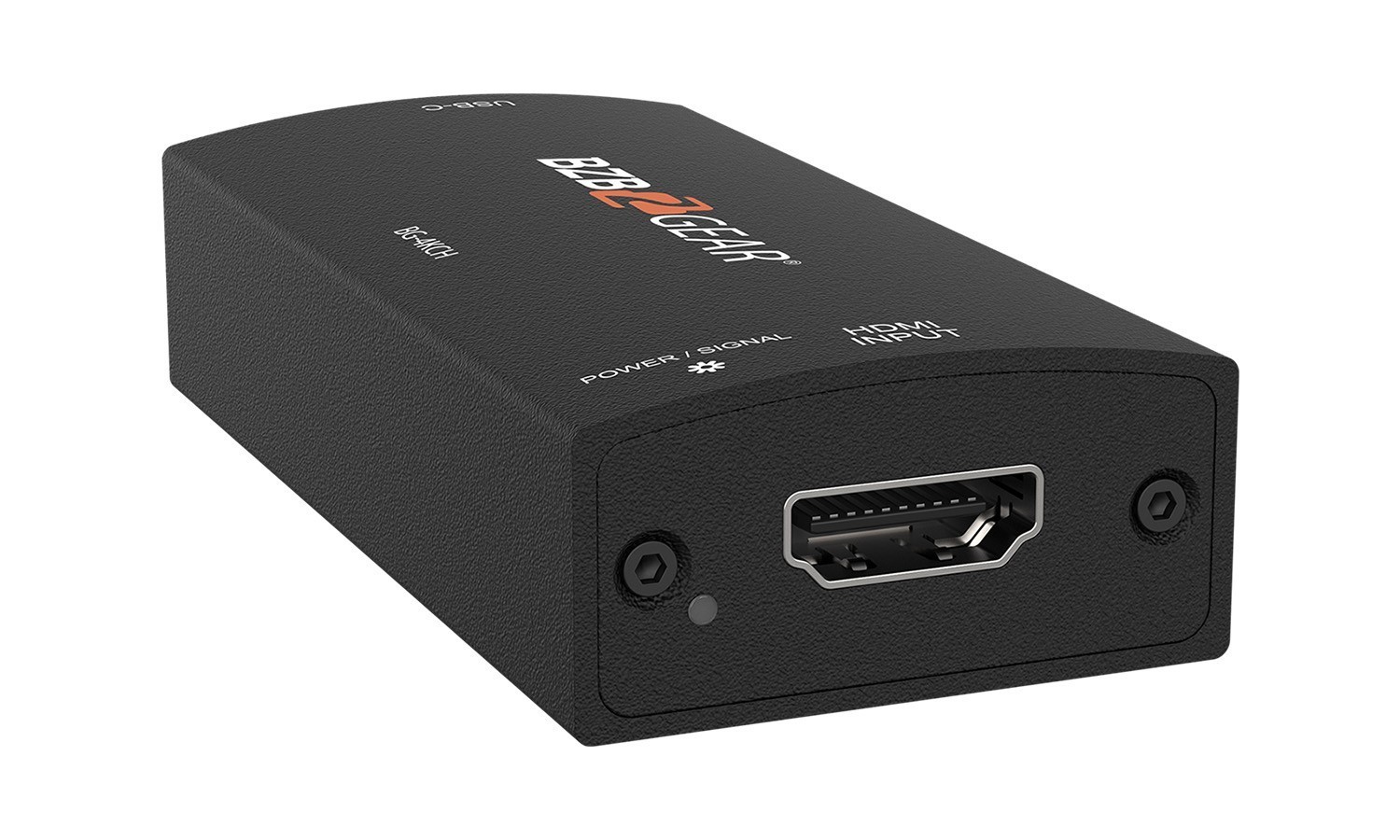

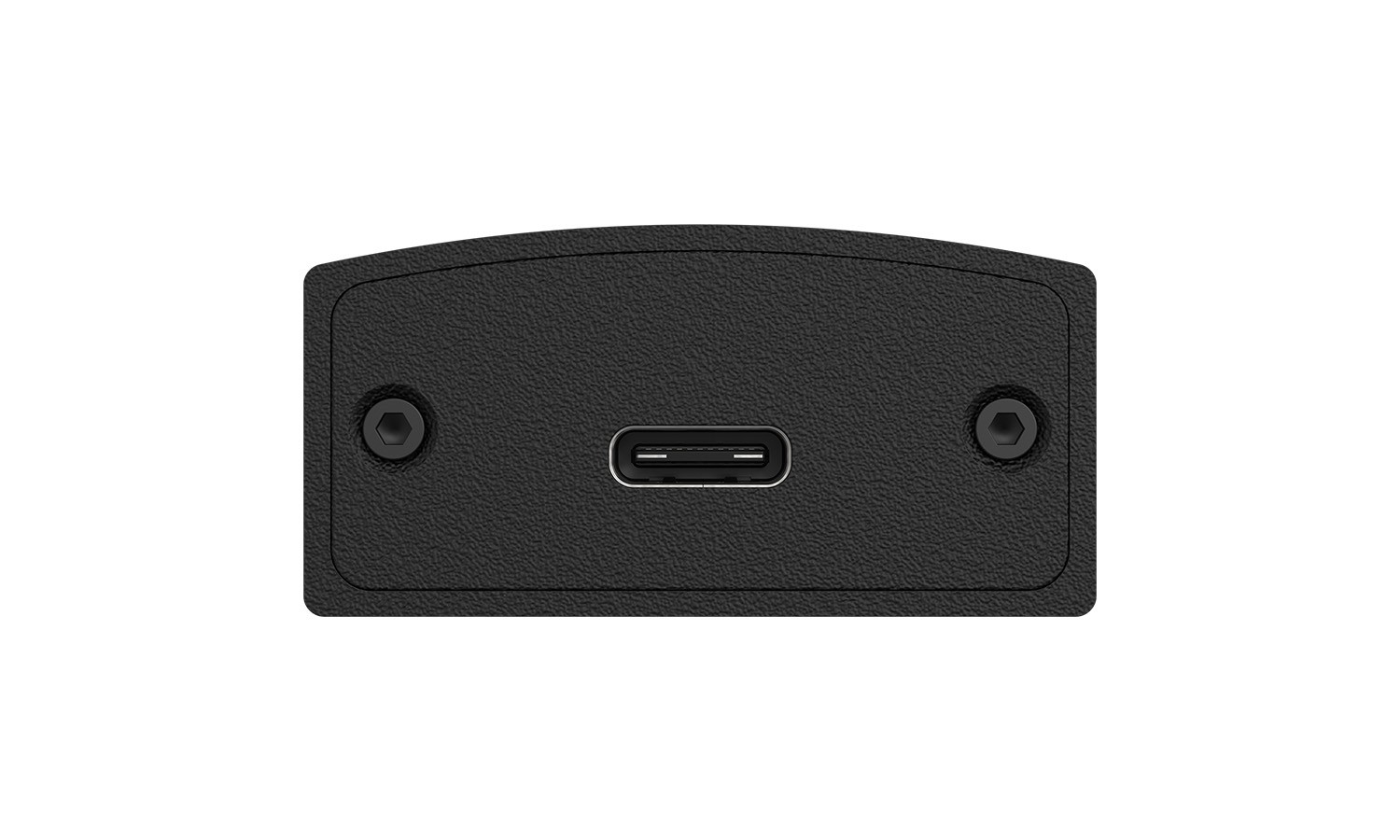

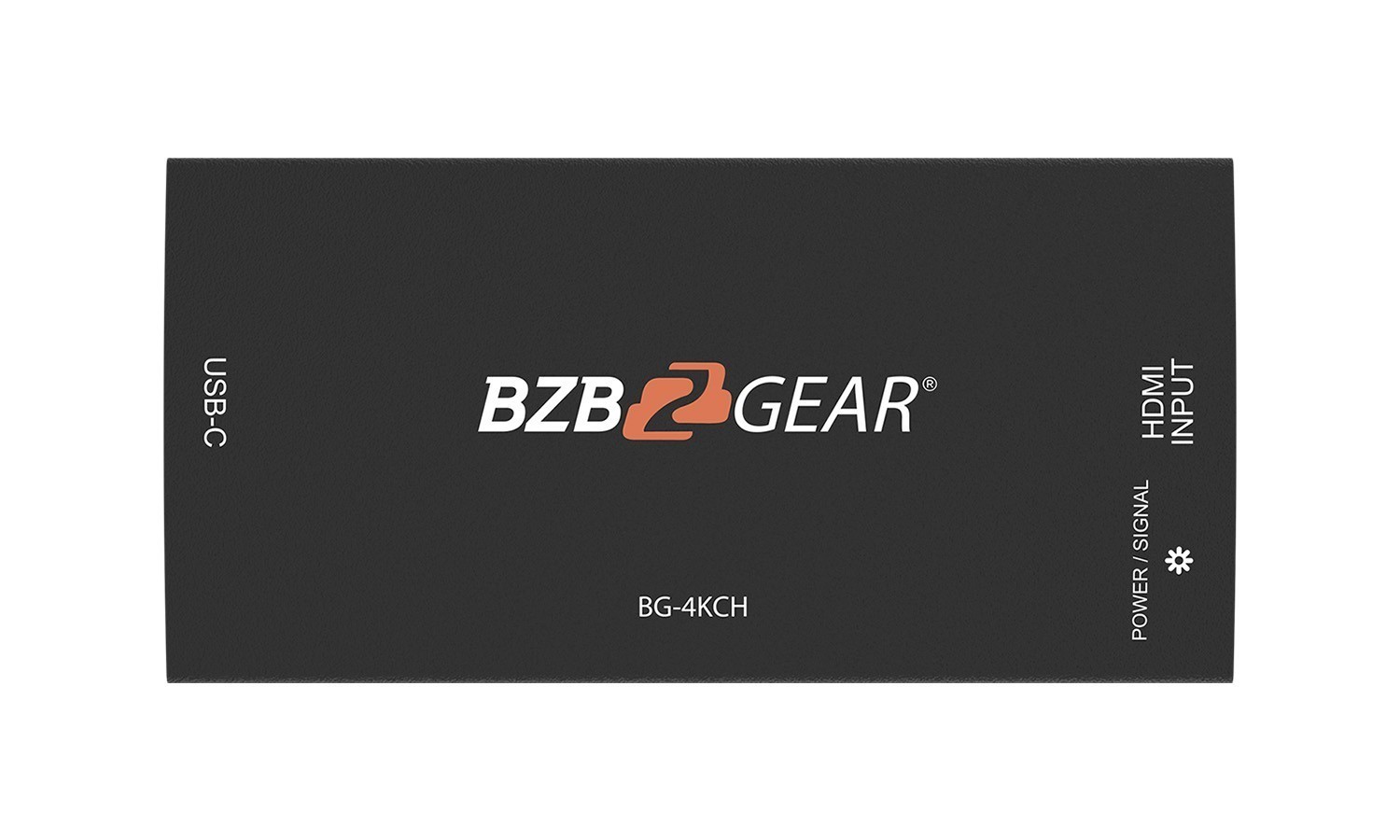

The BG-4KCH is a compact 4K video capture device that allows users to capture HDMI signals from sources such as gaming consoles, cameras, computers, and media players, and transfer them to a laptop via USB-C for recording or streaming. Designed for versatility and ease of use, this unit delivers crisp 4K video quality while maintaining a portable form factor ideal for both stationary and on-the-go applications.
Connectivity and Quality
Supporting resolutions up to 4K2K at 30Hz, the BG-4KCH offers flexible connectivity through both USB 3.1 Gen 1 and USB 2.0 interfaces. Over USB 3.1, the device supports RGB, YUY2, and NV12 video formats, while USB 2.0 supports YUY2 and NV12 with a maximum resolution of 720p at 30Hz. HDMI audio is captured in 2-channel, 16-bit PCM format, and the unit is fully compliant with UVC 1.0, 1.1, and 1.5 standards. With a maximum data rate of 350Mbps and broad compatibility across Windows, macOS, and Linux, the BG-4KCH is suitable for virtually any streaming or capture setup.
Features In-Depth
Beyond its basic capture capabilities, the BG-4KCH features several advanced enhancements that improve its performance and usability. The unit supports automatic video format detection, enabling true plug-and-play operation by recognizing the input signal without requiring manual configuration. It also features deinterlacing support, which converts interlaced video into a smoother progressive format for cleaner visuals during playback. Additionally, the built-in upscaling function can scale lower-resolution inputs up to 1080p at 60Hz, providing flexibility when working with a variety of source resolutions. With its compact size, automatic configuration features, and video enhancement capabilities, the BG-4KCH is a reliable and efficient solution for high-quality video capture in any environment.
TAA Compliant Product.
This product meets the standards of the Trade Agreement Act (TAA).
Features:
- Crystal Clear Image Capture – Capture resolutions up to 4K@30Hz
- USB Type-C – USB 3.1 Gen 1 (RGP/YUY2/NV12)
- Portable – Ideal for recording in the field or on-the-go
- Plug and Play – No setup required
- Compatibility – Works with Windows 7 and up, Mac OS, and Linux
- Streaming – Compatible with YouTube, Twitch, Facebook, Zoom, and more
- Supports UVC1.0/1.1/1.5
- Supports video resolution up to 4K2K@30
- Supports deinterlace & scaler (Note: Scale-up feature supports up to 1080P@60)
- Auto-detection of video format ensures plug and play operations
- Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 720P@30)
- Low Latency (3~4ms at 1080P)
