Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

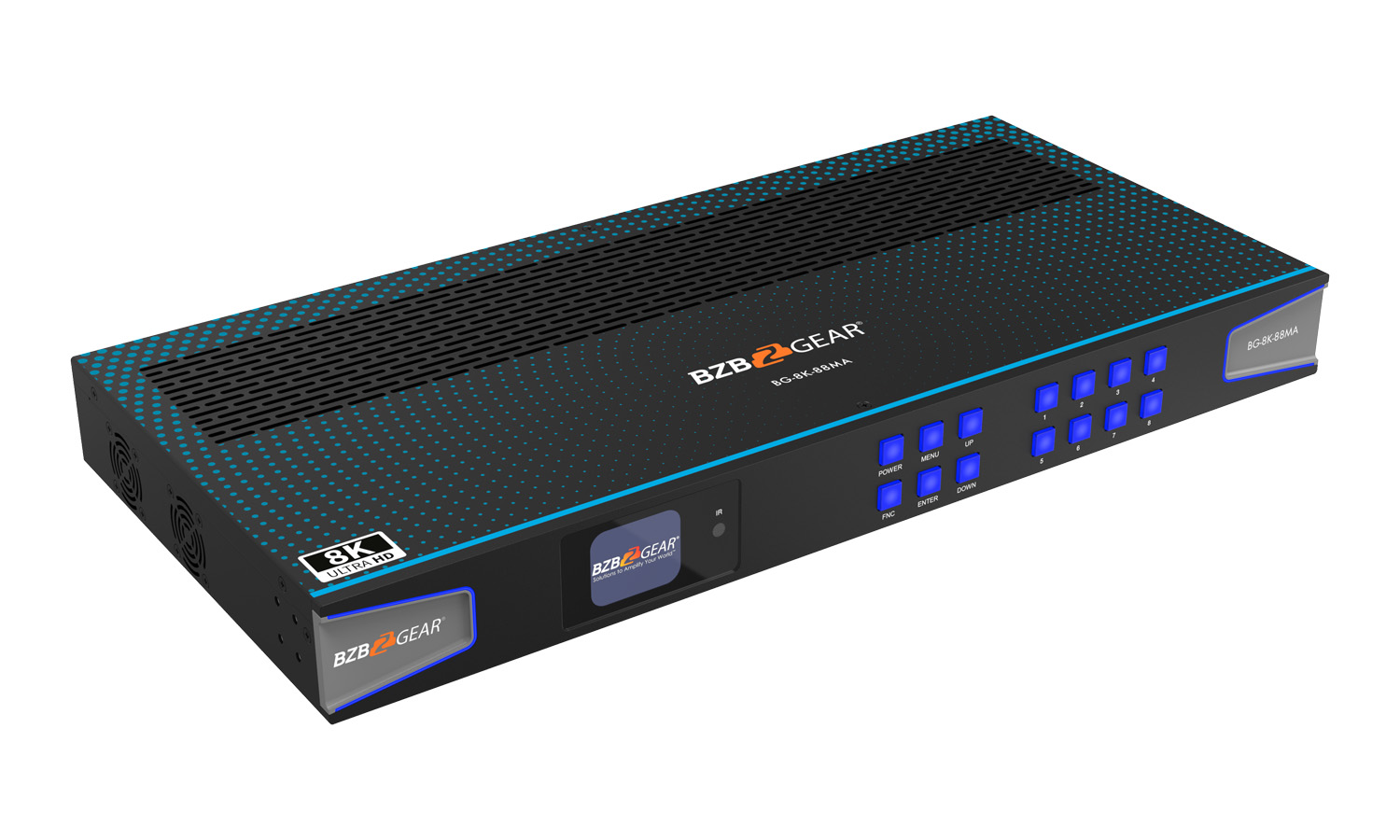

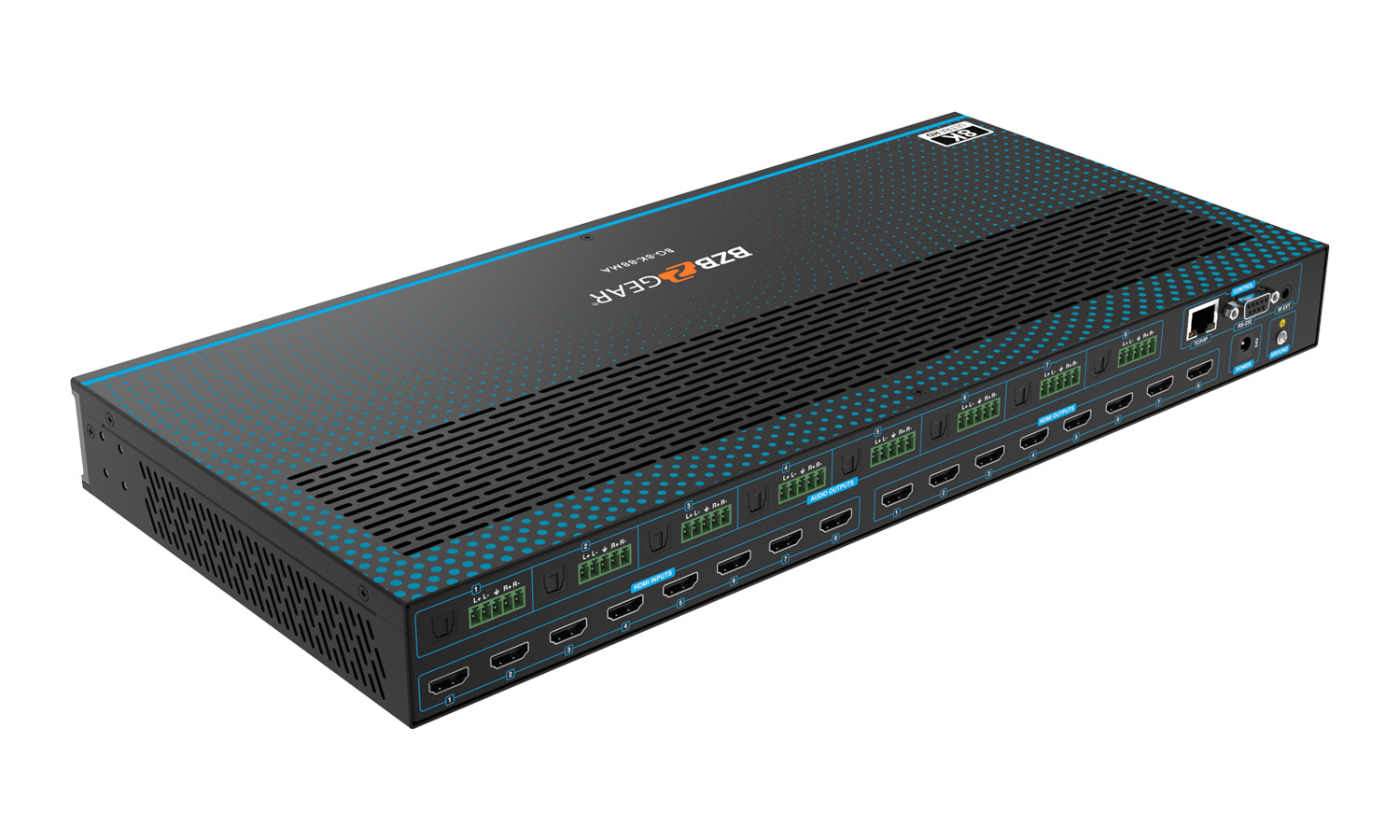

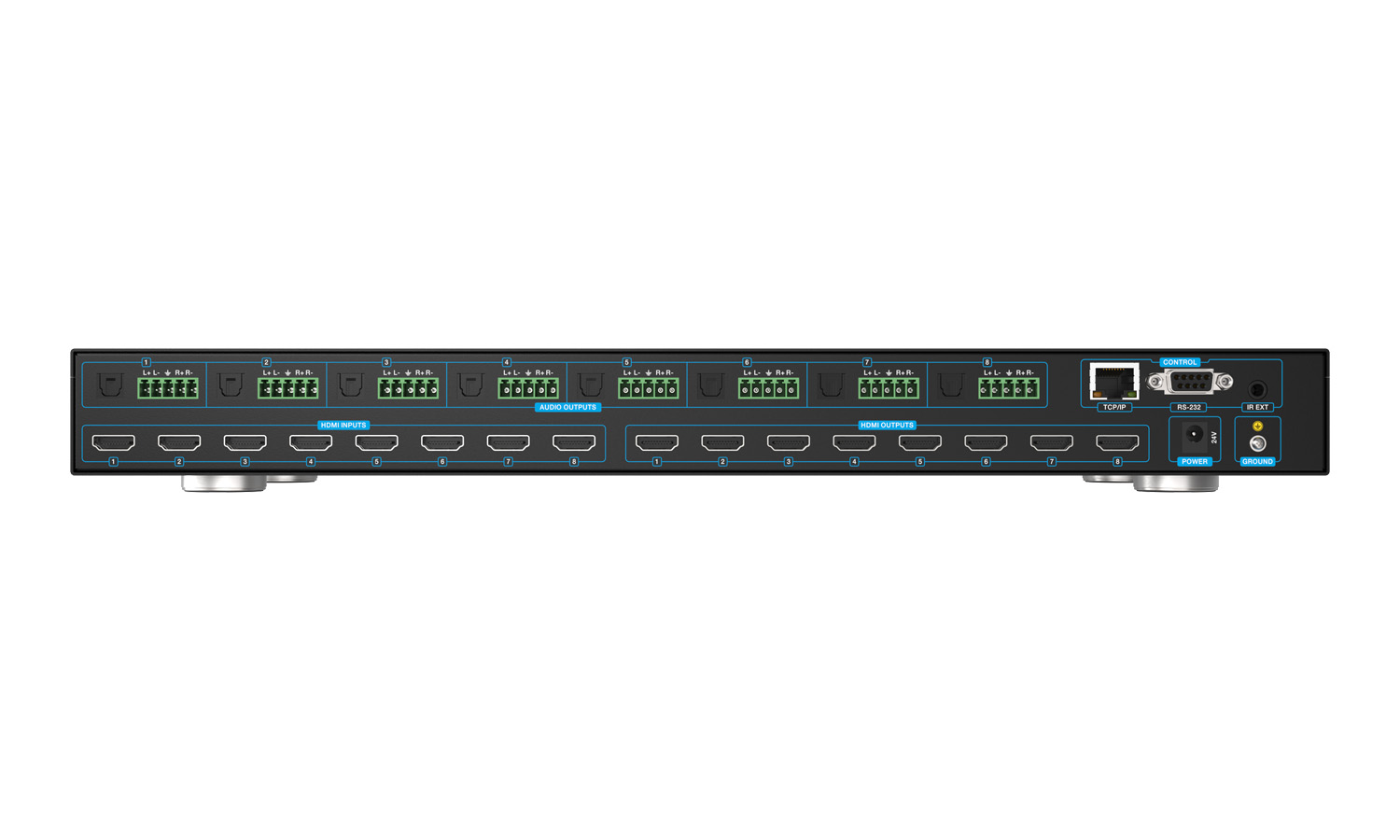

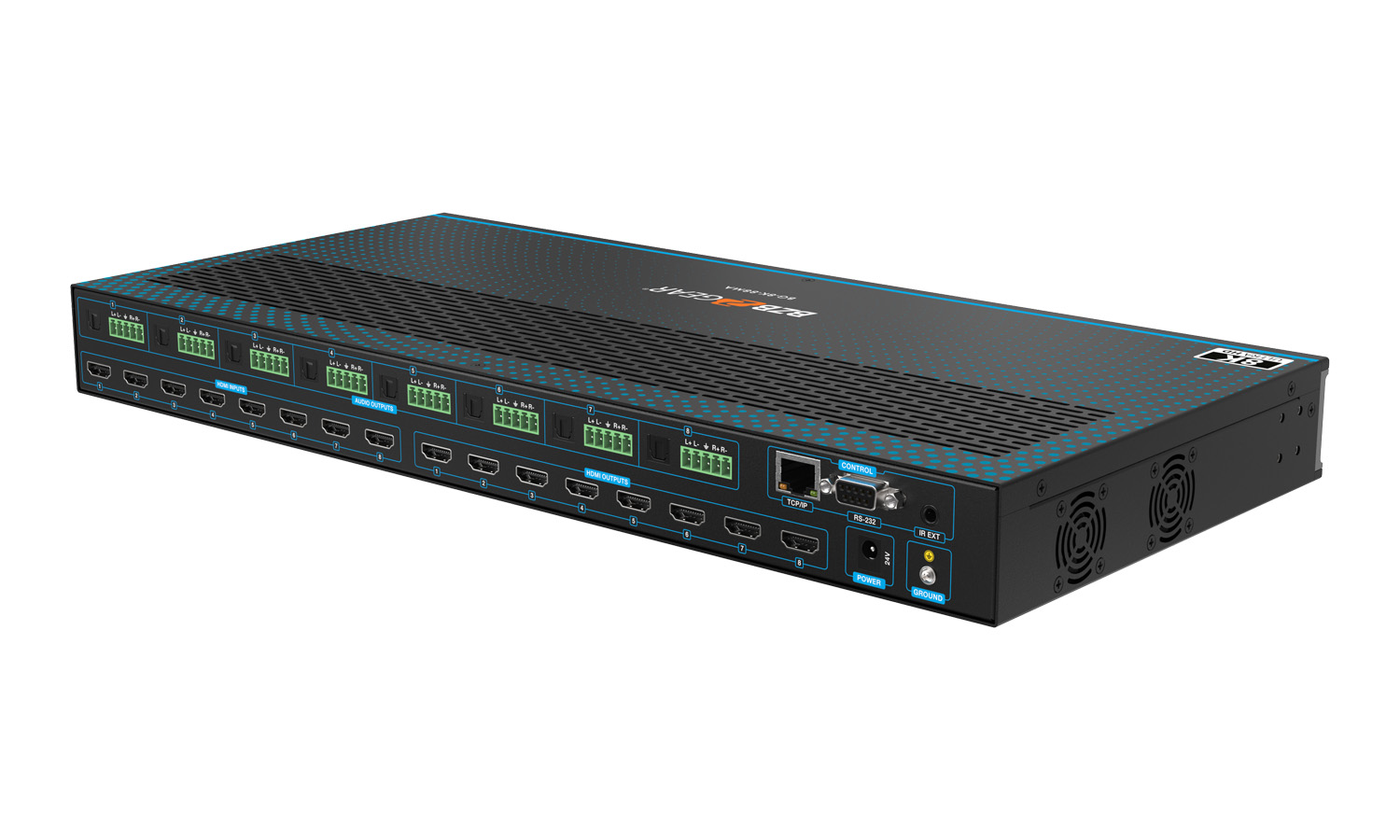

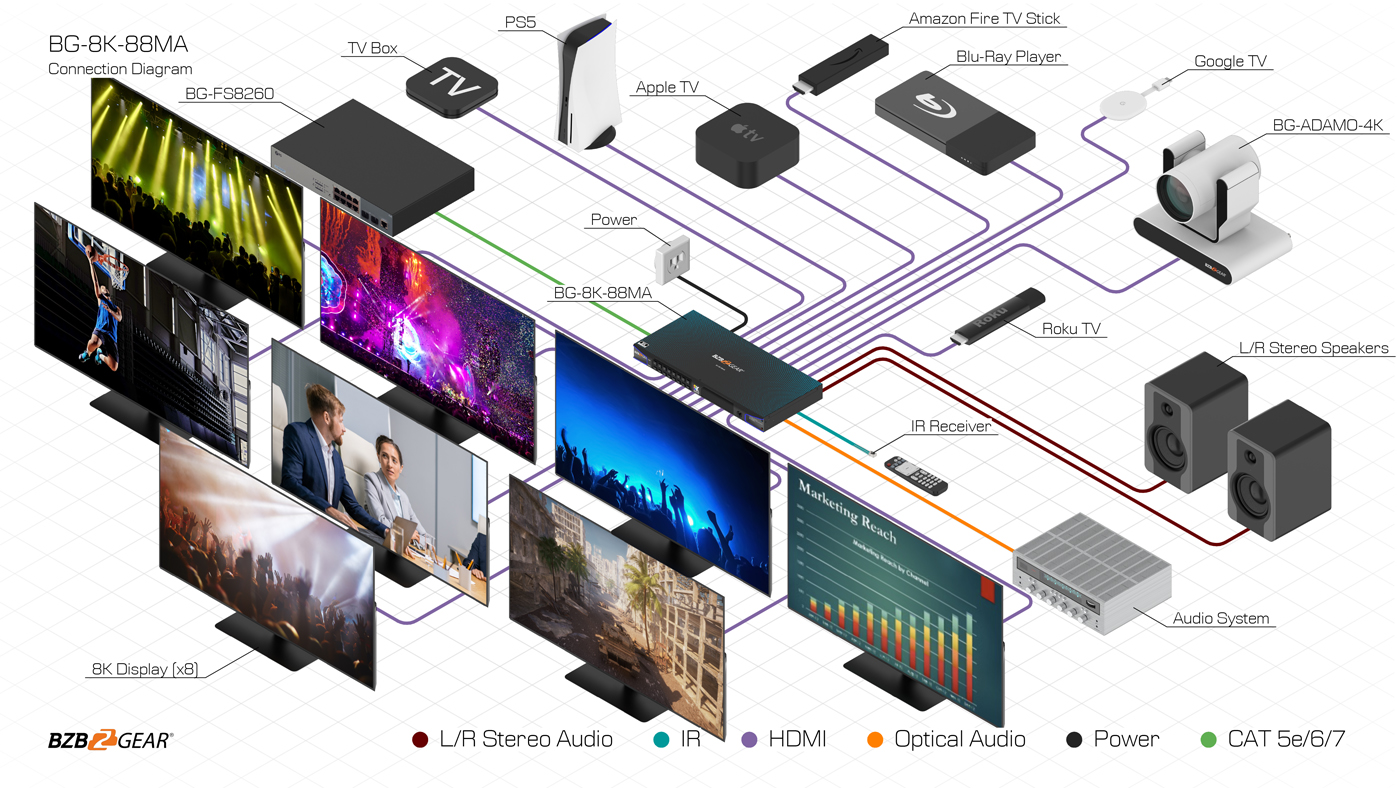

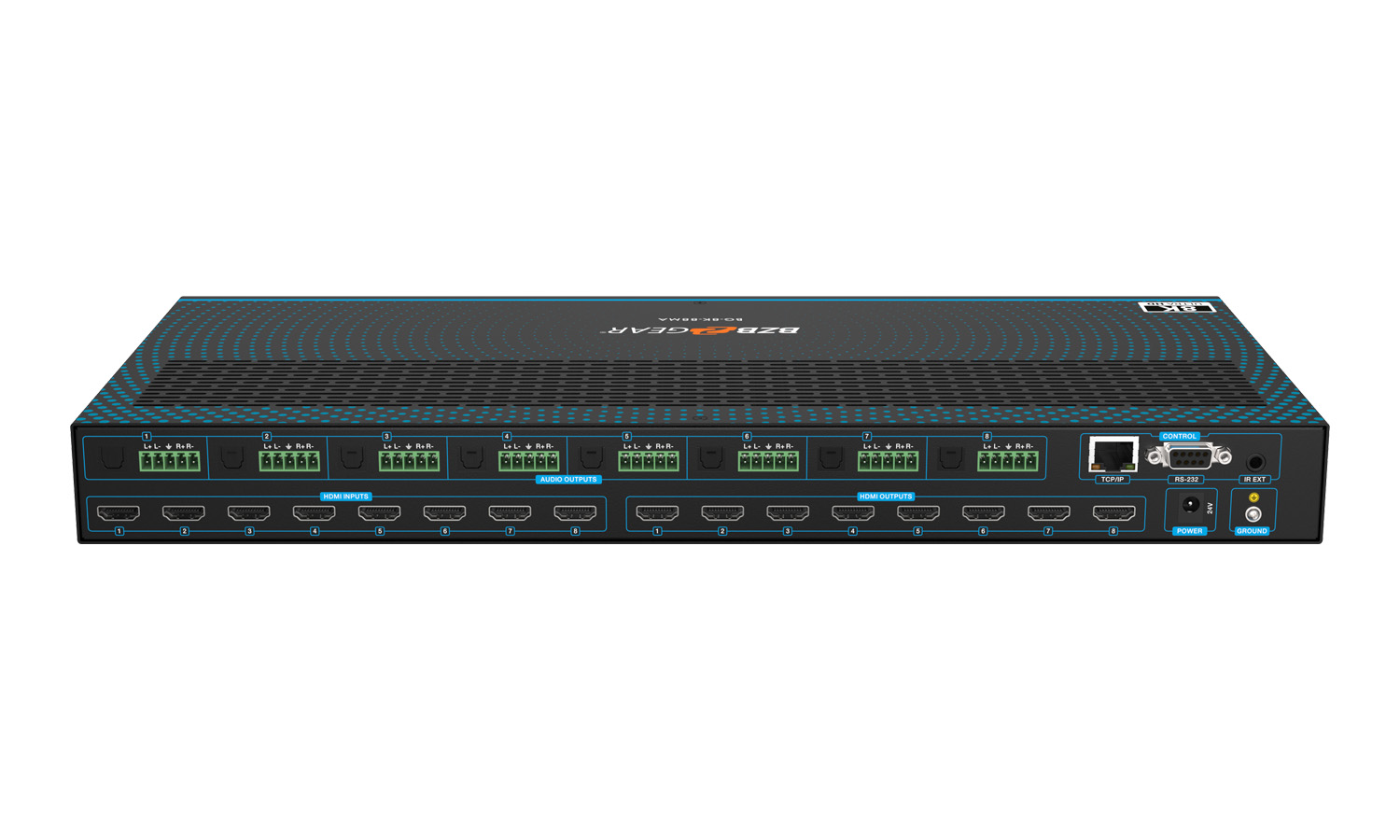

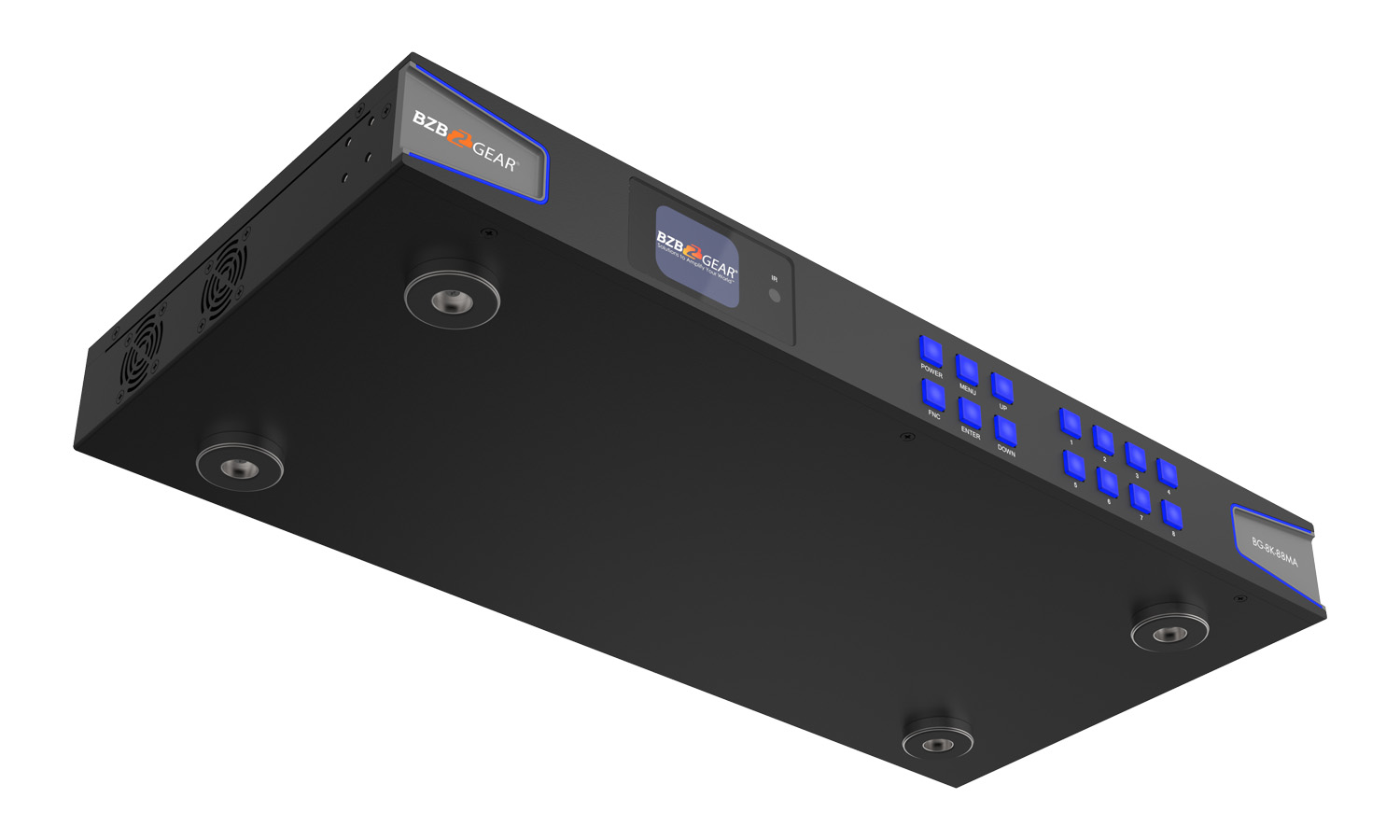

With eight HDMI 2.1a inputs and eight HDMI 2.1a outputs, the BG-8K-88MA 8K HDMI matrix switch allows users to share up to eight HDMI sources with up to eight displays. Perfect for when you need to change multiple sources to show on various displays or even select just one source to show on all displays with the press of a button. Professional-grade picture and audio quality are achieved with support for 8K resolutions and various high-quality audio formats.
Connectivity and Quality
The BG-8K-88MA supports high resolutions up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz 4:4:4 with HDR. With 48 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.3 compliant. This device is also equipped with auto Downscaling on all outputs, ensuring compatibility with legacy displays.
The BG-8K-88MA supports Digital S/PDIF and Balanced audio output formats.
Control

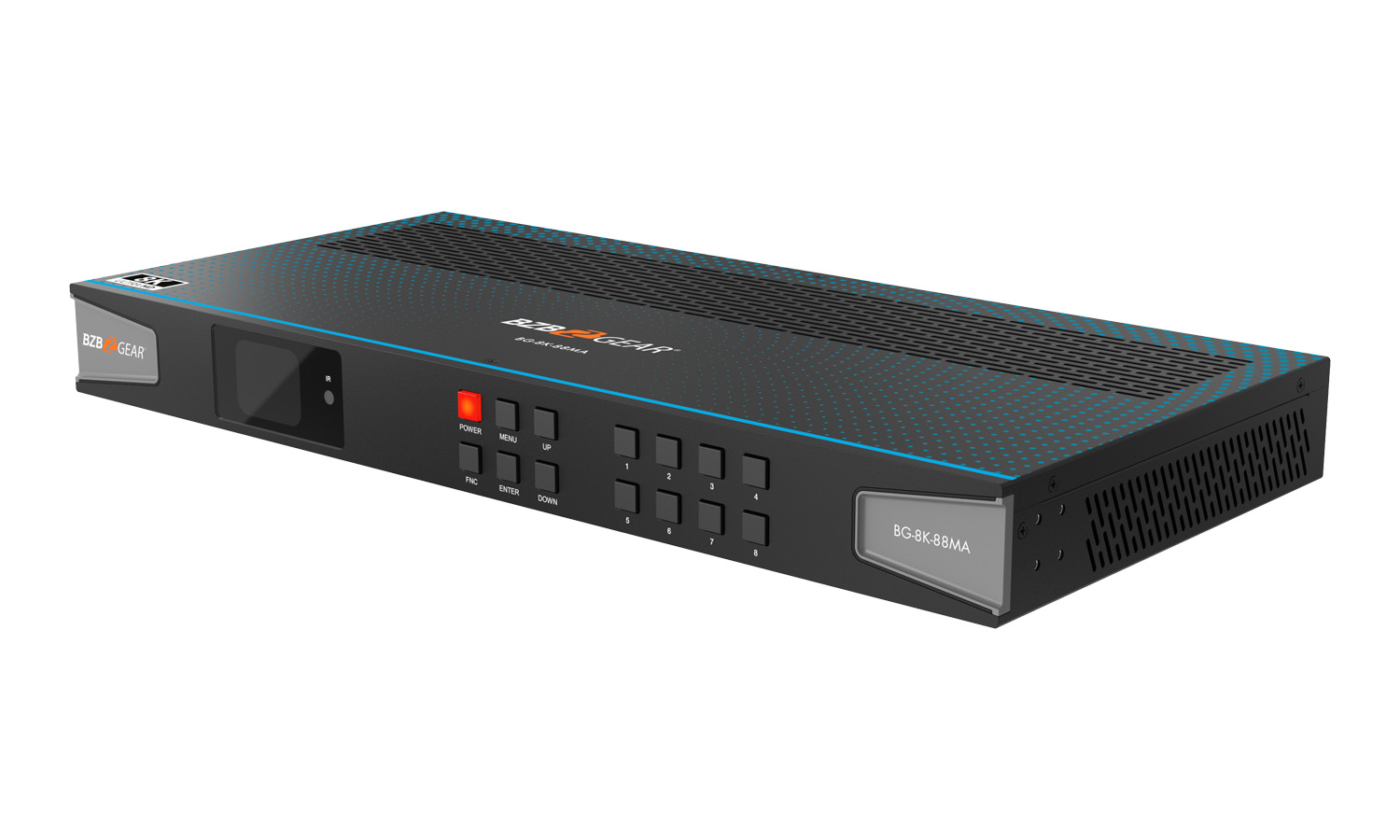

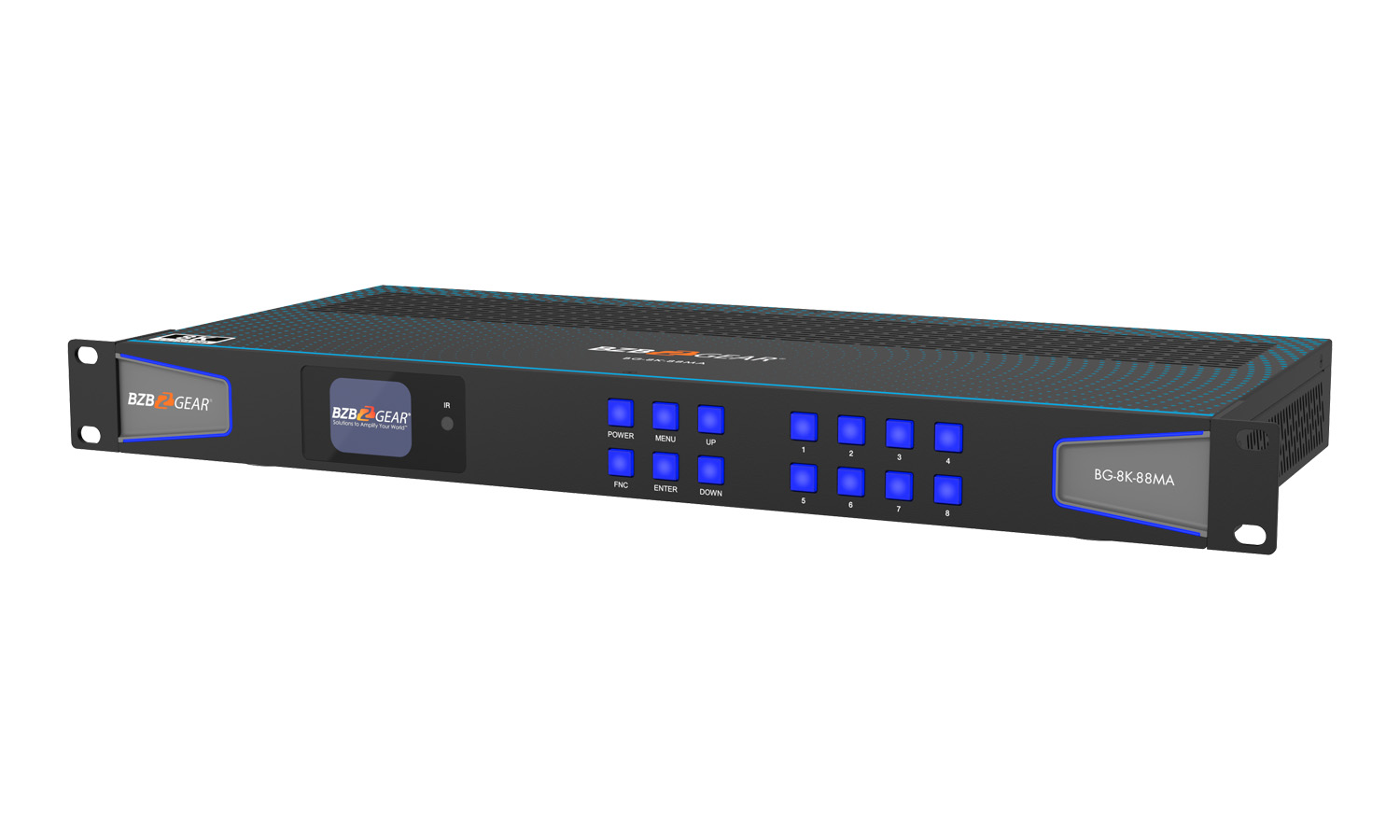

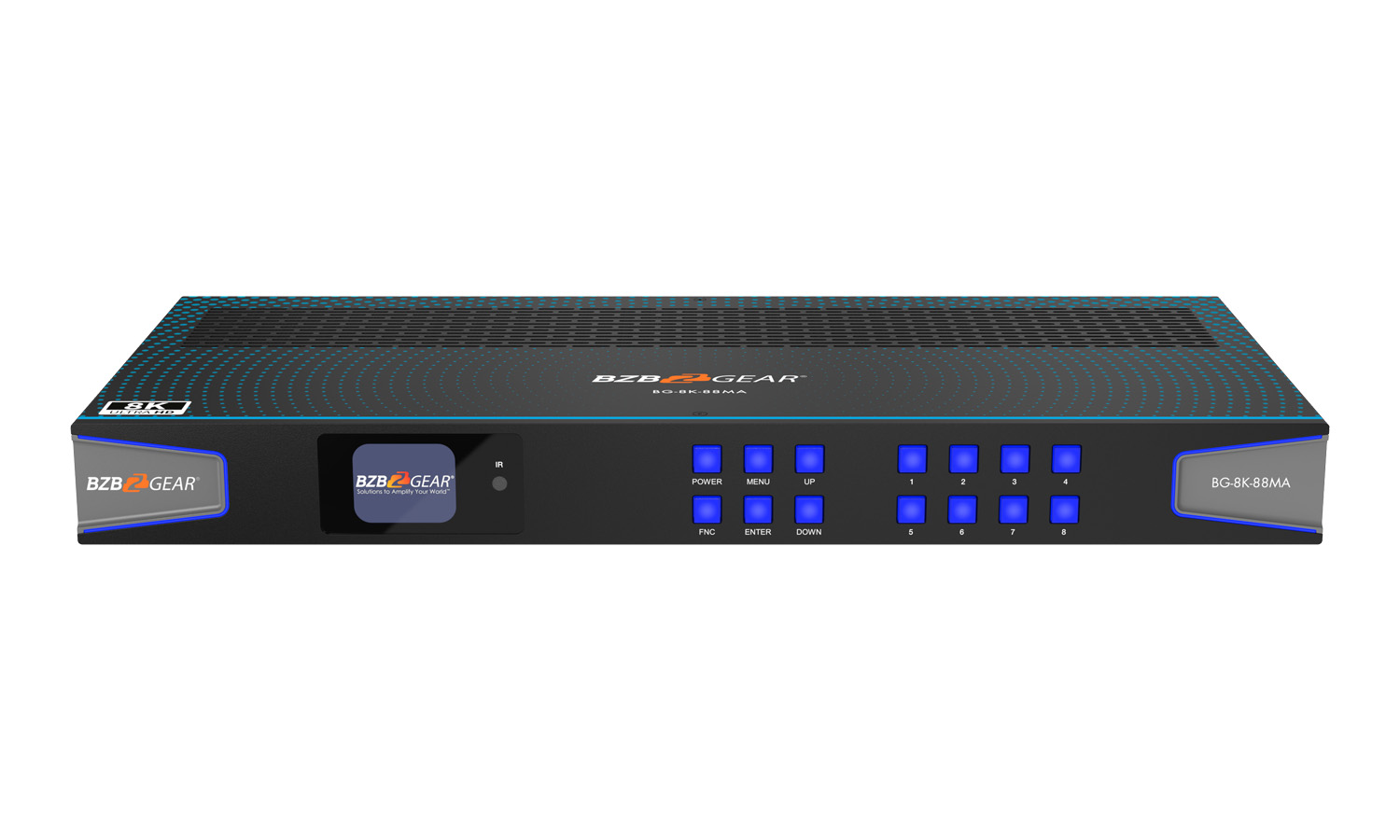

The BG-8K-88MA offers multiple control methods including front panel controls, IR remote control, RS-232, or TCP/IP(Web GUI). The included IR receiver allows the unit to be controlled with the included remote while located out of sight for a clean installation.
In addition to a full-featured web interface, the BG-8K-88MA includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings.
Play Games at 4K@120Hz!
For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-88MA can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you’re playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 8×8 matrix switcher’s support for 4K at 120Hz can help you get the most out of your favorite games.
Recommended HDMI Cable
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft | 8m/26ft | 12m/39ft | 15m/49ft |
The use of a “Premium High-Speed HDMI” cable is highly recommended.
Features:
- 8×8 routing – Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
- HDCP compliant – HDMI 2.1a (48Gbps) HDCP 2.3 (and all earlier versions supported)
- 8K and 4K@120Hz – Up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4 and 4K@120Hz 4:4:4 8K to 4K or 8K/4K to1080p
- Auto scaling – Down Scaling on all outputs
- Control options – Control via front panel, IR, RS-232, and TCP/IP (Web GUI)
- EDID management – Seamless scaling for the best results
- HDR, HDR10, HDR10+, Dolby Vision pass-through VRR, ALLM, QMS, QFT, SBTM are supported
- Digital S/PDIF and Balanced audio output
