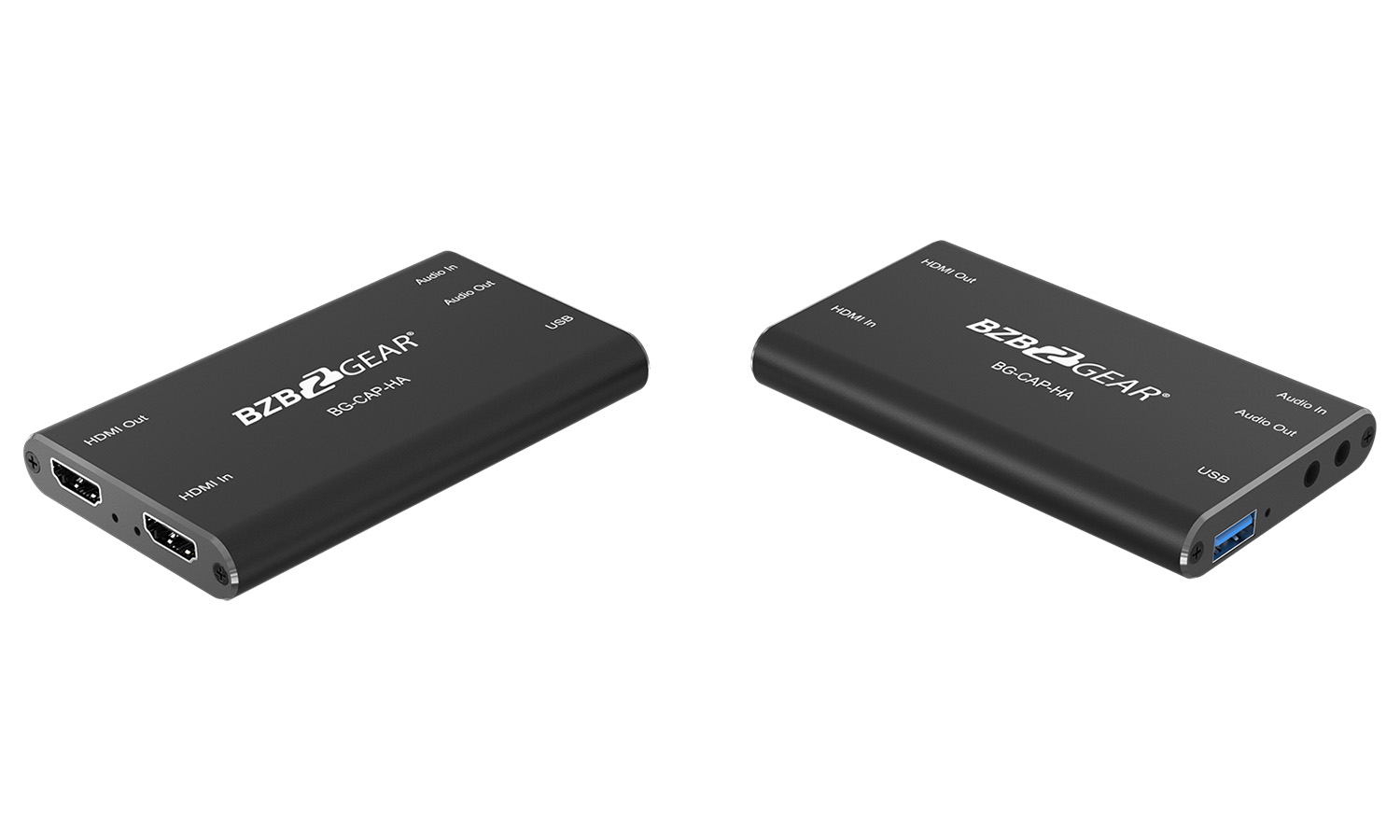

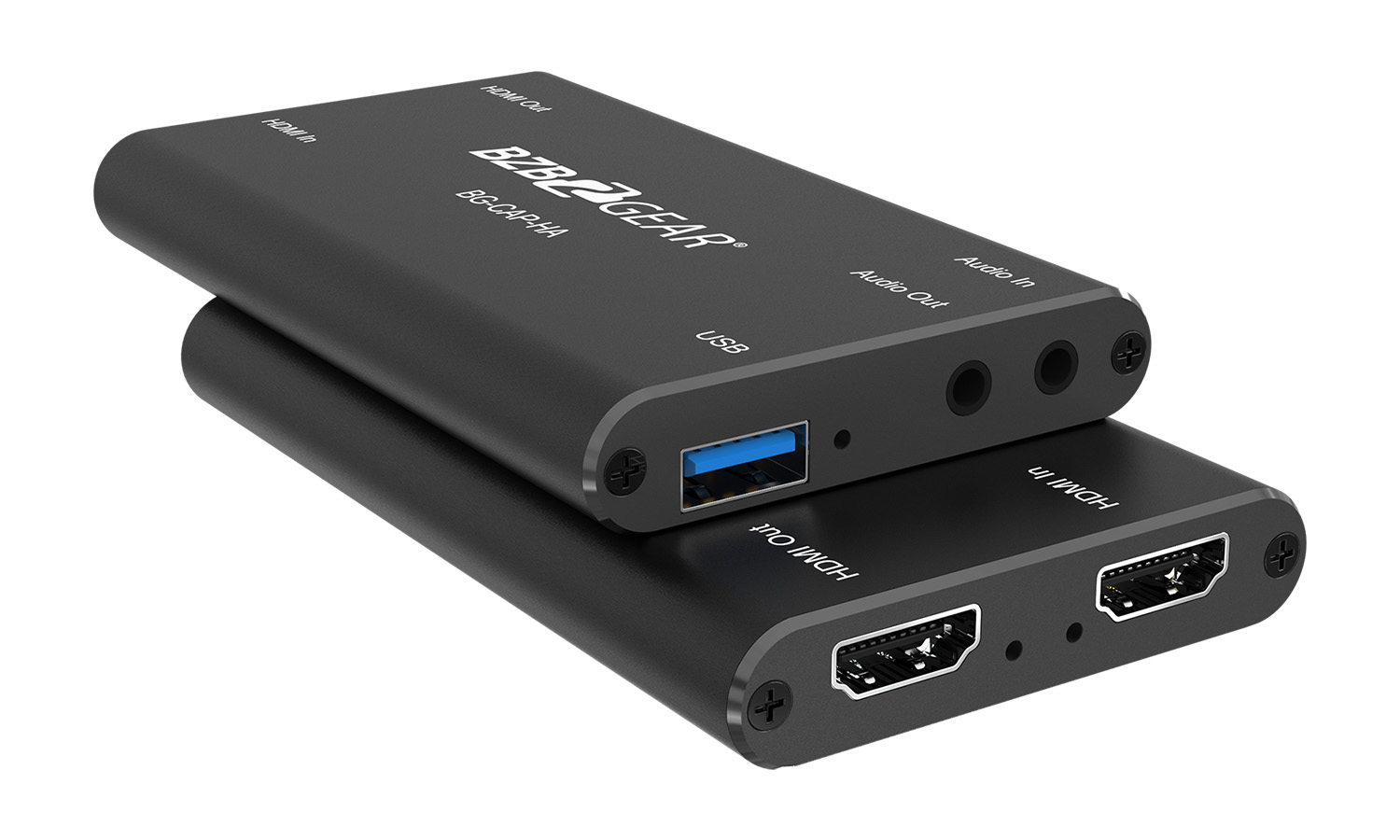

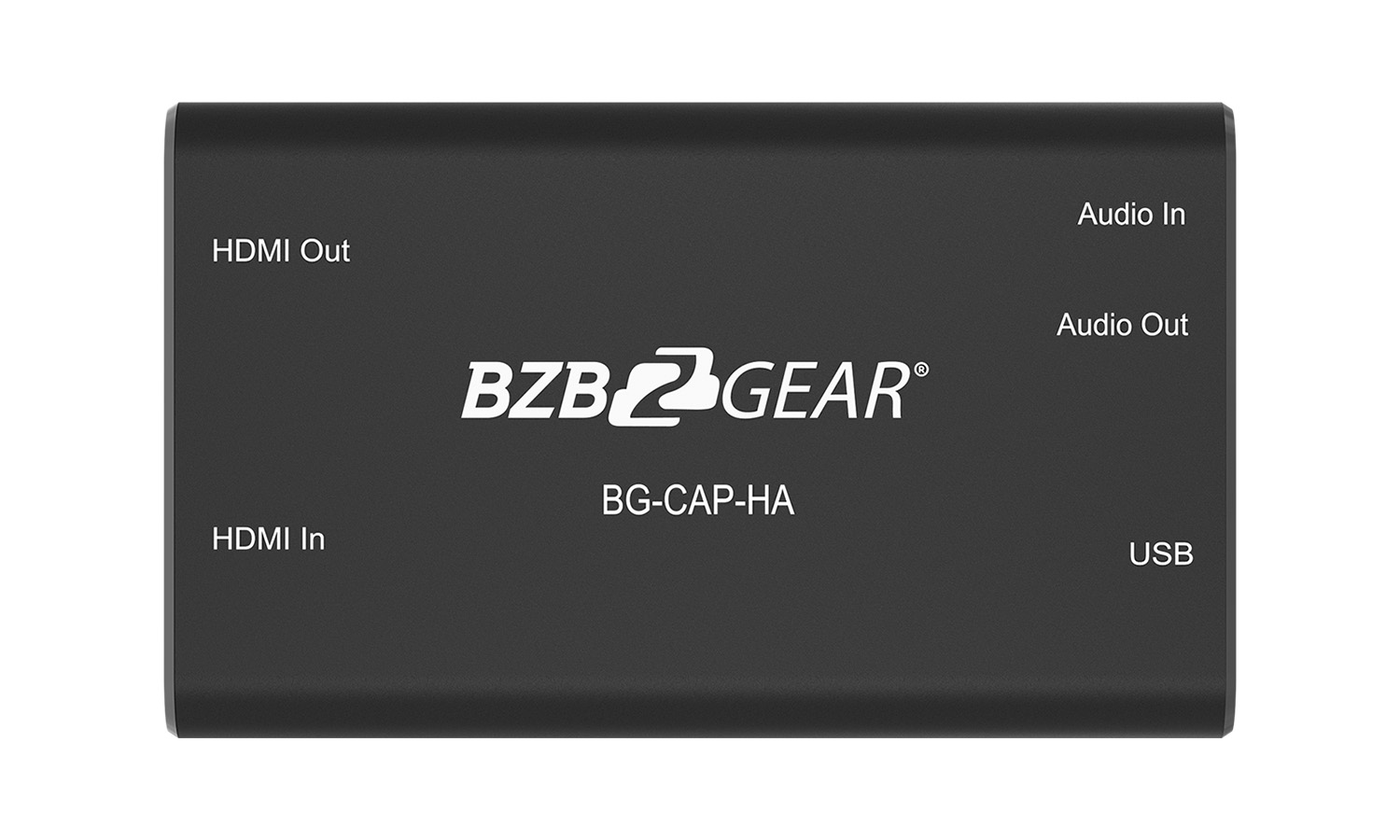

The BG-CAP-HA is a 4K capture device designed to convert an HDMI source to a USB 3.0 output for recording, editing, and/or streaming from a PC or Mac. This unit receives audio and video at resolutions up to 4K @ 60Hz 4:4:4 HDR10 with an output resolution of 1080P @ 60Hz.

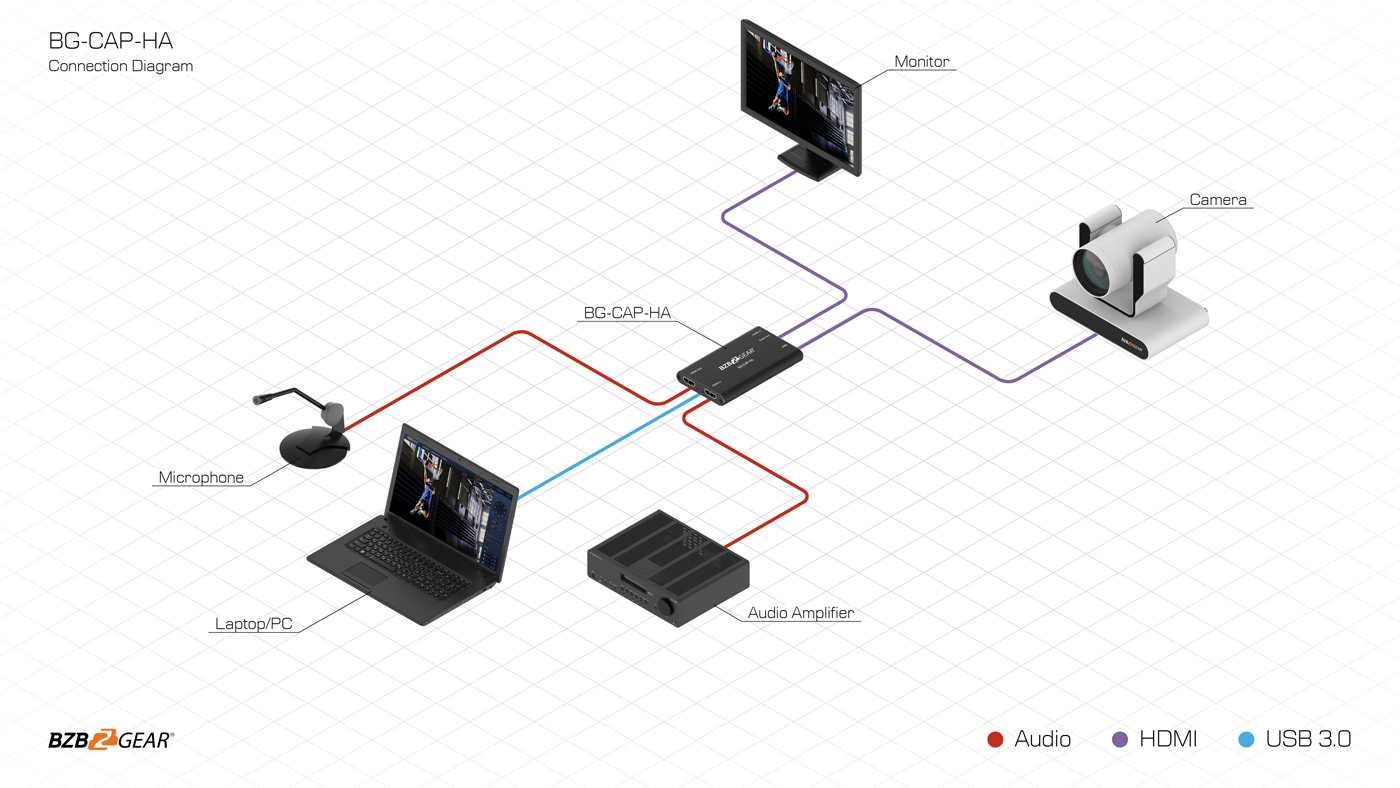

Either it is live video streaming setup for the interview, or streaming of gaming process with voice over, or conference room setup with camera and microphone – this device will do the job.
Featuring an HDMI loop-out for a local display, it is also equipped with 3.5mm audio input and output ports that provide audio embedding or de-embedding for connecting microphone or external audio system.
The USB 3.0 cable also supplies power to the unit, eliminating the need for a power supply.
The BG-CAP-HA is HDCP compliant and will not capture protected content.
Supports Mac OS, Windows, and a wide array of third-party applications
Stereo audio input/output for connecting mics and local audio
Ideal for recording presentations on the go
Simple for anyone to learn

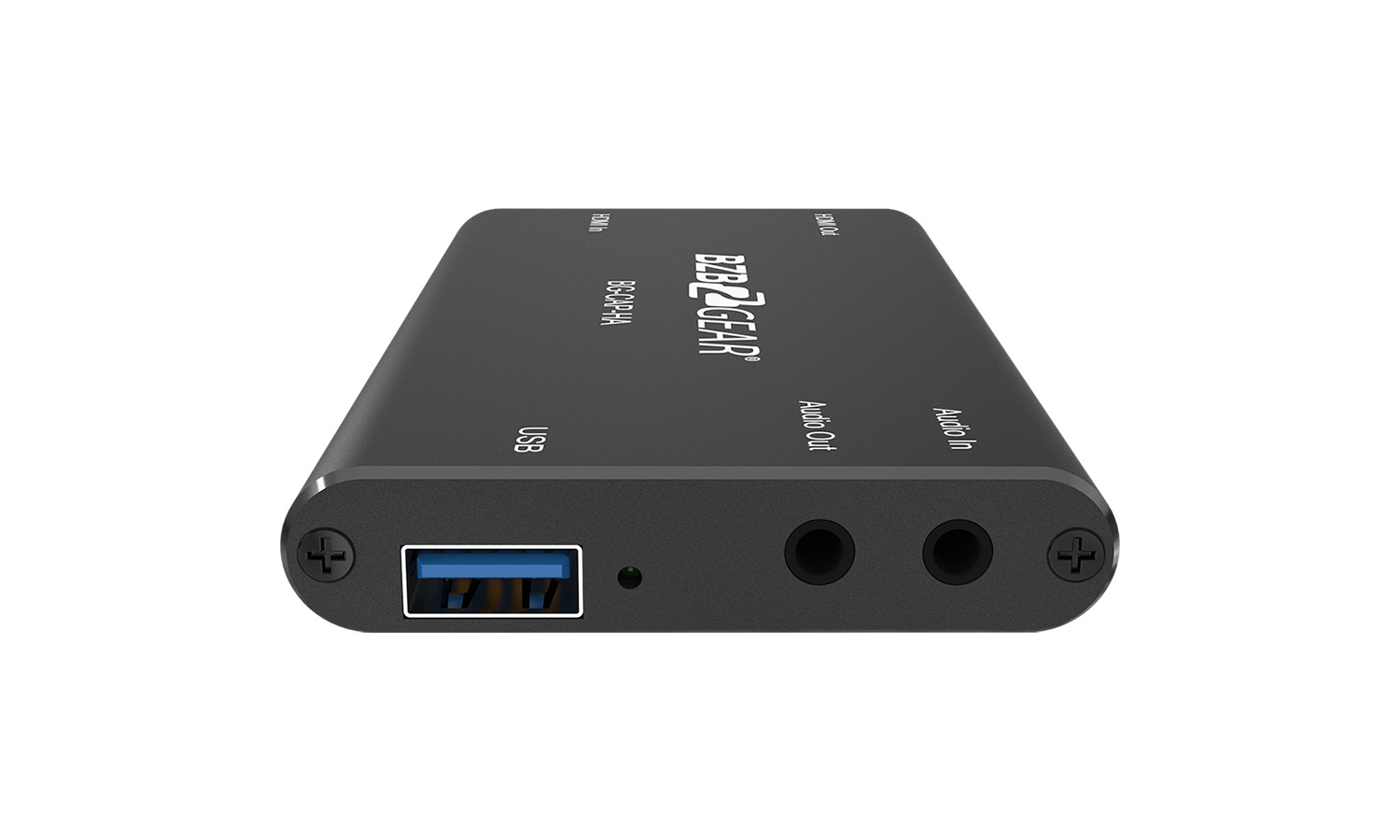

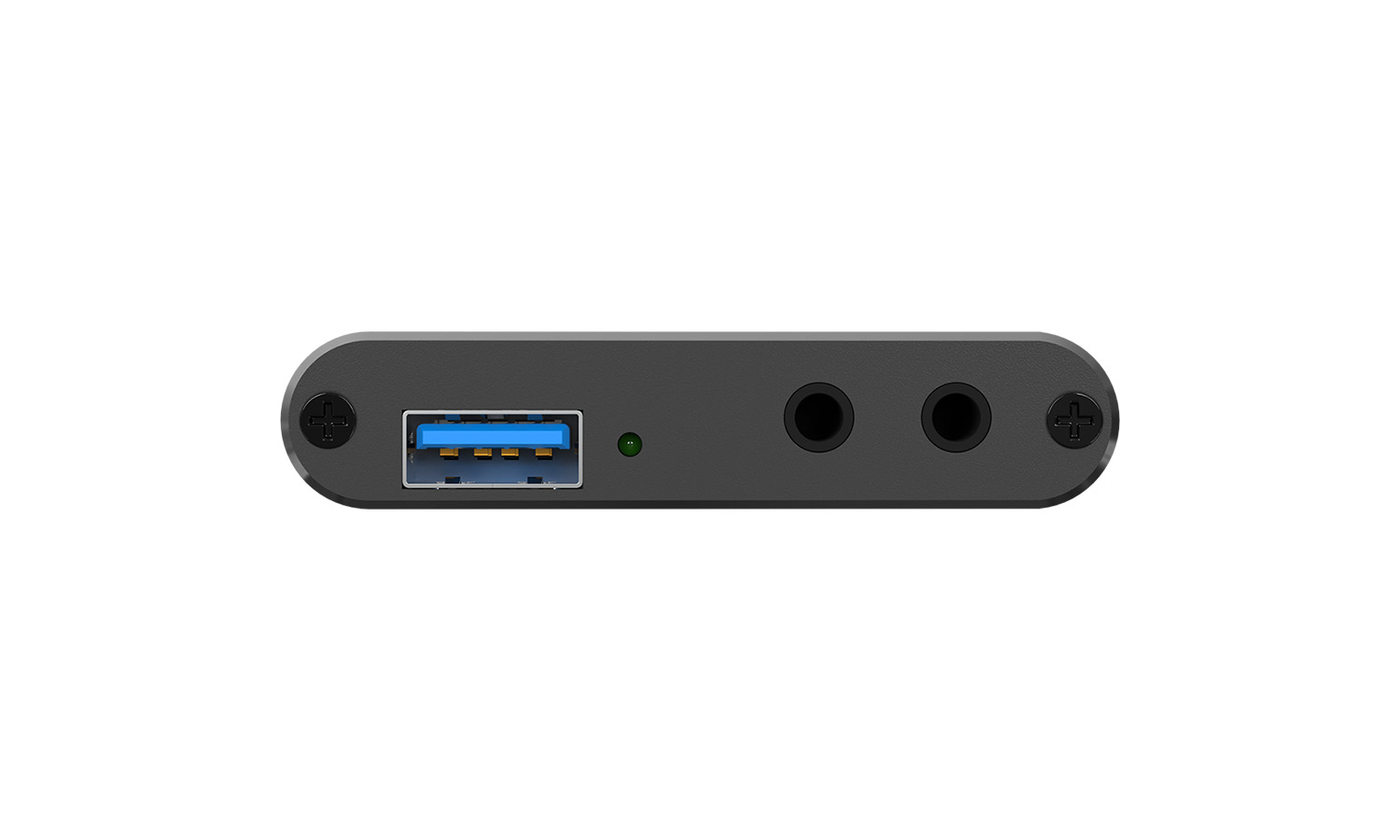

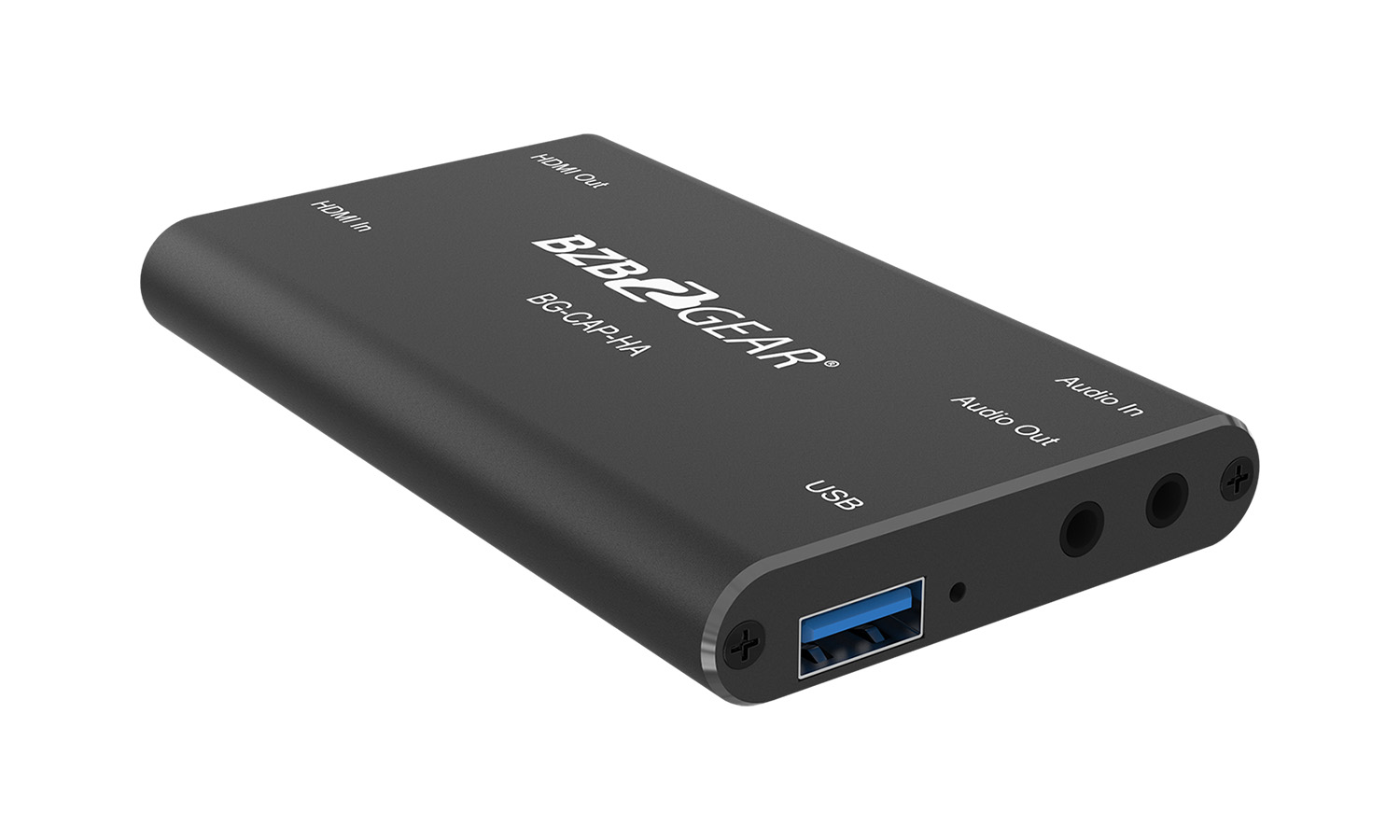

The USB 3.0 port supplies power for the unit and transfers data to the connected device

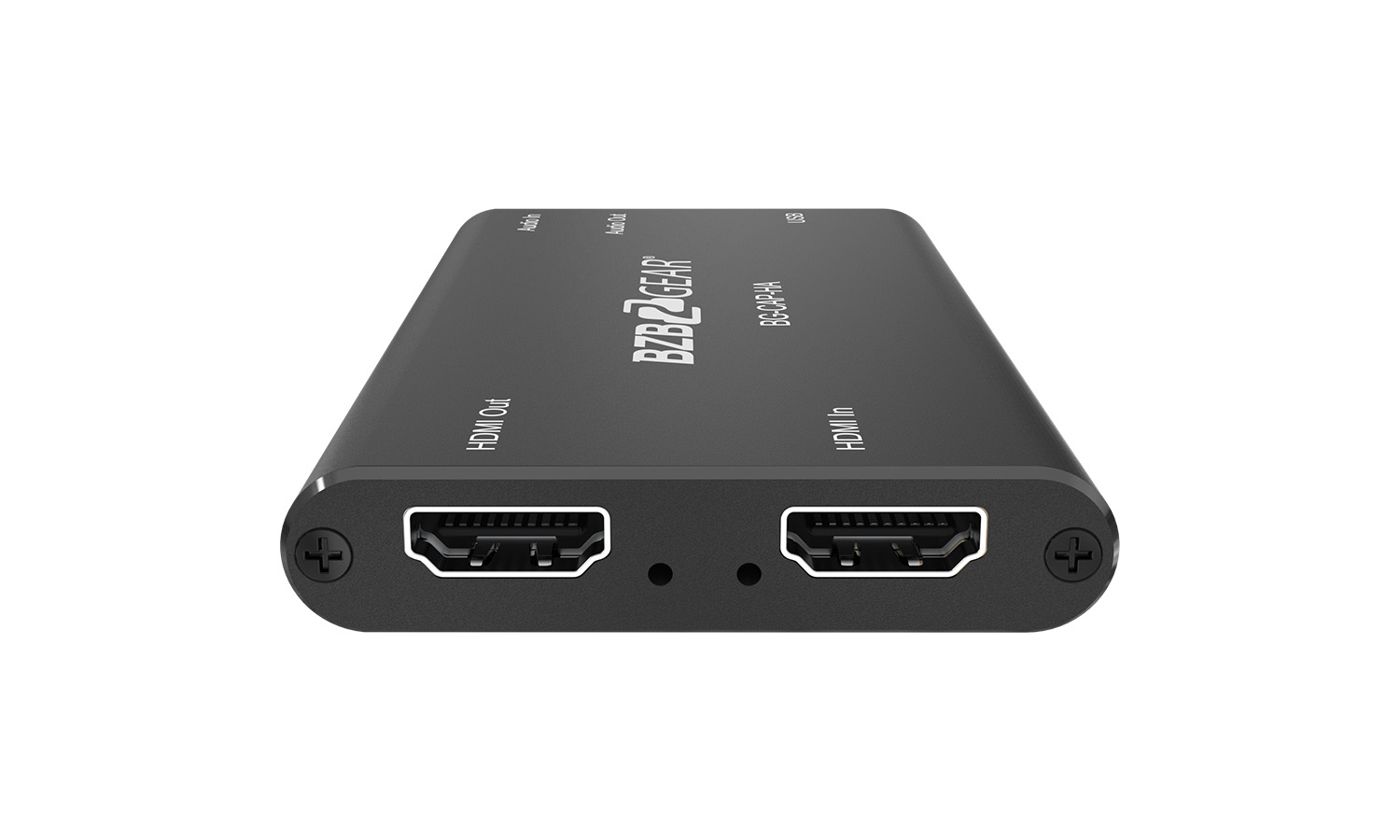

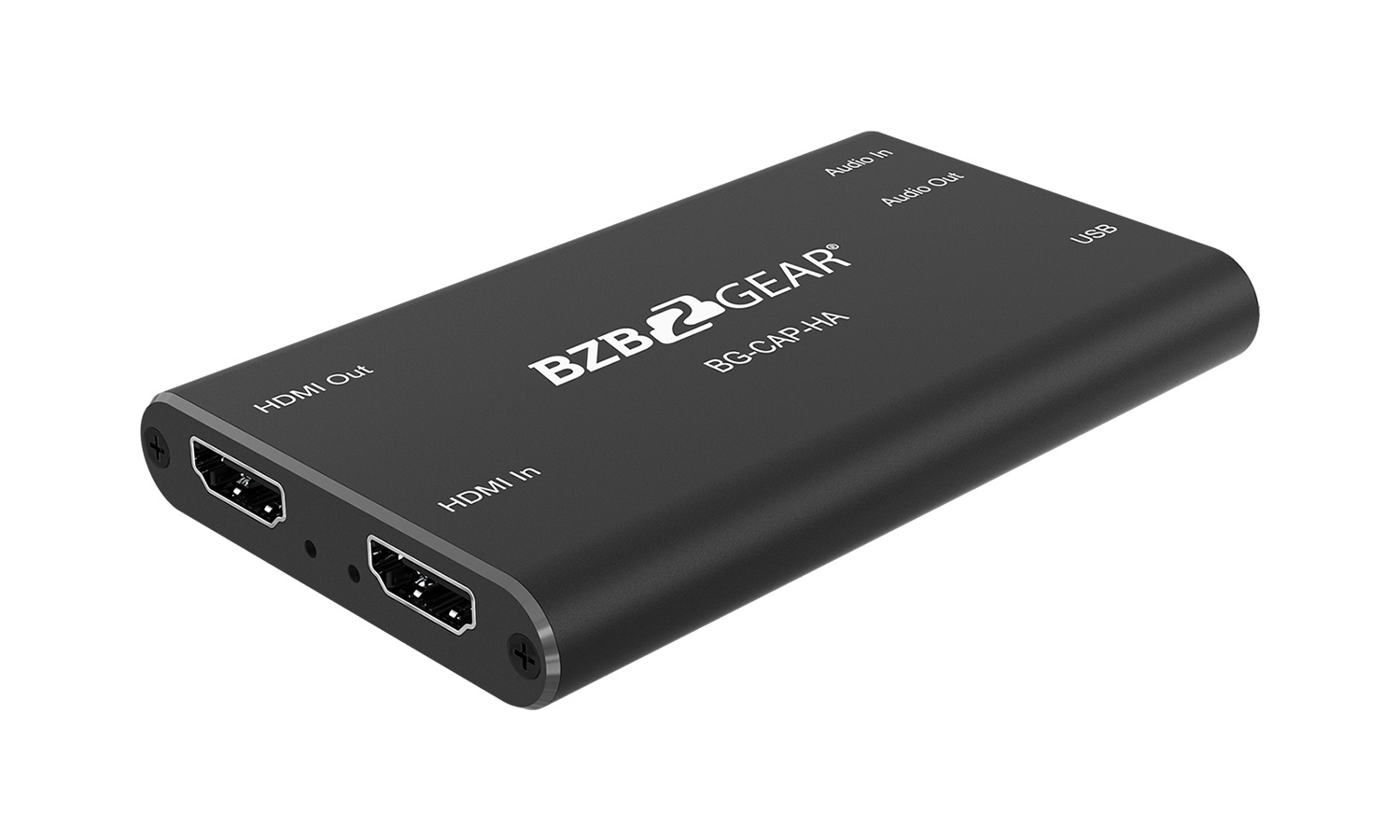

HDMI Loop-out to live view captured images
- Audio Output – De-Embeds audio from HDMI for analog devices
- Audio Input – Embeds audio from a microphone or other device
- 1080P @ 60Hz Resolution – Capture and store Full HD video on your device

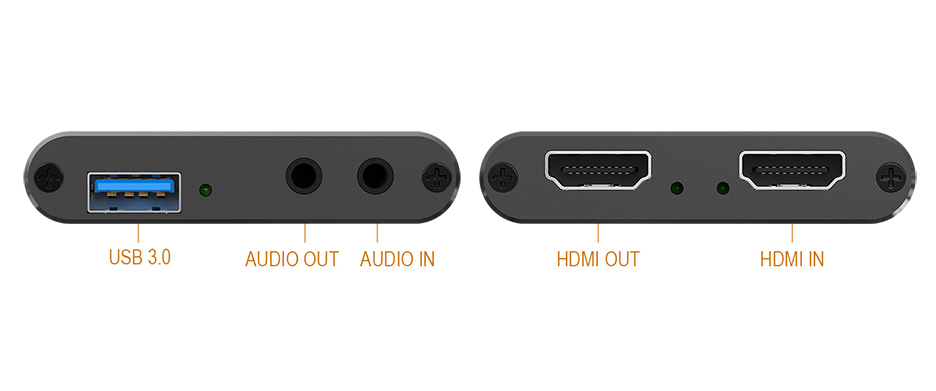

Audio In/Out
Stereo audio input/output for connecting mics and embedding local audio.

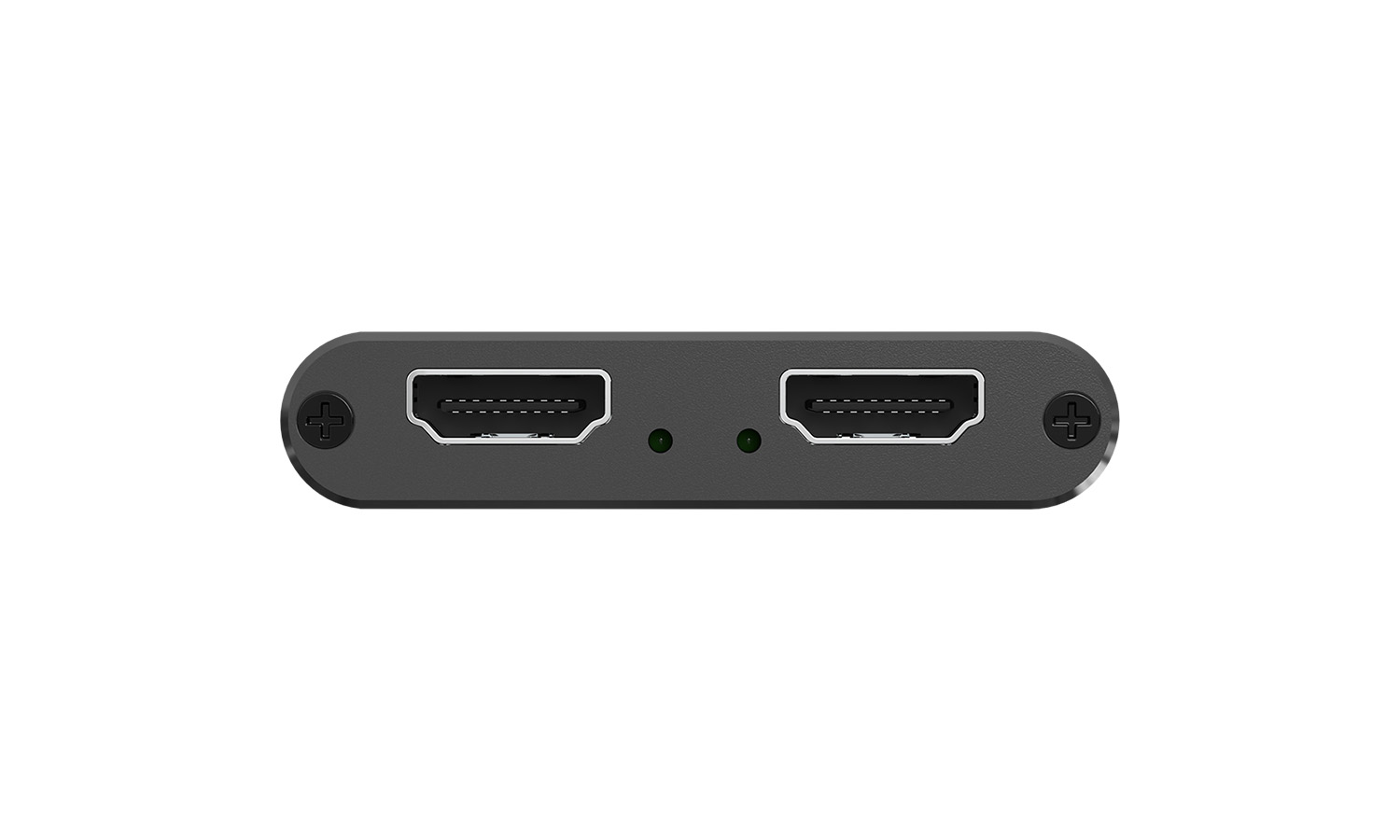

HDMI
Crystal clear image with resolutions up to 1080p @ 60Hz.
USB
USB 3.0 Connectivity.
