Description

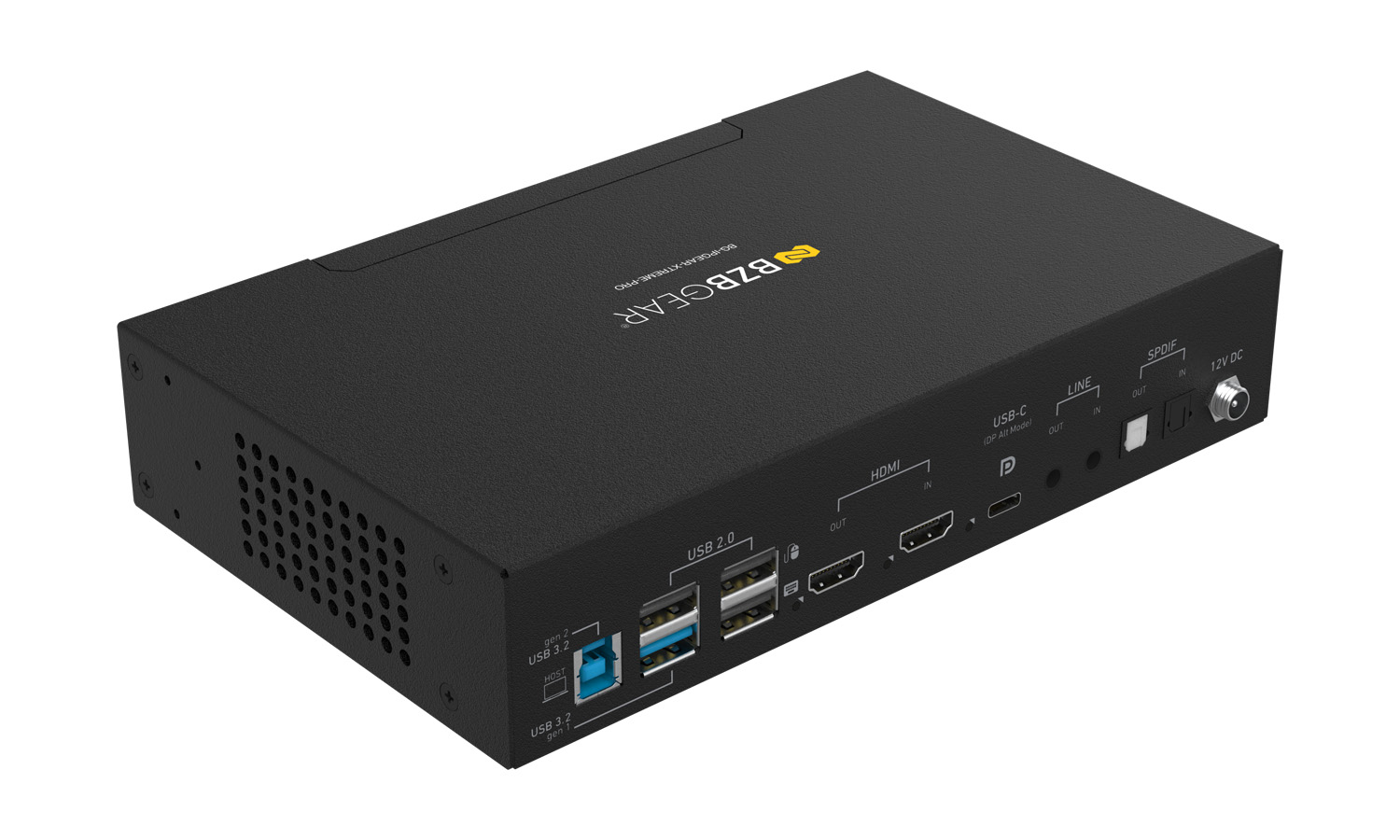

Download Manual The BG-IPGEAR-XTREME-PRO is a high-performance HDMI 2.1 over IP multicast transceiver system designed for seamless AV transmission over 1GbE networks. This system supports 8K@60Hz 4:2:2 DSC and 4K@144Hz 4:4:4, providing crystal-clear video and ultra-low latency, making it ideal for applications in gaming, broadcasting, healthcare, digital signage, and professional AV environments. With HDMI 2.1, USB-C (Alt Mode DP 1.4), and eARC/ARC compatibility, the BG-IPGEAR-XTREME-PRO ensures broad device support and superior compatibility.
Additionally, its KVM functionality enhances control over multiple devices, while the system’s compact form factor, rugged metal enclosure, and efficient power management make installation easy and reliable in demanding environments.
Features in Depth
The BG-IPGEAR-XTREME-PRO transceiver system delivers cutting-edge video performance with support for 8K@60Hz 4:2:2 DSC and 4K@144Hz 4:4:4, making it ideal for high-resolution, high-refresh-rate applications. The system includes Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM), providing smoother gameplay and reducing input lag, which is crucial for gaming and real-time applications. For display setups that require multiple screens, the BG-IPGEAR-XTREME-PRO supports Multiview modes such as PiP (Picture-in-Picture), PbP (Picture-by-Picture), and PoP (Chroma Key), along with video wall functionality, including image rotation and flip, for creative and flexible display arrangements. The system also ensures smooth, seamless video distribution through auto equalization and switching capabilities, guaranteeing minimal interruptions.
When it comes to audio, the BG-IPGEAR-XTREME-PRO offers comprehensive support, including eARC/ARC for high-quality audio pass-through, making it compatible with modern sound systems. It supports DTS-HD Master Audio, Dolby TrueHD, and 7.1-channel digital surround sound, ensuring premium audio output for both home and professional audio setups. The system also excels in connectivity and control, offering bi-directional IR and RS-232 pass-through for remote control integration. With full-duplex RS-232 control supporting up to 115,200 bps, the BG-IPGEAR-XTREME-PRO is designed for sophisticated system management. It also includes USB 3.1 Host Mode (Gen 1) for UVC webcam functionality and USB 3.1 Device Mode (Gen 2) for additional USB peripheral connectivity, making it versatile for various applications. The KVM mouse roaming functionality allows users to seamlessly control multiple devices from a single interface, simplifying management in complex systems. Additionally, the system features an integrated 1G LAN port, expanding network connectivity options for more flexible setups.

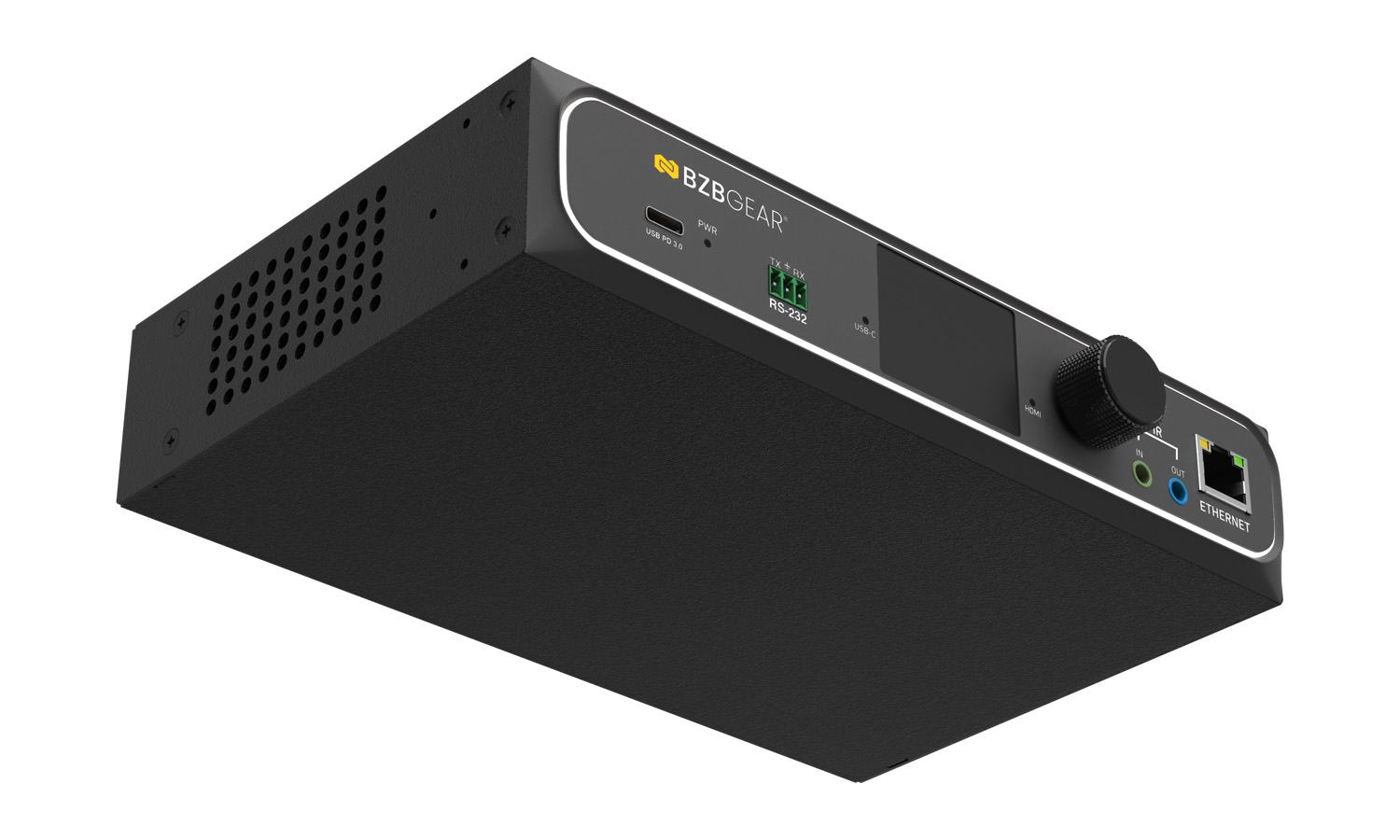

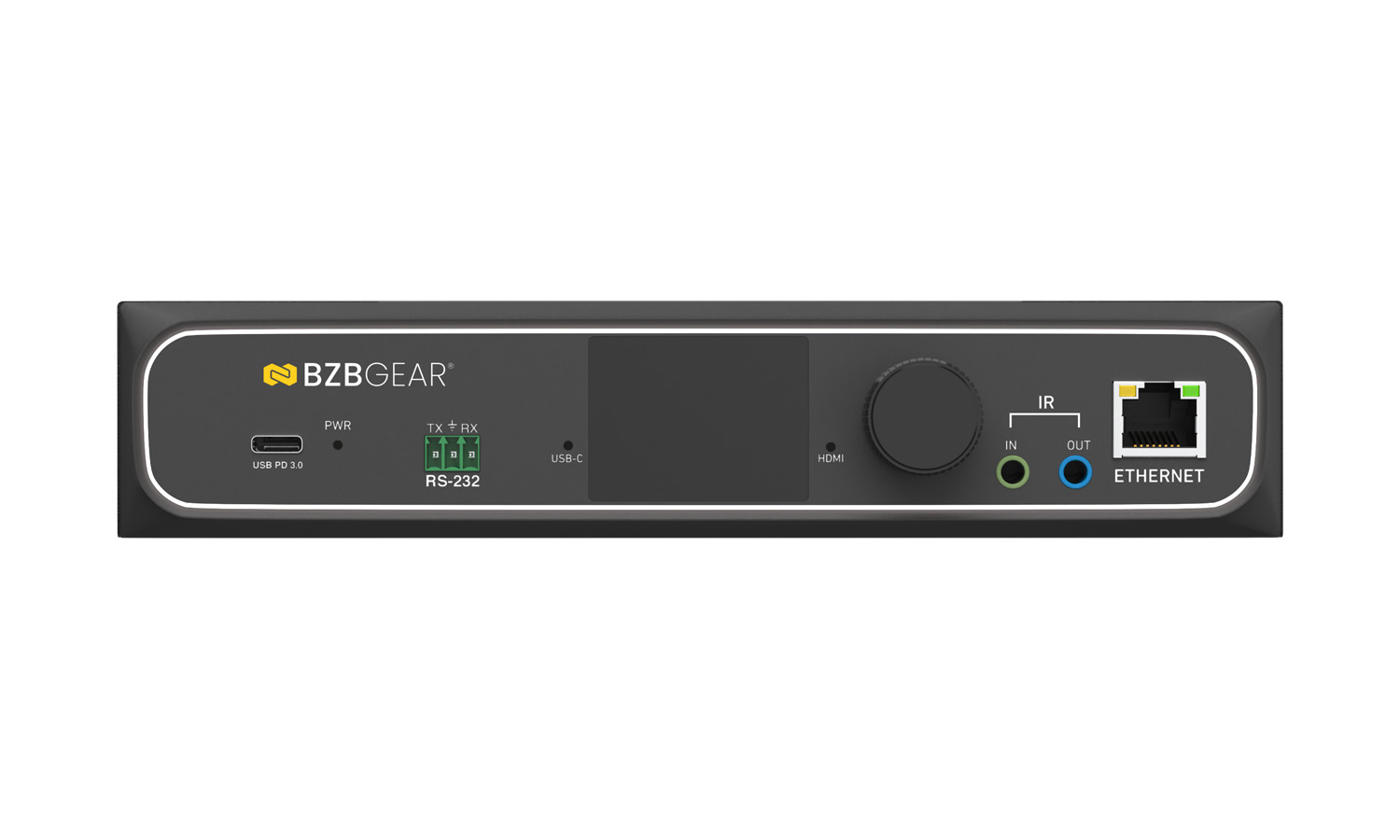

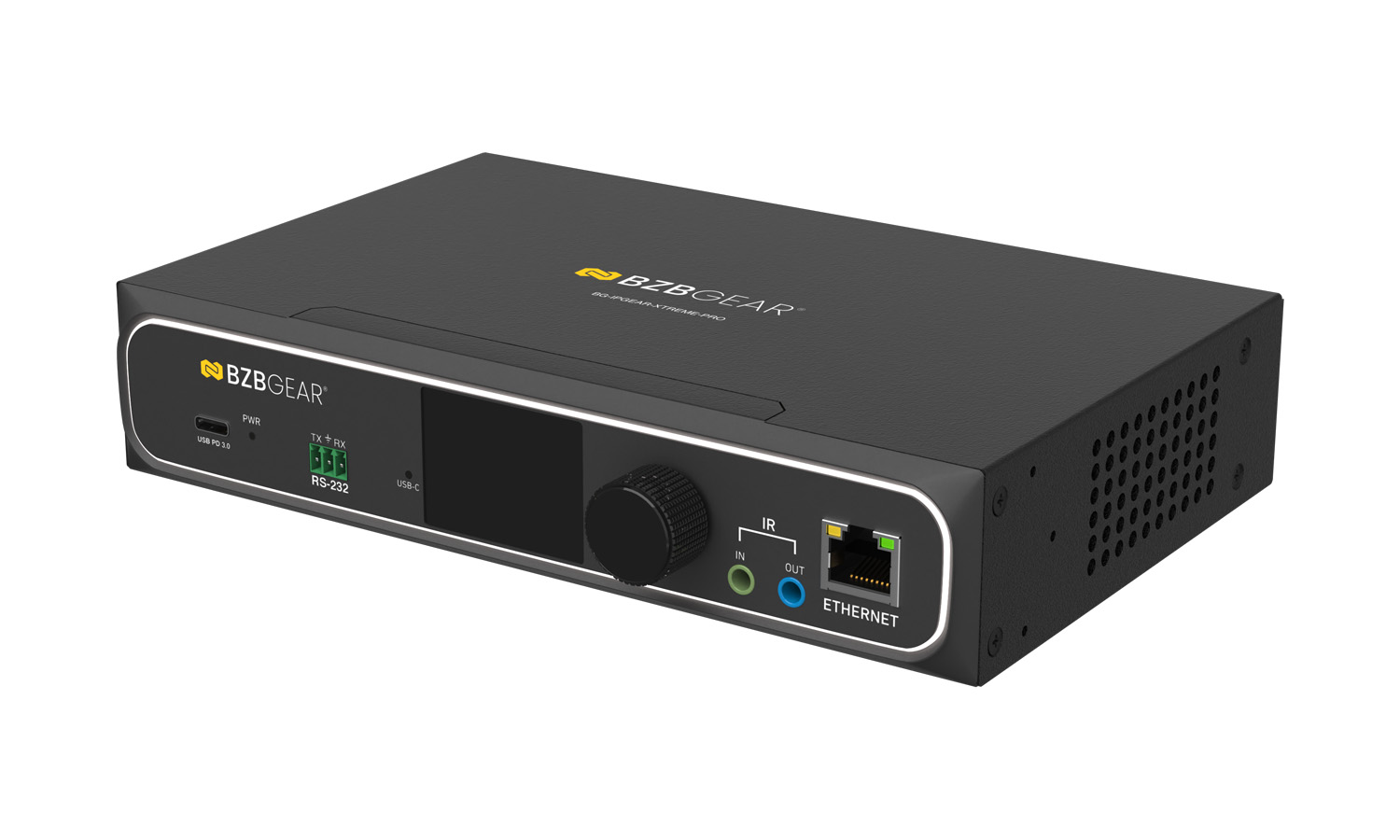

Designed for durability, the BG-IPGEAR-XTREME-PRO is housed in a rugged metal enclosure, ensuring long-lasting performance in demanding environments. It supports transmission distances of up to 170 meters (560 feet) using Cat.5e/6/6a/7 cables, providing reliable AV distribution across large areas. The system is built to handle modern content protection with HDMI 2.1 and HDCP 2.3 compliance, ensuring compatibility with the latest AV equipment, including gaming consoles and professional video systems. For ease of use, the LCD status monitor and intuitive control knob allow for quick system monitoring and operation, while ESD protection ensures stability and protection from electrical surges.
Features- Ultra-HD Resolution – Up to 8K@60Hz (4:2:2 DSC) & 4K@144Hz (4:4:4)
- Video Wall Support – Advanced functionality with image rotation & flipping
- Multi-View Modes – PiP, PbP, & PoP (Chroma Key) for enhanced display options
- Audio Format Support – DTS-HD Master Audio & Dolby TrueHD high bit-rate audio
- Multi-Input Support – USB-C (Alt Mode DP 1.4) with simultaneous HDMI and DisplayPort input
- Software Management – Supports configuration, firmware updates, and signal management
- Video Standard Compliancy: Supports HDMI 2.1 & HDCP 2.3 for high-quality streaming
- Gaming Optimization: VRR & ALLM for smooth, low-latency performance
- Extended Transmission: Up to 170m (560ft) over Cat.5e/6/6a/7 cable
- Encoding & Decoding: Multi-Encode & Decode with proprietary codecs
- Ultra-Low Latency: Less than 1 frame for real-time applications
- High-Quality Audio: Uncompressed 7.1-channel digital HDMI over Cat.6A
- Audio Pass-Through: Bi-directional analog audio pass-through & eARC/ARC support
- Seamless Switching: Zero interruptions during signal transitions
- Custom Scaling: Adjustable scaling for optimized display output
- IR Control: Bi-directional full-frequency IR (20KHz – 60KHz) support
