Description
Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

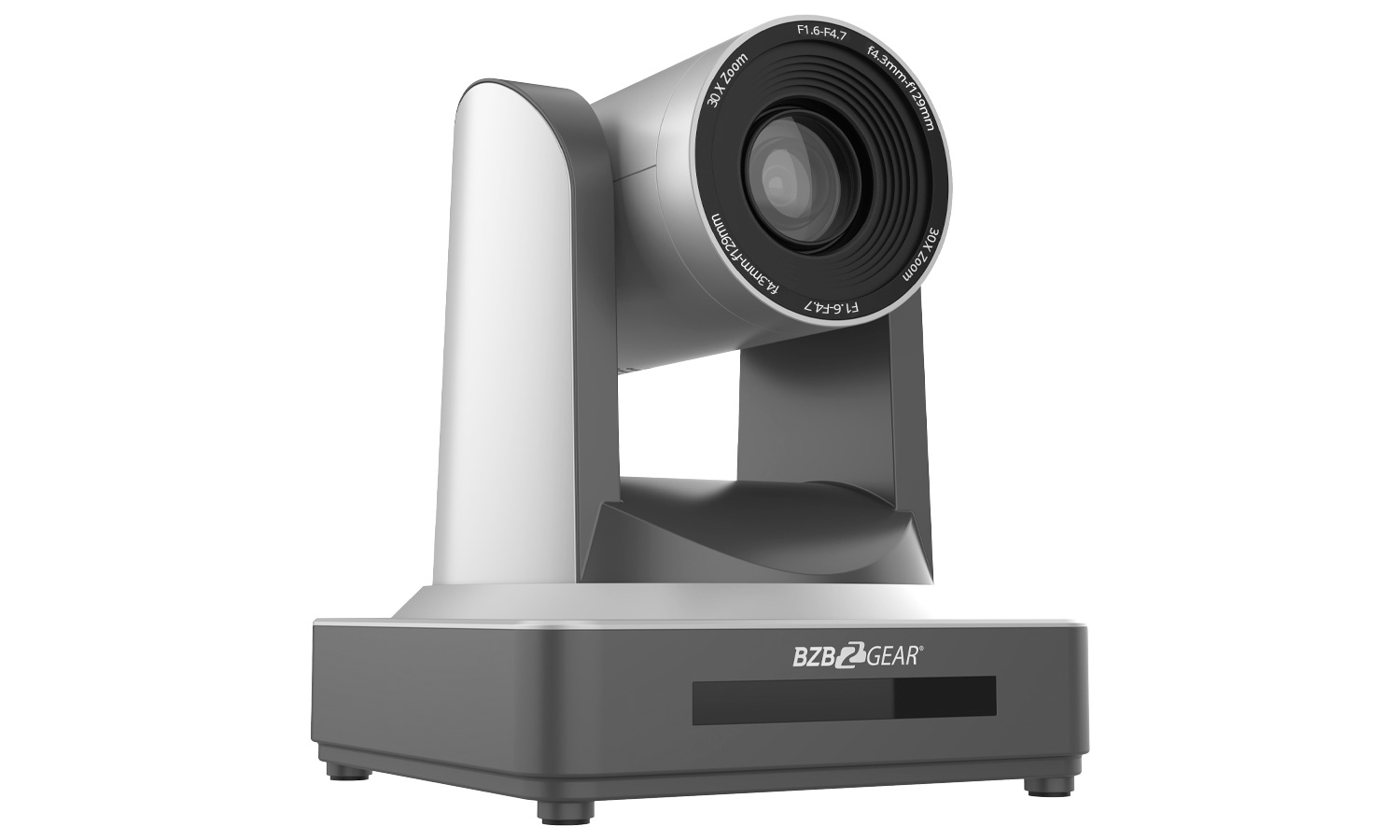

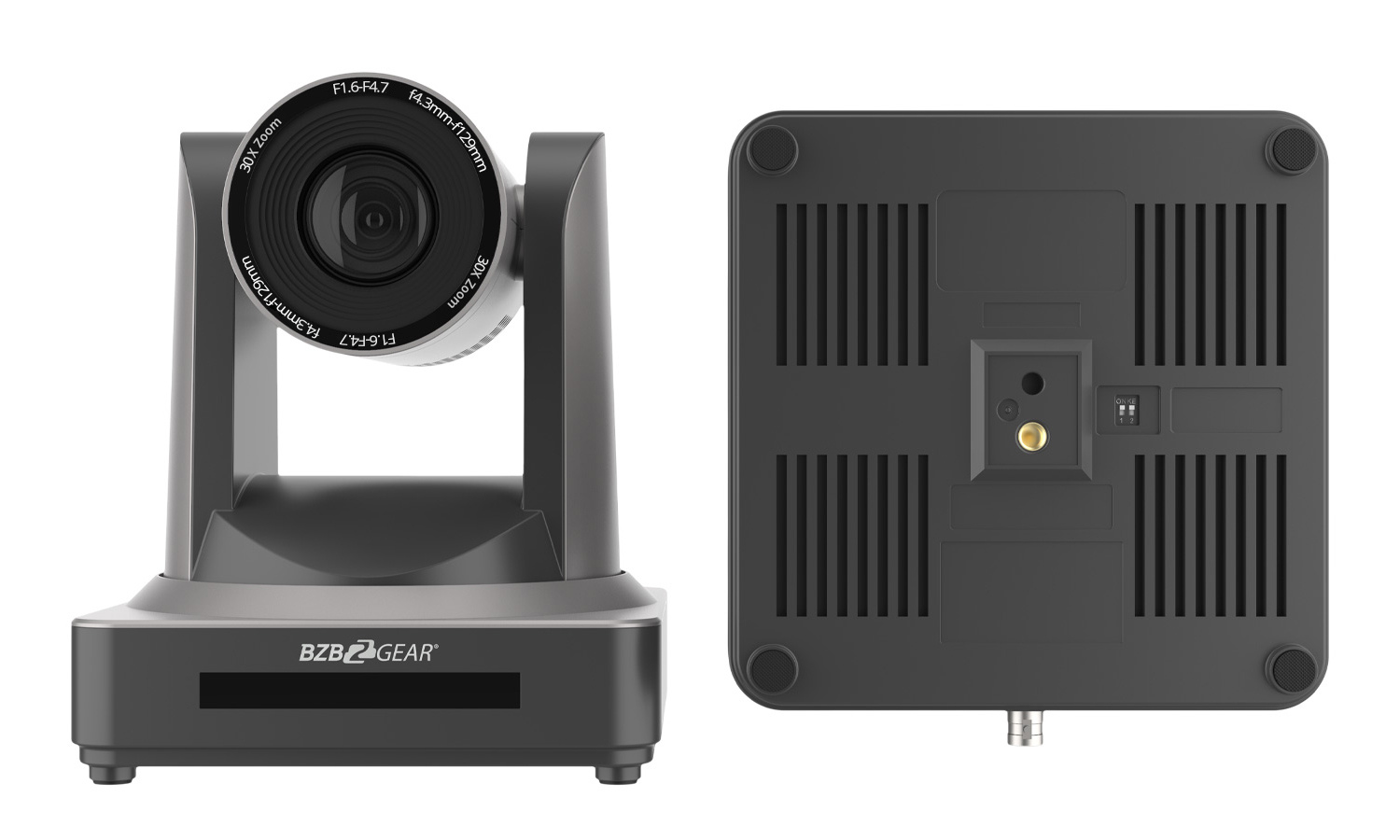

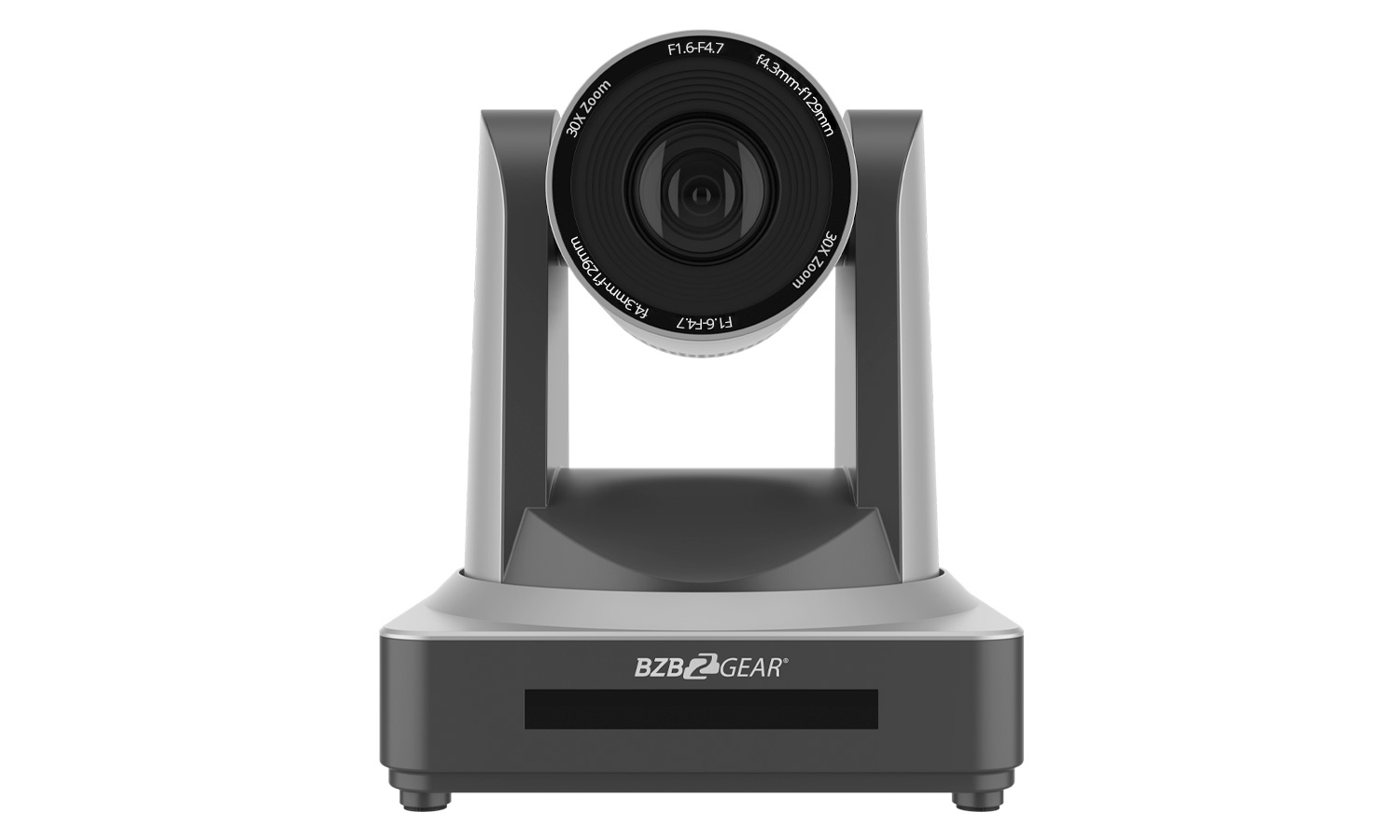

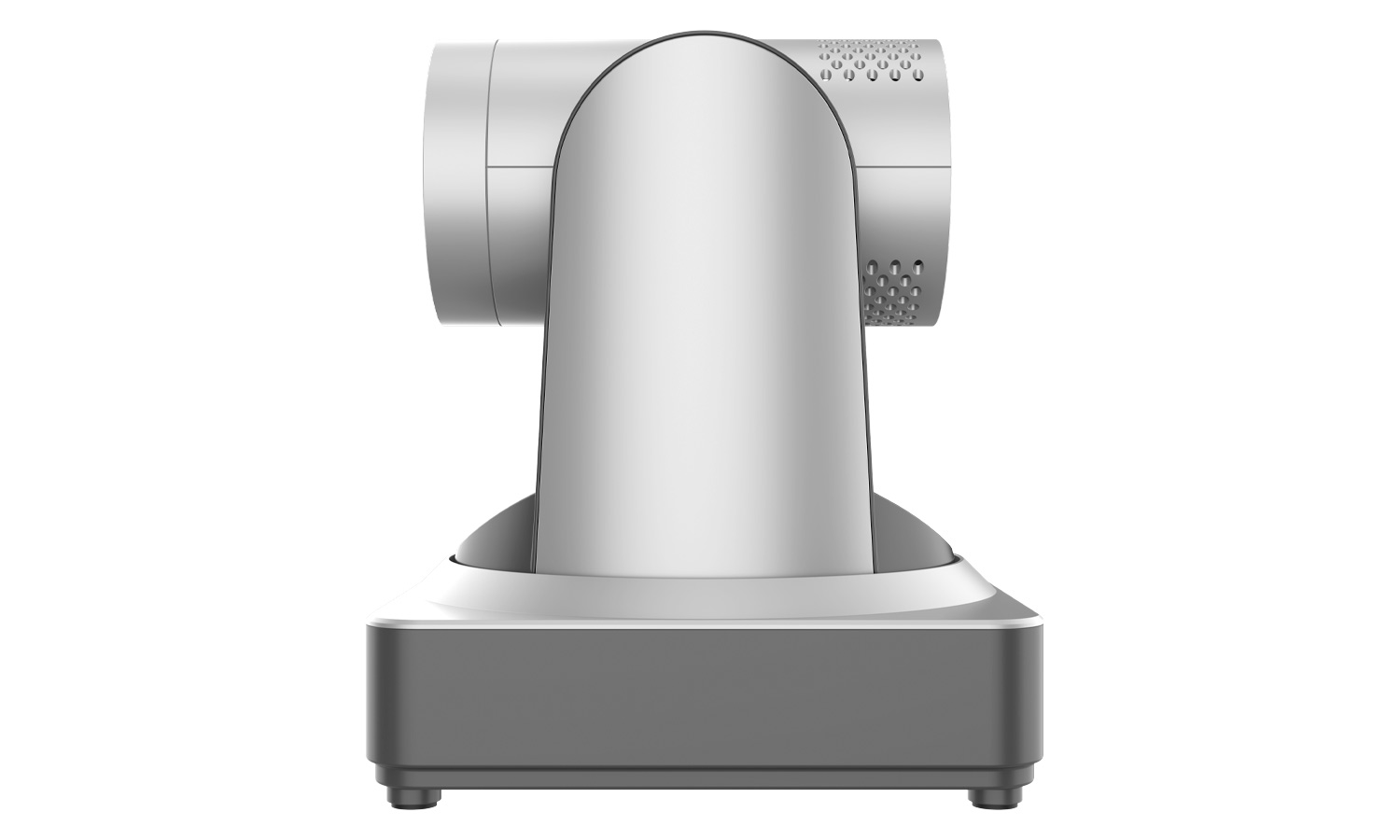

BZBGEAR’s Live Streaming LVPTZ camera with 30X optical zoom delivers incredible imaging, flexibility and reliability utilizing a variety of High Definition 1080P output connections including HDMI, SDI and LAN.
2-Channel audio is available using the Mini-Jack 3.5mm audio port located on the rear of the camera ideal for microphone systems including both wireless and wired devices.
Meet bandwidth requirements using H.264/H.265 encoding technology. Power the camera with the included power supply or over a CAT5/6/7 cable when connected or a PoE Network switch or PoE injector simplifying installation.
Utilize the WebGUI via Chrome or Firefox Web browsers by typing in the camera’s IP address to access a multitude of settings including Ethernet Settings, Live Streaming URL/Stream Key input boxes, PTZ functions, Video adjustments and Audio formats. Alternatively modify settings using the included IR remote via a Display for onscreen menu operations for quick and easy access.
Control the camera’s Pan, Tilt and Zoom functions with a Joystick controller compatible with RS-232, RS485, ONVIF and or Visca IP protocols. With all the inclusive options, this camera fits an array of applications including houses of worship, educational and government facilities.
Features:
- Superb High-definition Image: High-Quality 1/2.8 inch CMOS sensor. Resolution up to 1920×1080 with frame rate up to 60 fps.
- Leading Auto Focus Technology: Auto focus algorithm ensures a smooth adjusting lens, accuracy, and stable auto-focusing.
- Power over Ethernet Functionality: Eliminates the need for a A/C Power Supply
- Low Noise and High SNR: Low Noise CMOS ensures high SNR of camera video.
- Advanced 2D/3D noise reduction technology: Used to further reduce the noise, while ensuring image sharpness.
- Silent PTZ: An adaptive high-accuracy step-driving motor mechanism provides extremely quiet and smooth operation to designated positions.

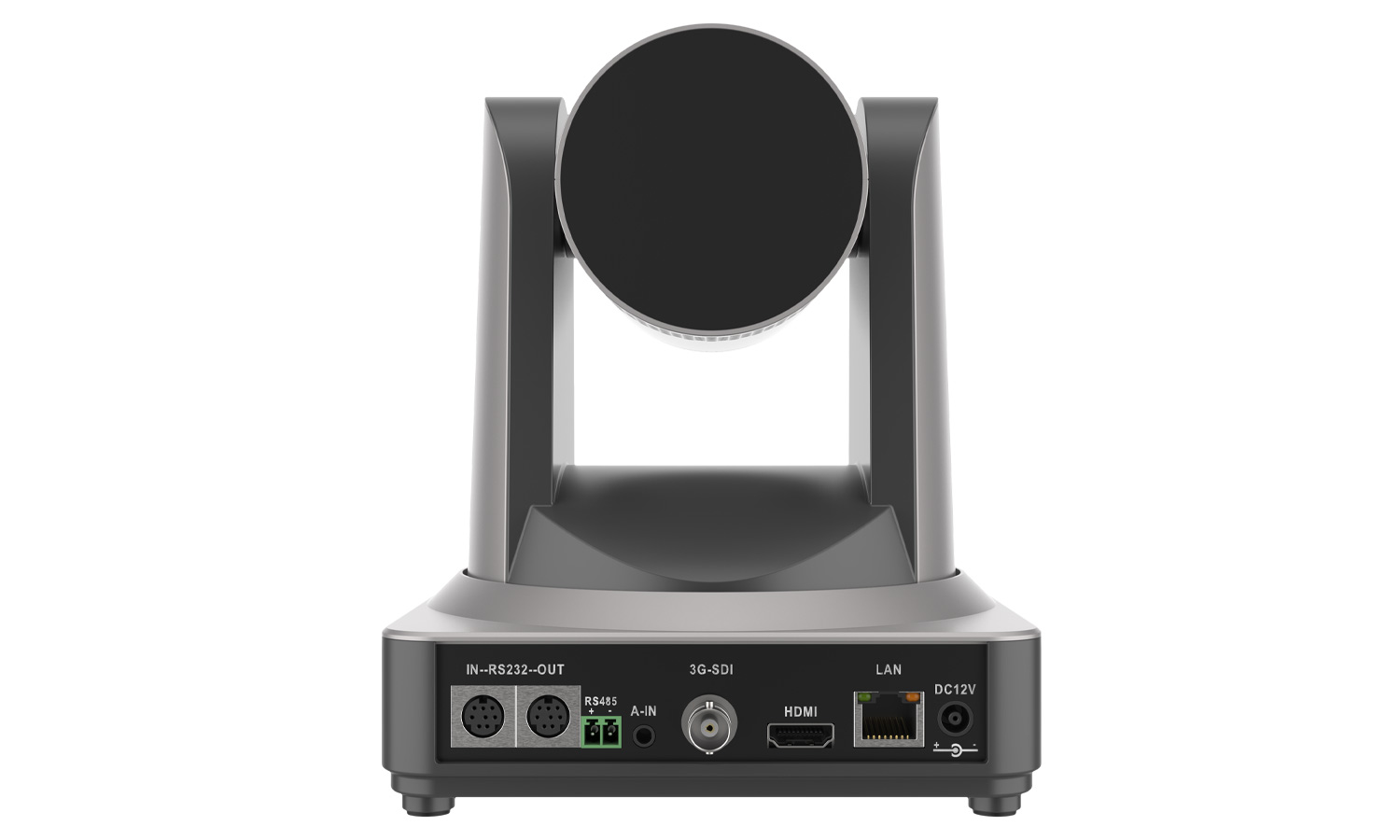

- Multi-Format Video Outputs: HDMI, 3G-SDI, Wired LAN.
- 3G-SDI: Extends signal transmissions up to 100m supporting 1080p@60Hz Resolutions.
- Control Options: IR Remote, WebGUI and RS232/RS485.
- Low-power Sleep Function: Supports low-power sleep/wake up, the consumption is lower than 500mW in sleep mode
- Multiple Control Protocols: VISCA, VISCA IP, PELCO-D, PELCO-P protocols, automatically recognizable.
- RS-232 Cascade Function: ST series supports RS-232 cascade functionfor convenient installation.
- 255 Presets Positions: Up to 255 presets (10 presets by remote).
- Wide Application: Remote learning, Lectures, Webcasting, Video Conferencing, remote training, remote medicine, Interrogation and Emergency command systems.
- Audio Input Interface: Supports 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding.
- Audio/Video Compression: Supports H.264/H.265 video compression: Supporting resolutions up to 1920×1080 with frame up to 60 fps and 1920x1080p with 30 fps compression. 2-Channel AAC, MP3 and PCM audio compression;
- Network protocols: ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS)
