Description
Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

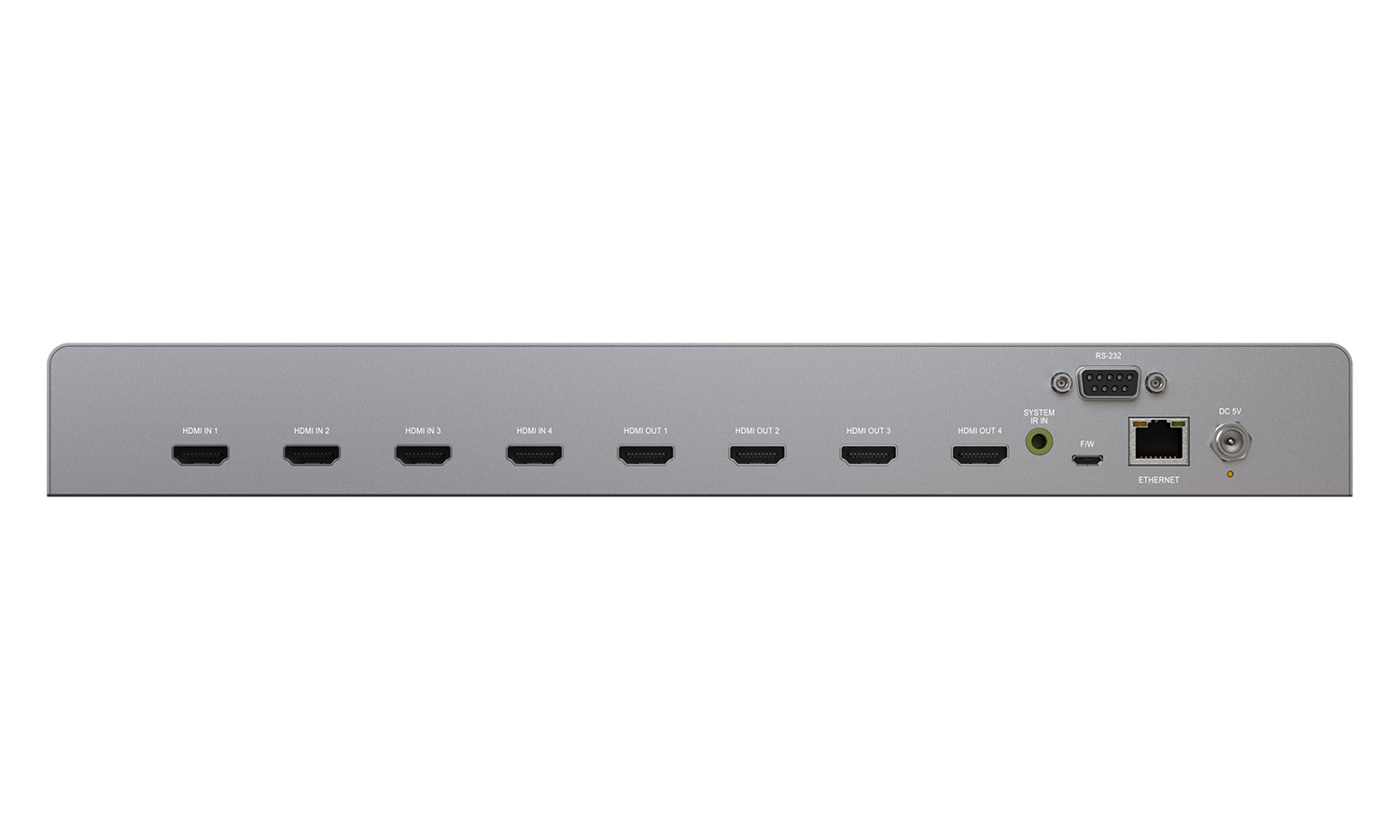

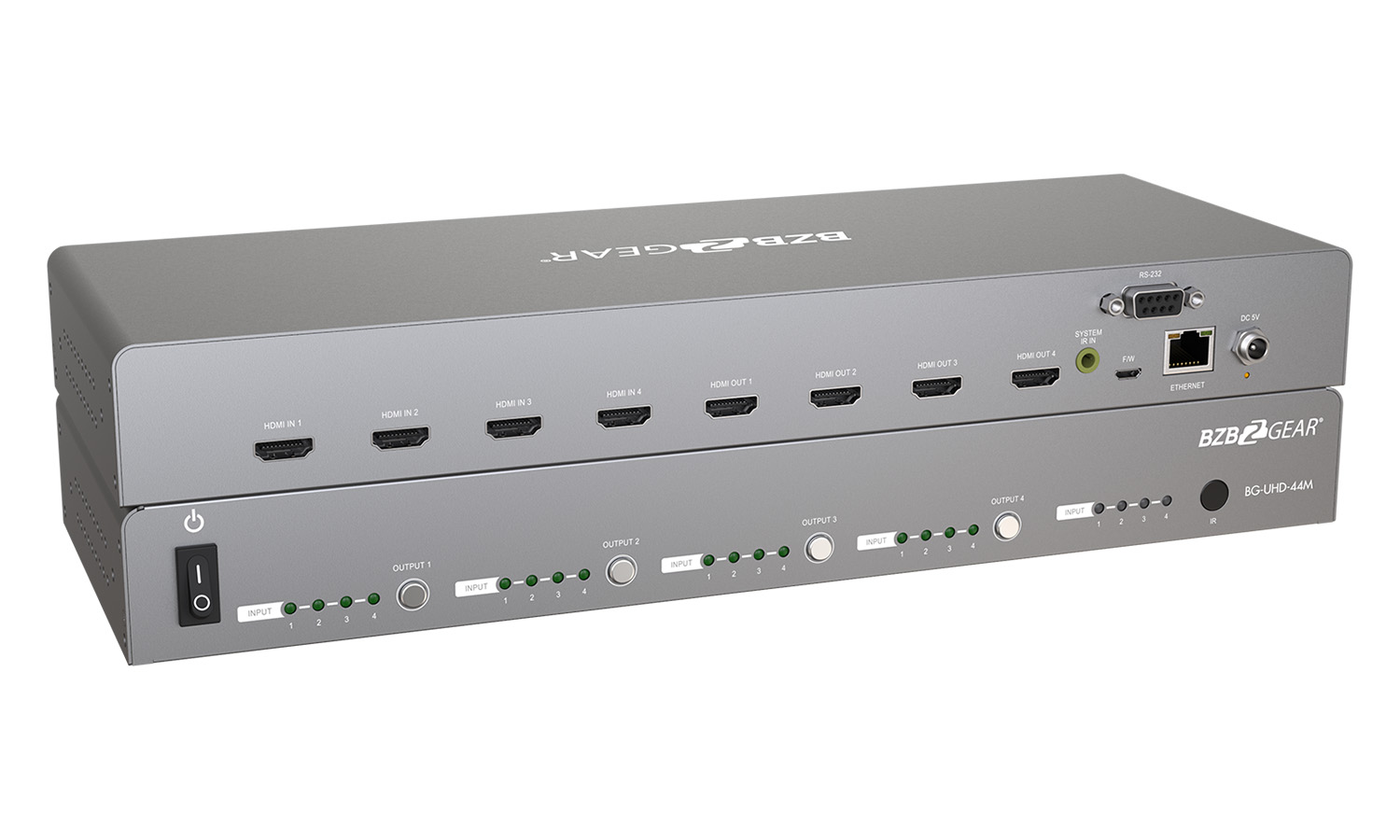

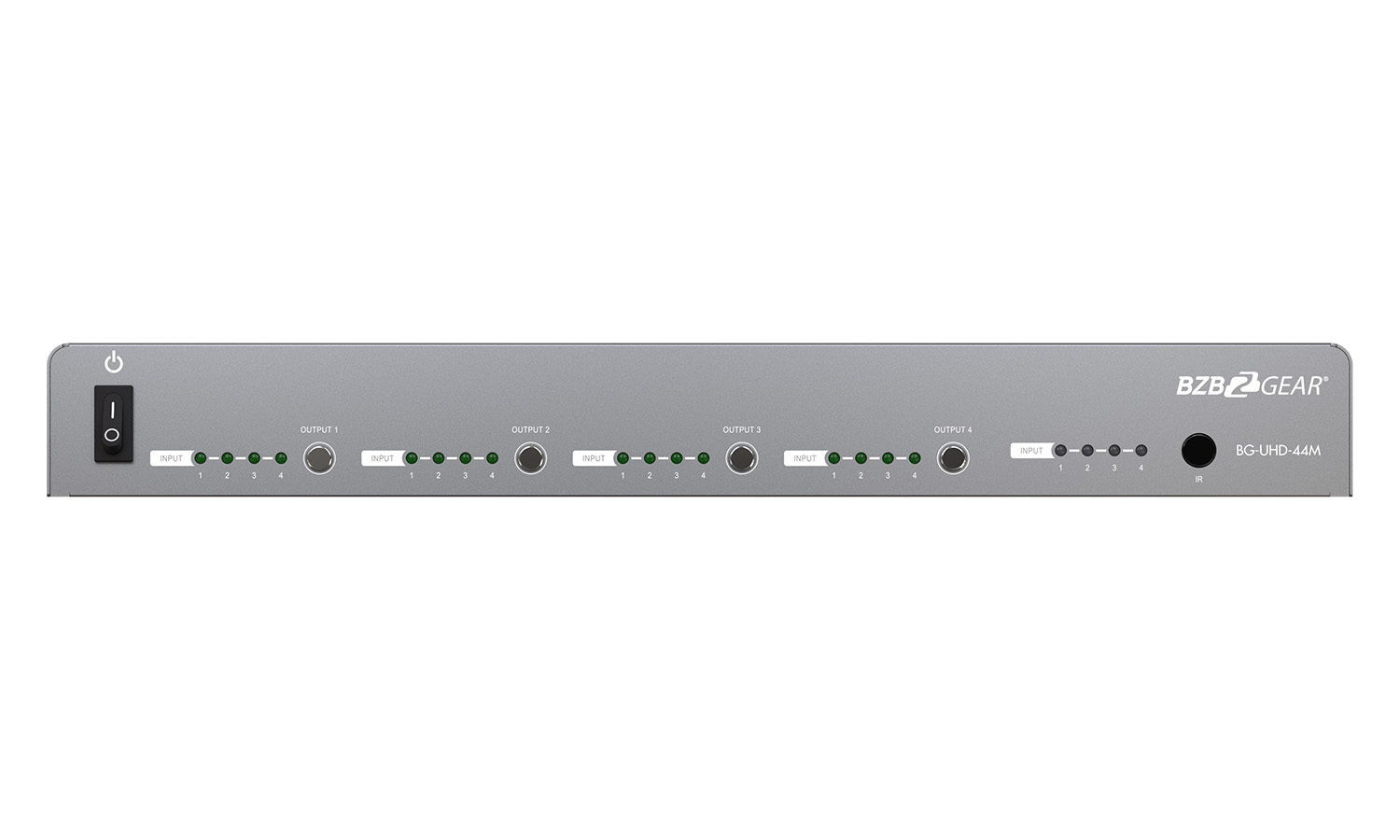

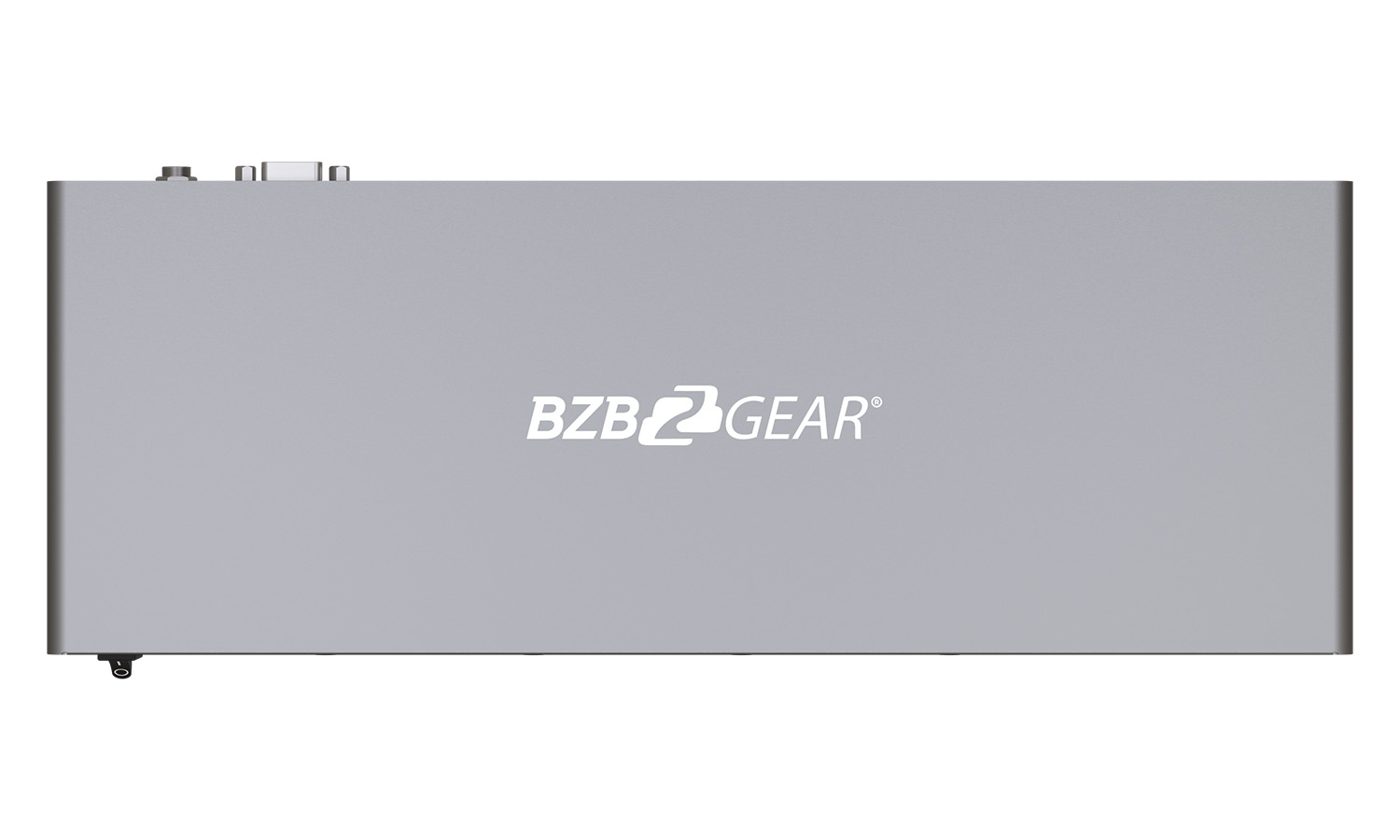

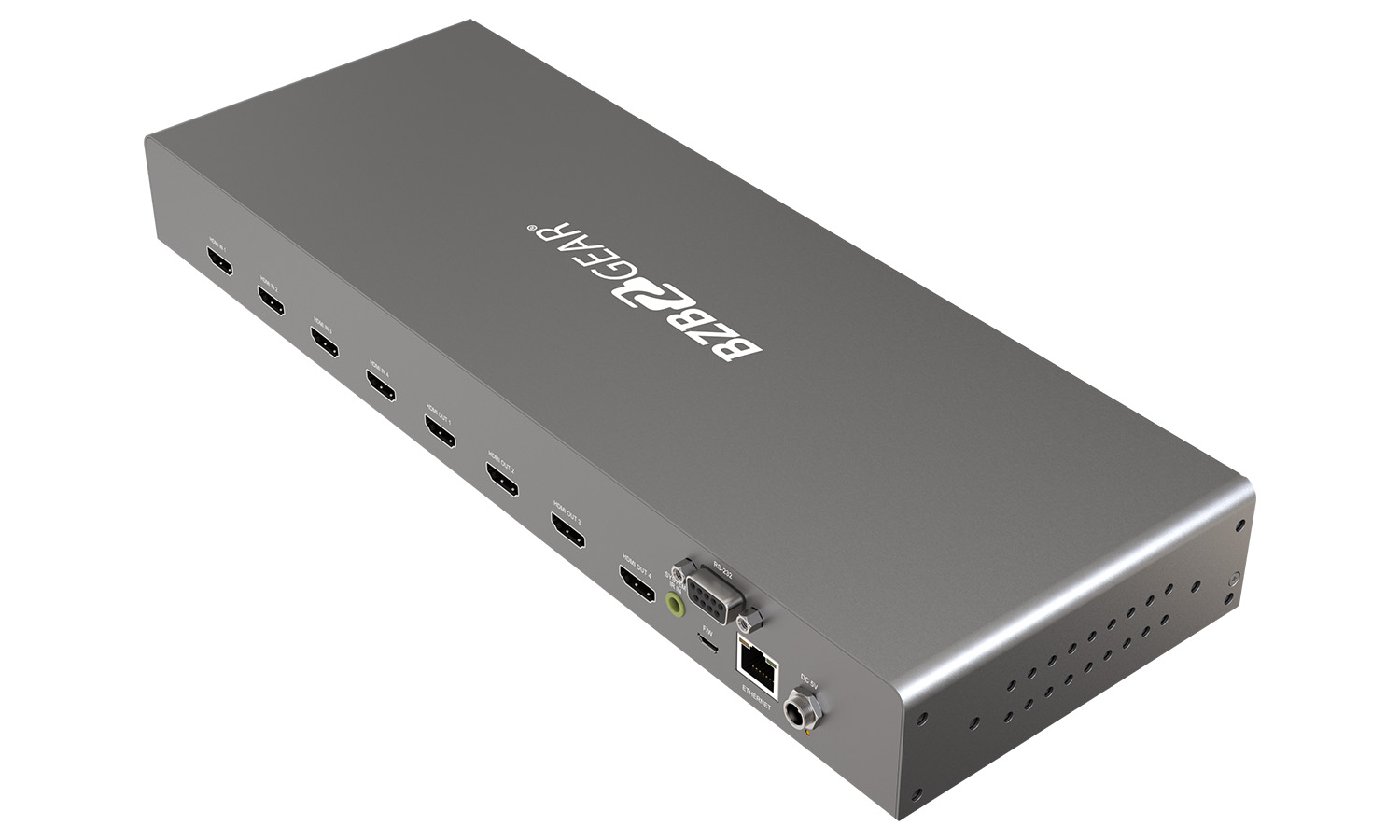

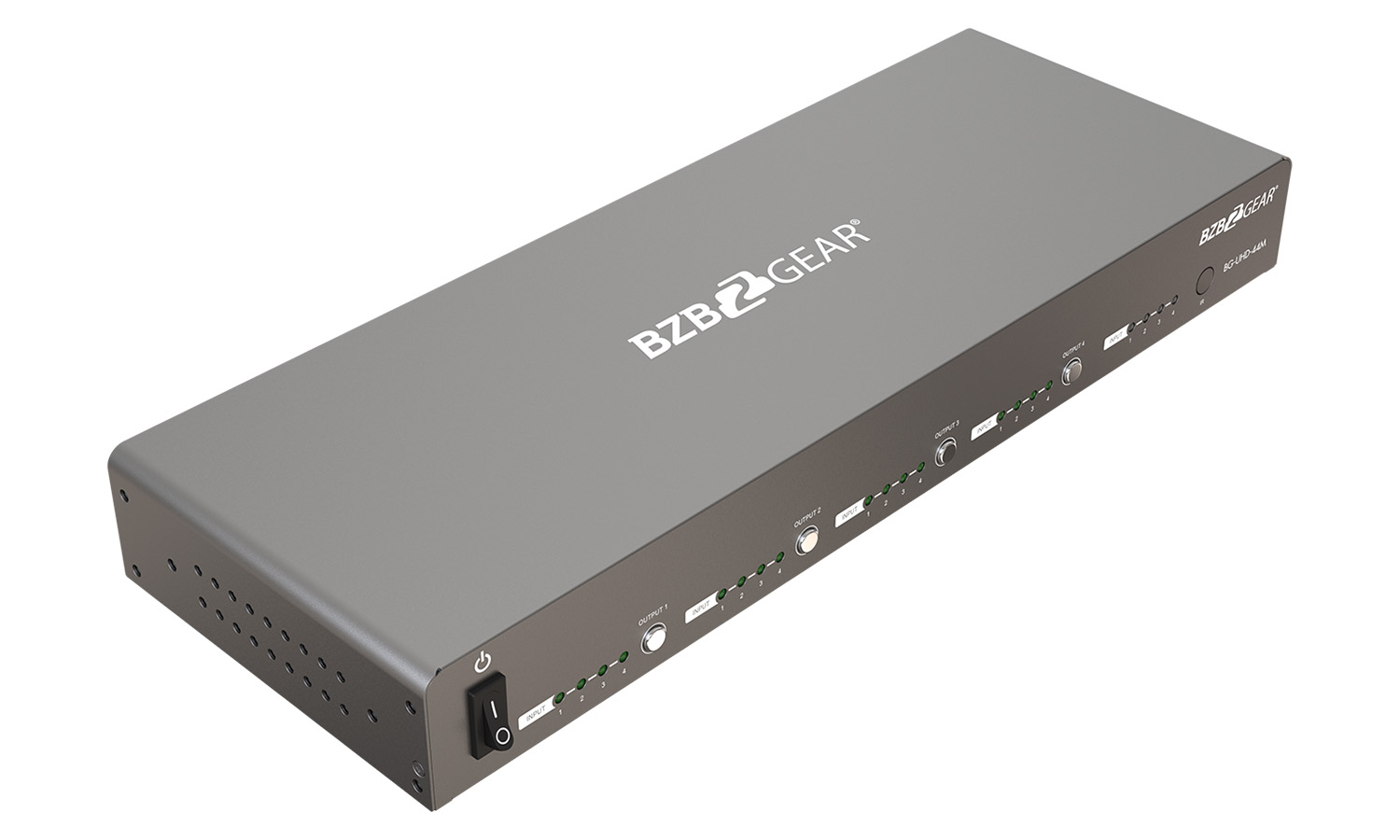

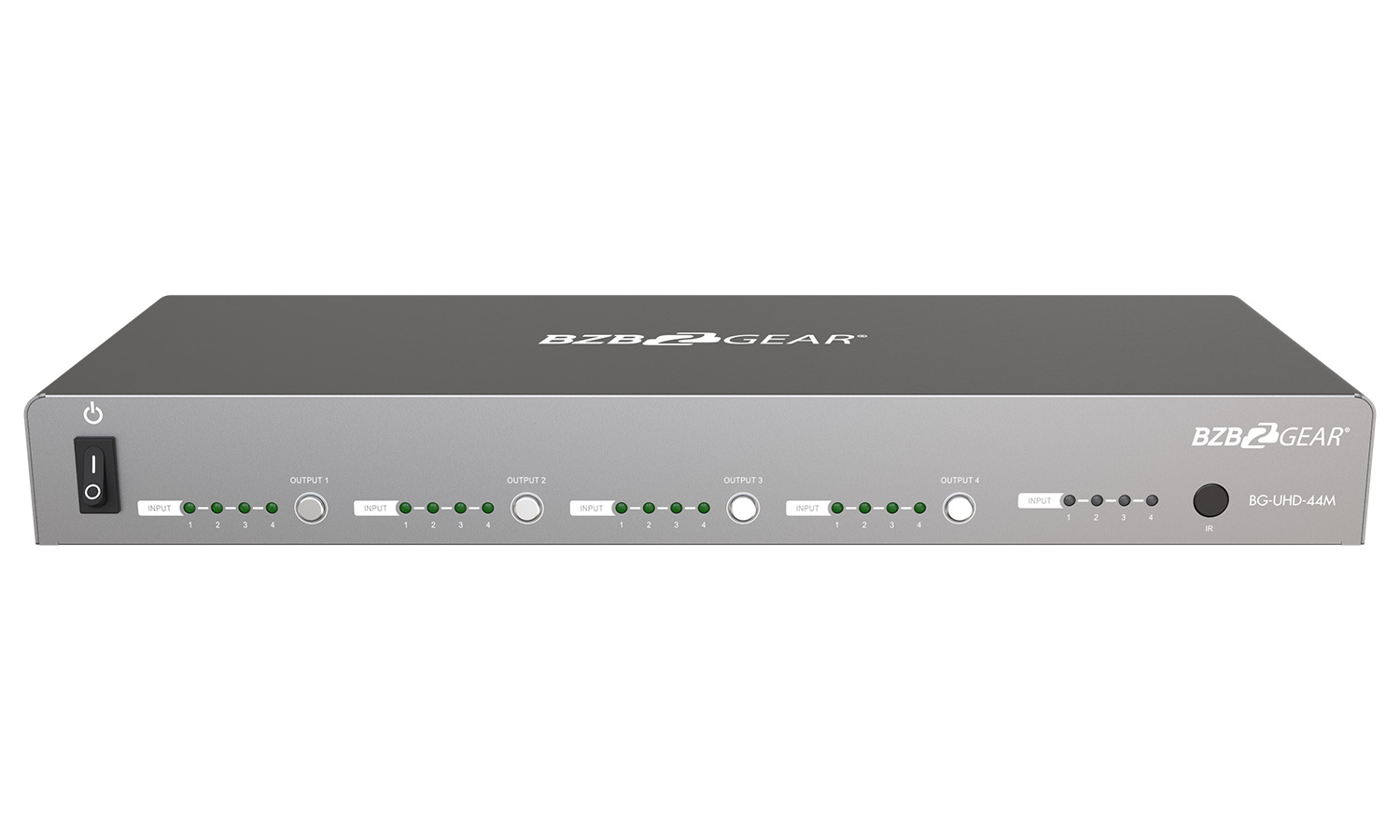

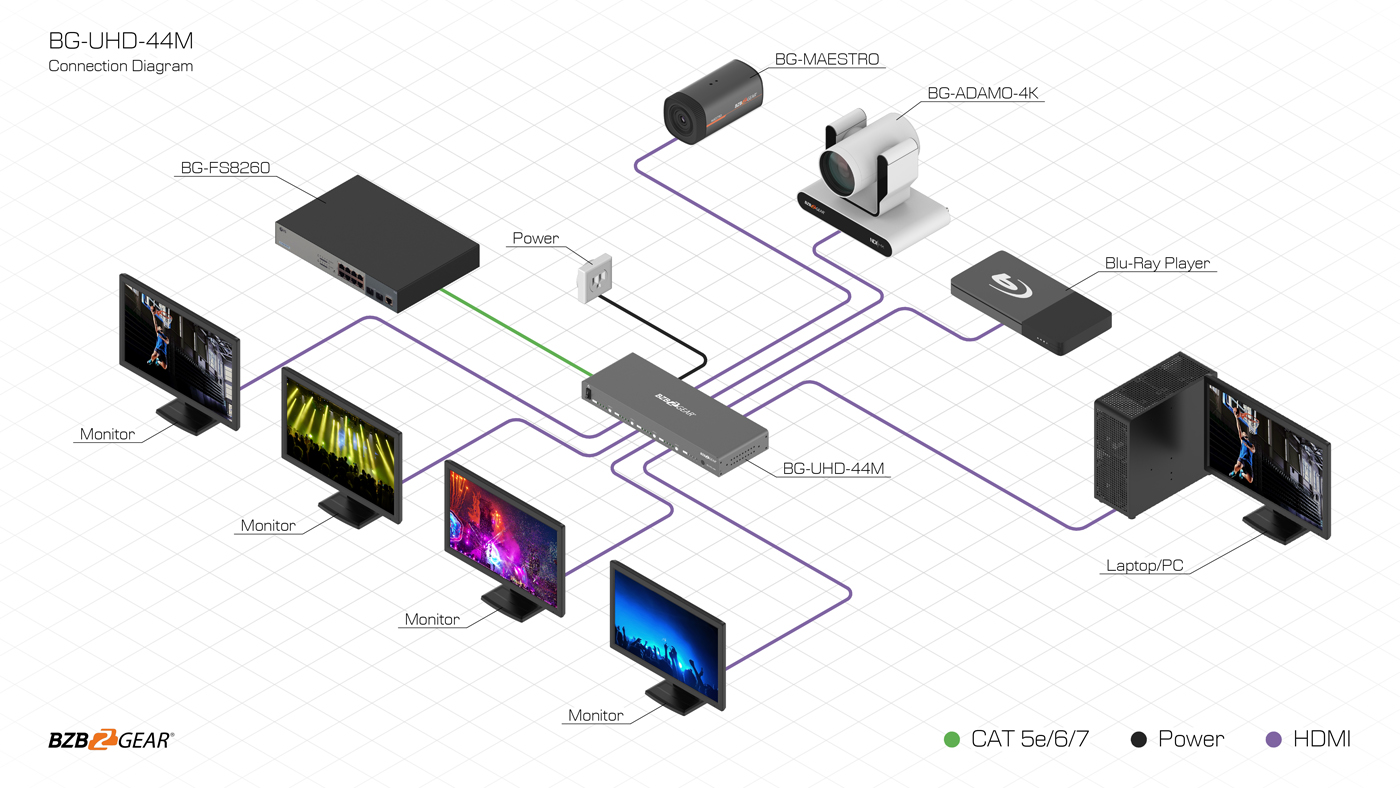

With four HDMI 2.0a inputs and four HDMI 2.0a outputs, the BG-UHD-44M 4K HDMI matrix switch allows users to share up to four HDMI sources with up to four displays. Perfect for when you need to change multiple sources to show on multiple displays or even select just one source to show on all displays with the press of a button. Professional-grade picture and audio quality are achieved with support for 4K resolutions and a variety of high quality audio formats.
Connectivity and Quality
The BG-UHD-44M supports a maximum resolution of 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.2, HDCP 1.x, and DVI compliant. This device is also equipped with auto-downscaling on all outputs, ensuring compatibility with legacy displays.
The BG-UHD-44M supports up to 7.1 channels of high-quality audio including Dolby Digital®, DTS-HD®, and Dolby TrueHD® audio formats.
Control
The BG-UHD-44M offers multiple methods of control including front panel controls, IR remote control, RS-232, or IP control. The included IR receiver allows the unit to be controlled with the included remote while located out of sight for a clean installation.
In addition to a full-featured web interface, the BG-UHD-44M includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings.
TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).
Features:
- Stunning Image Quality – Supports resolutions up to 4K@60Hz 4:4:4
- Multiple Ways to Control – Take control using the front panel buttons, IR, RS-232, or Web Gui
- 4×4 Matrix – Route any of the 4 inputs to any of the 4 outputs
- Auto-Scaling – Supports downscaling from 4K to 1080P
- HDCP 2.2 – HDCP 2.2/HDCP1.x and DVI compliant
- EDID – Advanced EDID management for rapid integration of sources and displays
- HDMI 2.0a
- HDR Support
- 18Gbps video bandwidth
- Simultaneously display any source on multiple displays
- Firmware updateable
- Supports Dolby Digital, DTS-HD, and Dolby TrueHD
