Description

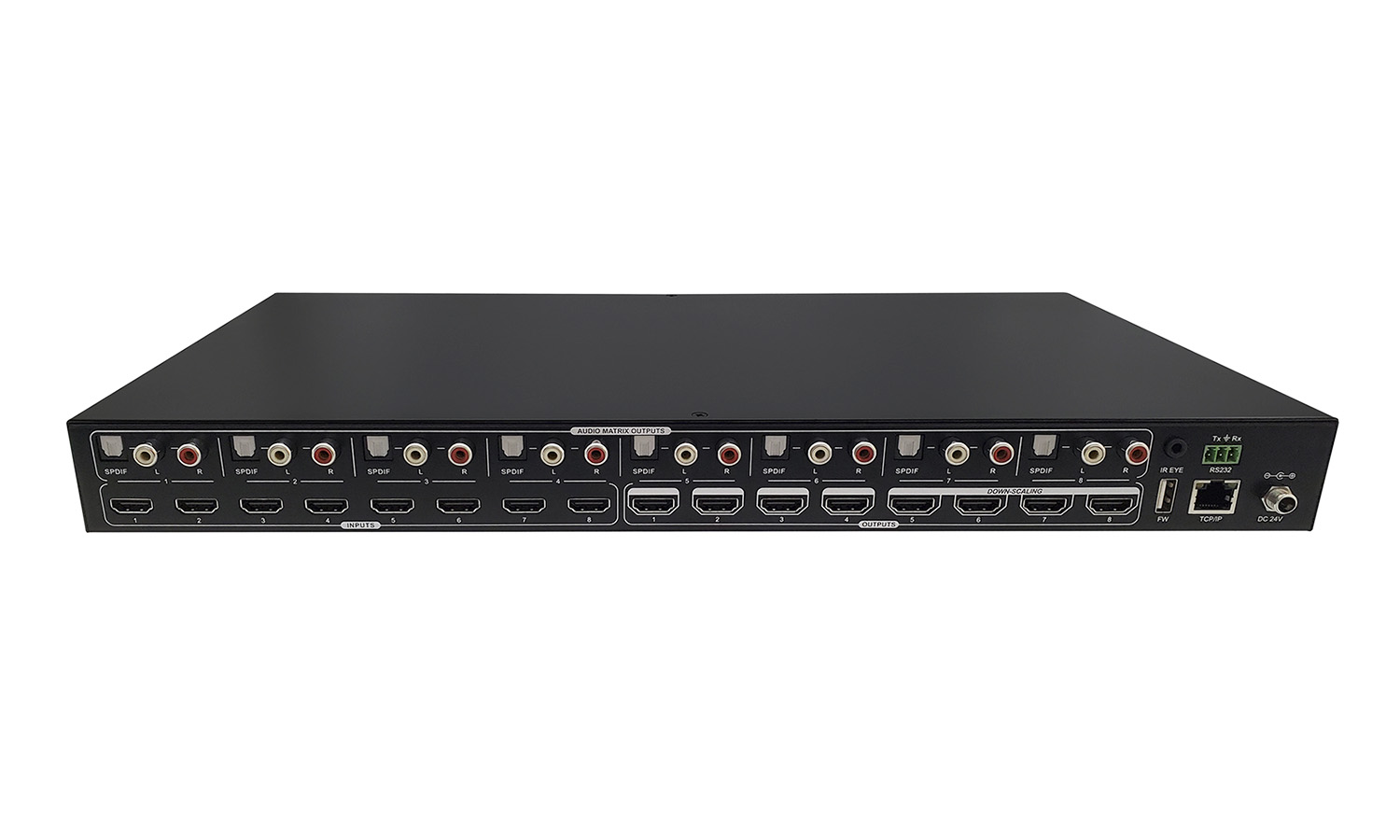

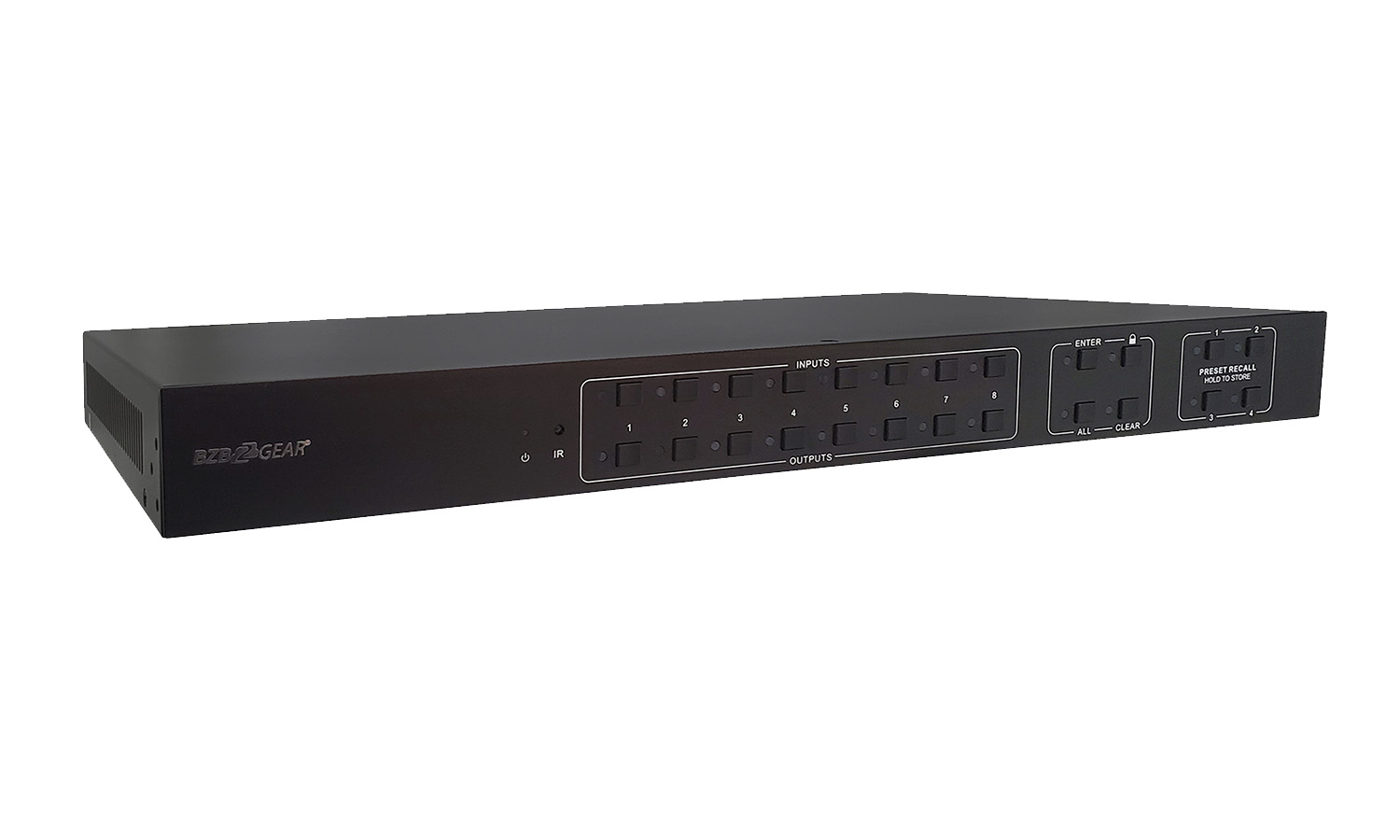

Download Manual The BG-UHD-88M18G is a professional HDMI2.0 Matrix Switcher with Audio Matrix. It includes eight HDMI inputs and eight HDMI outputs with down-scaling. This unit is designed for switching HDMI2.0 and HDCP2.3 compliant signals. It also features SPDIF and analog audio outputs for audio matrix functionality. Additionally, it features comprehensive EDID management and advanced HDCP handing to ensure maximum compatibility with a wide range of video sources. The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.
Features:
- 8×8 HDMI 2.0 Matrix Switcher
- Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant
- Audio Matrix, audio out can be de-embedded from arbitrary input or output
- Individual volume adjustment on each L+R output
- Supports 4K to 1080p down-scaling up to 4 outputs
- HDMI out provides 2.5W to power Active Optical Cable (AOC)
- HDMI Output support up to 5V500mA for AOC cable

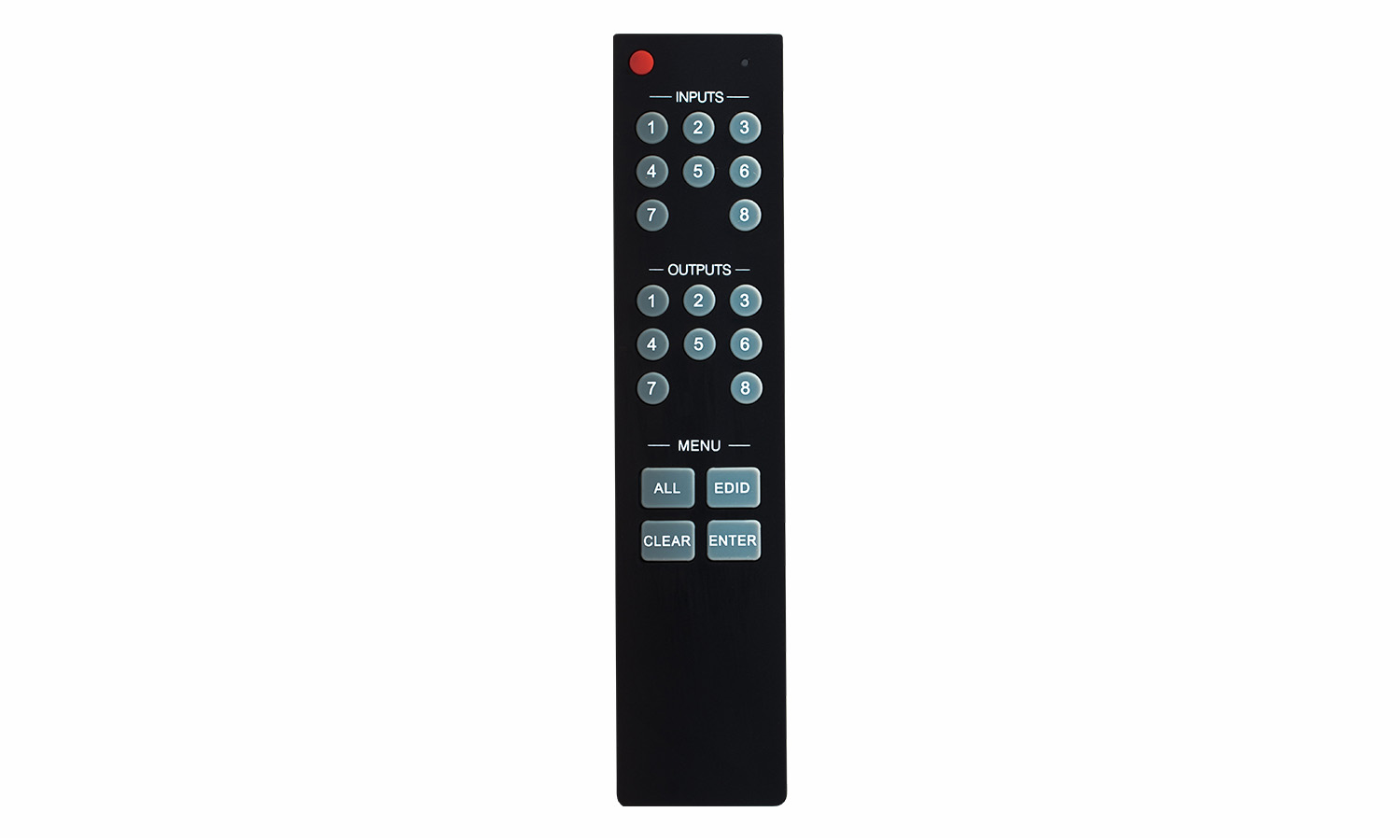

- Controllable by front panel, IR, RS232 and TCP/IP
