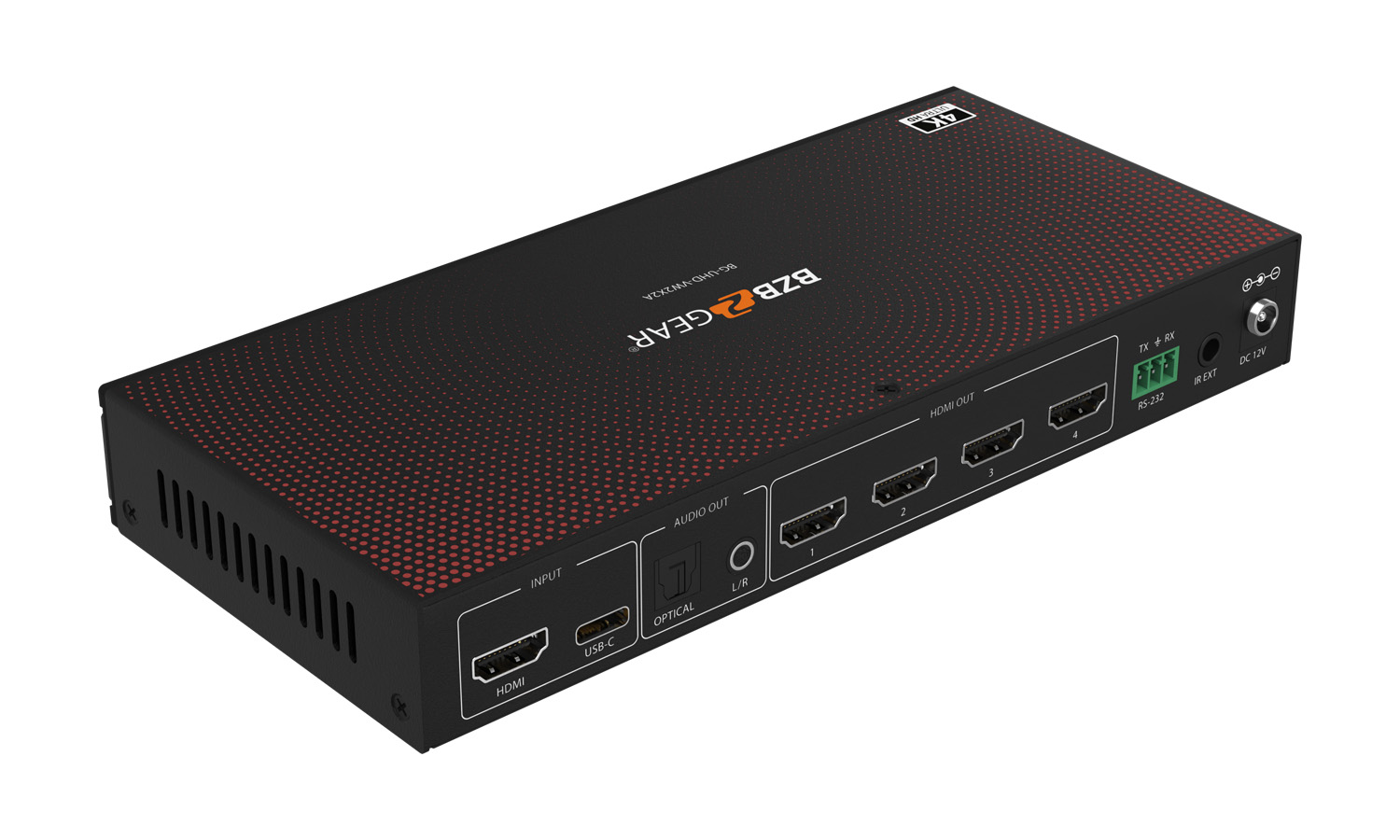

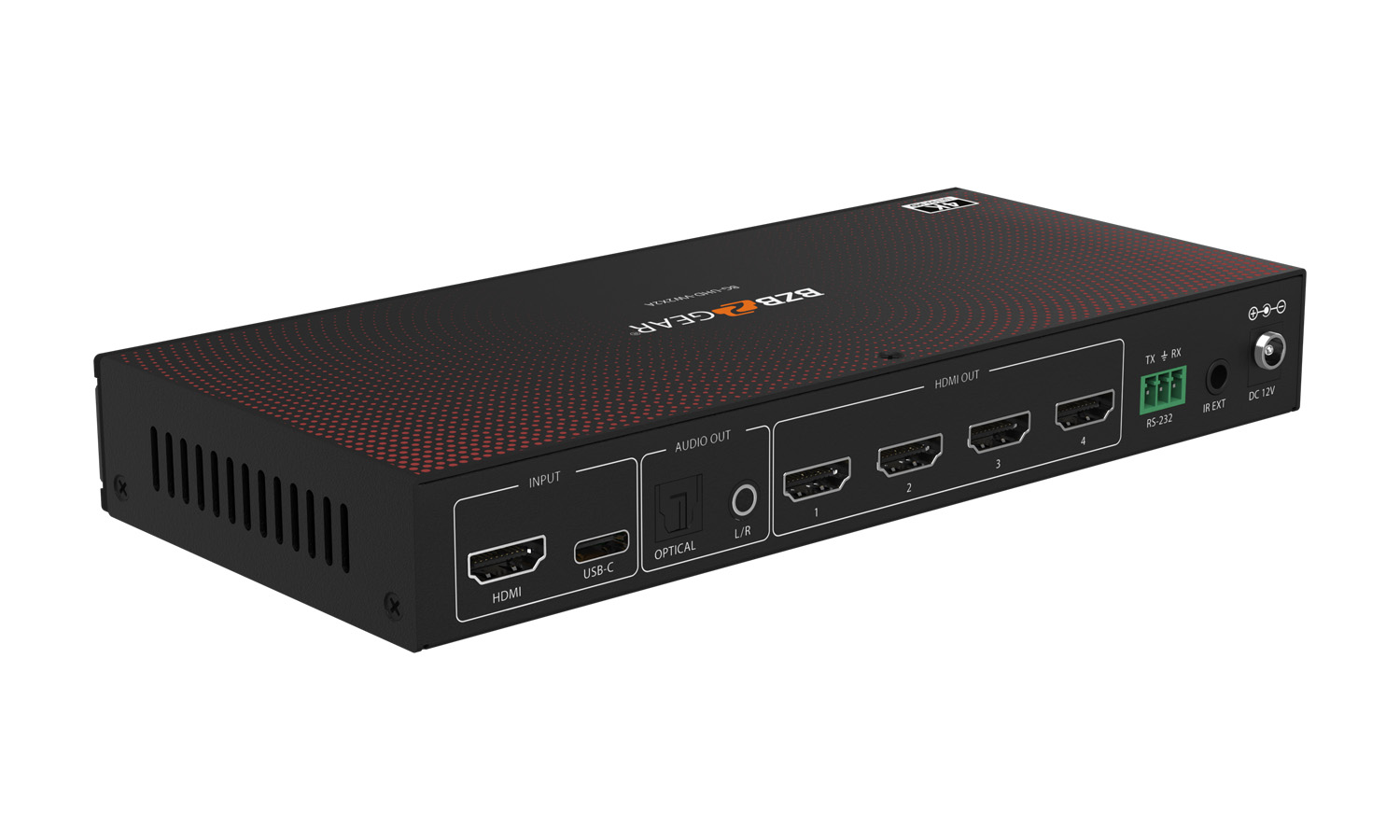

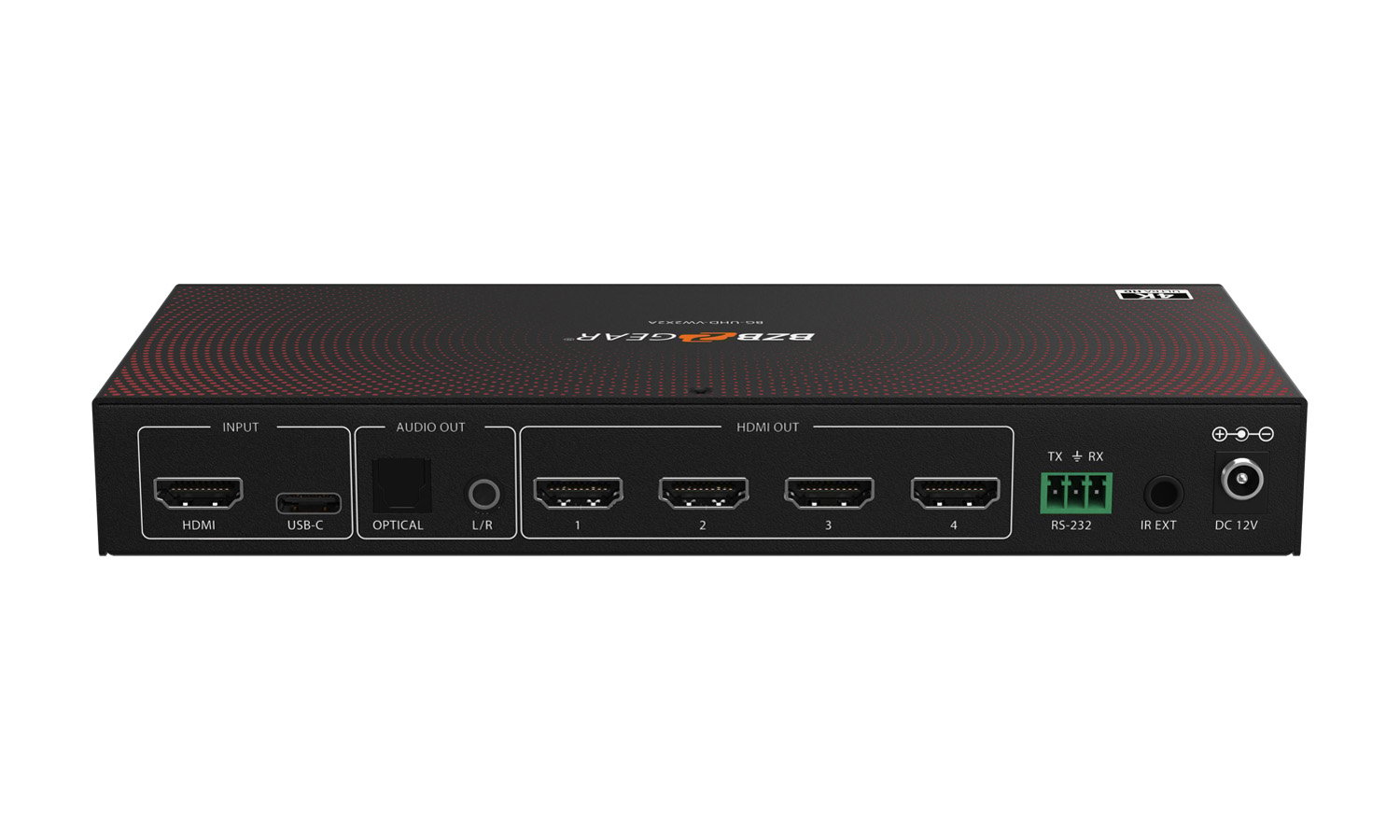

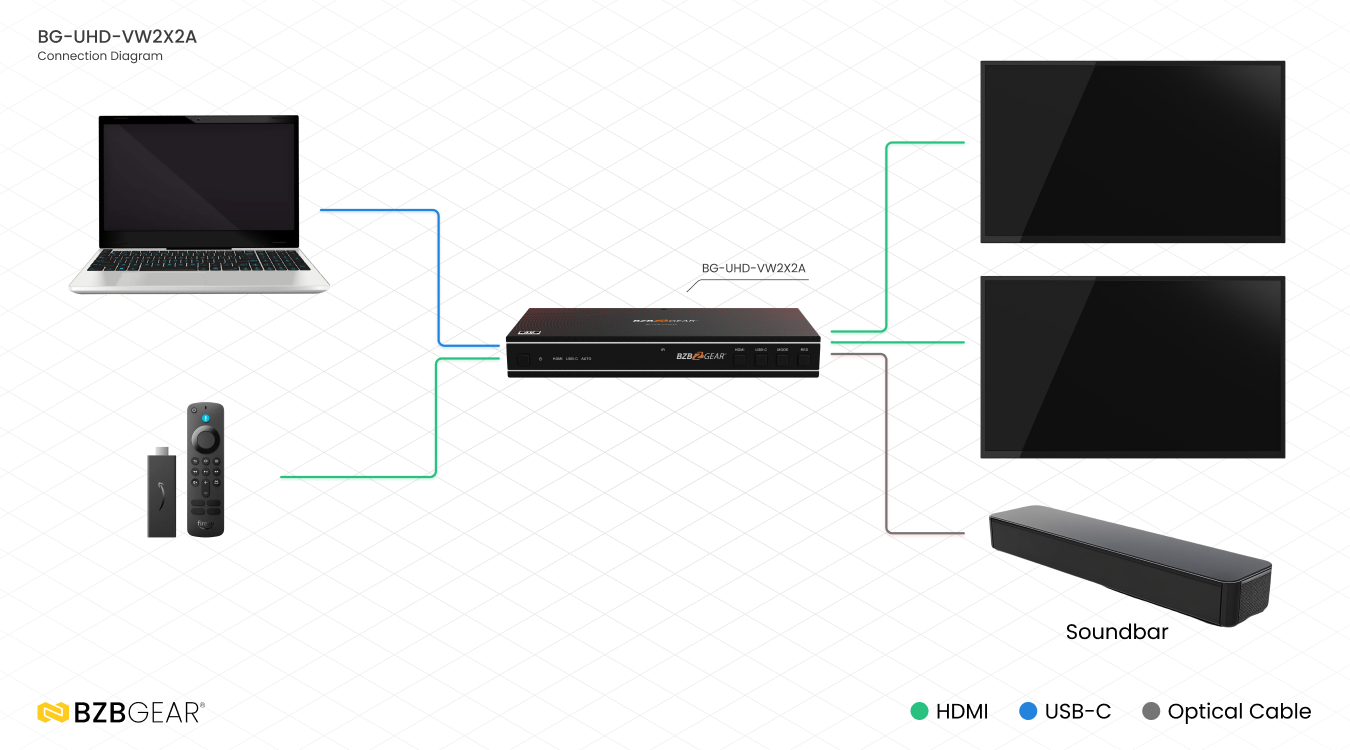

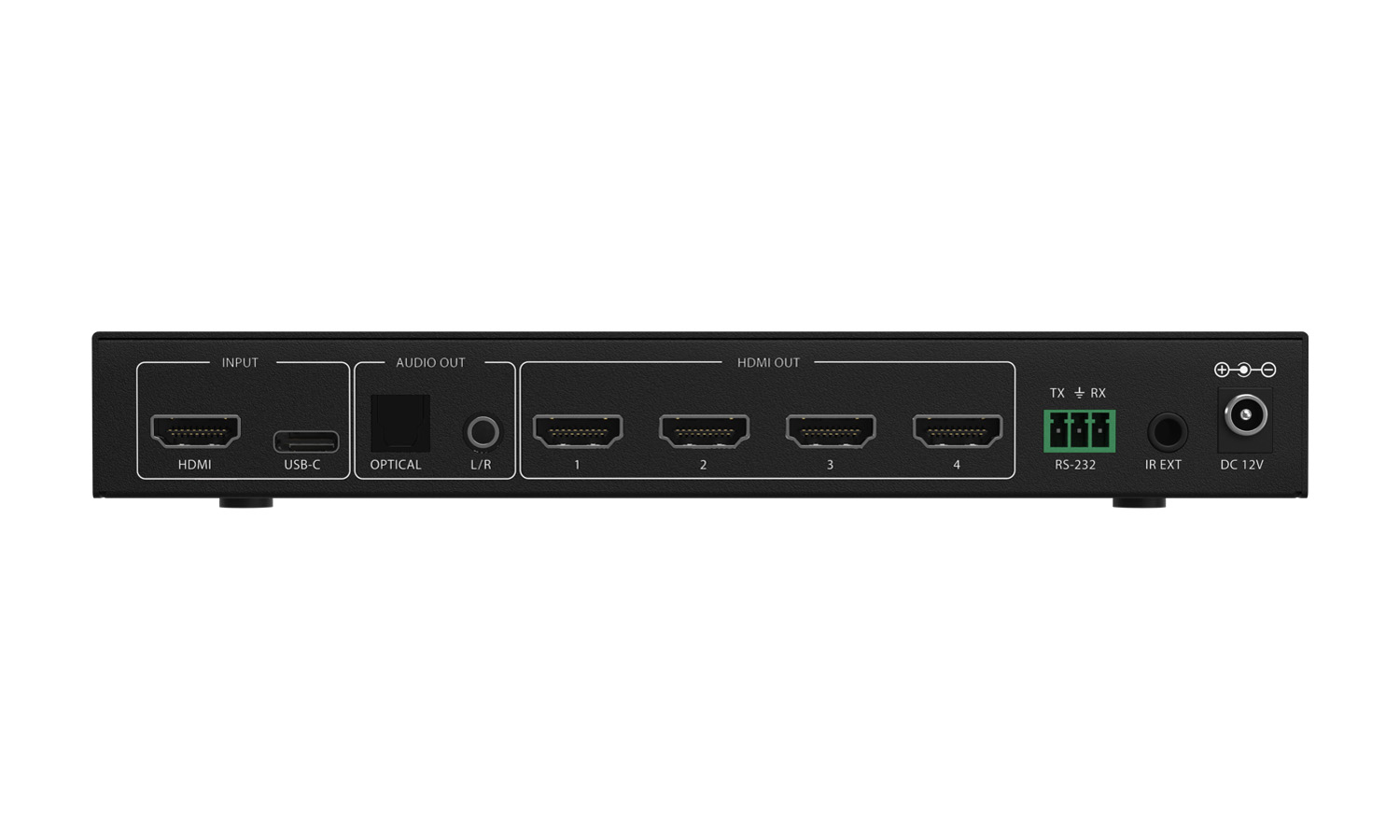

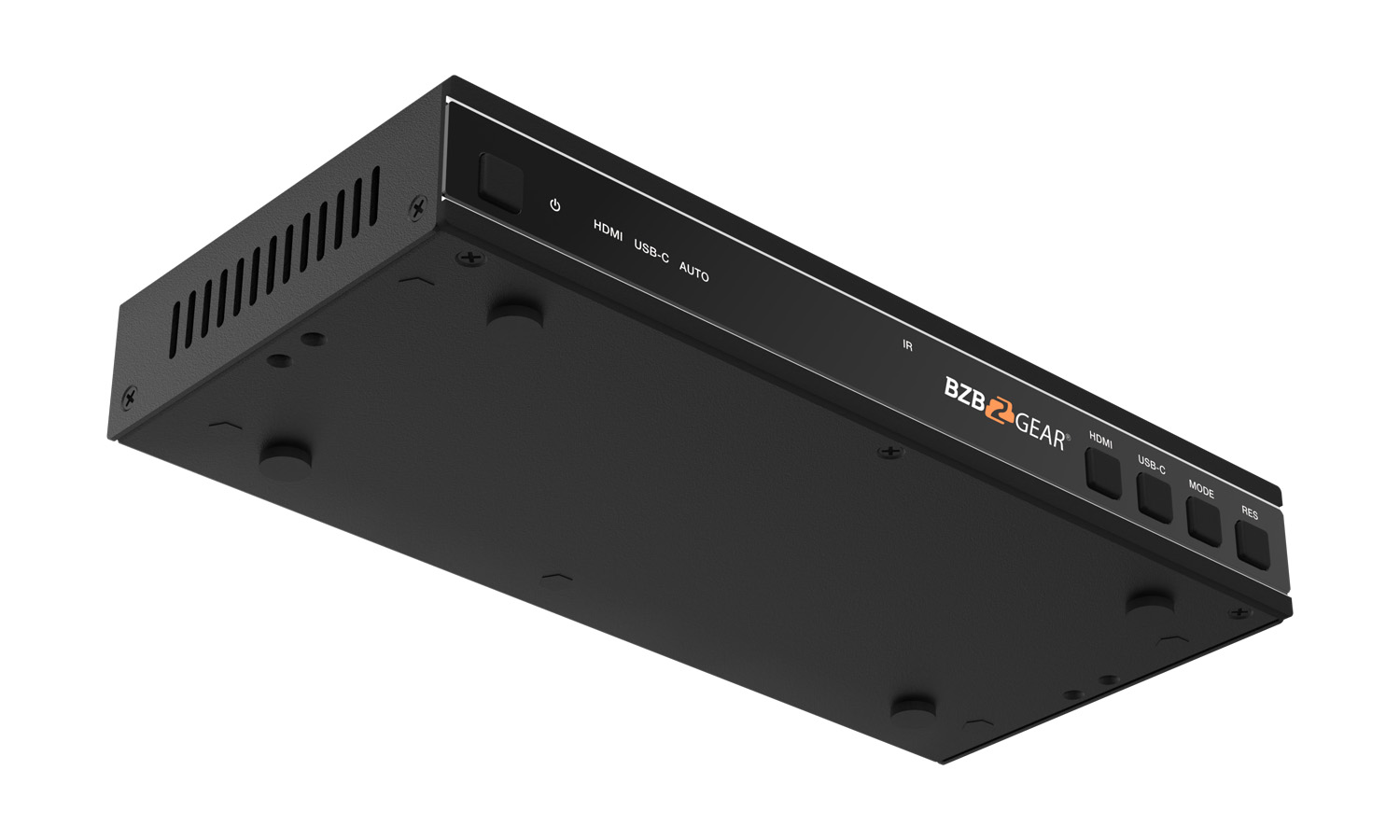

Download Manual The BG-UHD-VW2x2A 18Gbps 1×4 Video Wall Controller is a versatile and powerful solution for creating stunning video wall displays. Designed to capture, convert, route, and distribute all-format signals to video walls with true digital signal transmission, this controller supports HDMI and USB-C inputs with resolutions up to 4K@60Hz 4:4:4, and provides four HDMI outputs. It supports multiple video wall modes and includes optical audio and L/R analog audio de-embedding outputs. Operation is simple and convenient via front panel buttons, an IR remote, and RS-232 commands.
Features- Video Standard Compliant: Ensures compatibility with the latest high-definition video standards, including HDMI 2.0, HDCP 2.2, and DP 1.2a
- High-Resolution Support: Accepts HDMI and USB-C inputs with resolutions up to 4K@60Hz 4:4:4 for crystal-clear image quality
- Audio De-Embedding: Supports optical audio and L/R analog audio de-embedding outputs for enhanced audio flexibility
- Plug and Play: Easy setup with no drivers or installation settings required, making it a hassle-free solution for any video wall application
- Multiple Video Wall Modes: Supports 8 video wall splicing modes including 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, and 2×2 configurations

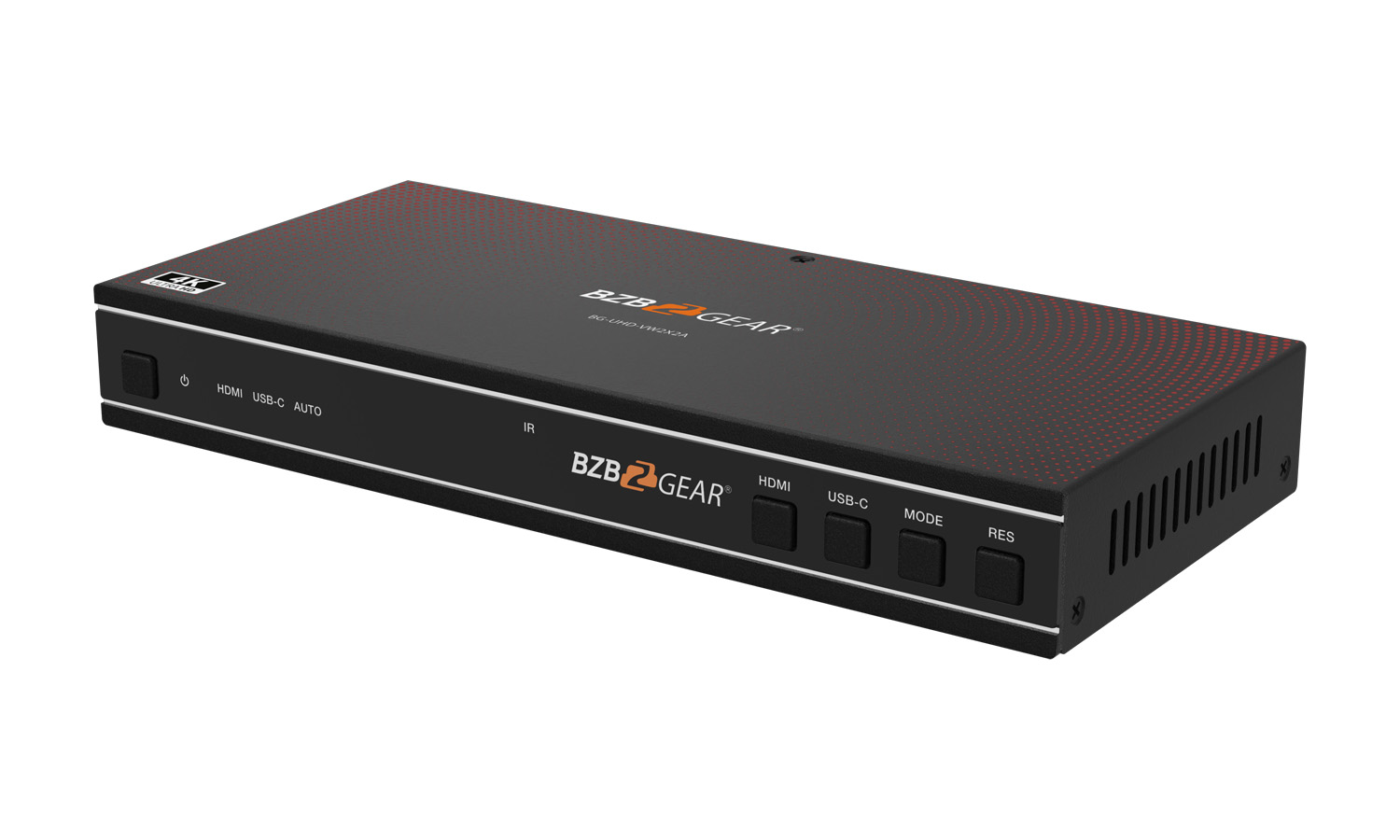

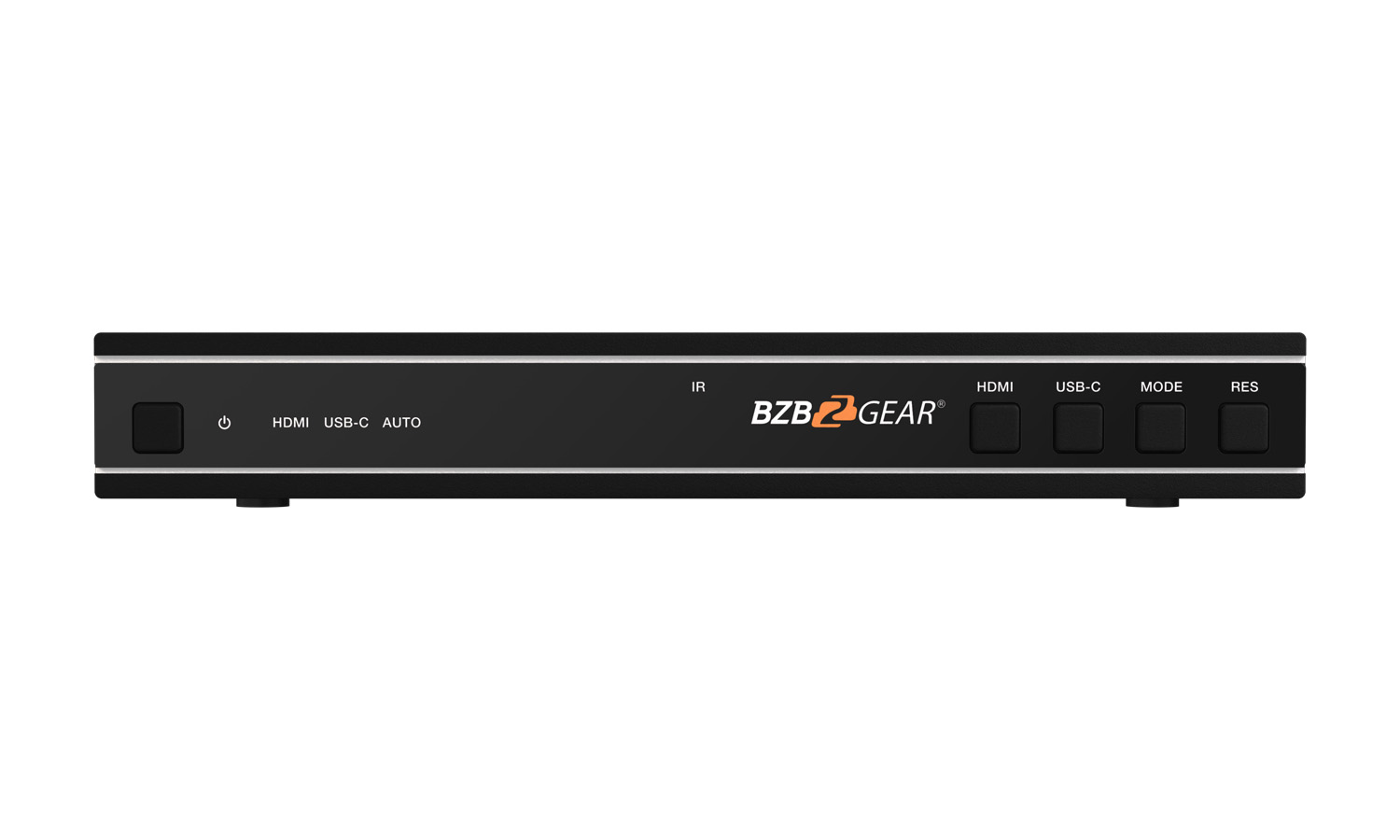

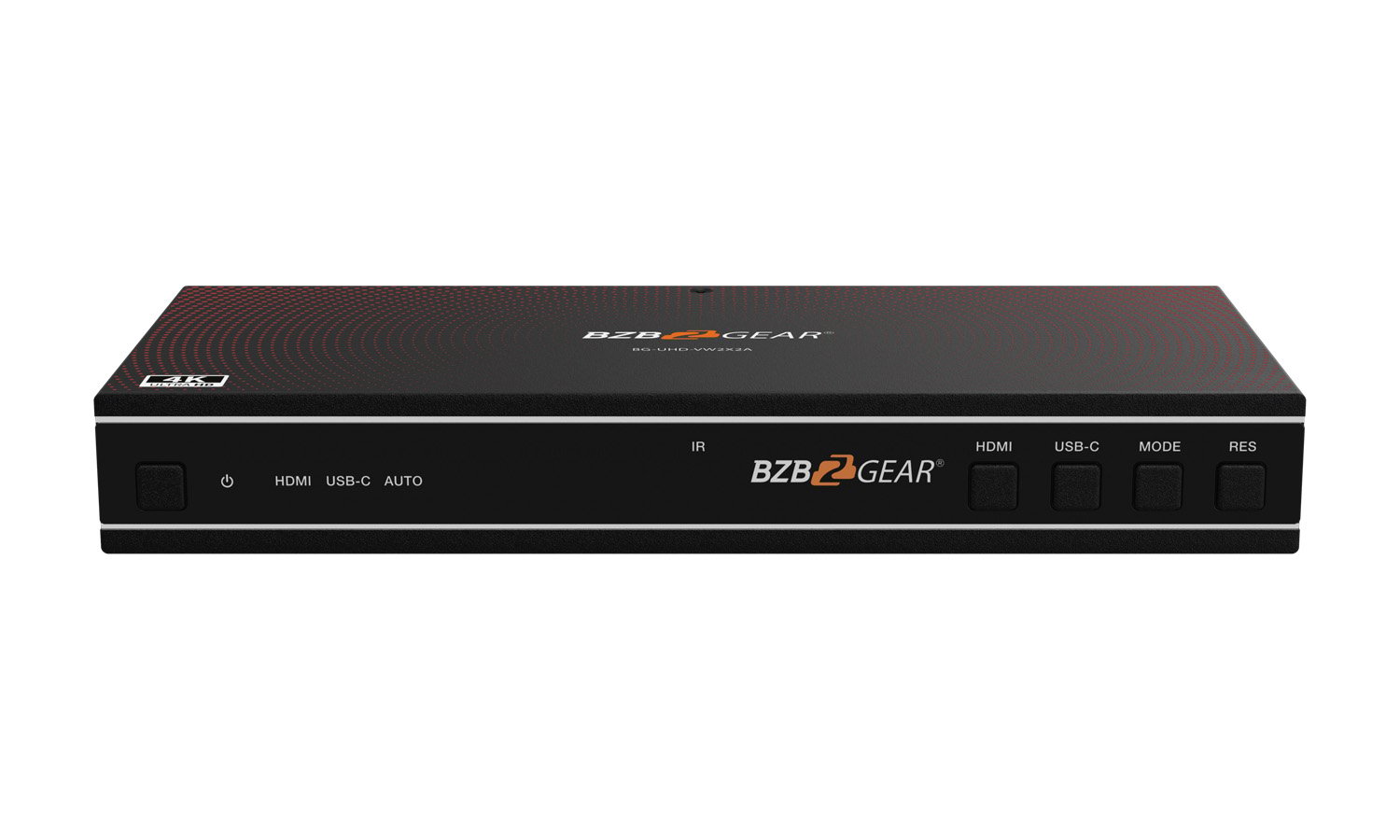

- Flexible Control Options: Operate the controller via front panel buttons, an IR remote, and RS-232 commands for ultimate convenience
- RS-232 commands for ultimate convenience
- Image Rotation: Offers 180° image rotation for easy ceiling installations
- Bezel Adjustment: Includes bezel adjustment features for seamless splicing edge alignment
- Advanced EDID Management: Ensures optimal display settings and compatibility with various sources
