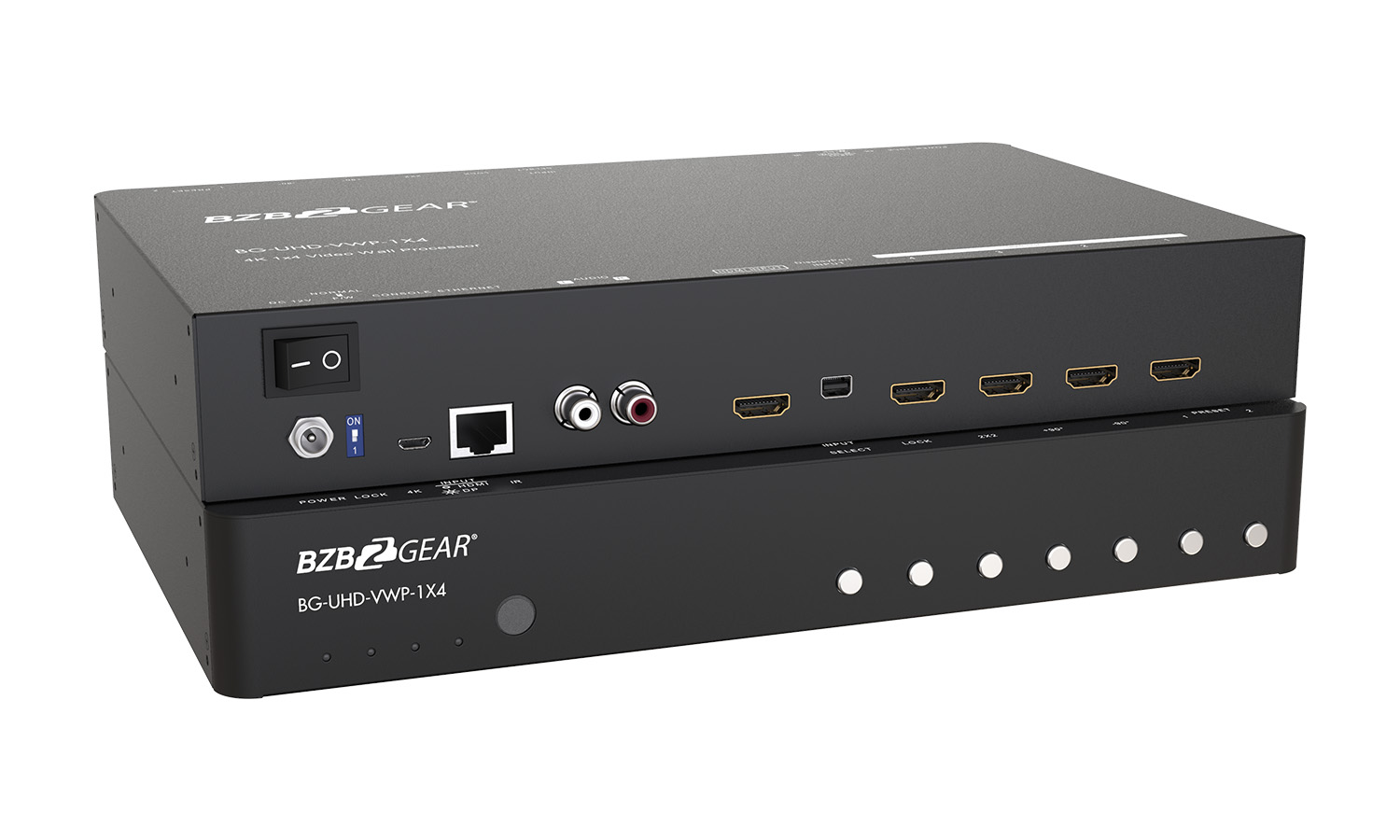

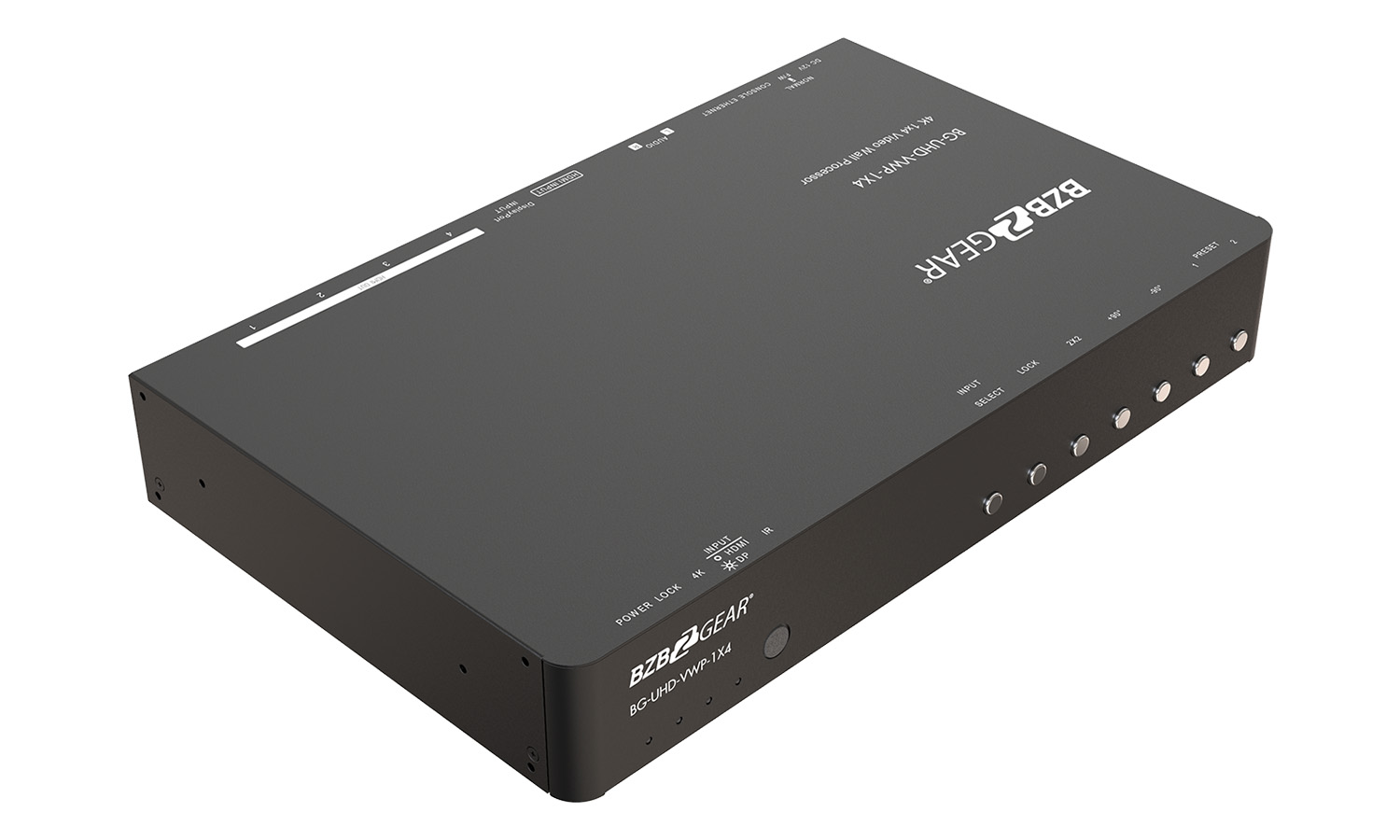

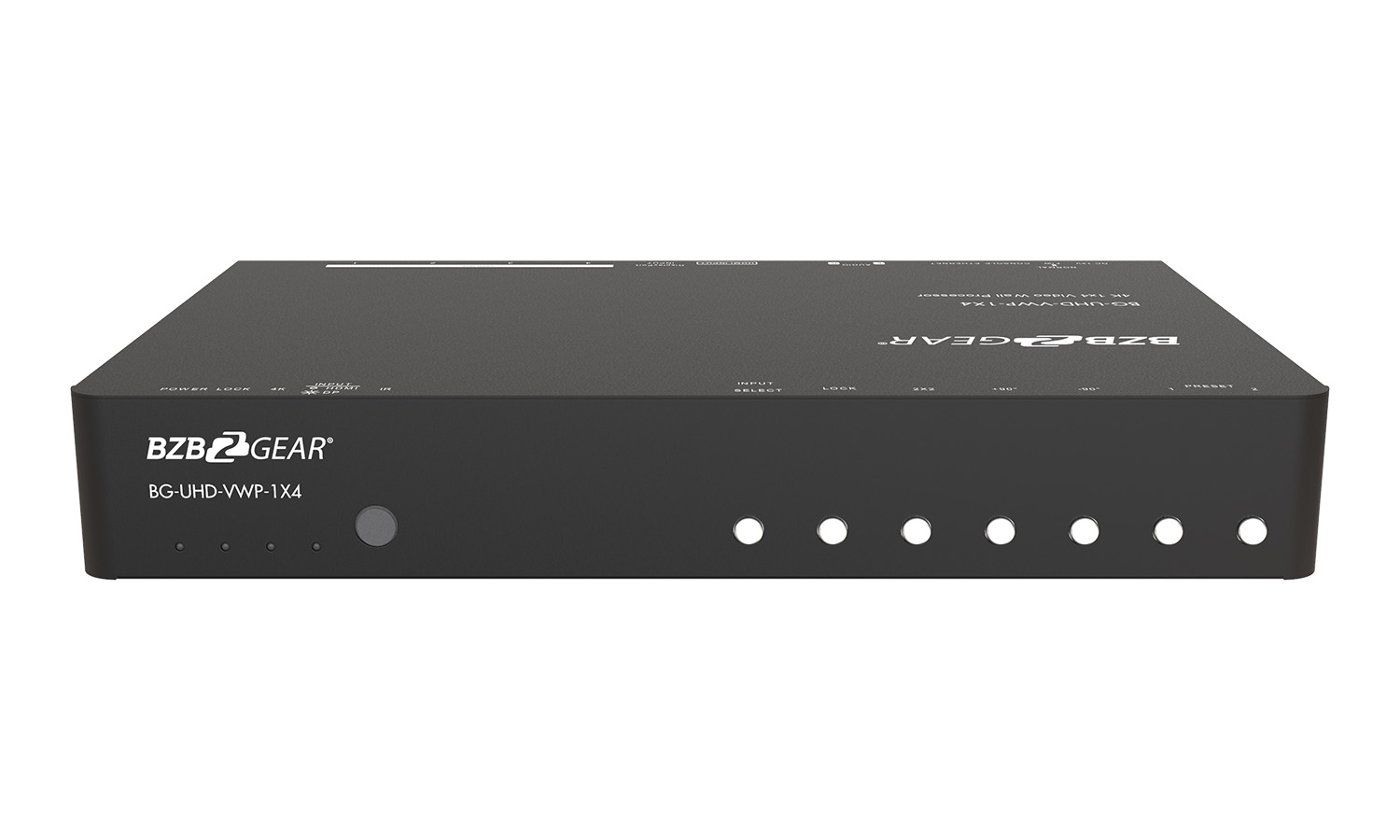

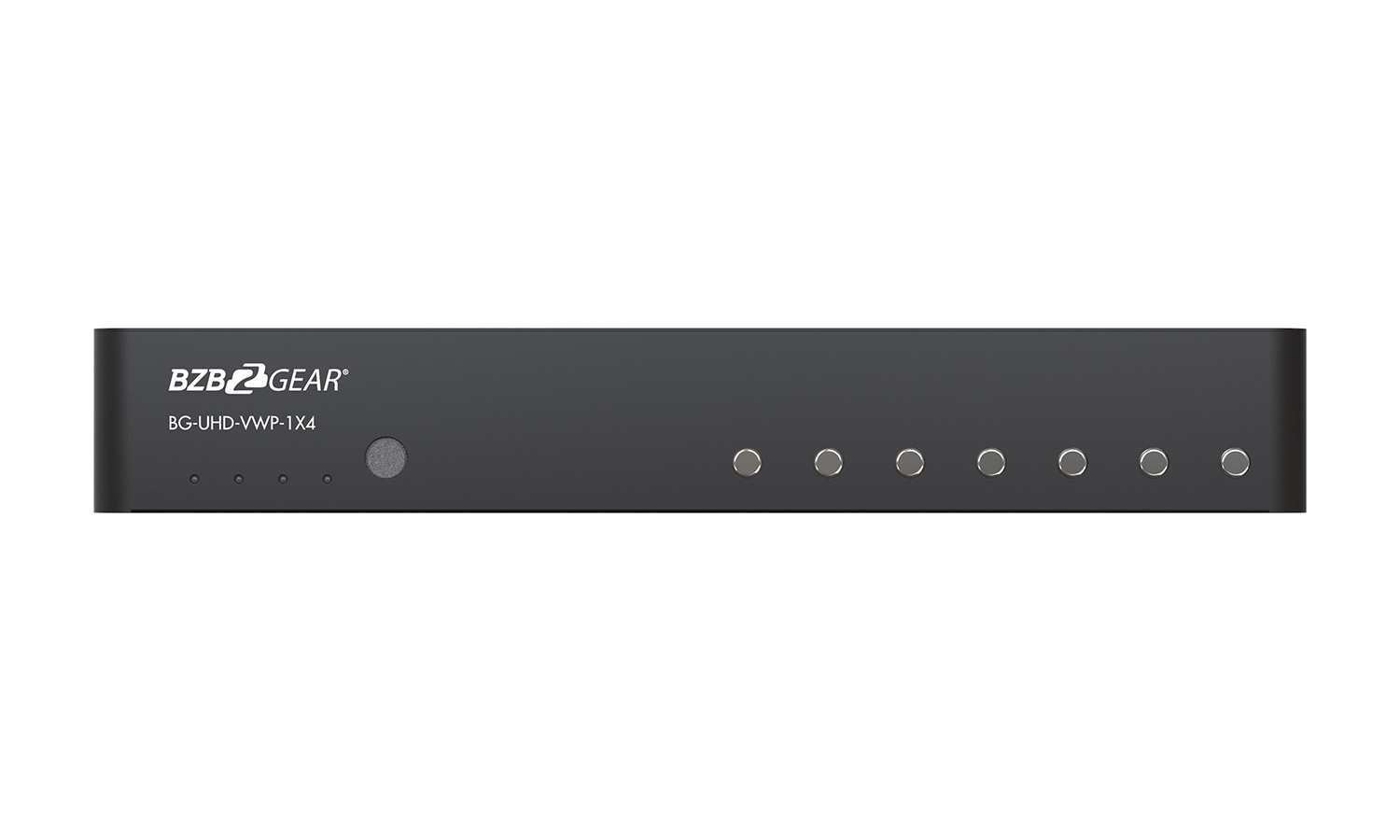

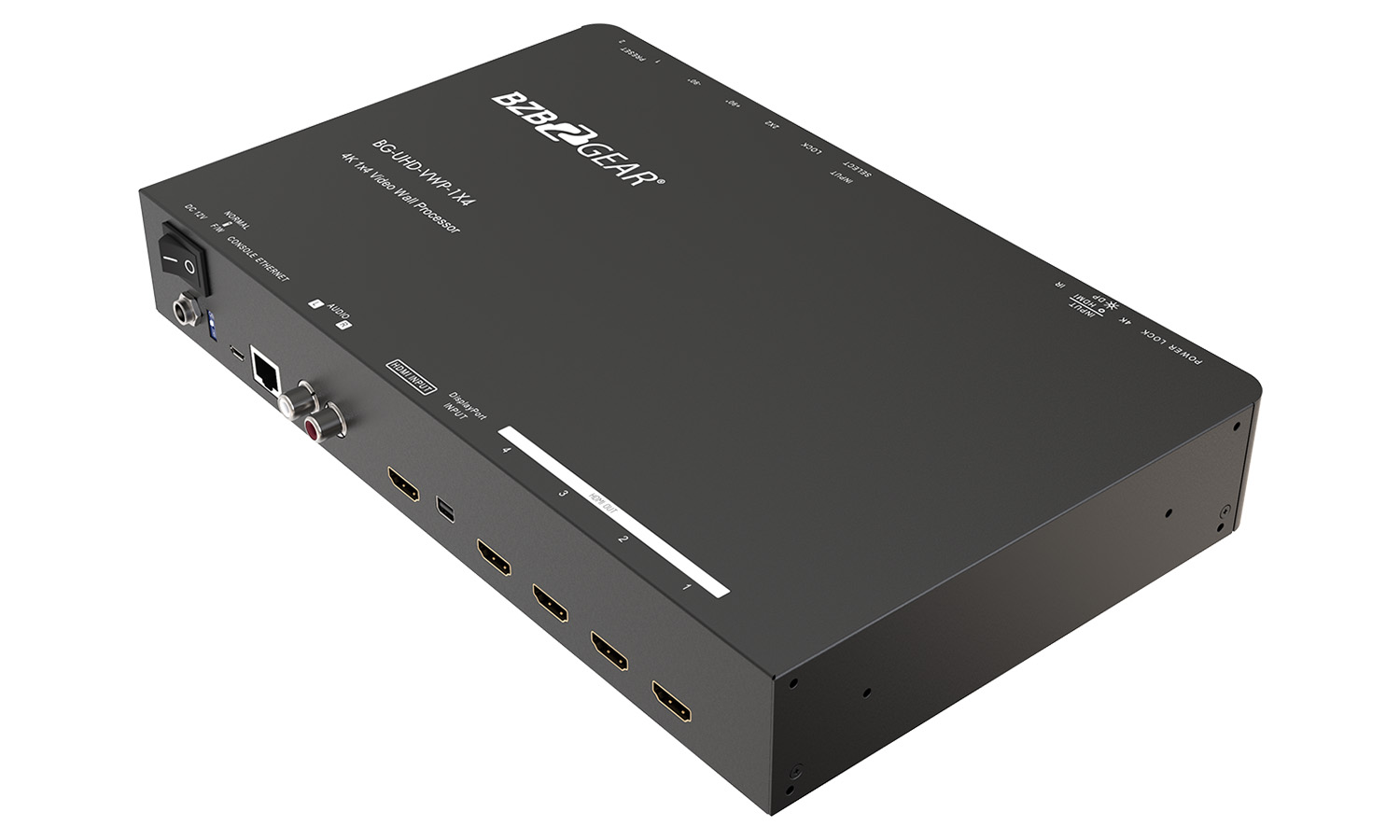

The BG-UHD-VWP-1X4 4K 1×4 Video Wall Processor is a high-quality video processor that is perfect for multiple flat panel displays or projectors. It is is designed to support HDMI/DisplayPort signals up to 4K2K @ 60Hz 4:4:4, providing you with crisp, clear images that are ideal for digital signage, broadcasting, education, and surveillance systems. The embedded scaler technology ensures that video signals are converted to match the native resolution of monitors, flat panel displays, and projectors, while user-selectable output settings up to WUXGA (1920×1200) allow for customized display options.
BG-UHD-VWP-1X4 unit is extremely versatile and can be controlled via USB, push buttons, Ethernet, webGUI, and IR remote control. With the image parameters saved in flash memory, you can easily recall your preferred settings without the hassle of reconfiguring the unit every time. It is HDCP 2.2 compliant, ensuring that it is compatible with the latest content protection standards.
With the ability to modify layouts to fit various applications, the BG-UHD-VWP-1X4 is an excellent choice for anyone looking for a powerful, cost-effective, and flexible video processor. Whether you’re in the digital signage business or looking to upgrade your entertainment setup, this video wall processor is sure to exceed your expectations.
TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).
Resize, Position, and Zoom Each Individual HDMI Output
Control using IntriCloud Service (www.intri.cloud)
Options Include Front Panel, LAN, IR, And USB Virtual Com
HDMI 2.0a And DisplayPort 1.2a Inputs
High-Bandwidth Digital Content Protection Supported
HDMI And Display Port Inputs up to 4K2K @ 60Hz 4:4:4
- Sturdy metal construction
- Great solution for digital signage
- Five embedded default EDIDs
- Upgradable firmware for new features and technology enhancements
- Save image parameters and layouts in the flash memory for easy recall
- Supports independent input rotation at resolutions up to 1080p @ 60Hz
- Ablility to adjust propagation delay on each display
- 4K2K @ 60Hz inputs can be divided onto four 1080p @ 60Hz displays (2×2 only)

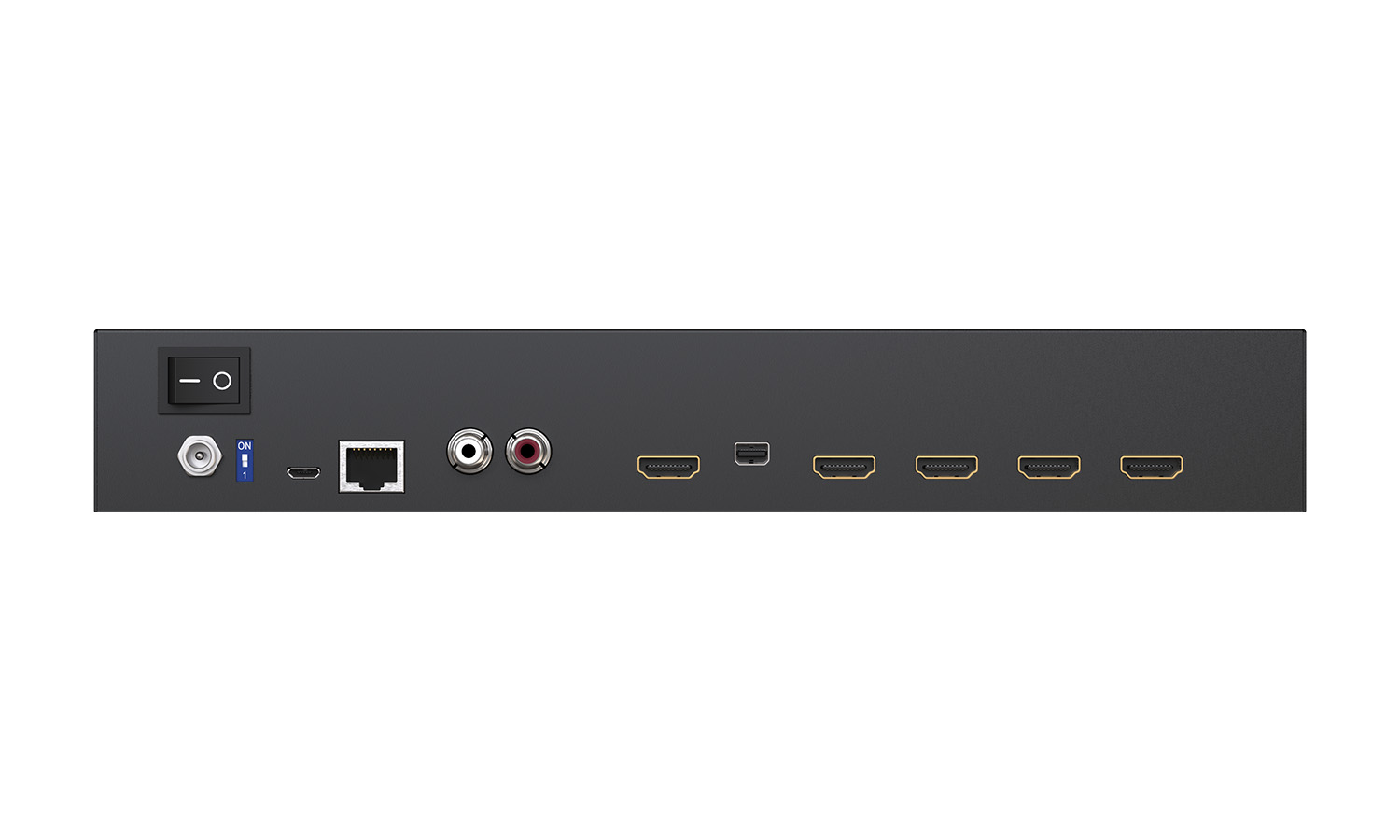

Power
Use supplied Power Adapter.
L/R Audio Out
Stereo audio output for connecting to local audio system.
LAN
Network Control Connection.
HDMI
Crystal clear image with resolutions up to 4K2K/60Hz.
