Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

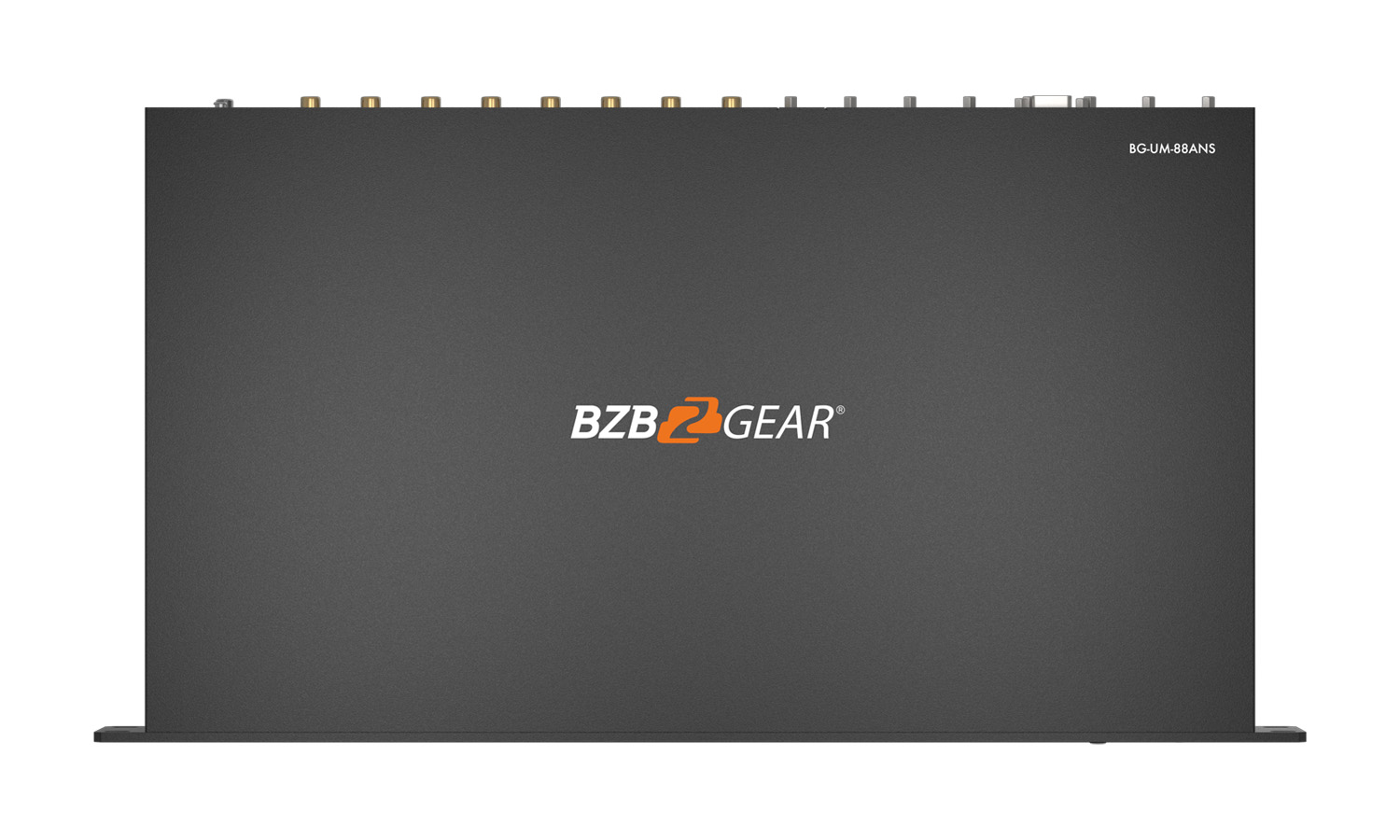

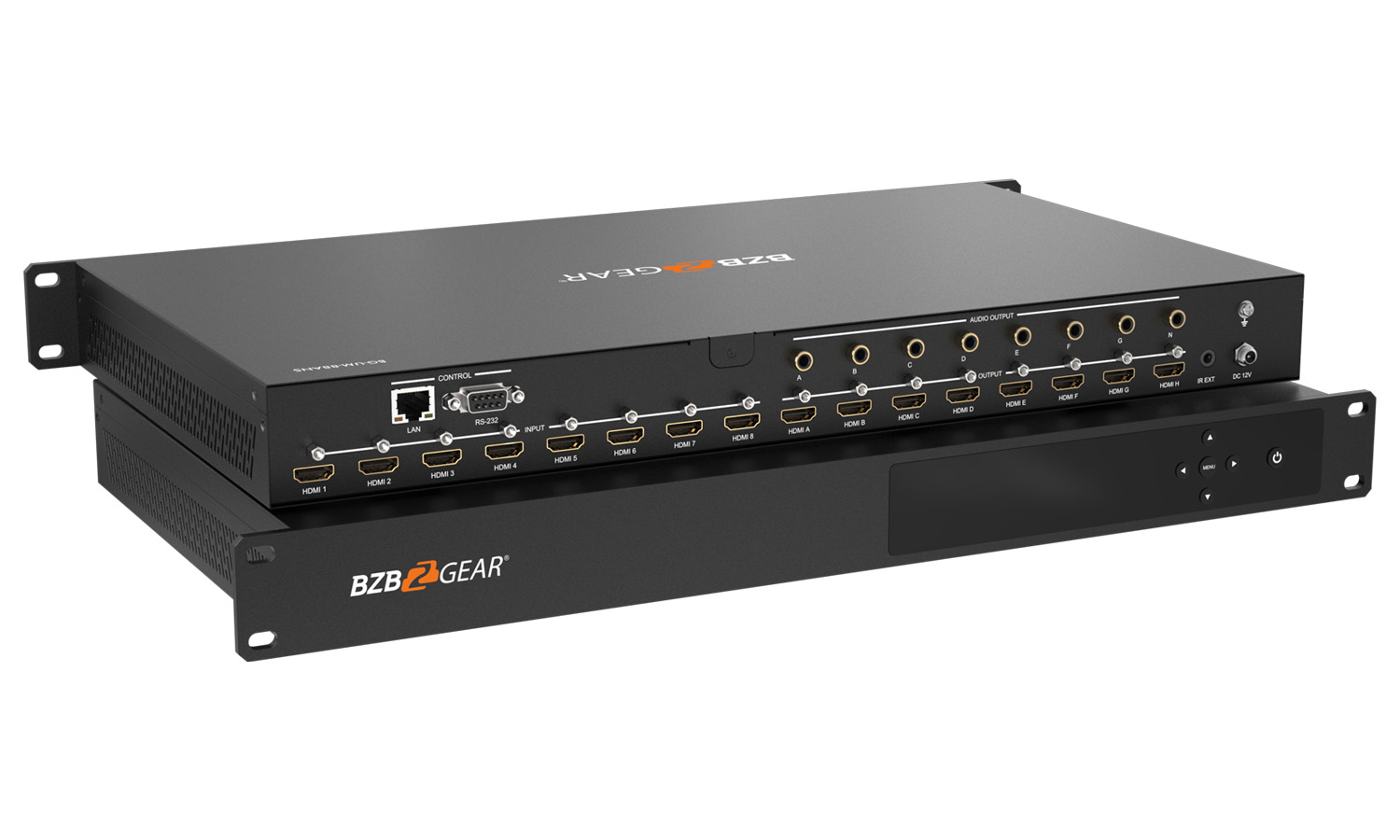

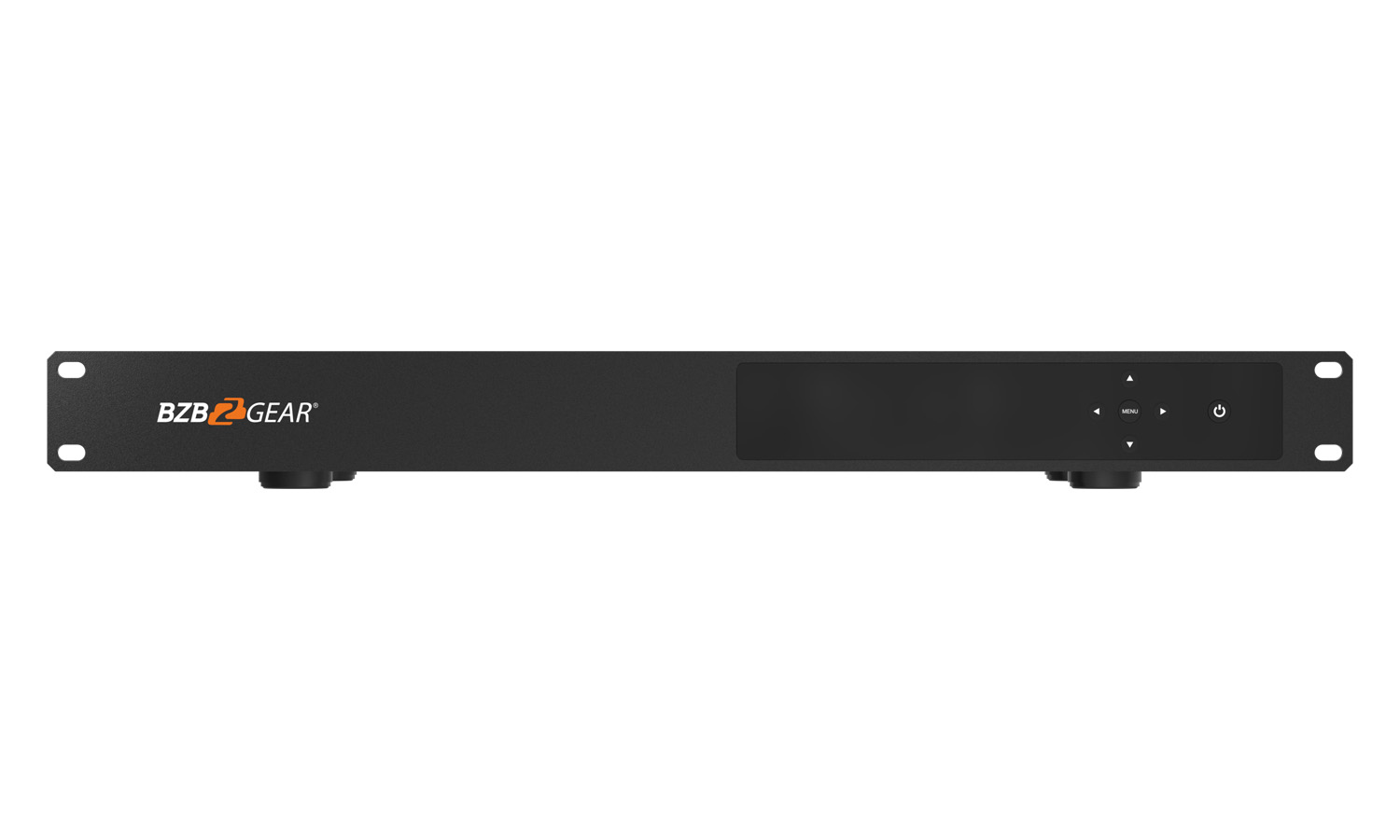

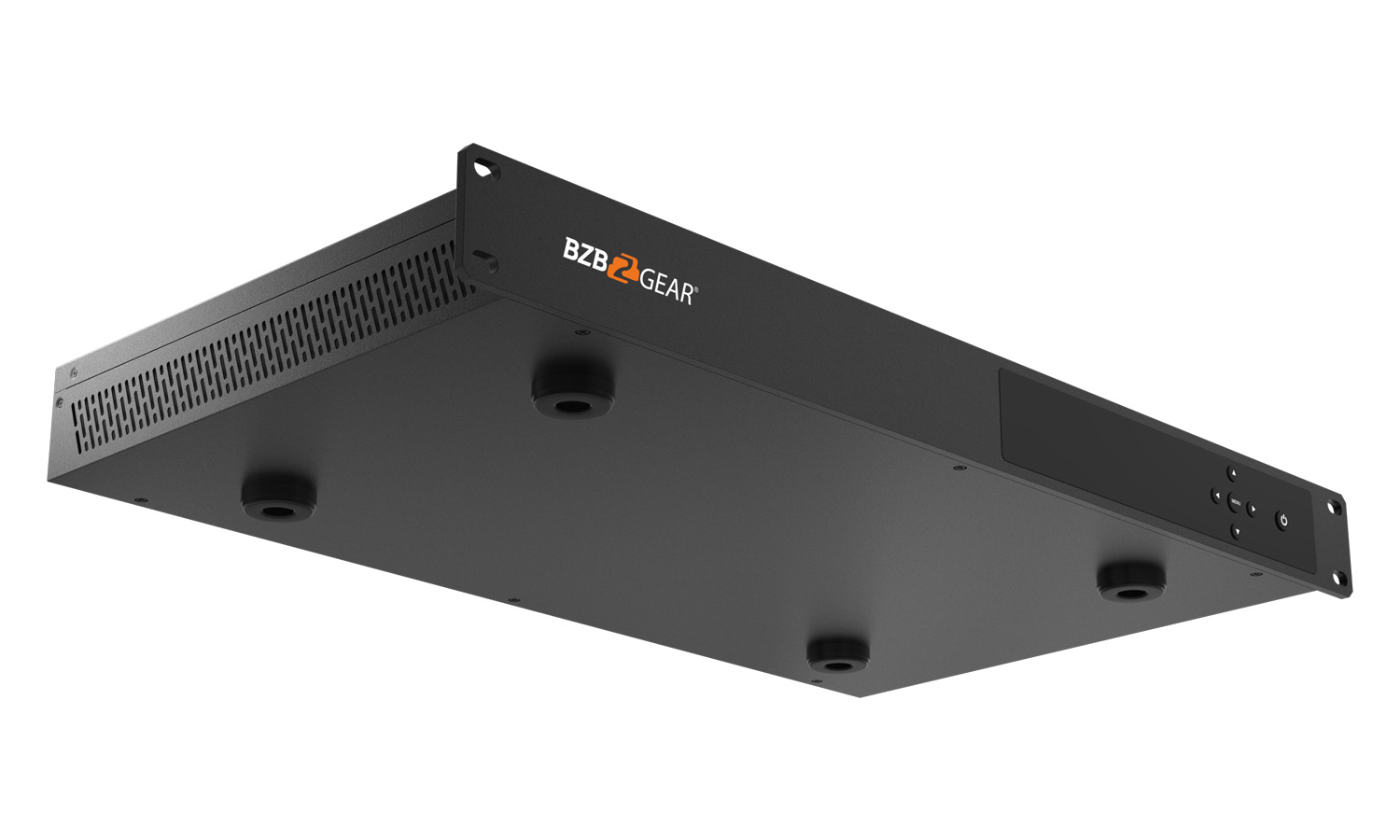

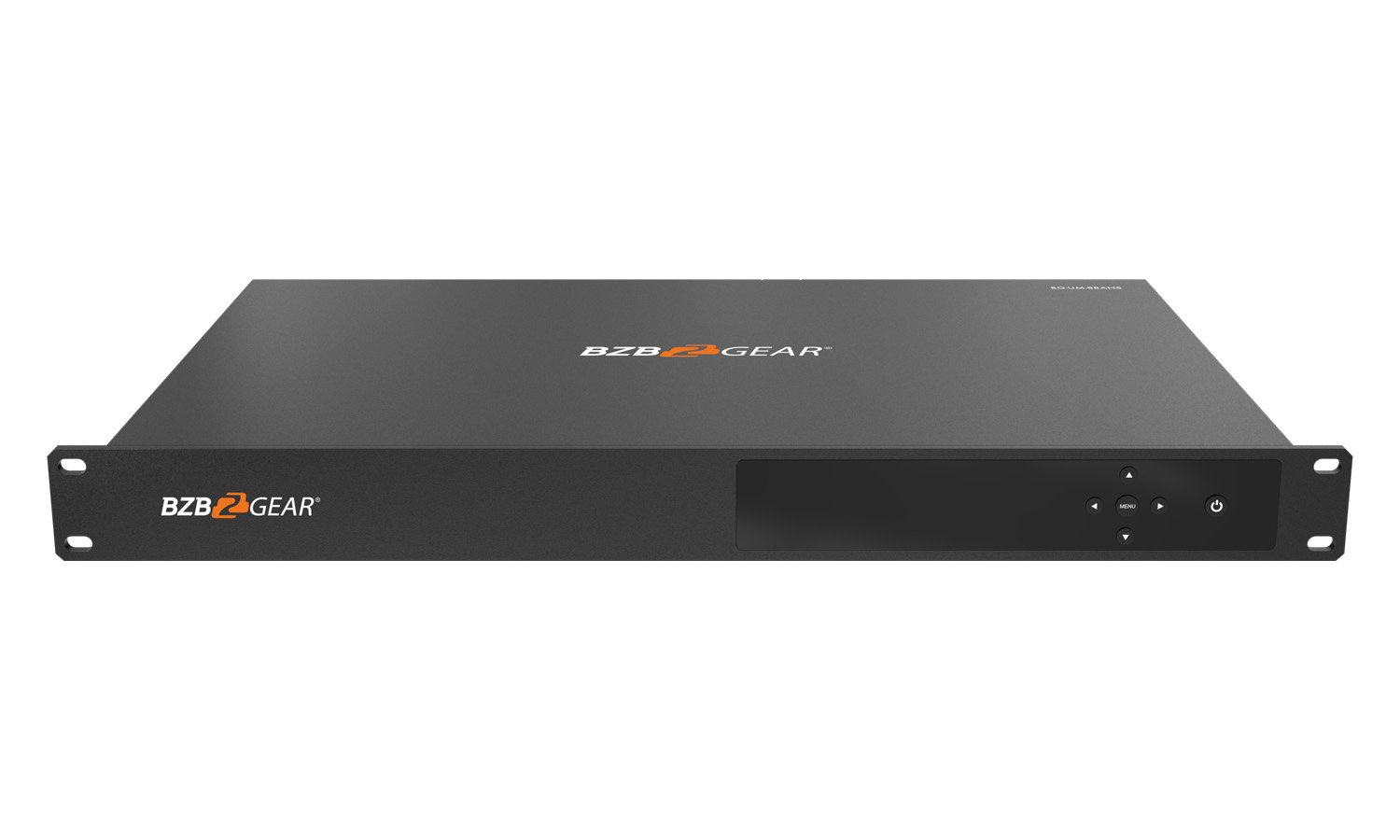

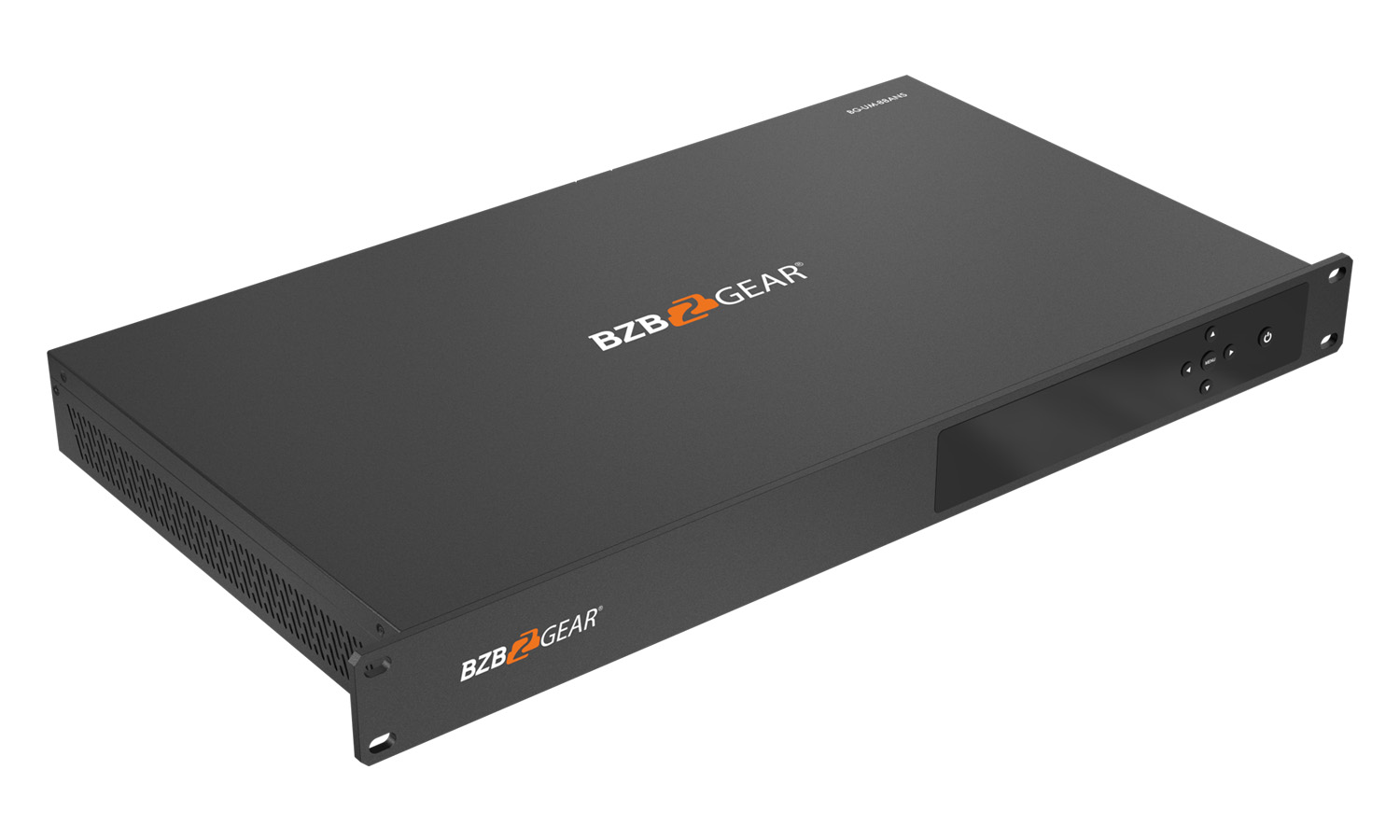

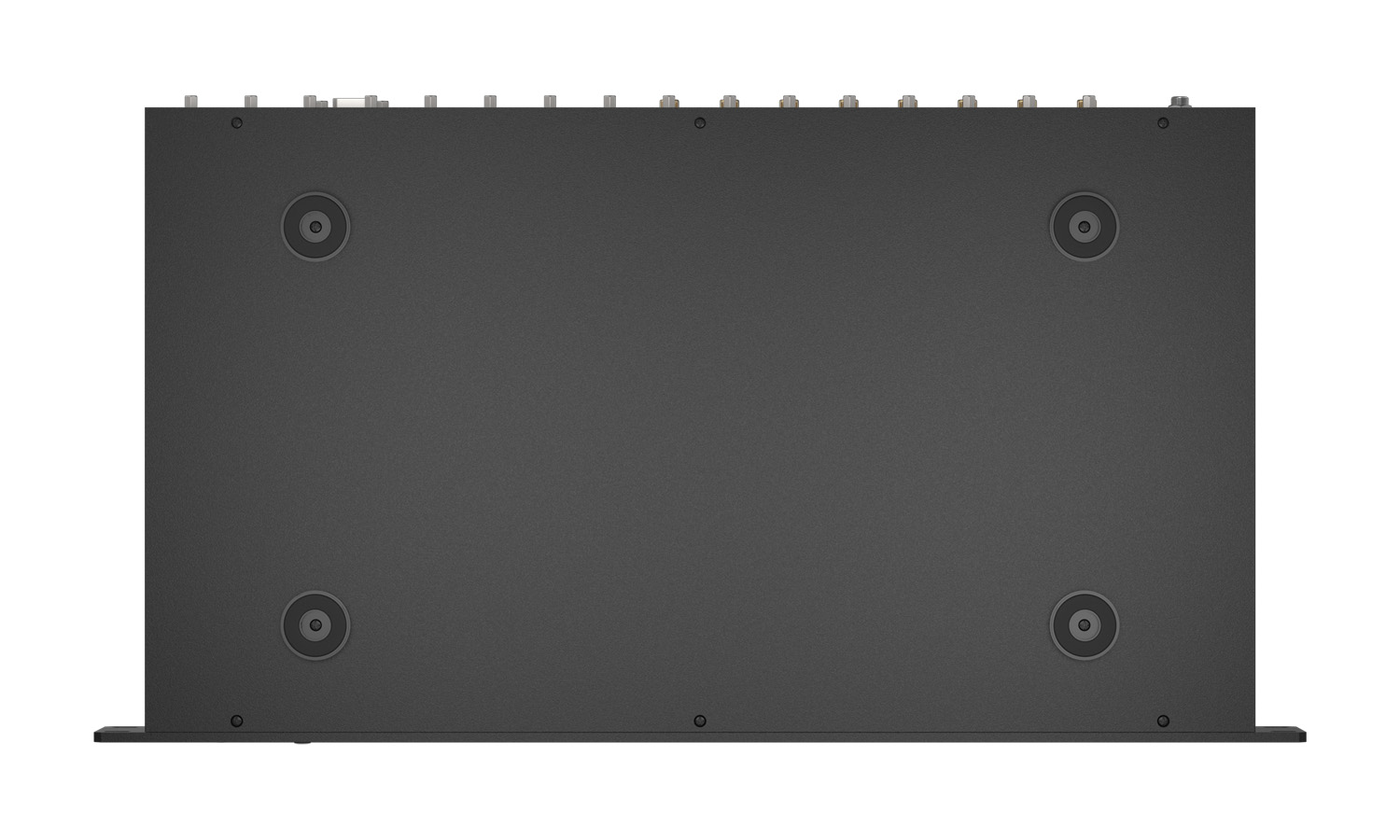

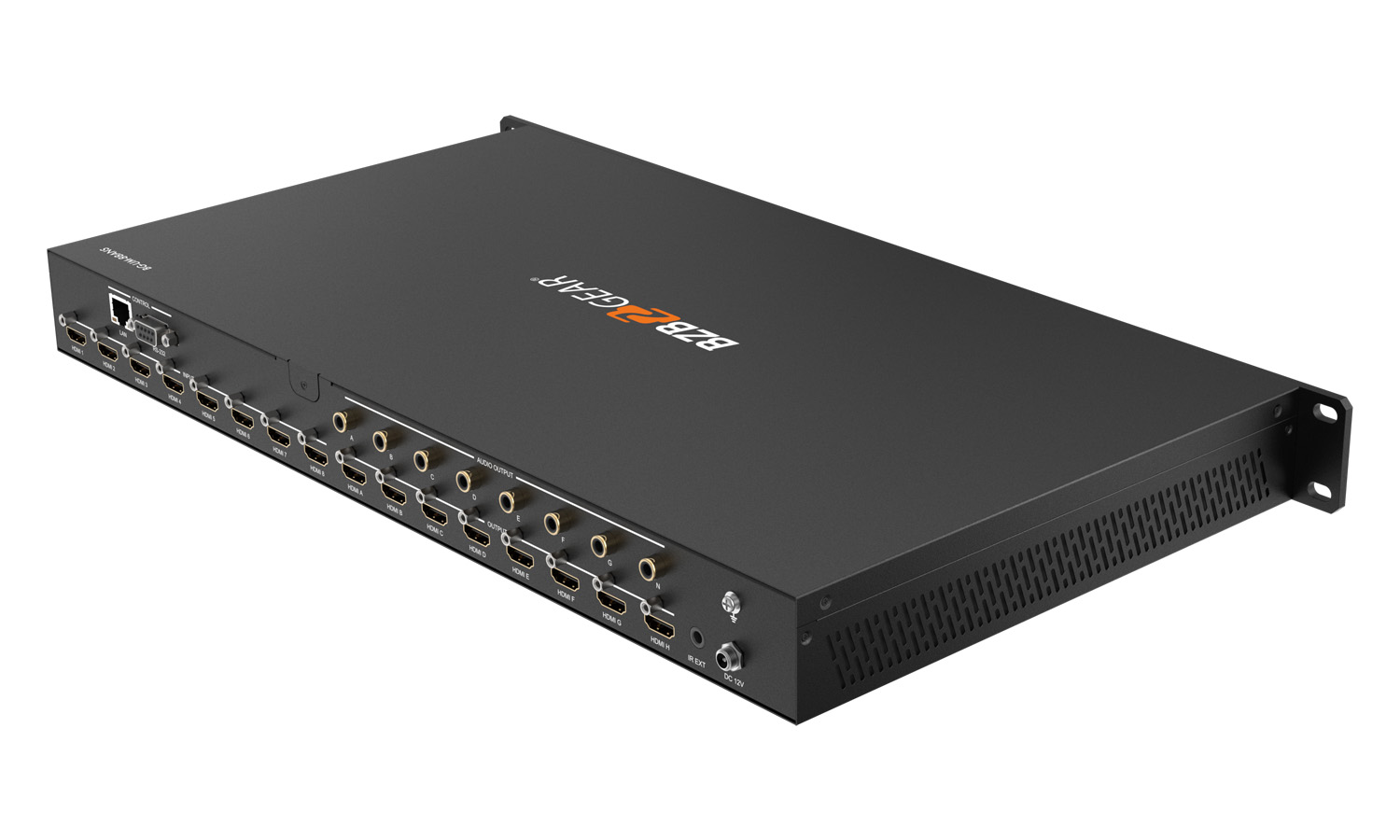

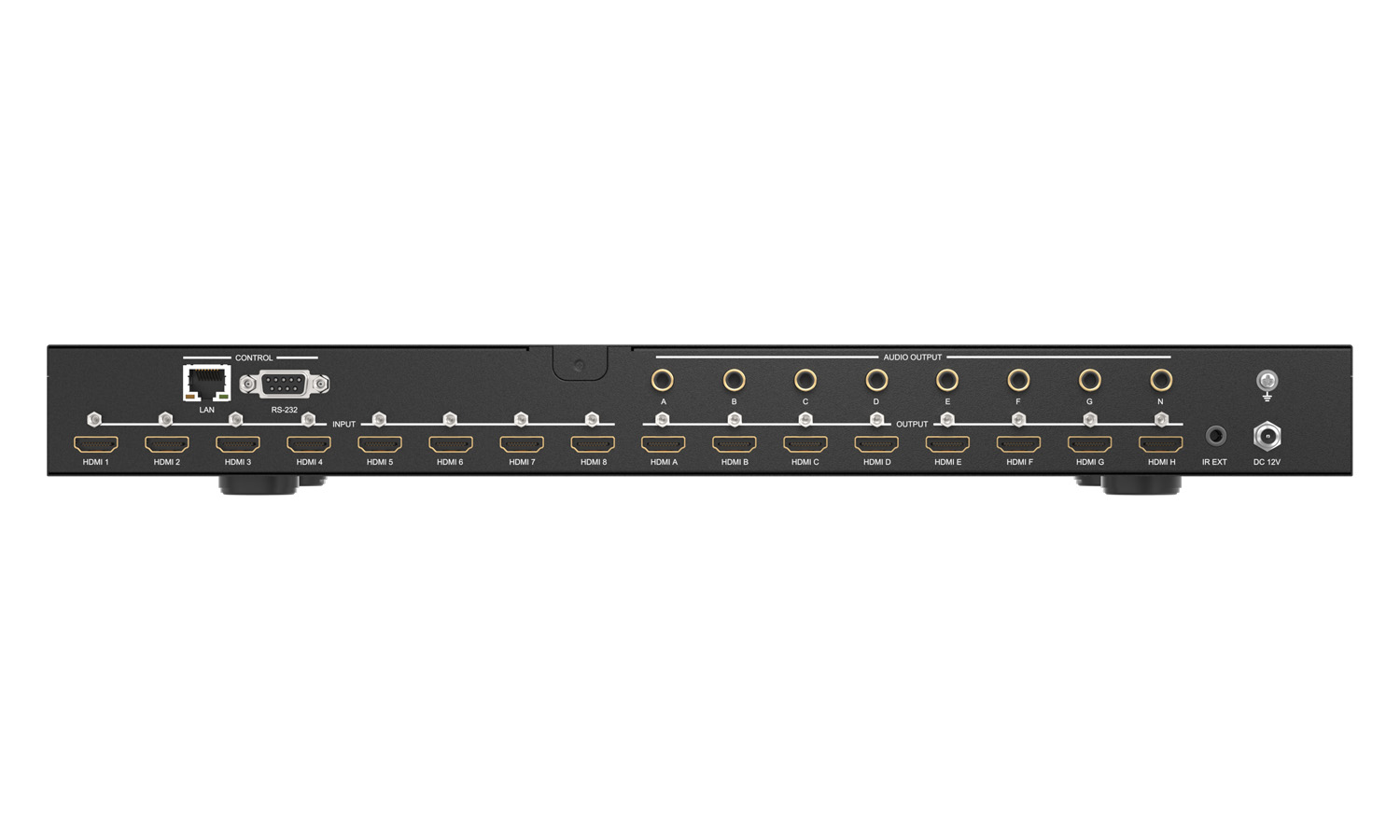

The BG-UM-88ANS is an 8×8 4K HDMI matrix switch, supporting resolutions up to 4K@60Hz 4:4:4 is HDCP 1.4 & 2.2 compliant. Featuring 8 HDMI 2.0b inputs and 8 HDMI 2.0b outputs, this device offers 18Gbps uncompressed bandwidth on all HDMI ports.

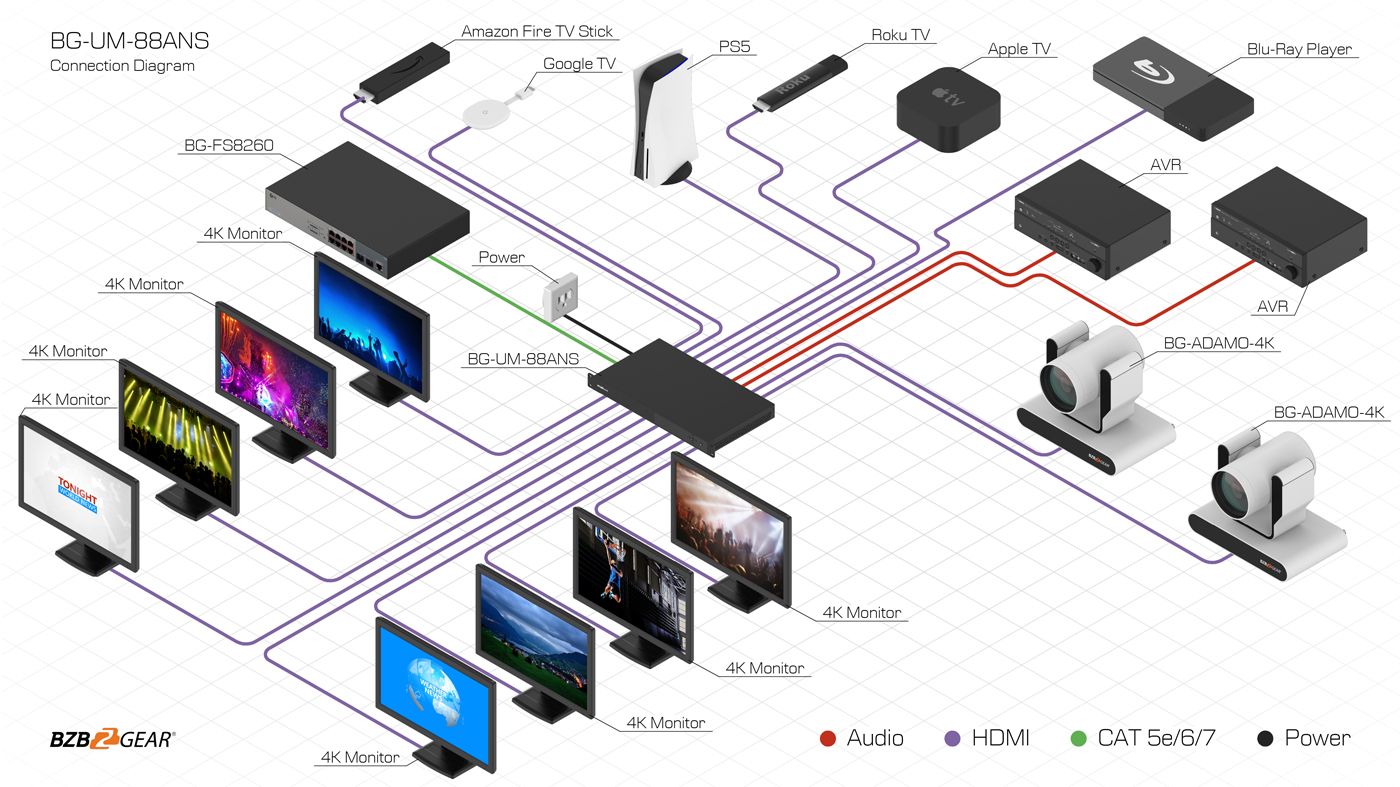

This matrix can quickly route any of the eight inputs to any of the eight outputs utilizing either the front panel menu, IR remote control, RS-232, or web interface. The control software, connected via RS-232 or the web interface, allows full control with the ability to adjust advanced features including mapping, network settings, and EDID management for easy integration.
Audio de-embed from any of the 8 coax audio outputs, which all provide multi-channel digital audio (up to 7.1-channel). The supported various audio formats include LPCM, Dolby TrueHD, and DTS-HD® Master Audio.
Features:
- HDMI – Compliant with HDMI 2.0b and HDCP 2.2
- Crystal Clear Images – Supports resolutions up to 4K@60Hz 4:4:4 HDR
- Multi-Channel Audio – Supports LPCM, Dolby TrueHD, and DTS-HD Master Audio
- Audio De-Embedding – Each HDMI output features a digital coax audio output
- EDID – Features smart EDID management for easy integration
- Multiple Control Options – Take control using the front panel, IR, RS-232, CEC, Web UI
- Durable metal design built to last
- Route any of the 8 inputs to any of the 8 outputs
- Provide multi channel audio up to 7.1-channel
