Description
Download Manual A dual-personality preamp with an amazing variety of tones.

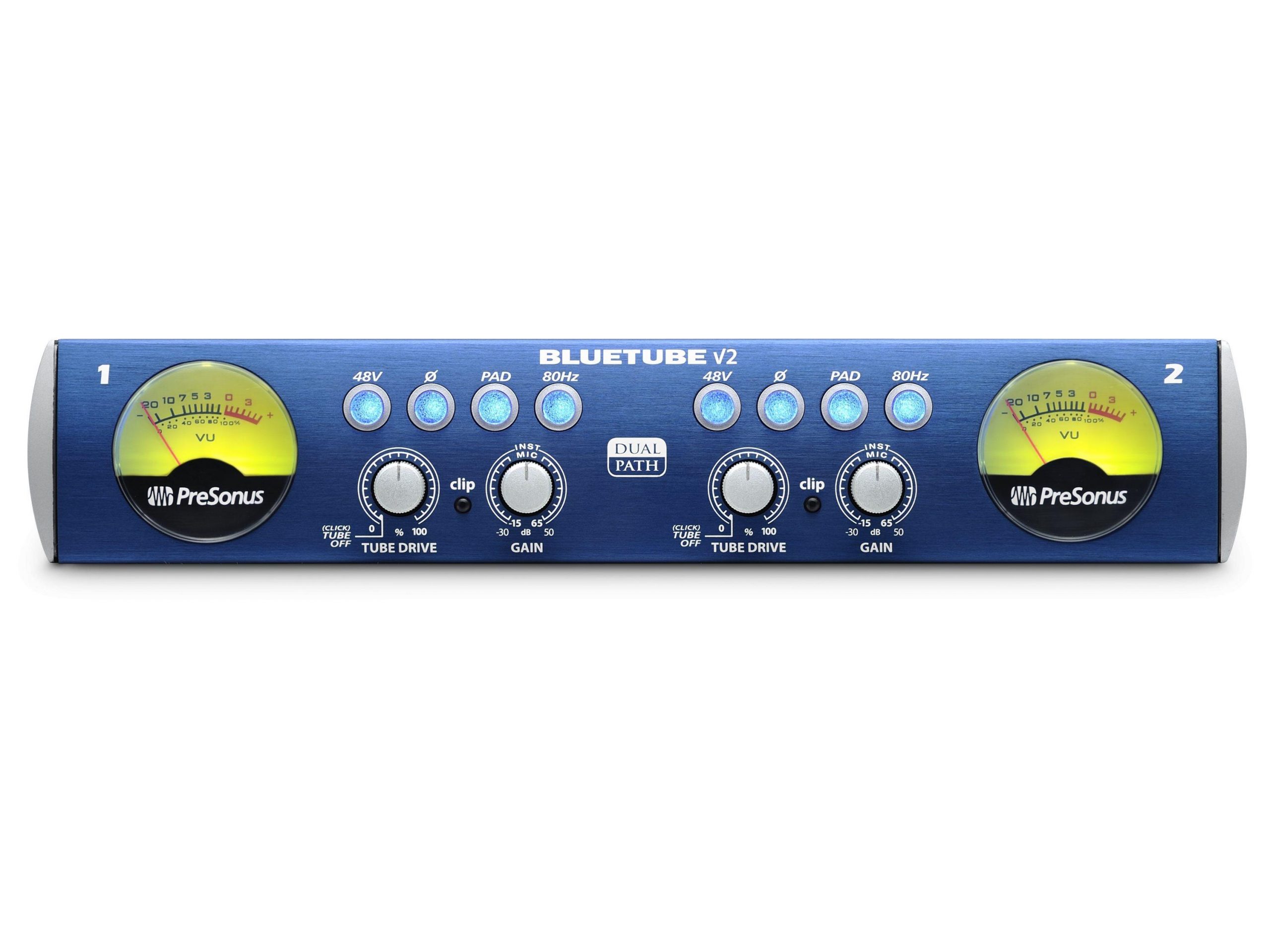

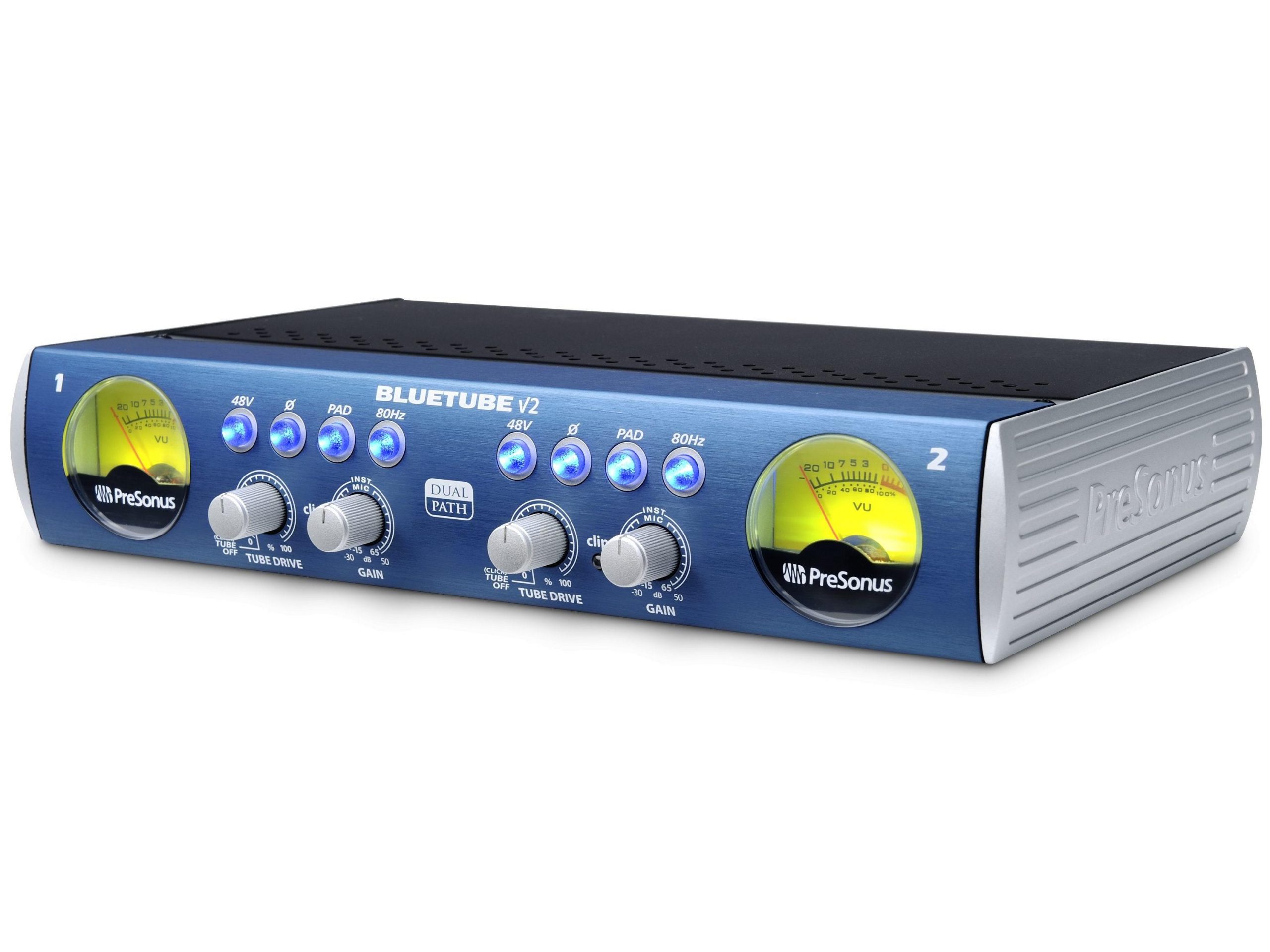

Compact, affordable, and capable of a stunningly wide range of tones, the BlueTube DP V2 dual-path mic/instrument preamplifier offers two independent channels, each with an XMAX Class A solid-state preamp, followed in the signal path by a 12AX7 vacuum-tube stage. A Tube Drive control provides a wide range of sounds: When clicked off, you’re using the solid-state preamp for quiet, transparent amplification; when engaged, your signals flow through the tube preamp, and you can achieve anything from gentle warmth to edgy distortion. Equipped with instrument and mic inputs and built tough for serious gigging, the BlueTube DP V2 is a great choice for guitarists, bassists, singer/songwriters, and more.
Transparent solid-state, warm tube distortion, and everything in between.
With the BlueTube DP V2 dual-path preamp, you get the best of two worlds. Our popular Class A XMAX solid-state preamps are widely lauded for their clarity and transparency, delivering incredibly high headroom, deep lows, smooth highs, and a rich overall sound. Found in many PreSonus products, it has received nothing but raves from users and the media alike. Our tube preamps are beloved for their warm, smooth sound, and the 12AX7 vacuum tubes in the BlueTube DP V2 are hand-selected and carefully tested to ensure top audio performance. Whether you want clean, transparent sound; ear-shredding fuzz; or something in between, you can achieve it with the BlueTube DP V2.
The most versatile preamp in its class-and built to travel.

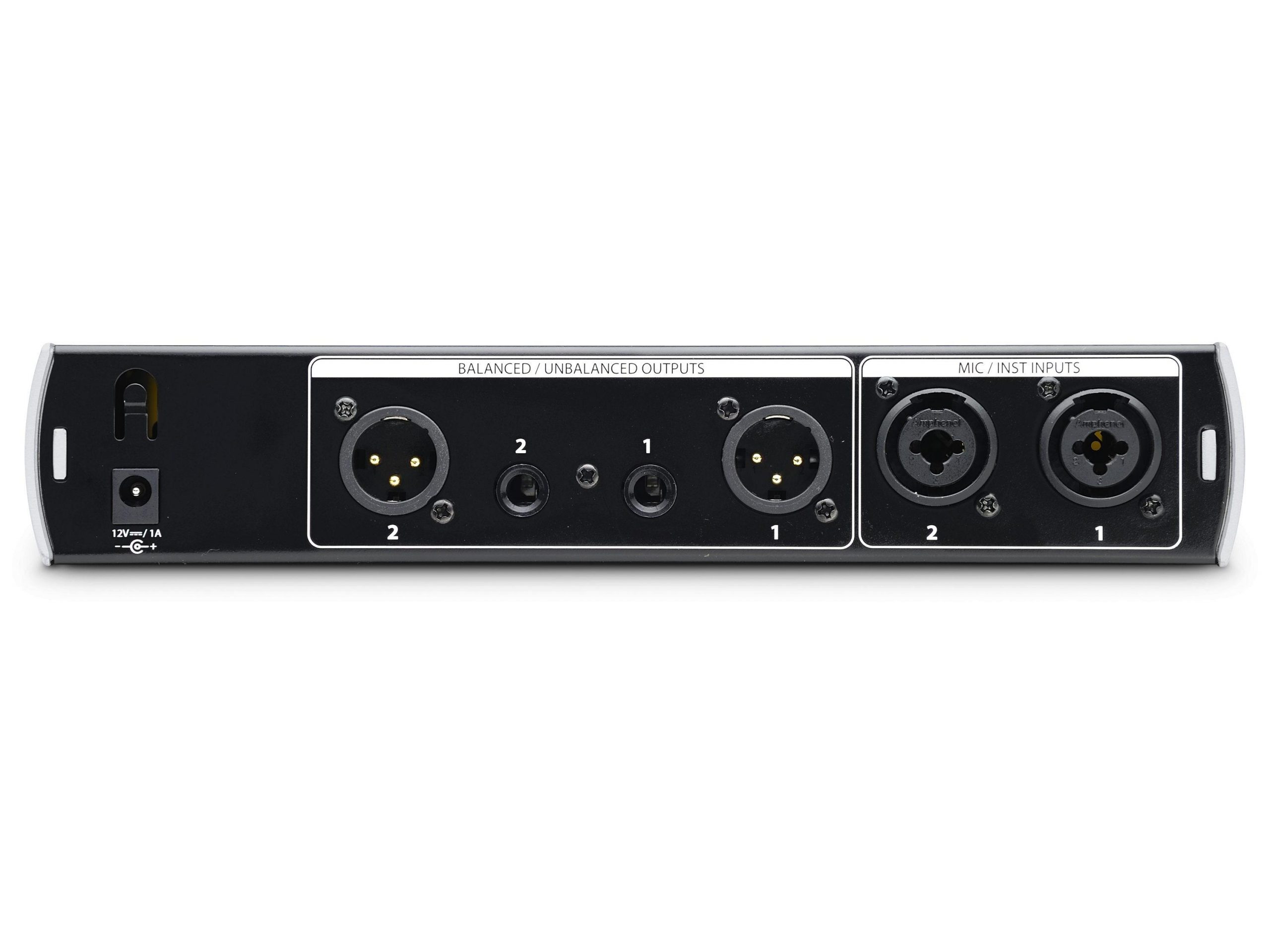

The BlueTube DP V2 offers far and away the widest variety of tone-shaping capabilities of any preamp in its class. Housed in a rugged, half-rackspace case that is built to travel, its rear panel sports two combo mic/instrument inputs and unbalanced ¼” and balanced XLR line outputs. With two dual-path channels and this complement of I/O, you can use it as a preamp and as a direct box (DI) for guitars and basses. Singer-songwriters can run their vocal through one channel and their guitar through the other, feeding both to the P.A.—no guitar amp needed. And we didn’t forget the extras: an 80 Hz highpass filter, phantom power, a -20 dB pad to control hot input signals, polarity reverse, and a backlit VU meter. Yet the BlueTube DP V2 is small enough to carry in a gig bag-or screw-mount it to a standard rack tray.
Two channels of great sound, live or in the studio.
Live or in the studio, the BlueTube DP V2 is a great-sounding tool you’ll use on a variety of sources. Add just the right amount of tube distortion to guitars, basses, and mic signals. Go lightly for gentle warmth or go all-out for solid crunch. Use one channel as a solid-state preamp and the other as a tube preamp-it’s up to you. So visit your favorite PreSonus dealer and check out the most versatile mic/instrument preamplifier in its price range: the BlueTube DP V2.
Features:
2 input channels, each with:
- High-headroom Class A XMAX mic preamplifier with 80 dB gain range
- 12AX7 vacuum tube gain stage
- Tube Drive tube-saturation control
- 48V phantom power
- 80 Hz high-pass filter
- -20 dB pad to reduce hot input levels
- Polarity-reverse switch
- Illuminated analog VU input-level meter
Input/Output
- 2 balanced combo mic/unbalanced instrument inputs
- 2 balanced XLR main (L/R) line outputs
- 2 unbalanced ¼” main (L/R) line outputs
Physical
- Compact 1/2U chassis
- External 12 VDC, 1A power supply
