Download Manual Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

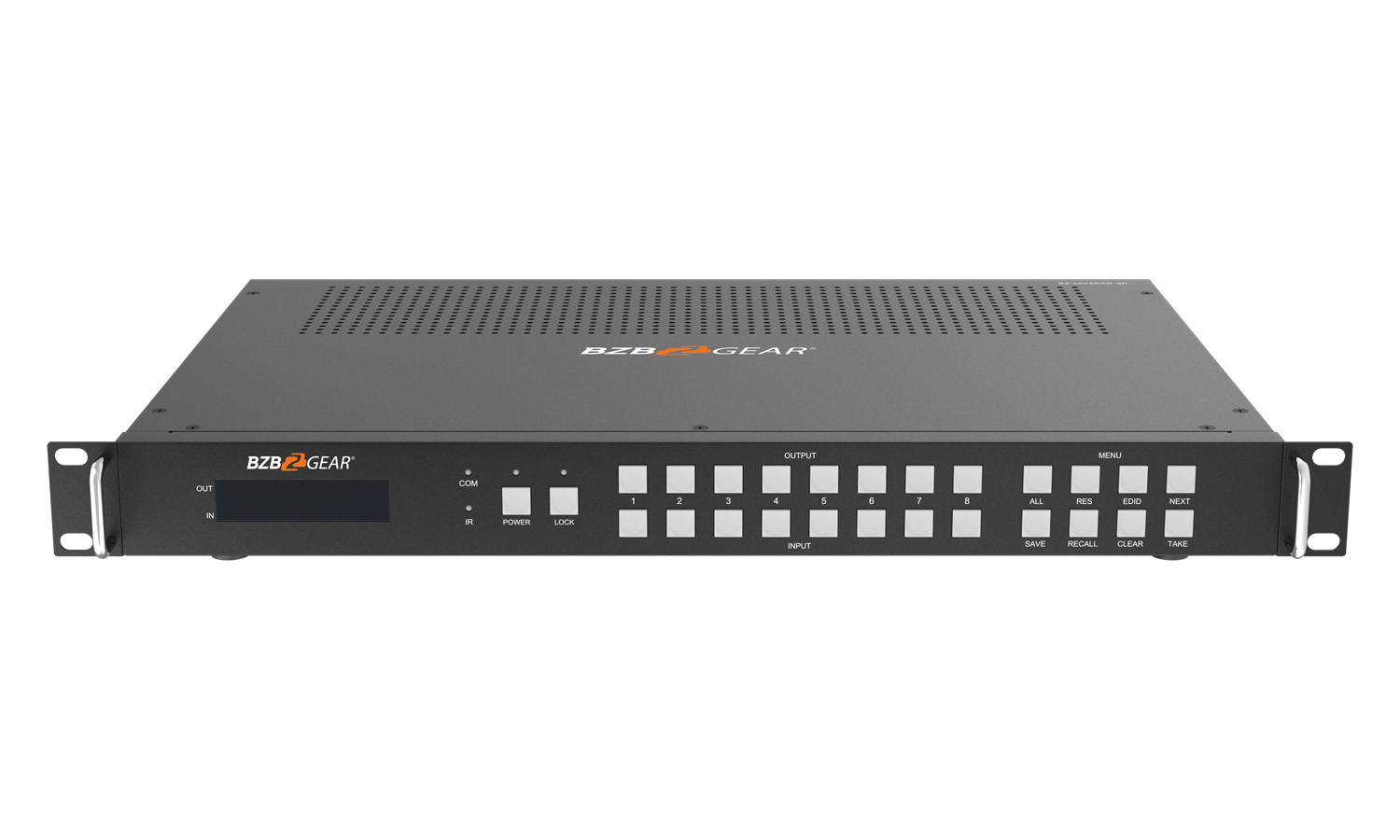

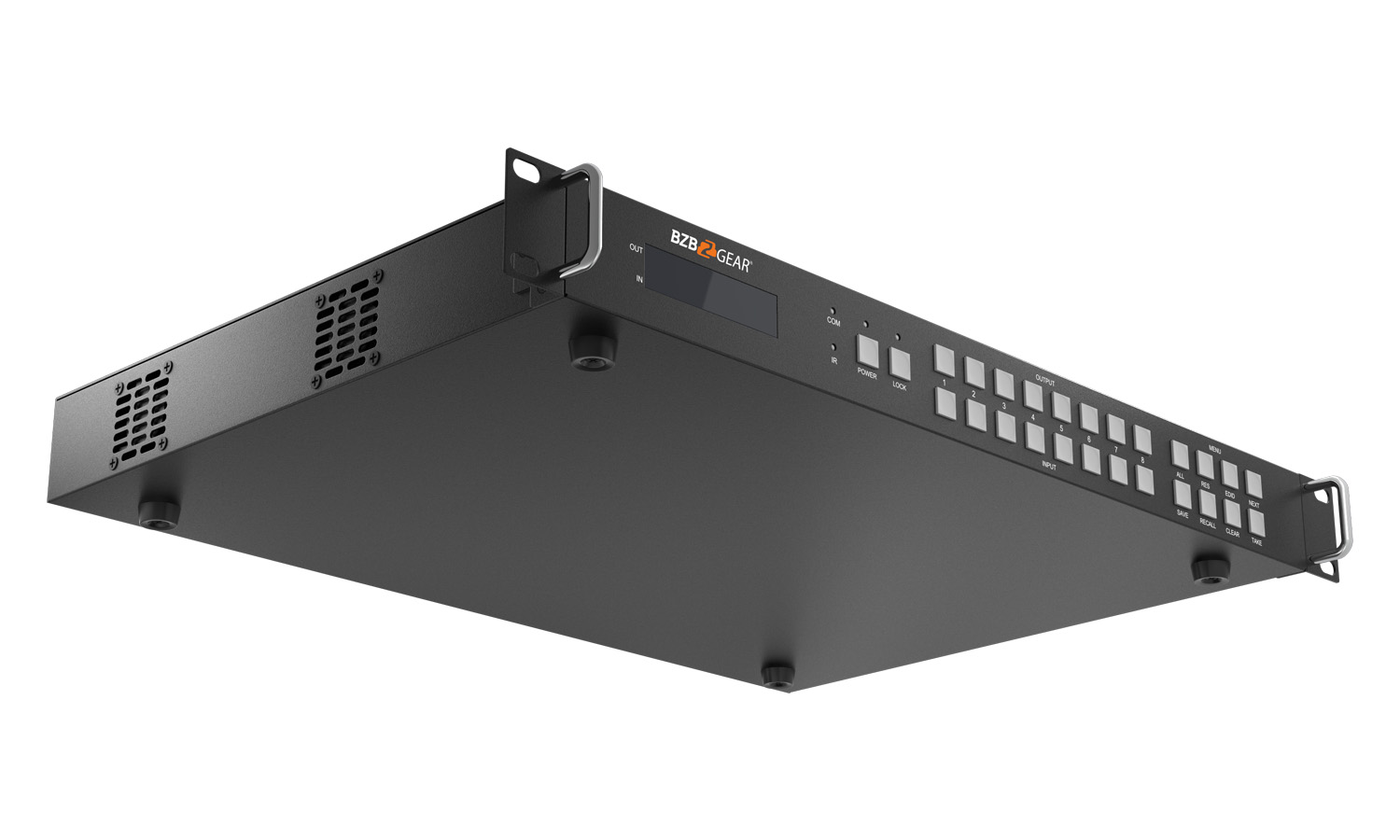

The BZ-MVS8X8-4K video wall processor and matrix switcher is an incredible tool that supports up to eight inputs and eight outputs. The unit can support multiple commercial-grade video walls with 4K HDR quality simultaneously in various configurations such as 1×2, 2×2, or 3×2 up to 8 displays total.
Connectivity

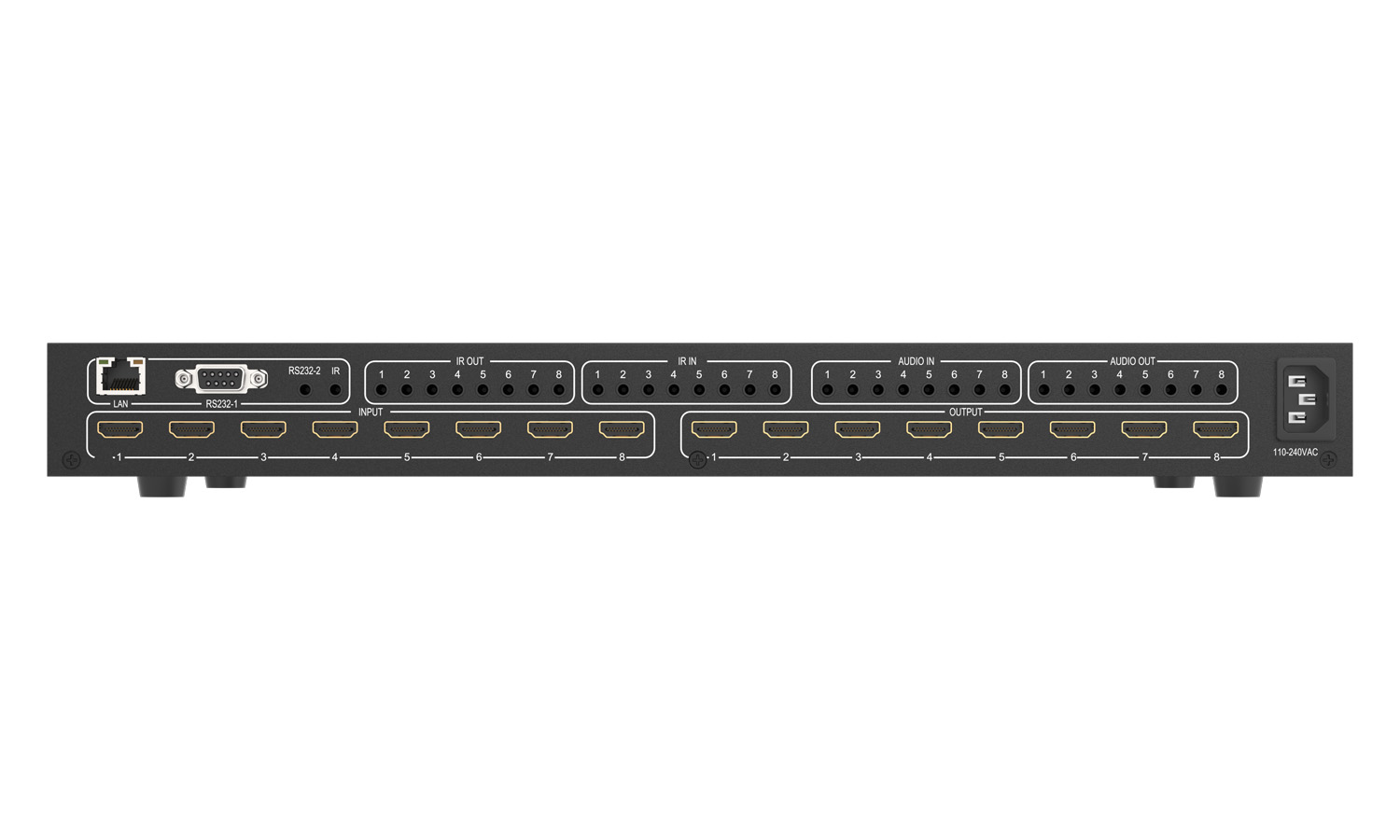

The BZ-MVS8X8-4K is HDMI 2.0 and HDCP 2.2 compliant with bandwidth speeds up to 18Gbps. These features enable this unit to support eight HDMI inputs and outputs with resolutions up to 4K@60Hz. Users can also embed or extract two channel audio onto each HDMI input and output respectively using 3.5mm mini stereo audio cables.
IR matrix routing is available on this unit via the included IR extenders with 8 IR in and 8 IR out connections. The superior connectivity features and image quality of the BZ-MVS8X8-4K make it an incredible choice for those looking to create beautiful video walls or matrix multiple displays for advertising, events, and more.
Control

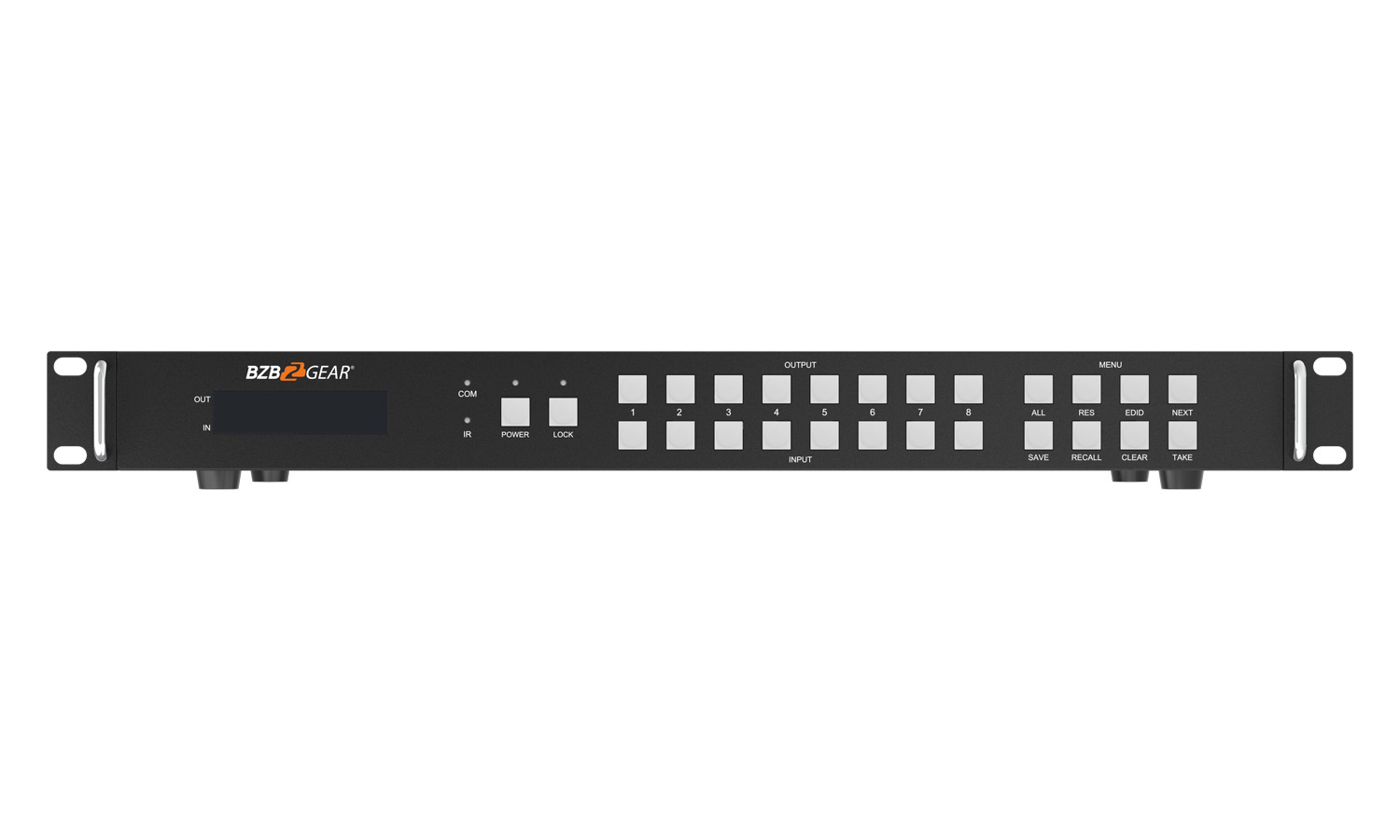

This matrix switcher offers a variety of control methods including buttons on the front panel, IR remote control, a PC Utility, RS-232, or web interface. To connect to the PC Utility software, operators can use either USB or a direct Ethernet connection. The PC Utility software also offers automatic or manual EDID management. Up to 8 matrix scenes can be saved and recalled for future use making this device flexible for different configurations that your business may need.
Features:
- Video Wall Processor – Spread a source across multiple displays
- Video Matrix – View any source on any display
- Crystal Clear Images – Supports resolutions up to 4K@60Hz on all inputs and outputs
- Multiple Control Options – Utilize the physical buttons, RS232, Bi-Directional IR, or Web interface to mange your devices and display layouts
- HDCP 2.2 – High-Bandwidth digital content protection supported
- Audio Embedding and Extraction – Embed or extract audio on each HDMI input or output
- Seamless matrix switching
- Auto/manual EDID management
- Save & recall videowall/matrix scenes
- Up to 8 HDMI inputs and 8 HDMI outputs
- IR matrix routing follows video routing
- Supports multiple video wall configurations on up to 8 displays (two 2×2, four 1×2, one 2×3, one 2×4, etc)
