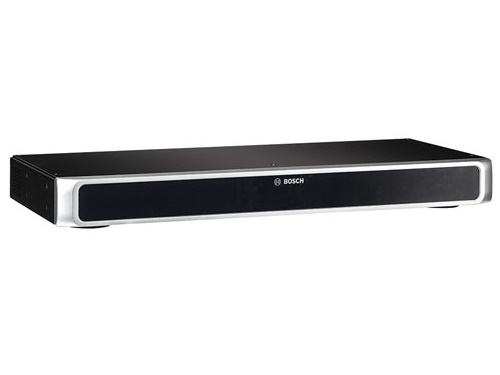

Bosch CCSD-EXU CCS 1000 D Extension Unit/Powers Up to 85 Additional Discussion Devices

In Stock

$1,782.00

Business price

Shipping Info

Free ground shipping on select $300+ orders in the contiguous US.

Payment Methods

Mastercard, Visa, American Express, Discover, PayPal

Return Policy

We offer 30-Day money back guarantee of the purchase date.

Description

CCS 1000 D Extension Unit, powers up to 85 additional discussion devices, depending on cable lengths and configuration

Features:

Expands the CCS 1000 D Digital Discussion System up to 245 Discussion Devices
Easily connected to system by use of 6-pole circular connectors
Built‑in splitter allows for installation at any convenient point in system, including loop‑through for cascading extension units
One trunk and two tap‑off connections with short‑circuit protection
Freestanding or 19” rack mounted; housing similar to control unit

Supply voltage Adaptor	100 to 240 VAC, 50/60 Hz
Current Consumption voltage Adaptor	1.9 A (100 VAC) to 1 A 240 (VAC)
DC voltage Control Unit	24 V, 6.0 A
Maximum number of Discussion Devices per Extension Unit	40 Discussion Devices per trunk/tap-off 85 Discussion Devices in total 24 V, Max 5.2 A (short-circuited protected)
Dimensions including feet(H x W x D)	45 x 440 x 200 mm(1.8 x 17.3 x 7.9 in) 19” wide, 1 RU high
Height of feet	5.5 mm (0.2 in)
Mounting	Tabletop or 19” rack
Weight	Approx. 4.12 kg (9.1 lb)
Material (top and base)	Painted metal
Color (top and base)	Traffic black (RAL 9017) matt-gloss
Rim front panel	Pearl light grey (RAL 9022) matt-gloss
Operating temperature	5 ºC to +45 ºC (+41 ºF to +113 ºF)
Storage and transport temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity	5% to 98% non-condensing

Weight	9.10 lbs
