Description

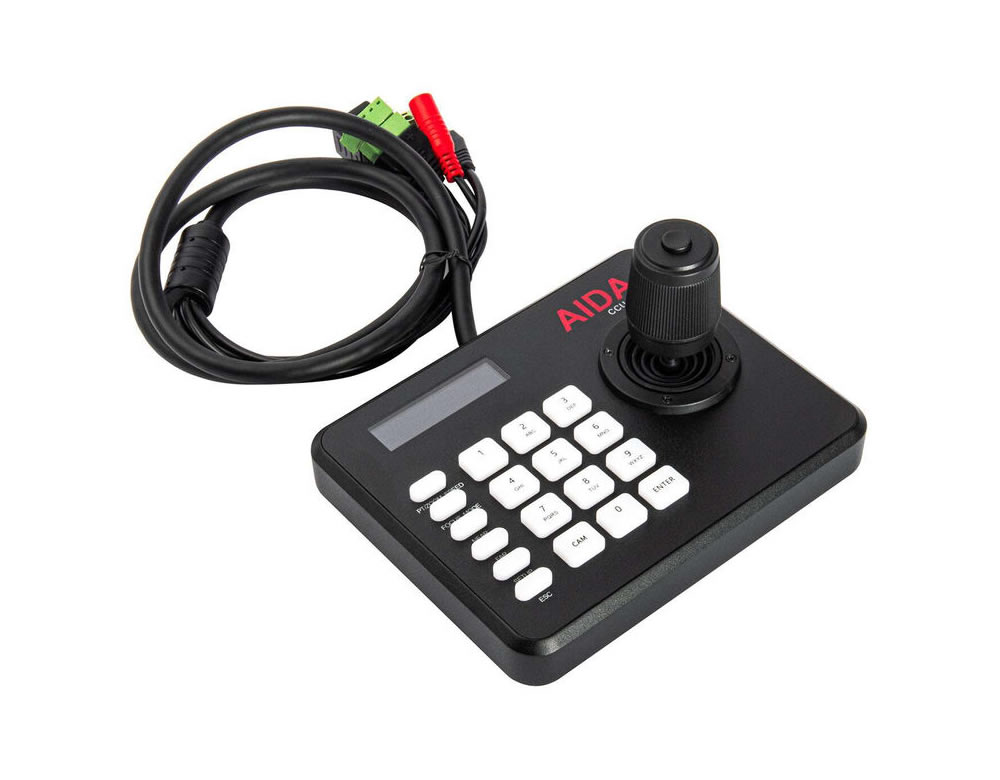

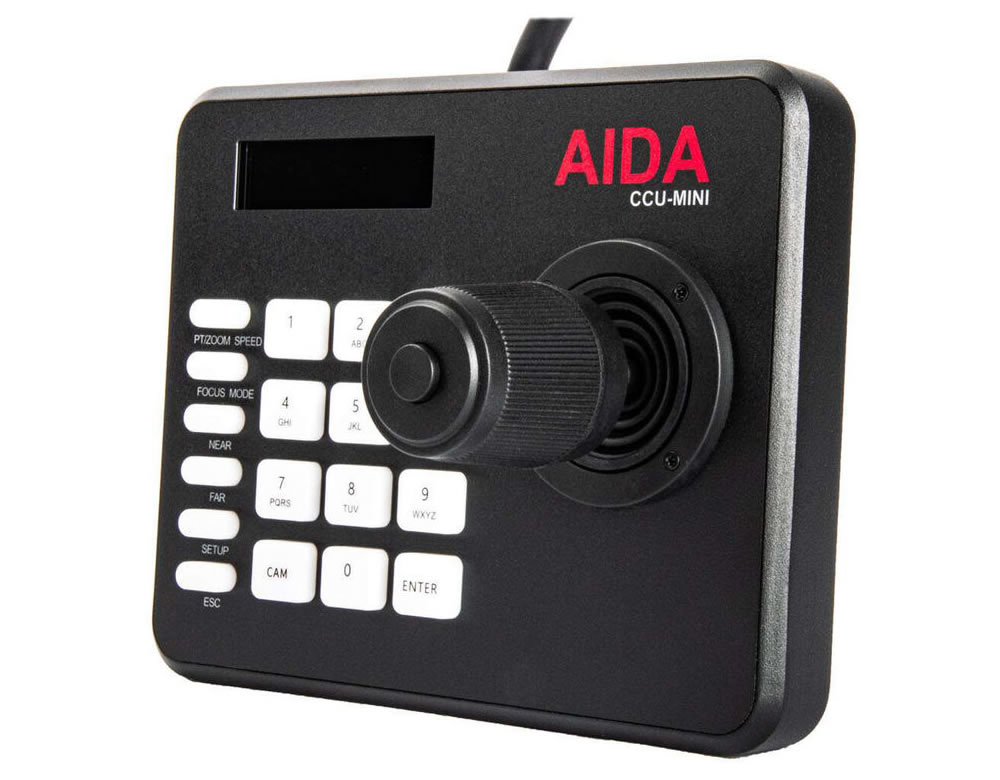

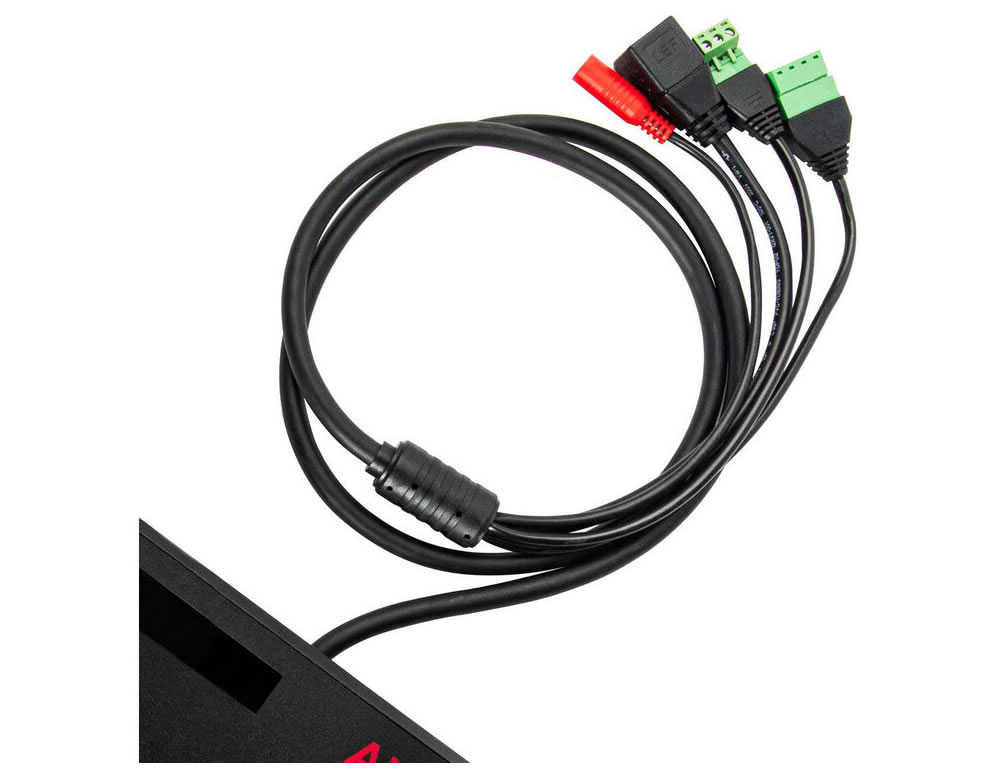

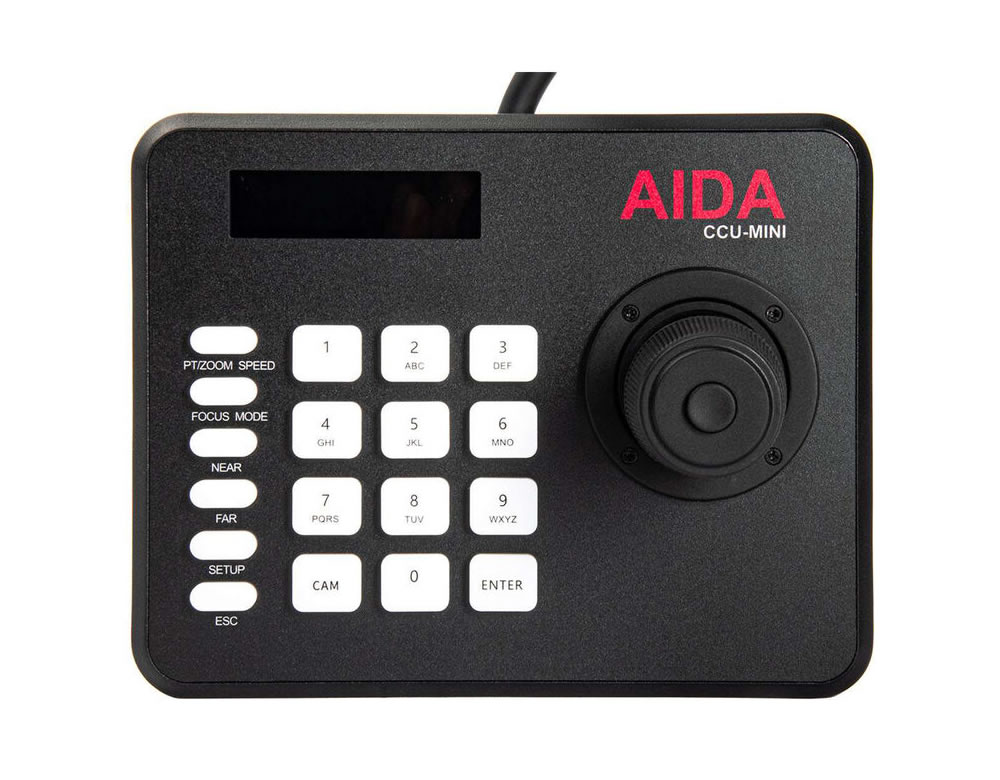

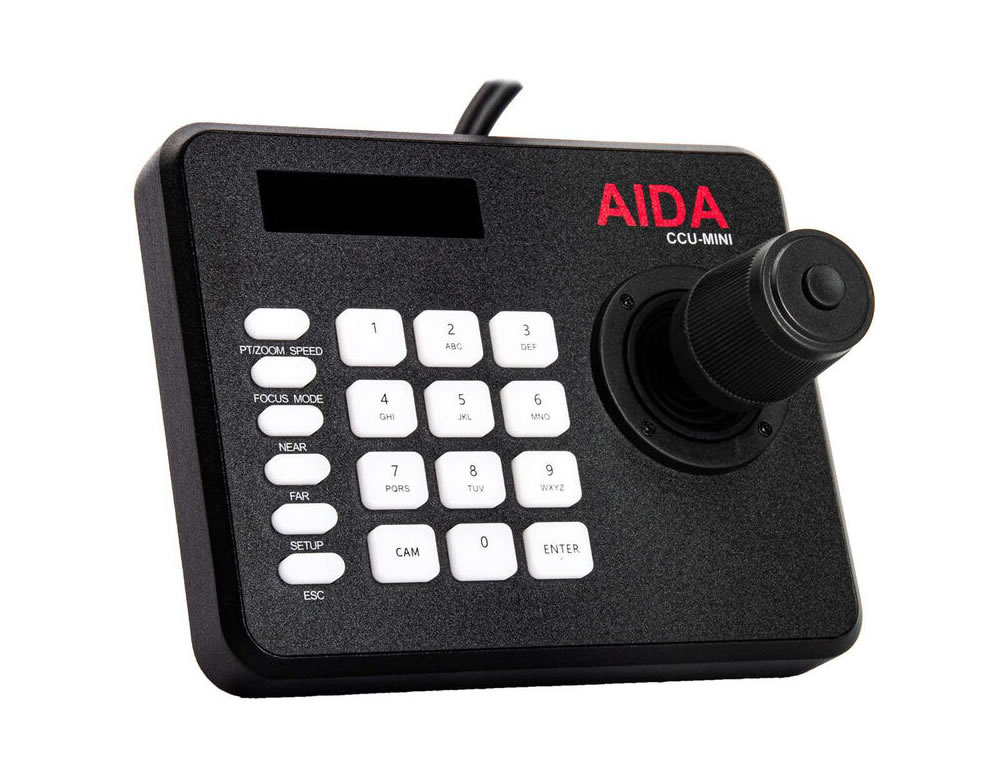

Add this simplified Compact VISCA Serial & IP PTZ Camera Controller from AIDA Imaging to your PTZ camera production for fast camera selection and easy usage. Using the built-in breakout cable, the CCU-MINI can connect to your cameras using the VISCA serial protocol or control IP cameras over a LAN. The breakout cable features a 12 VDC female power input, an RJ45 Ethernet cable, an RS-485 terminal block serial cable, and an RJ45 RS-422 serial cable.Using the 3-way joystick, you can control the pan, tilt, and zoom operations for up to seven cameras. You can select cameras using a single button press, and there are additional buttons for control of focus, pan/tilt speed, and setup operations. A large LCD shows you the status of your camera controls.
Features
- Joystick allows simultaneous control over pan, tilt, and zoom
- Built-in breakout cable with IP, RS-485, RS-422 communication interfaces and DC power input
- VISCA and IP control protocols
- LED display for status
- Can operate up to seven cameras
- Camera select, focus, speed, and menu buttons
