Description

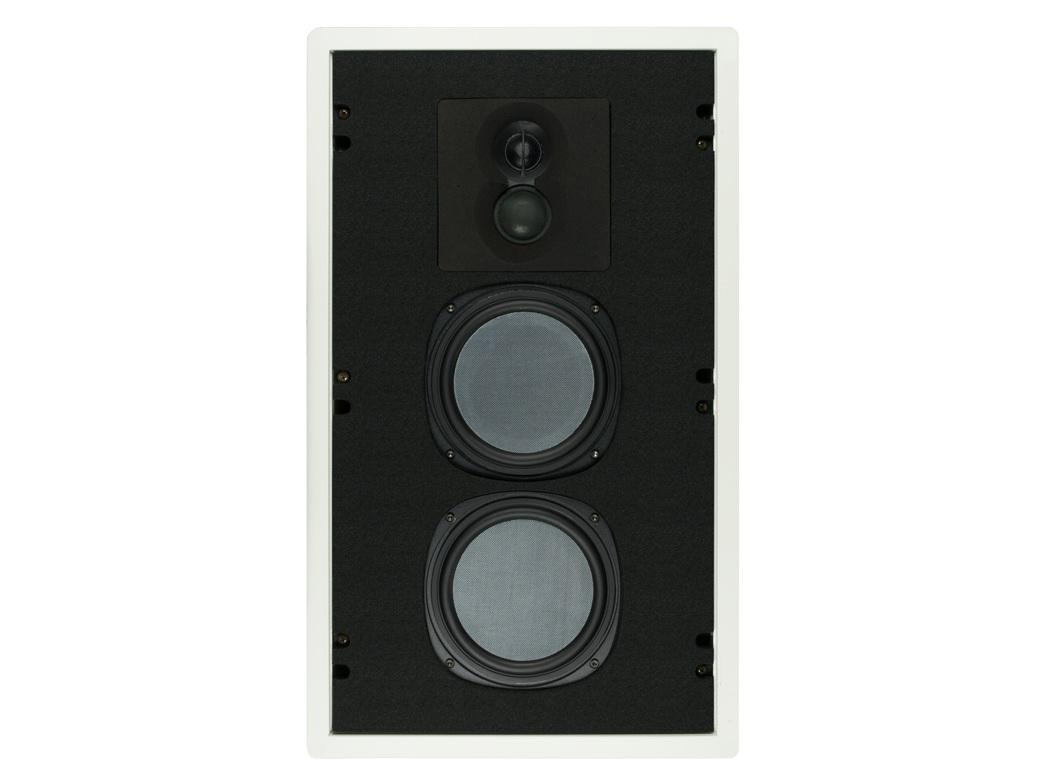

The CI130 is a dual 6.5in 3-way in-wall speaker designed to deliver clear, room-filling audio for residential installations. It pairs two 6.5in woofers with pivoting midrange and tweeter diaphragms to provide wide frequency coverage and focused imaging. The enclosure and driver architecture are optimized to reproduce music and film soundtracks accurately.
Key features include pivoting 1in tweeter and 1.5in midrange soft domes treated with Unicell Acoustic material to reduce wall reflections and improve clarity. The dual 6.5in RPF flat-piston woofers use Kevlar composite cones and NBR surrounds for controlled low-frequency response. A patented Positive Clamping System secures the baffle and improves low-end control for consistent bass performance.
Performance specifications include a measured frequency response of 45 Hz – 22 kHz and a sensitivity of 91 dB at 1W/1M. The speaker presents a nominal impedance of 4 Ohm and accepts a recommended amplifier power range of 20 – 250 W. These metrics yield robust output capability and compatibility with a wide range of AV receivers and amplifiers.
Installation compatibility is supported by a 3.75in mounting depth suitable for many shared-wall applications and a cutout size of 22.375in H x 13in W. The grille is white powder-coated galvanized steel and is paintable to match decor. The unit dimensions are 23.5in H x 14in W x 3.5in D for planning and mounting layouts.
Typical applications include main left/right channels in custom home theaters, distributed in-wall stereo systems, and background music zones where discrete installation and high clarity are required. The CI130 is tuned to deliver articulate midrange and controlled bass for music and movies. It integrates with common AV system components and room configurations.
Build quality emphasizes long-term reliability with treated domes, Kevlar composite cones, and an extruded aluminum Positive Clamping System to maintain baffle stability. The paintable steel grille and shallow mounting depth simplify finishing and installation. Overall, the CI130 provides a balanced combination of imaging precision, bass control, and install-friendly design.
