Description

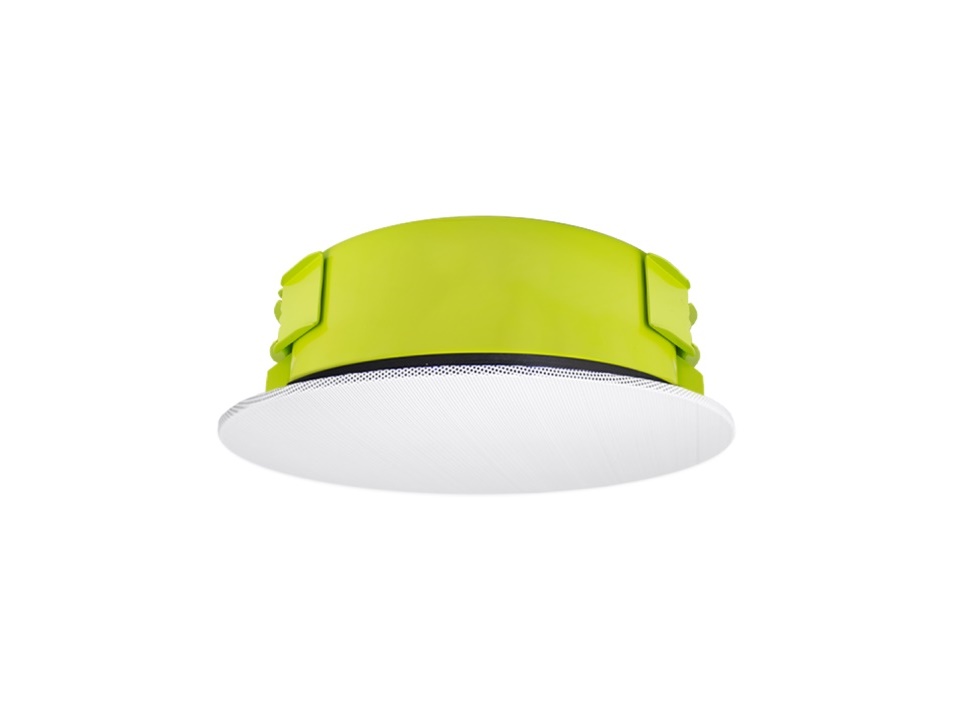

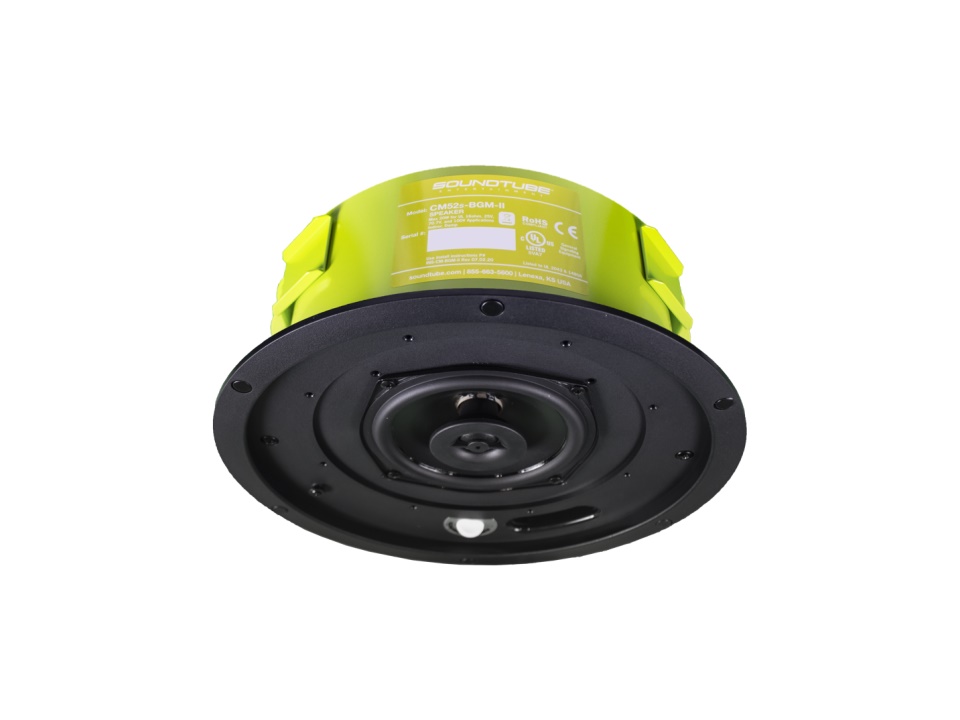

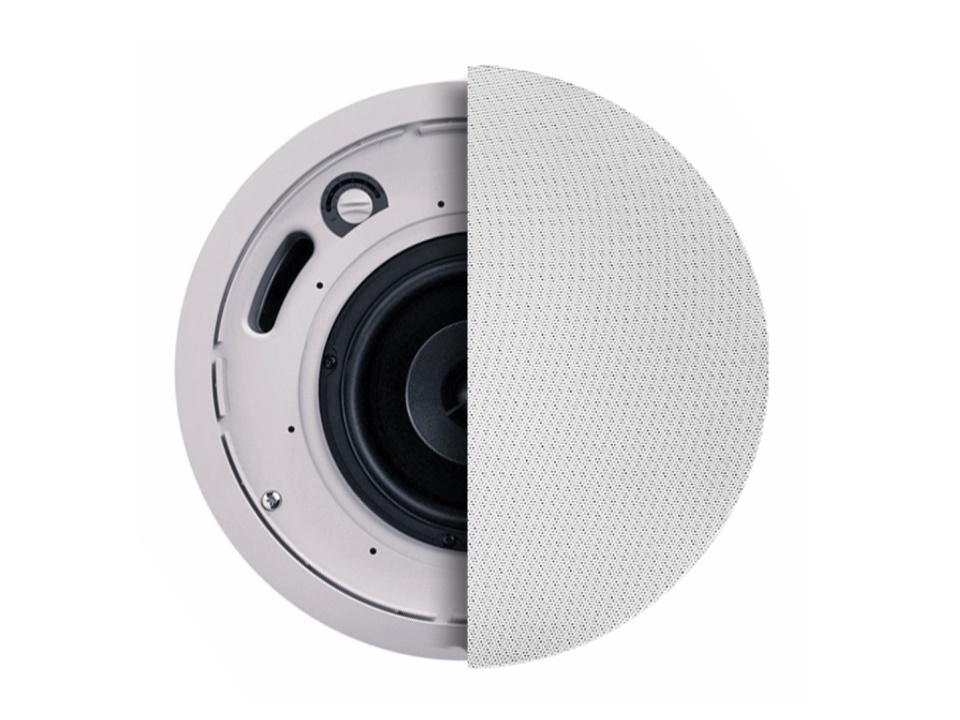

Download Manual Engineered for applications with limited plenum space. Incorporates a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 listed.
Features:
- One 5.25” (130 mm) polypropylene woofer with rubber surround and one .75” (19 mm) silk dome tweeter
- BroadBeam Ring™ technology for mid-range clarity and ultra wide off axis performance
- Easy-access six-position tap switch for 25/70.7/100 V and transformer bypass settings allows for easy ordering, stocking and installation
- Tuned port on baffle for improved bass response down to 56 Hz (±10 dB)
- Reduced amplification costs and maximum efficiency of 83.5 dB sensitivity, 16 Ω impedance
- Incorporates a steel plated and powder coated flangeless magnetic grille for lasting durability and seamless aesthetic (White grille included, but also available in Black)
- Adaptable to material thicknesses ranging from 0.035” (0.9 mm) to 1.6” (40.6 mm)
- UL 1480 and 2043 approved
- High-quality black or white painted finish.
- Included accessories: tile bridge, UL listed 0.5 inch conduit clamp
- Optional accessories: Color-coded (green) preconstruction bracket (AC-CMEZ-6/8-PCB) Black Grill (GRL-CM-BGM-II-BK)
