Description
The CM62-BGM-II-US-WH is an in-ceiling background music speaker designed to deliver clear full-range audio for commercial and institutional environments. It combines a polypropylene woofer and a silk dome tweeter to reproduce music and voice intelligibly across a wide area. The speaker supports constant-voltage systems to simplify integration into distributed audio networks.
Key features include BroadBeam Ring technology for improved mid-range clarity and smooth off-axis dispersion, a six-position tap switch offering 25V / 70.7V / 100V taps plus transformer bypass, and a tuned port on the baffle for extended low-frequency response. The enclosure uses a painted steel magnetic seamless grille for a refined appearance and durability. Sensitivity and impedance are optimized for efficient use with commercial amplifiers.
Performance specifications include a frequency response of 50 Hz – 22 kHz (±10 dB) and 54 Hz – 20 kHz (±3 dB), a nominal impedance of 16 ohm, and a max continuous RMS power rating of 50 W with a 100 W program power capability. The speaker achieves a maximum SPL of 101.5 dB at 1 meter and is voiced to provide balanced background music clarity down to approximately 64 Hz at -10 dB. The crossover design engages at 4 kHz to manage high-frequency output.
Connectivity is provided via wire leads for reliable connection to amplifier outputs or constant-voltage distribution systems. The user-accessible rotary tap selector simplifies configuration for 25V / 70.7V / 100V systems or transformer bypass. The product is IPX3 rated, TAA compliant, and BAA compliant for installations requiring Buy American Act conformance.
Use cases include retail spaces, hospitality, corporate common areas, government facilities where BAA compliance is required, and other environments seeking unobtrusive ceiling-mounted background music. Broad dispersion and balanced voicing make the speaker appropriate for evenly distributed background music and paging systems. The magnetic grille provides a clean ceiling appearance while allowing easy service access.

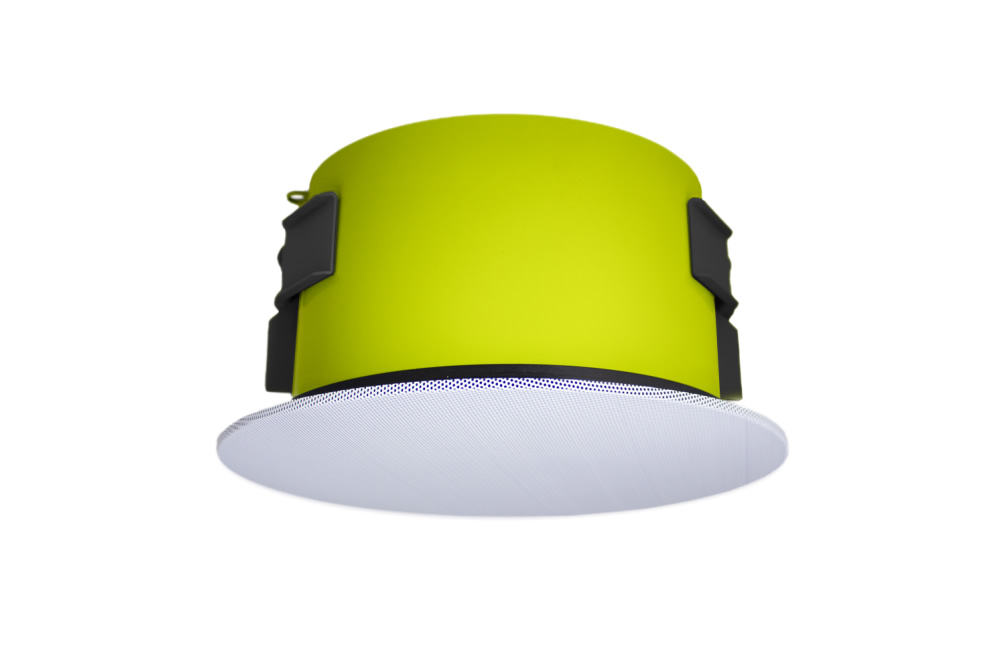

Installation is simplified with included tile bridge and conduit clamp and an adaptable cutout allowance for material thicknesses from 0.035 in to 1.6 in (0.9 mm to 40.6 mm). The magnetic seamless grille mounts without visible fasteners for a finished aesthetic and the robust painted steel construction resists wear in commercial settings. The six-position tap and transformer bypass ensure installers can quickly configure the speaker to match system requirements.
