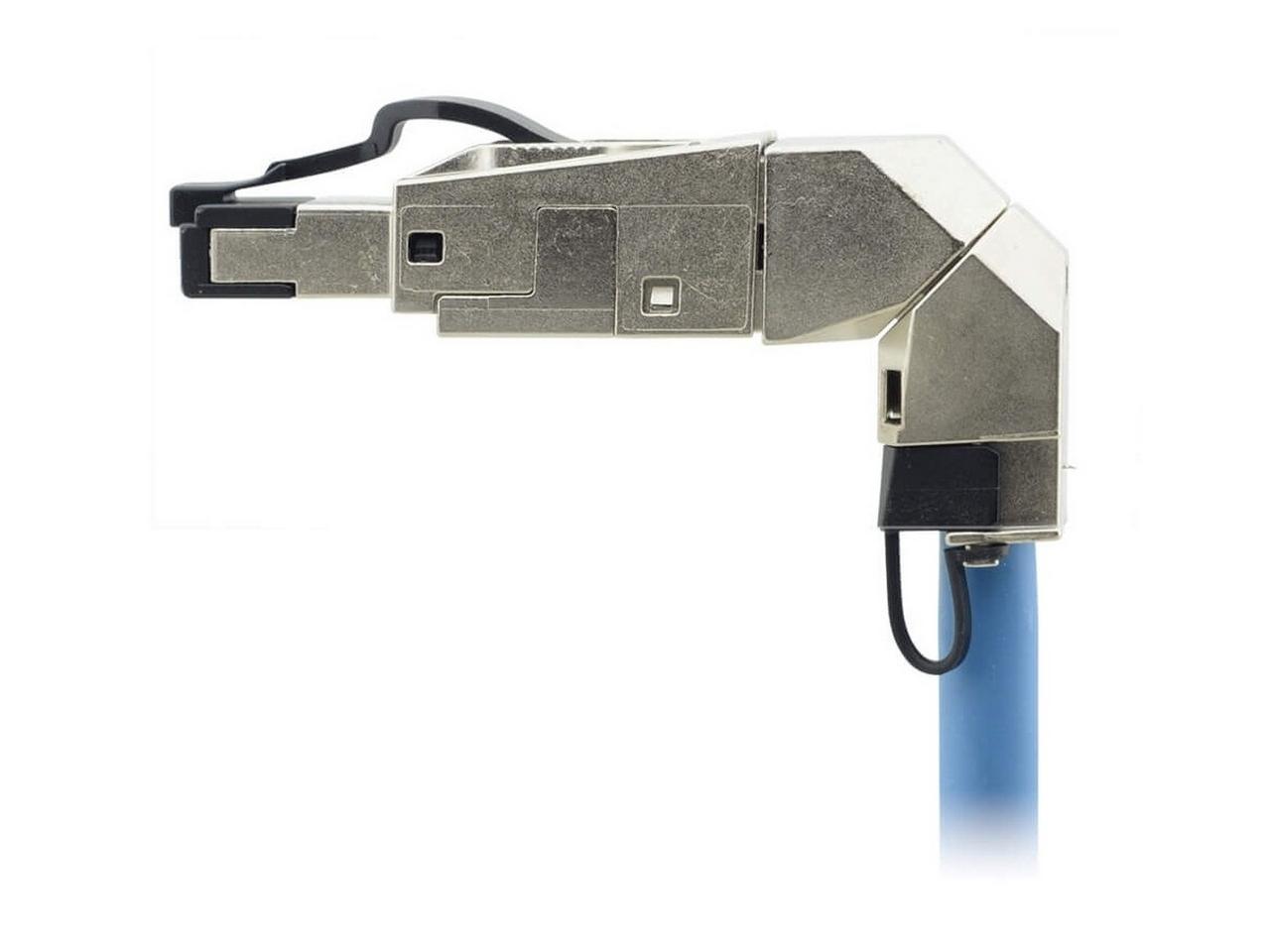

Kramer CON-FIELD-360 Field assembly 360 degree Shielded RJ-45 Connector

OVERALL

• DESIGN: Plug
• SHIELDING: Shielded
• TRANSMISION TECHNOLOGY: Copper
• COLOR: Black
• DIMENSIONS: CON–FIELD: 49.8mm x 13.8mm x 16.5mm (1.96" x 0.543" x 0.65"), CON–FIELD–360: 61.70mm x 13.80mm x 27.50mm (2.43" x 0.54" x 1.08")
• MULTI-PORT CAPABILITY : Yes
• CABLE ACCESS/OUTLET: CON–FIELD–360: Variable, 8 positions, CON–FIELD: 180°

REGULATORY PERFORMANCE

• CATEGORY (ISO): 6A
• CATEGORY (TIA): 6A
• CLASS (ISO/IEC): EA
• REMOTE POWERING: Yes
• POE/POE PLUS: IEEE 802.3af/IEEE 802.3at
• UPOE: Yes
• HDBASET: Yes
• TRANSMISSION RATE UP TO 10GBIT: IEEE 802.3an

CONSTRUCTION

• HOUSING: GD–Zn (Zinc die–cast)
• CONTACTS: : CuSn (tinned bronze)
• CONTACT FINISH: Ni + Au (nickel–gold)
• LATCH: Plastic

REGULATORY

• GENERAL REQUIRMENTS: ISO/IEC 11801 Ed. 2.2:2011–06
• GENERAL REQUIRMENTS: DIN EN 50173–1:2011–09
• GENERAL REQUIRMENTS: TIA/EIA 568–C
• OFFICE BUIDINGS: ISO/IEC 11801 Ed. 2.2:2011–06
• OFFICE BUIDINGS: DIN EN 50173–2:2011–09
• OFFICE BUIDINGS: TIA/EIA 568–C
• INDUSTRIAL AREA: ISO/IEC 24702
• INDUSTRIAL AREA: DIN EN 50173–3:2011–09
• INDUSTRIAL AREA: TIA/EIA 1005
• LIVING UNITS: ISO/IEC 15018
• LIVING UNITS: DIN EN 50173–4: 2011–09
• LIVING UNITS: TIA/EIA 570–B
• CE: Compliant
• ROHS: Compliant

DIAMETERS

• TERMINATION, SOLID WIRE: CONDUCTOR CROSS SECTION AWG: AWG 26/1–22/1
• TERMINATION, SOLID WIRE: CONDUCTOR CROSS SECTION: 0.128–0.324mm2
• TERMINATION, SOLID WIRE: CONDUCTOR DIAMETER: 0.409–0.643mm (0.016–0.025")
• TERMINATION, STRANDED WIRE: CONDUCTOR CROSS SECTION AWG: AWG 27/7–22/7
• TERMINATION, STRANDED WIRE: CONDUCTOR CROSS SECTION: 0.111–0.355mm2
• TERMINATION, STRANDED WIRE: CONDUCTOR DIAMETER: 0.457–0.762mm (0.018–0.030")
• CABLE SHEATH DIAMETER: 5.5–10.5mm (0.217–0.413")

ELECTRICAL

• CURRENT: 1A (max)
• RATED VOLTAGE: 50V (max)
• CONTACT RESISTANCE: 20mΩ (max)
• INSULATION RESISTANCE: 500MΩ (min)
• DIELECTRIC STRENGTH: CONDUCTOR–SHIELD: 1500V DC

USAGE & ENVIRONMENTAL

• INSERTION AND WITHDRAWAL FORCE: 20N max
• LIFE-NUMBER OF MATING CYCLES: 750 min
• STRAIN RELIEF: Latching clip
• STORAGE TEMPERATURE: –40 — 70°C (–40 — 158°F)
• OPERATING TEMPERATURE: –40 — 70°C (–40 — 158°F)
