Description

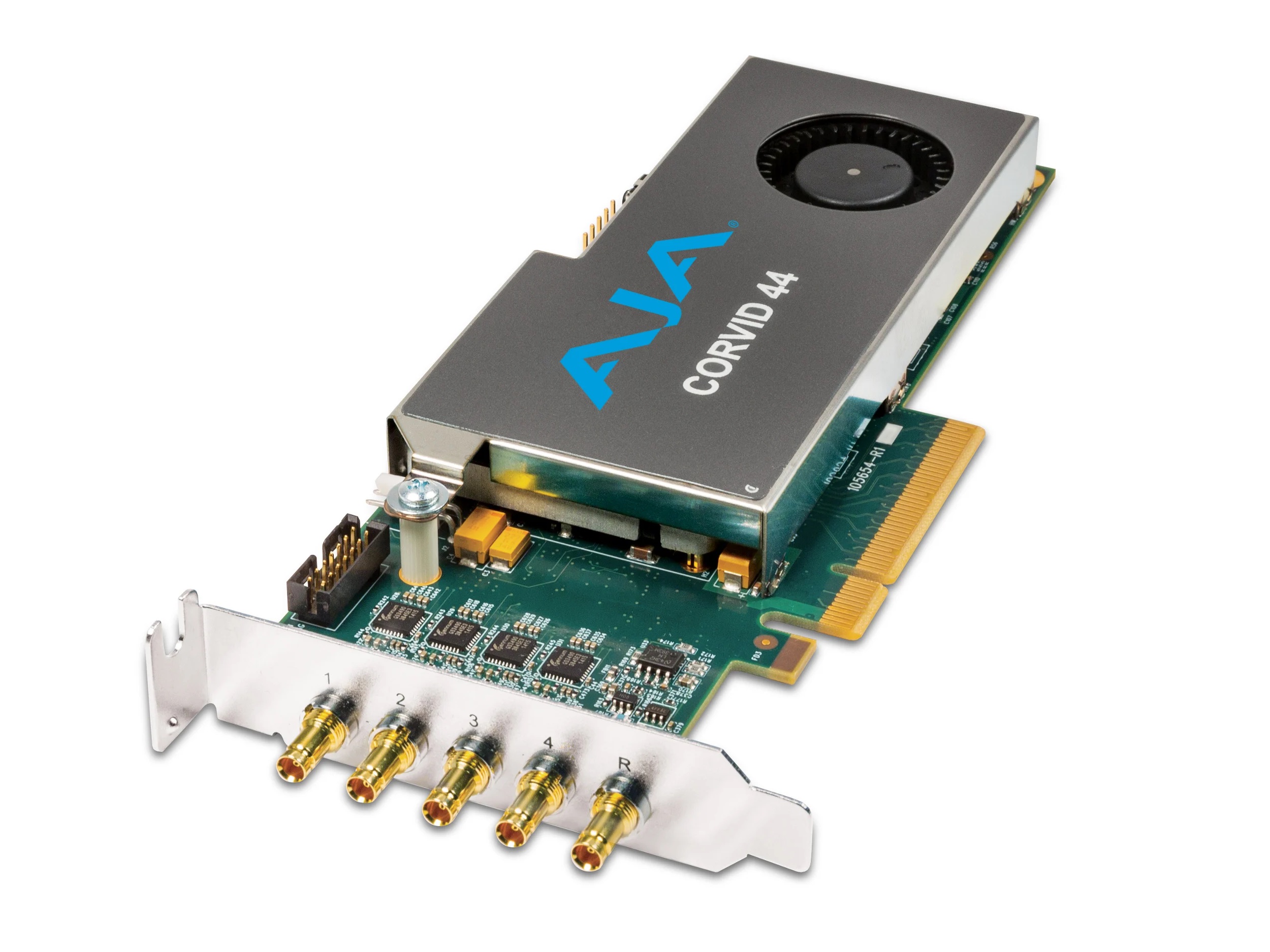

Increase your video and audio I/O capacity with AJA’s Corvid 44 lineup of multi-format I/O PCIe cards with this model, the CRV44-S-NC1 featuring a low profile build with no cables included. With AJA’s Corvid 44 PCIe cards you can configure each SDI connection individually as input or output and mix formats for up to four HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections into a single 4K/UltraHD channel, allowing incredible flexibility and future proofing.
Other highlights of note with the Corvid 44 architecture include:
- Multi-Stream, Multi-Format PCIe I/O Card: Corvid 44 allows AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it perfect for a wide variety of medium density applications.

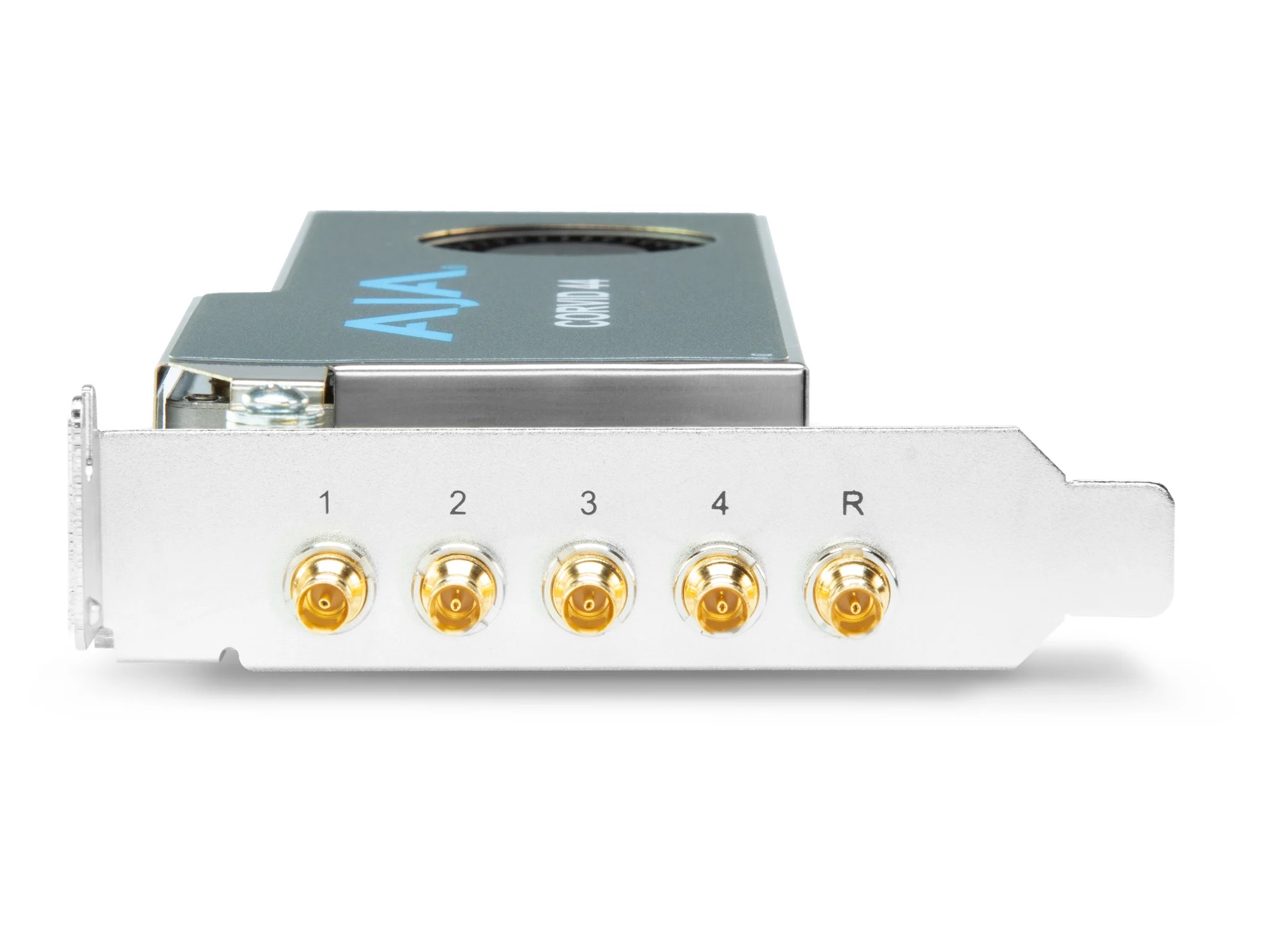

- Flexible Multi-Format I/O: Each BNC connection on Corvid 44 can be set programmatically as either an input or output and each can support a different video format, provided all format use the same clock timing. Connections can also be linked together to support dual link or4K/UltraHD formats.
- High Frame Rate Support: Corvid 44 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with Corvid 44, multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 44 extremely flexible for your current and future needs.
Features:
- PCIe Express Gen 2.0 8-lane
- Up to four independent* channels 3G, HD, SD-SDI I/O
- All SD/HD/2K x 1080/4K video formats
- 3G input/output for High Frame Rate (HFR) support
- 8/10-bit YCbCr and 12- bit RGB frame buffer formats
- 2 independent Mixer/Keyer widgets.
- 4 independent 16-channel 48 kHz SDI embedded audioI/O engines
- Analog Color Black or HD Tri-Level Sync
- Three year warranty
- NOTE: * Channels must use the same master clock. Eg, 29.97 and 59.94
