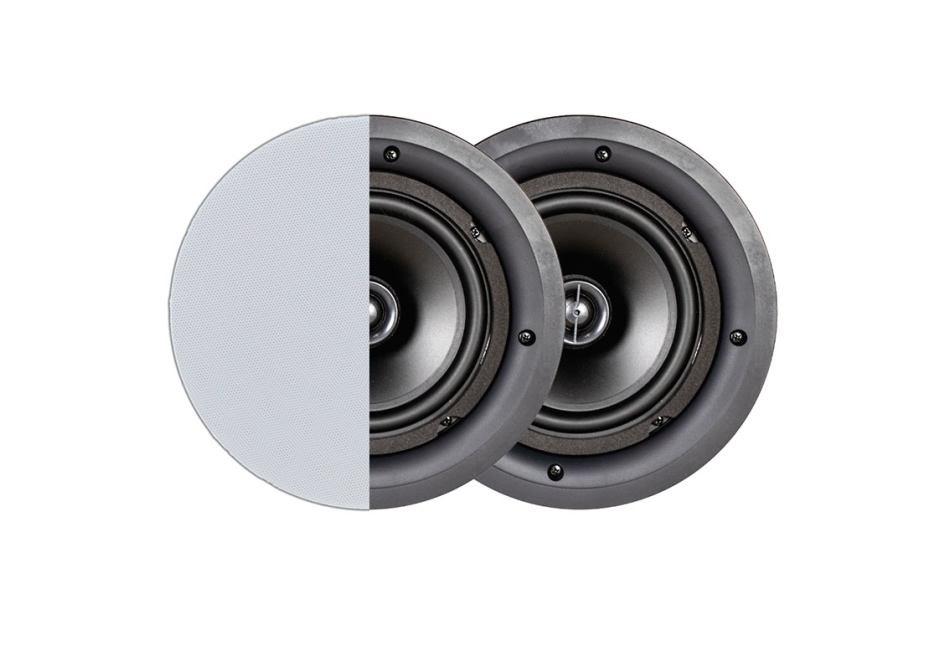

Download Manual The CS-6R Pair are 6.5in coaxial 2-way in-ceiling speakers designed to deliver clear full-range audio in fixed installations. They combine a polypropylene woofer and a variable-axis soft dome tweeter to cover a 50 Hz – 20 kHz frequency range. The design emphasizes clean on-axis response and a low-visibility paintable micro-flange grille – blending acoustics and aesthetics.

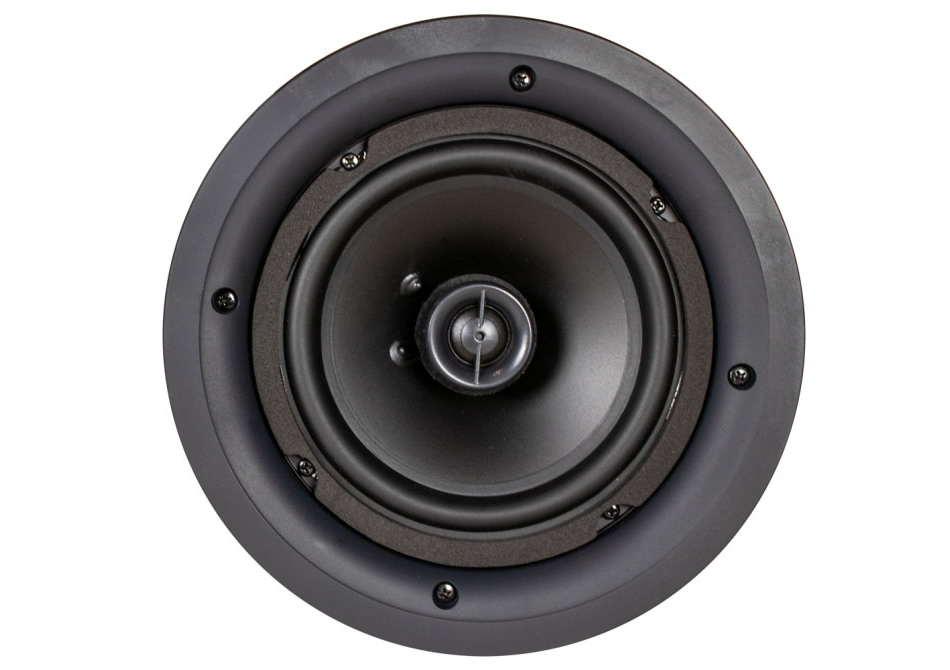

Key features include a 6.5in coaxial polypropylene woofer with NBR surround and a 0.75in variable-axis soft dome tweeter. The CS-6R uses a true high-pass/low-pass crossover to optimize driver integration and reduce distortion. The magnetic flangeless grille provides a near-invisible appearance and is paintable to match ceiling finishes.
Performance specifications include 87 dB sensitivity measured at 2.83V/1M and an 8 ohm nominal impedance. Recommended amplifier power ranges from 5 to 100 W to suit a variety of system scales. The frequency response of 50 Hz – 20 kHz preserves low-frequency presence while keeping vocal clarity and high-frequency detail.

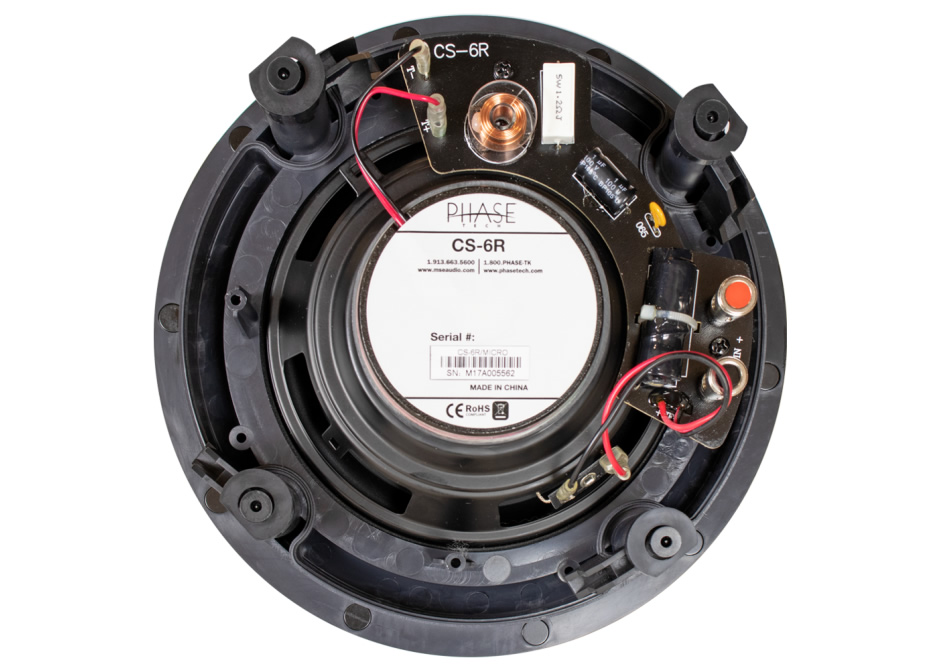

Connectivity is handled by high-quality metal push binding posts for reliable wire termination. The speaker is specified for infinite baffle installation and requires an 8.06in cutout diameter and 2.87in mounting depth. Optional pre-construction brackets are available to simplify installation in new builds.
The CS-6R Pair are suitable for background music systems, conference rooms, retail environments, and hospitality spaces where unobtrusive ceiling-mounted audio is required. Their balanced frequency response and 87 dB sensitivity make them effective in both voice and music reproduction. The paintable micro-flange grille maintains a discreet visual profile in finished interiors.
Installation is straightforward using the included hole template and magnetic grille. The shallow mounting depth and standard cutout diameter reduce ceiling access and simplify retrofit projects. Overall construction and binding post connections support long-term reliability and serviceability in professional installations.
